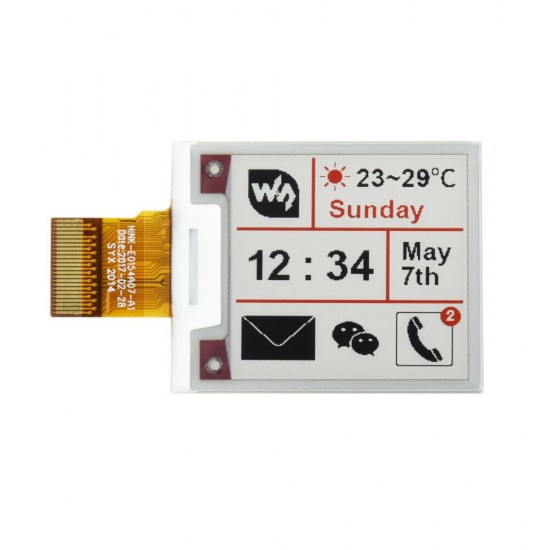

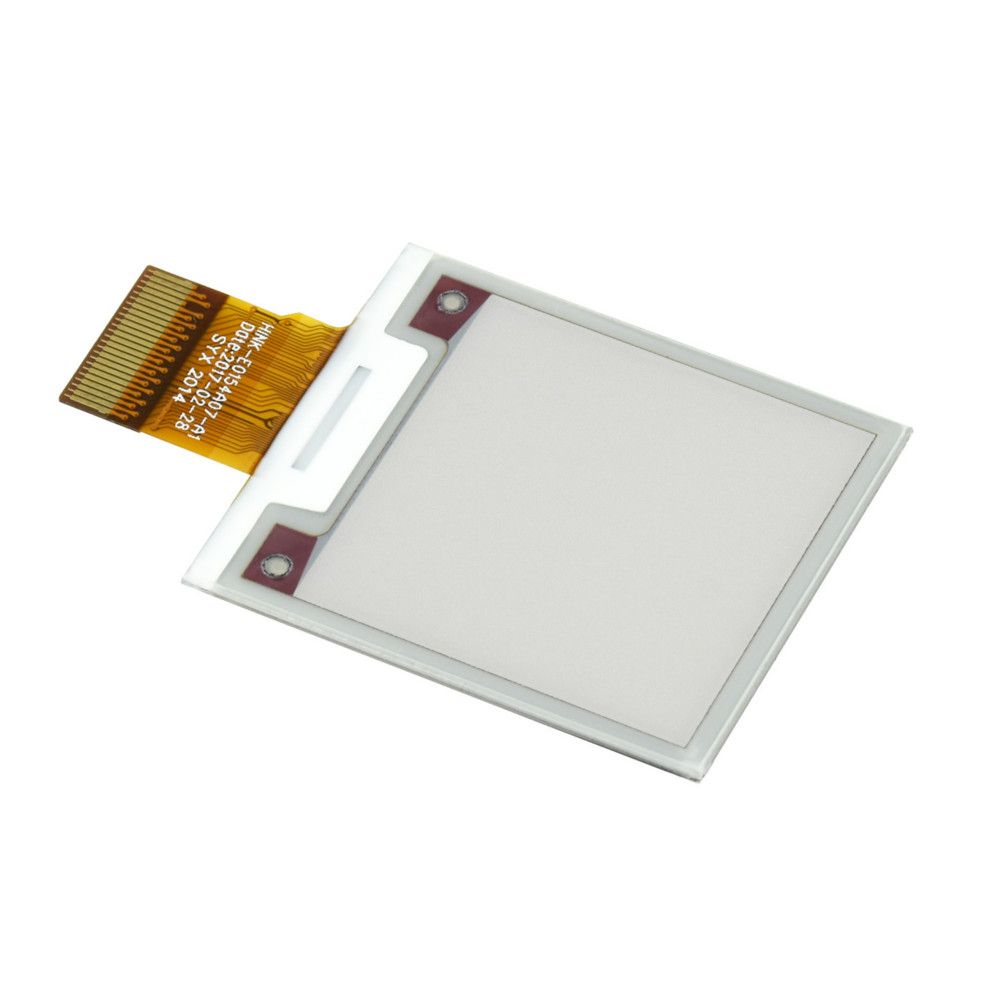

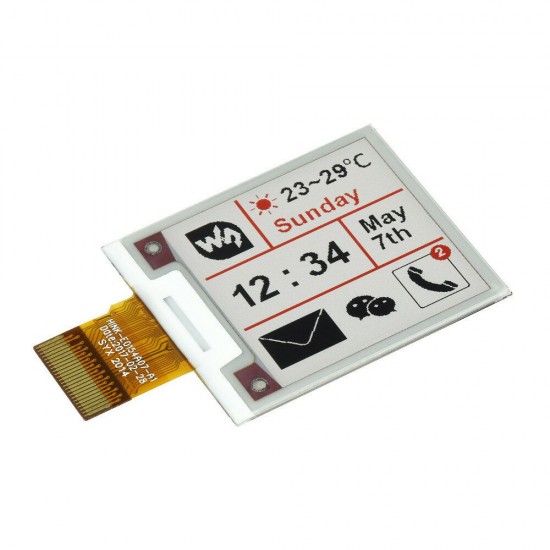

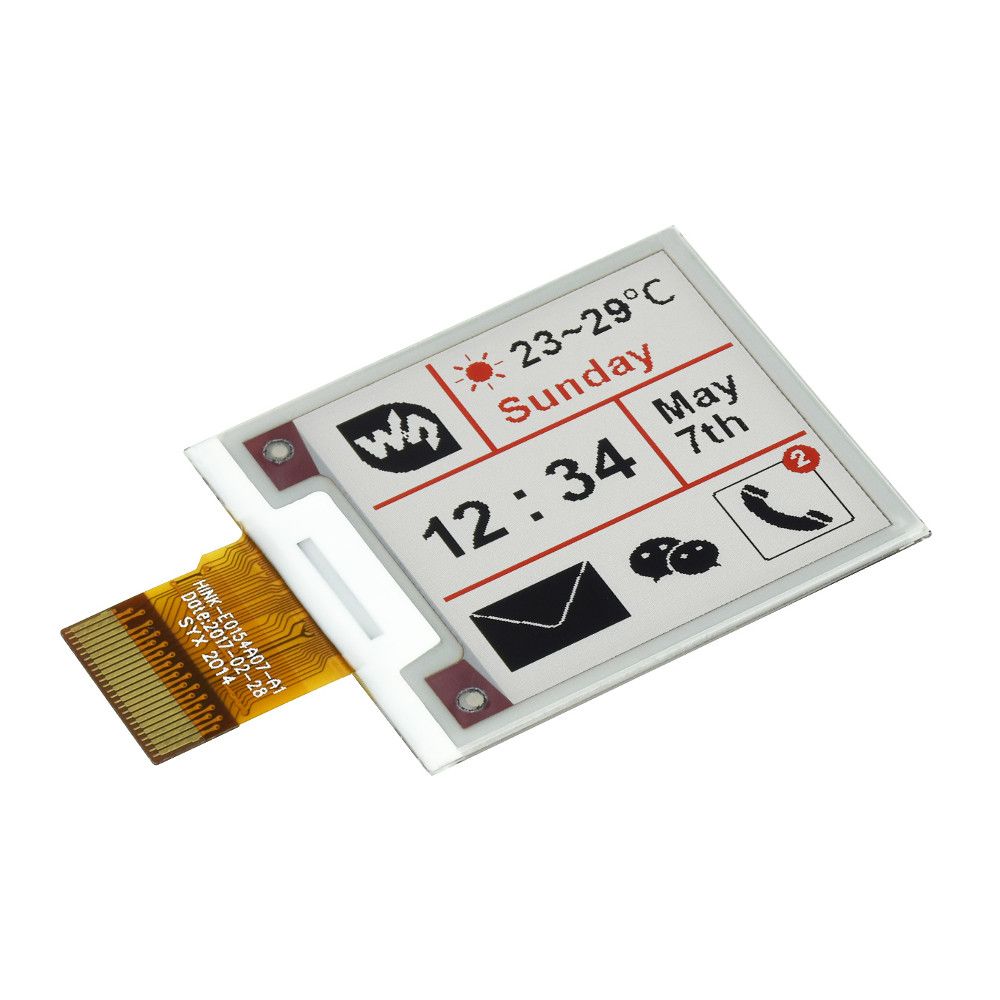

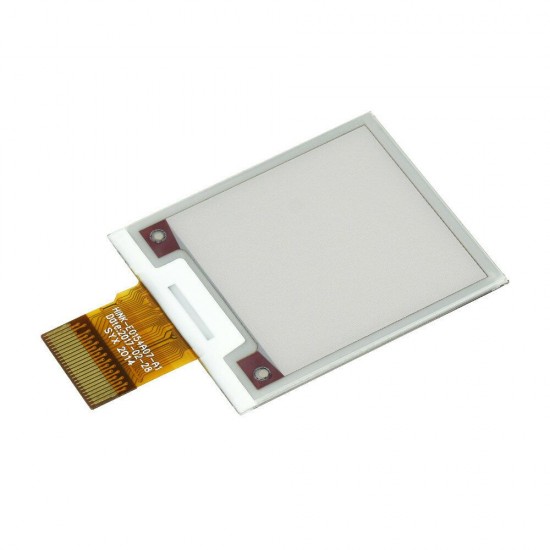

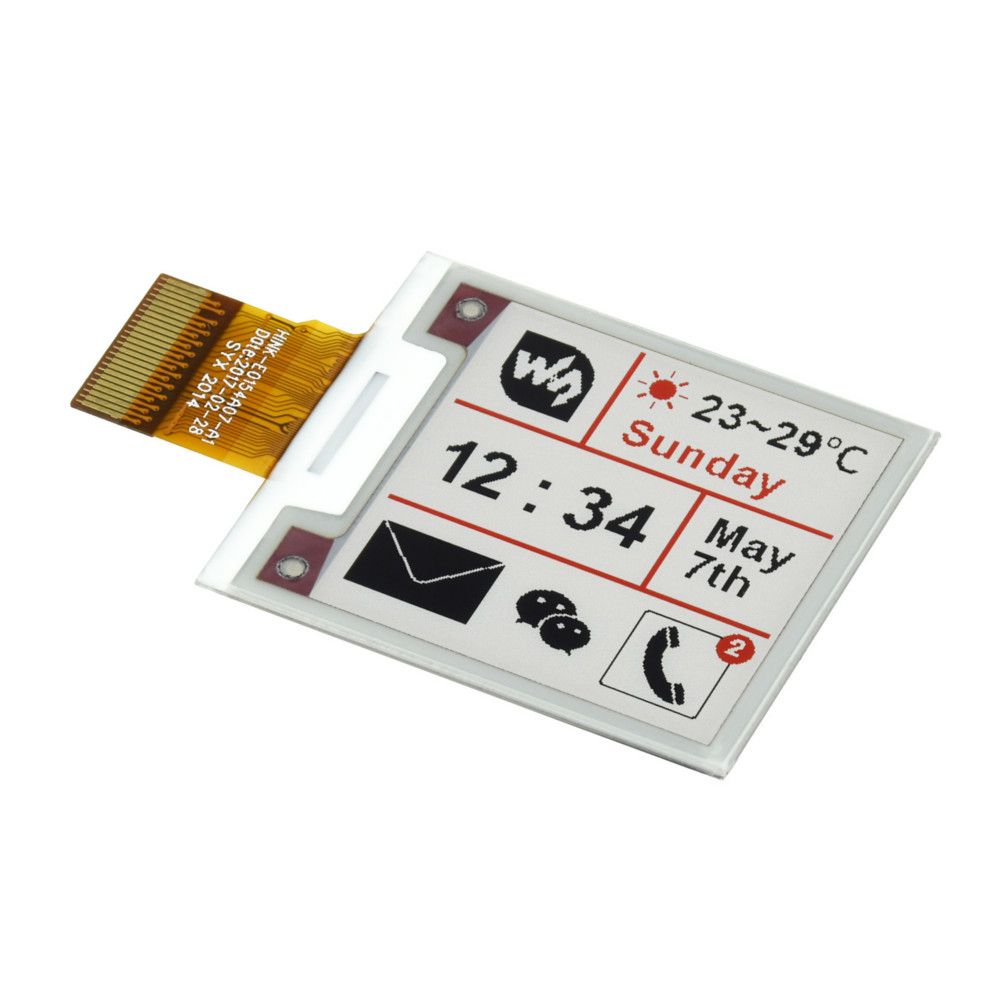

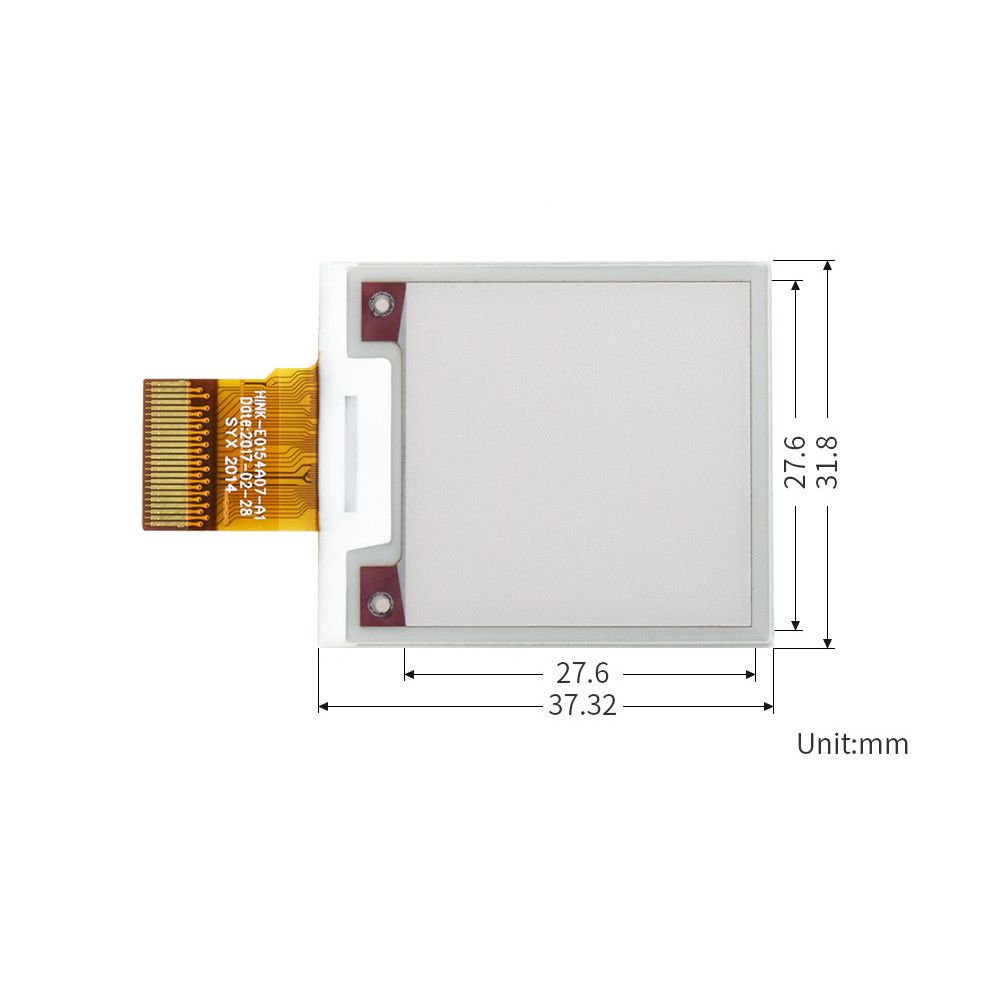

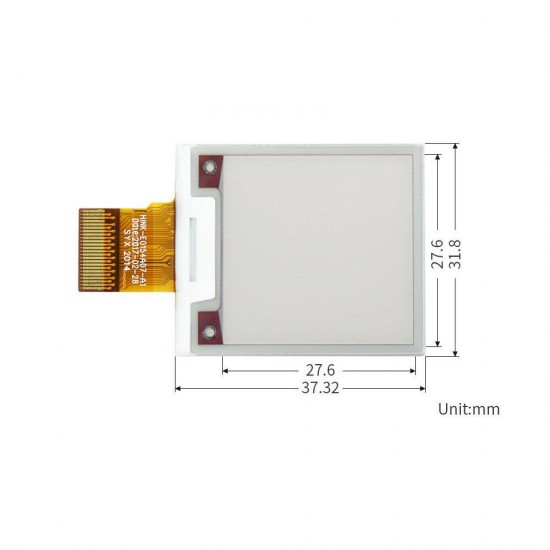

1.54 Inch Ink Screen 200x200 Bare Screen Electronic Paper Display SPI Interface Red Black and White Three Colors E-paper
- Stock: In Stock
- Model: EB0050482
- SKU: EB0050482
- Voltage: 3.3V
Precise details:
| VCC | 3.3V |
| GND | GND |
| DIN | SPI MOSI |
| CLK | SPI SCK |
| CS | SPI chip select (Low active) |
| DC | Data/Command control pin (High for data, and low for command) |
| RST | External reset pin (Low for reset) |
| BUSY | Busy state output pin (Low for busy) |
| VCC | 3.3V |
| GND | GND |
| DIN | SPI MOSI |
| CLK | SPI SCK |
| CS | SPI chip select (Low active) |
| DC | Data/Command control pin (High for data, and low for command) |
| RST | External reset pin (Low for reset) |
| BUSY | Busy state output pin (Low for busy) |
