$30.99
Ex Tax: $30.99
  • Stock: In Stock
  • Model: EB0044884
  • SKU: EB0044884
Description:

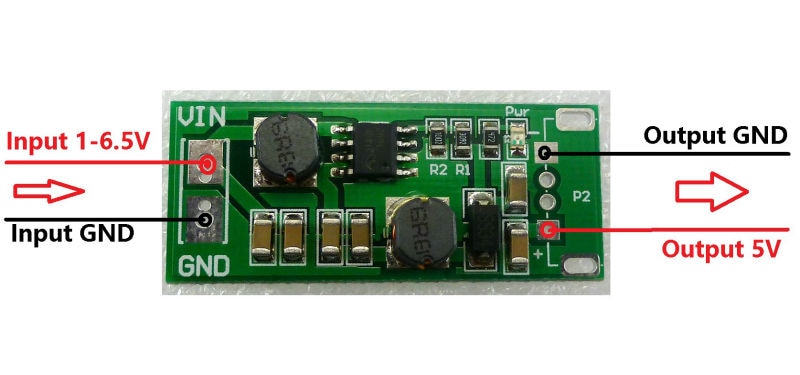

Input voltage DC 1 ~ 6V, output DC 5V(+-6%)
The maximum input voltage can not exceed 6.5V
Short-term maximum output current : 12000mA
Long time maximum output current: 1000mA
Auto Buck-Boost Converter Module working frequency 1MHZ.efficiency 60%-85% .
Operating temperature : -25~+85 Degrees Celsius
Storage temperature : -45~+125 Degrees Celsius
Size : 38mm x 16mm x 5.7mm
Weight : 3g

10pcs-DD1205UA-DC-to-DC-15V-3V-33V-37V-6V-to-5V-DC-Buck-Boost-Converter-Step-Up-Down-Voltage-Convert-1661946

10pcs-DD1205UA-DC-to-DC-15V-3V-33V-37V-6V-to-5V-DC-Buck-Boost-Converter-Step-Up-Down-Voltage-Convert-1661946


Applications:

Battery powered equipment
Wireless Module,NRF24L01 CC1101 CC2500 etc.
MCU Development Board,AVR PIC FPGA/CPLD STM32
Arduiuo UNO3 mega2560 due Breadboard for Raspberry Pi
LED Lighting
Wireless communication equipment
Audio equipment
Digital cameras,GPS,wireless transceiver
Portable devices

Attention:

1. Input voltage can not be greater than the maximum input.
2. Output power can not be greater than the maximum load for a long time.
3. Input power must be greater than the output power, because the power consumption of the module itself.

Package Included:

10 x 1.5V 3V 3.3V 3.7V 6V to 5V DC Buck Boost Converter
