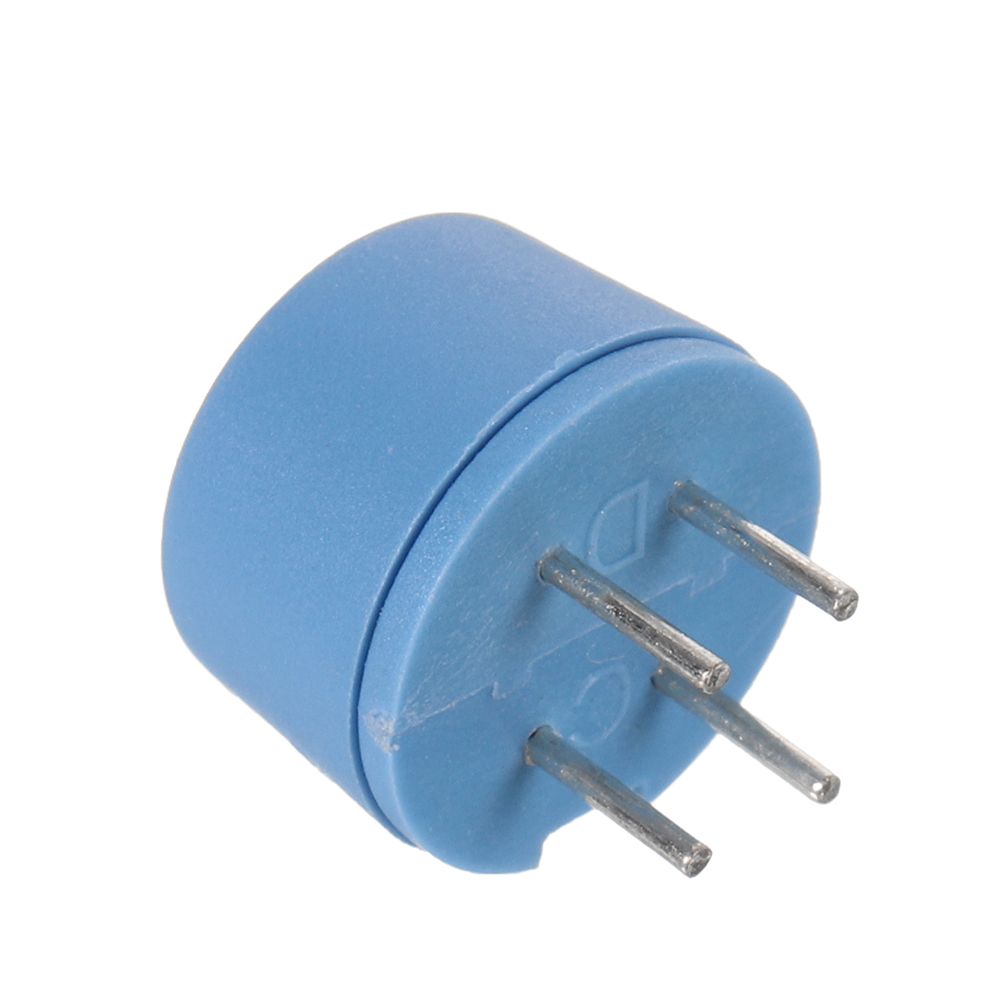

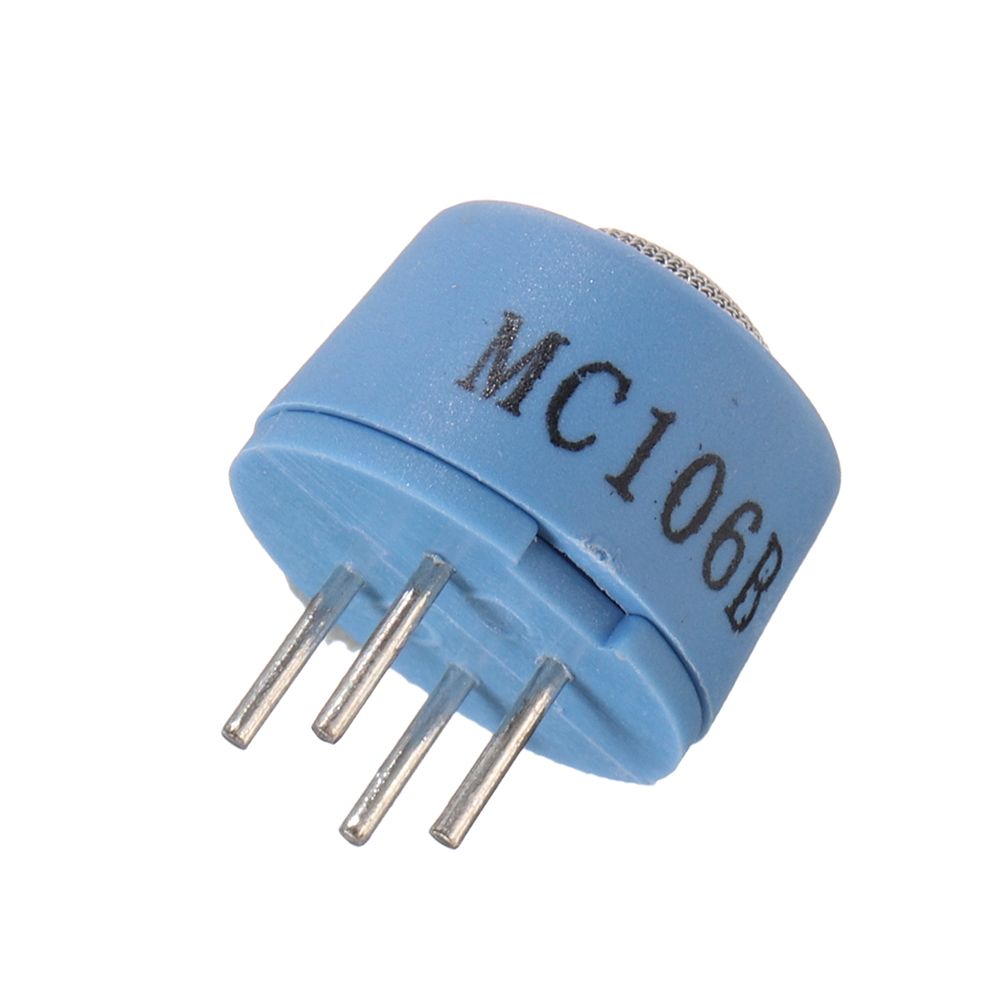

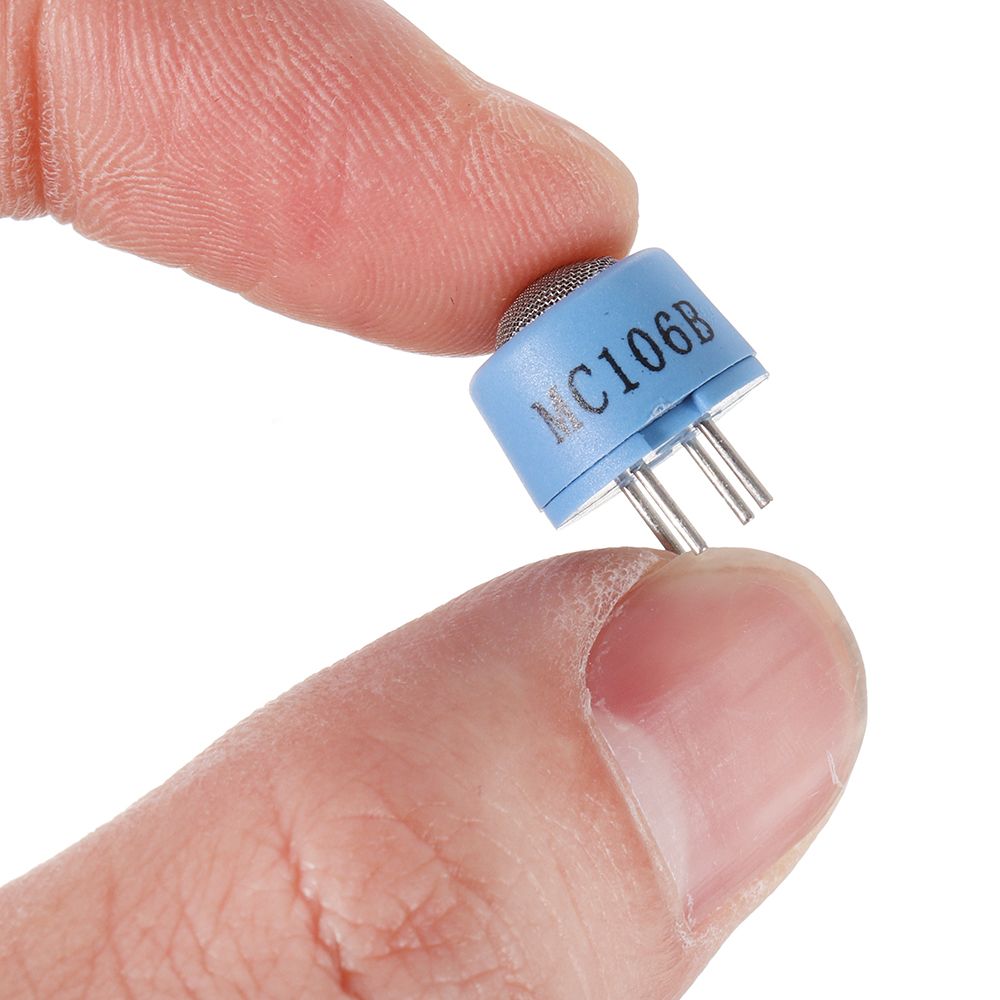

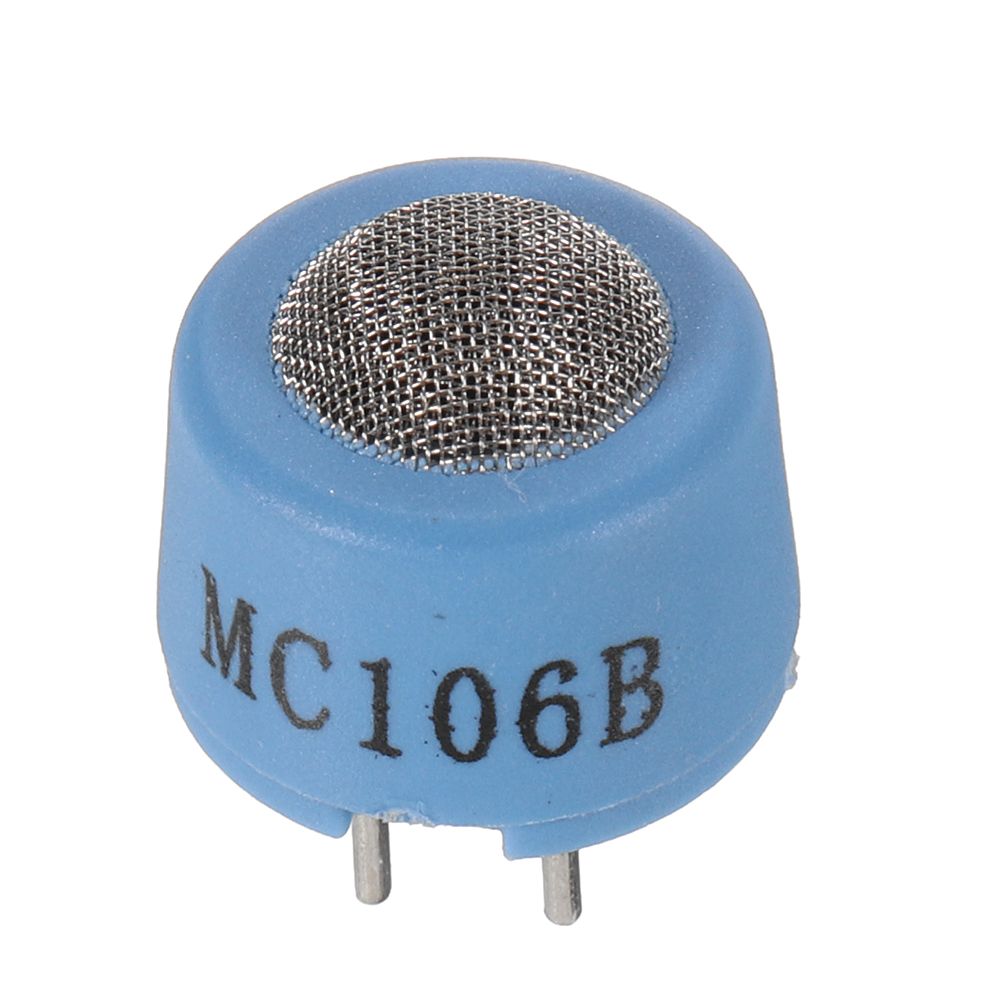

10pcs MC106B Catalytic Combustion Gas Sensor Module for Flammable Gas Leak AlDetector Gas Concentration Meter

Based on 0 reviews. - Write a review

$32.99

Ex Tax: $32.99

Stock: In Stock
Model: EB0047063
SKU: EB0047063

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

>>> Manual: Click here to open <<<

Principle Introduction:

The MC106B catalytic combustion gas sensor works according to the principle of catalytic combustion effect. The detection element and the compensation element are paired to form an arm of the bridge. When the flammable gas is encountered, the resistance of the detection element increases and the output voltage of the bridge changes. The gas concentration increases to a proportional increase, and the compensation element functions as a reference and temperature and humidity compensation.

Features:

The output voltage of the bridge is linear, the response speed is fast, it has good repeatability and selectivity, the component works stably and reliably, and it has good resistance to hydrogen sulfide and silicone interference.

Applications:

It can be used to detect the concentration of flammable gases such as natural gas, liquefied gas, coal gas and alkanes in industrial sites. It can also be applied to flammable gas leak alarms, flammable gas detectors, and gas concentration meters.

Specifications:

Product model: MC106B

Product type: Catalytic combustion gas sensor

Working voltage (V): 2.5 ± 0.1

Working current (mA): 150 ± 10

Sensitivity (mV): 1% methane 15 ～ 45; 1% propane 25 ～ 65

Linearity: ≤5%

Measuring range (% LEL): 0 ~ 100

Response time (90%): ≤10s

Recovery time (90%): ≤30s

Operating environment: -40 ～ + 70 ℃, lower than 95% RH

Storage environment: -20 ～ + 70 ℃, lower than 95% RH

Package Included:

10 x MC106B Catalytic Combustion Gas Sensor Module
