10pcs TZT 5V Piezoelectric Film Vibration Sensor Switch Module TTL Level Output

10pcs TZT 5V Piezoelectric Film Vibration Sensor Switch Module TTL Level Output
10pcs TZT 5V Piezoelectric Film Vibration Sensor Switch Module TTL Level Output
10pcs TZT 5V Piezoelectric Film Vibration Sensor Switch Module TTL Level Output
10pcs TZT 5V Piezoelectric Film Vibration Sensor Switch Module TTL Level Output
10pcs TZT 5V Piezoelectric Film Vibration Sensor Switch Module TTL Level Output
10pcs TZT 5V Piezoelectric Film Vibration Sensor Switch Module TTL Level Output
10pcs TZT 5V Piezoelectric Film Vibration Sensor Switch Module TTL Level Output
10pcs TZT 5V Piezoelectric Film Vibration Sensor Switch Module TTL Level Output
10pcs TZT 5V Piezoelectric Film Vibration Sensor Switch Module TTL Level Output
10pcs TZT 5V Piezoelectric Film Vibration Sensor Switch Module TTL Level Output
10pcs TZT 5V Piezoelectric Film Vibration Sensor Switch Module TTL Level Output
10pcs TZT 5V Piezoelectric Film Vibration Sensor Switch Module TTL Level Output
10pcs TZT 5V Piezoelectric Film Vibration Sensor Switch Module TTL Level Output
$24.99
Ex Tax: $24.99
  • Stock: In Stock
  • Model: EB0045998
  • SKU: EB0045998

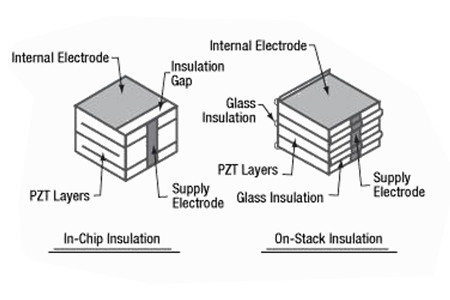

Piezoelectric Ceramics:

Piezoelectric ceramics are functional ceramic materials that convert mechanical energy and electrical energy. Piezoelectric effect. In addition to piezoelectricity, piezoelectric ceramics have dielectric properties, elasticity, and the like, and have been widely used in medical imaging. Acoustic sensors, acoustic sensors, ultrasonic motors, etc.
Piezoelectric ceramics are made by the relative stress of the internal positive and negative charge centers under mechanical stress, which results in opposite bound charges, ie piezoelectric effects, and sensitive properties at both ends of the material.
Ceramics are mainly used in the manufacture of ultrasonic transducers, hydroacoustic transducers, electroacoustic transducers, ceramic filters, ceramic transformer, ceramic discriminators, high voltage generators, infrared detectors, surface acoustic wave devices, electro-optic devices, pllot ignition Device, piezoelectric gyroscope, etc.

10pcs-TZT-5V-Piezoelectric-Film-Vibration-Sensor-Switch-Module-TTL-Level-Output-1605794


Feature:

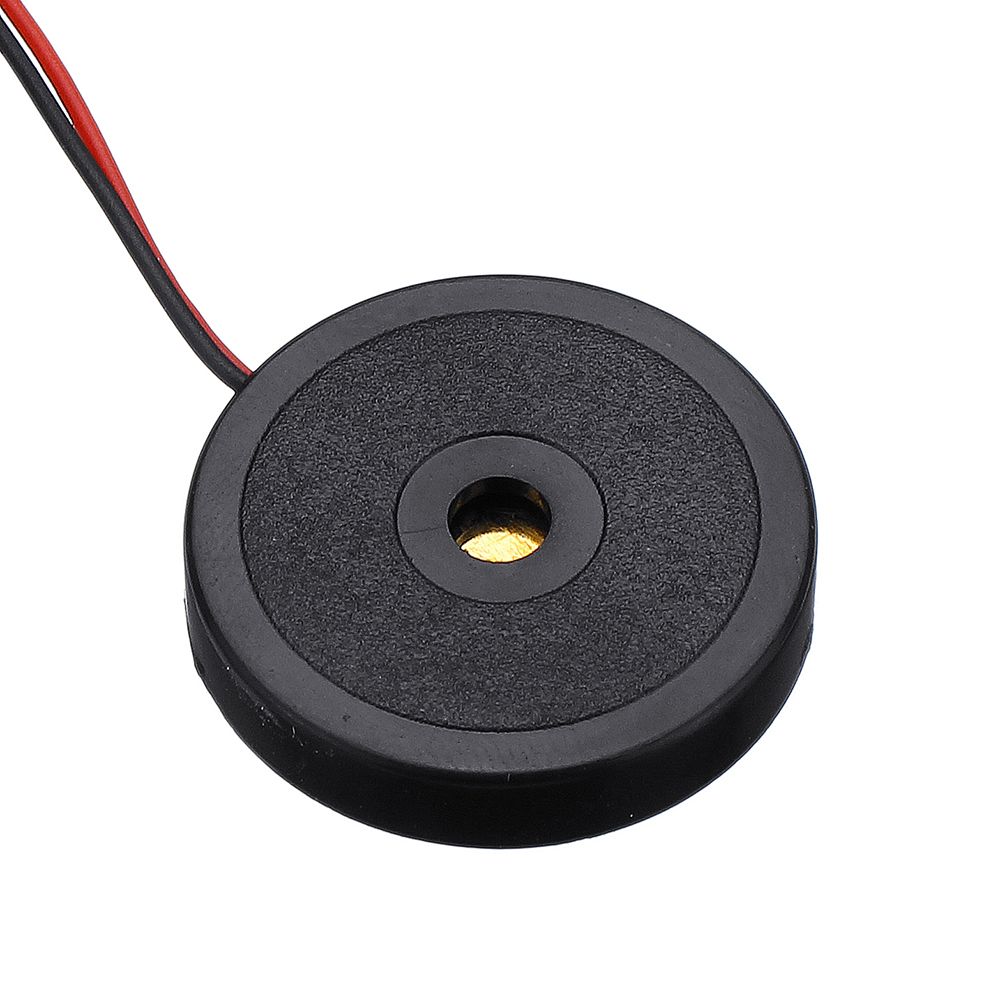

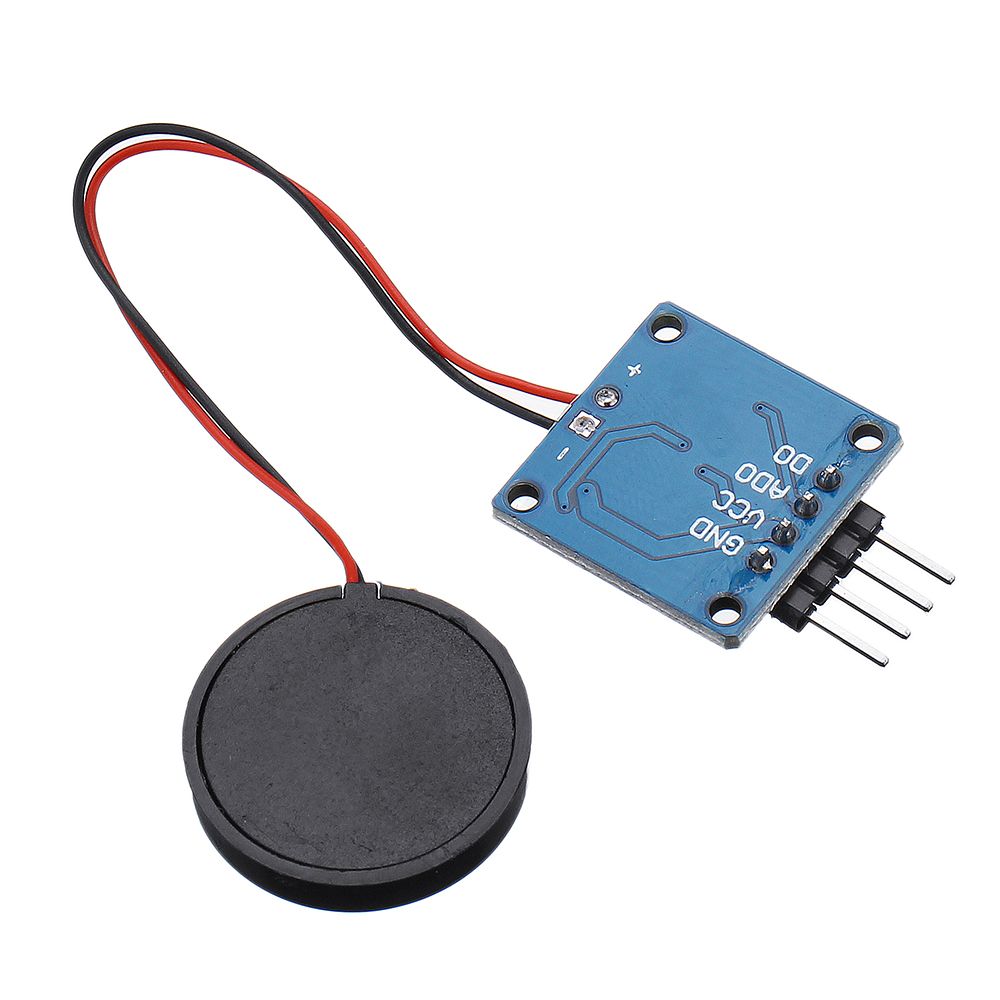

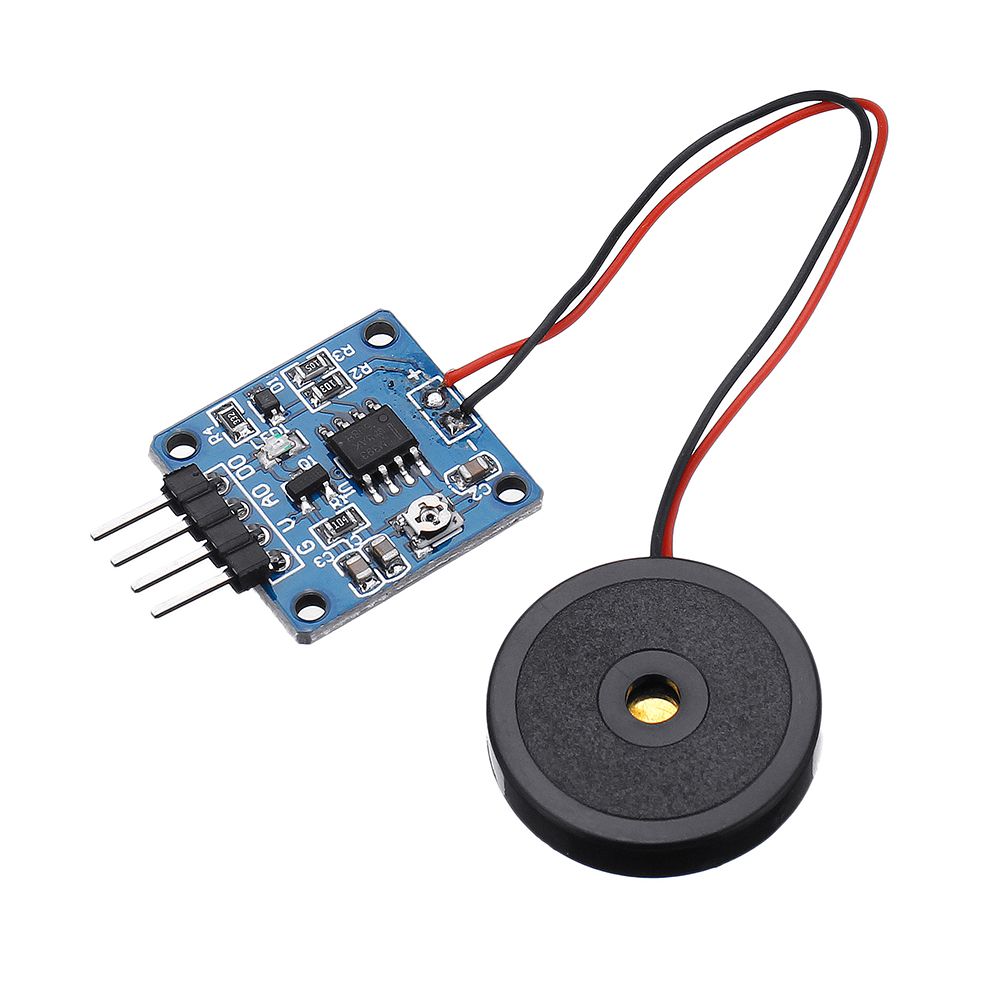

An analog vibration sensor based on a piezoelectric ceramic sheet is an inverse transformation process that uses piezoelectric ceramics to generate vibration. When the piezoelectric ceramic piece vibrates, an electrical signal is generated. Special sensor expansion boards are used in combination, and analog ports can be weakly perceived. Vibrating electrical signals enable interactive work related to vibration, such as electronic drum interactions.

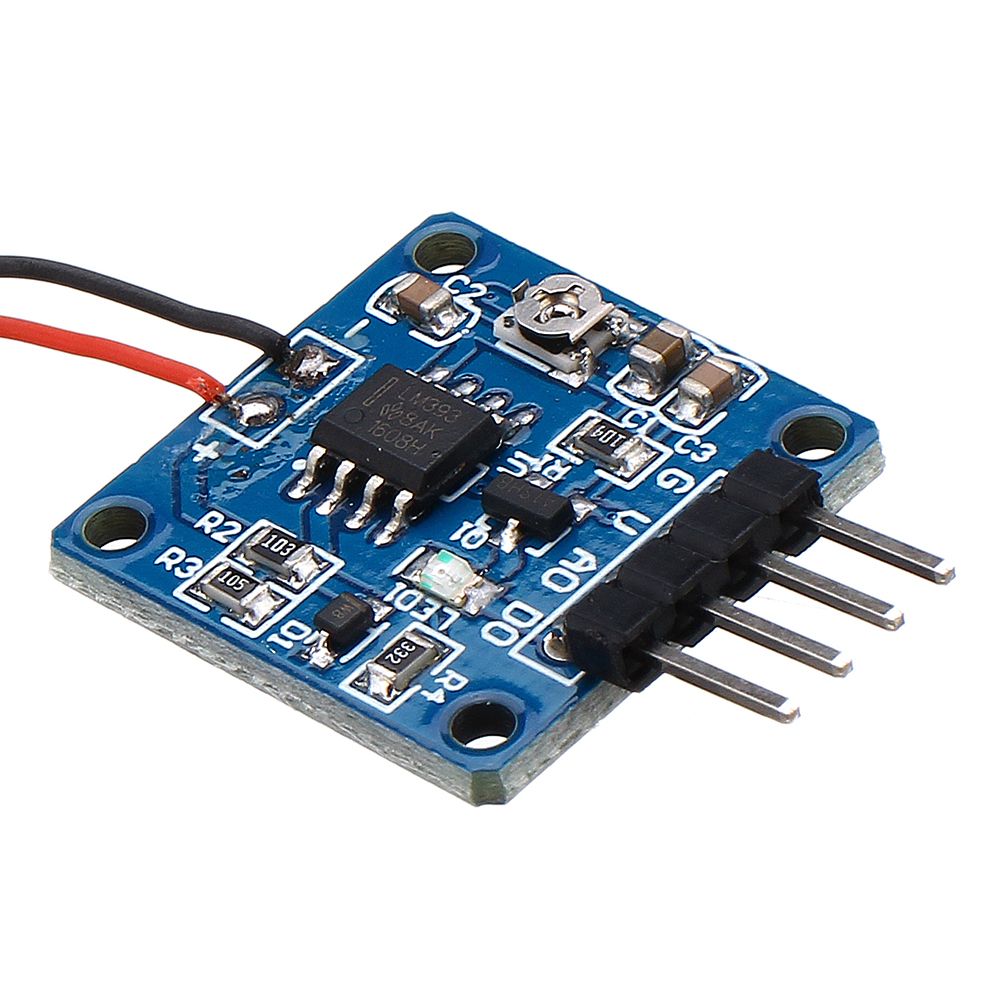

ADO output: The analog voltage ceramic vibration sensor is connected to the UNO controller analog port AO according to the program. When the vibration degree is different, observing the output value of the serial port can realize the vibration-related interaction work. According to the greater the vibration intensity, the higher the output voltage, the sensitivity of the vibration amplitude can be adjusted by the potentiometer. (Low left sensitivity is low. Right turn sensitivity is high.)
This product has high sensitivity and can be adjusted to respond with a mouth blow or a tap with a hand.
DO output: TTL level output. Output signal LED indication.
The TTL output valid signal is high. The output control current can be up to 1A. It can be connected to a high-power LED lamp.

Parameters:

Operating voltage: 5.0V ( DC )

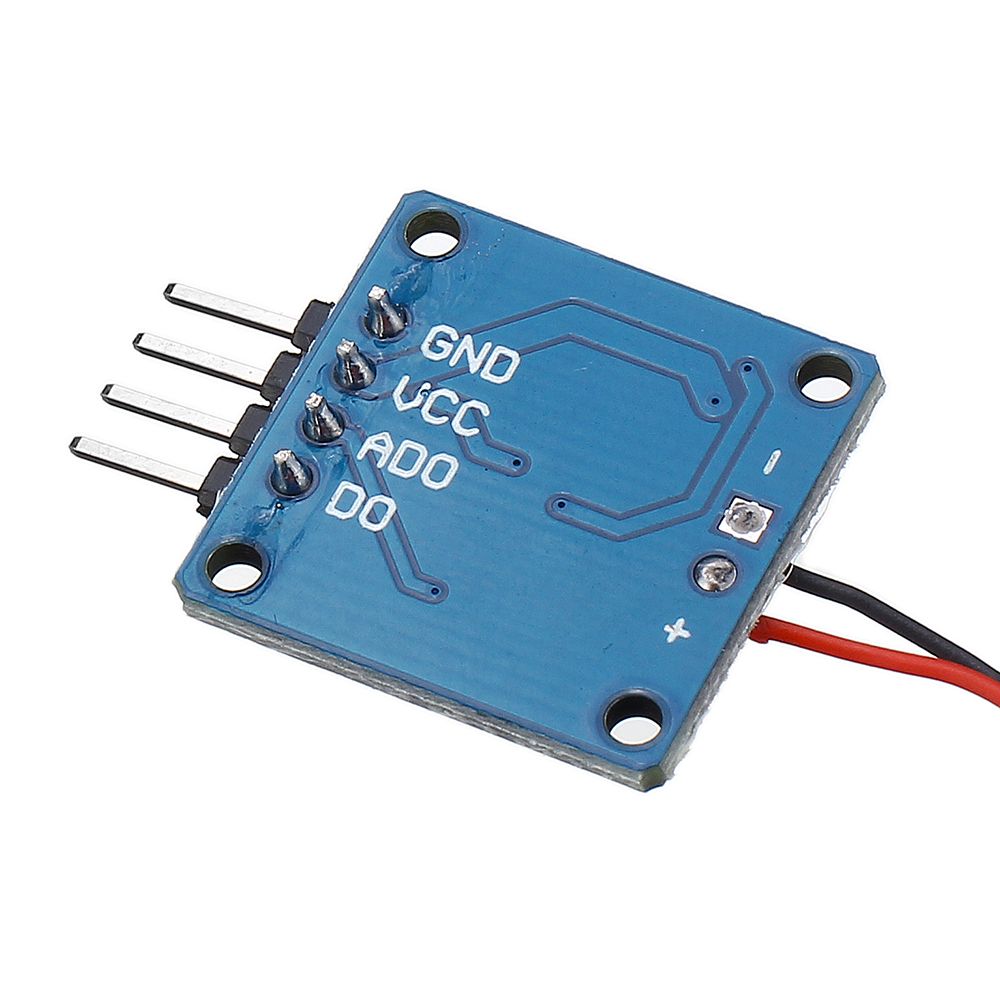

Interface type: AD/DO
AO: Analog signal output
DO: TTL level output
Temperature: - 10°C ~ + 70°C

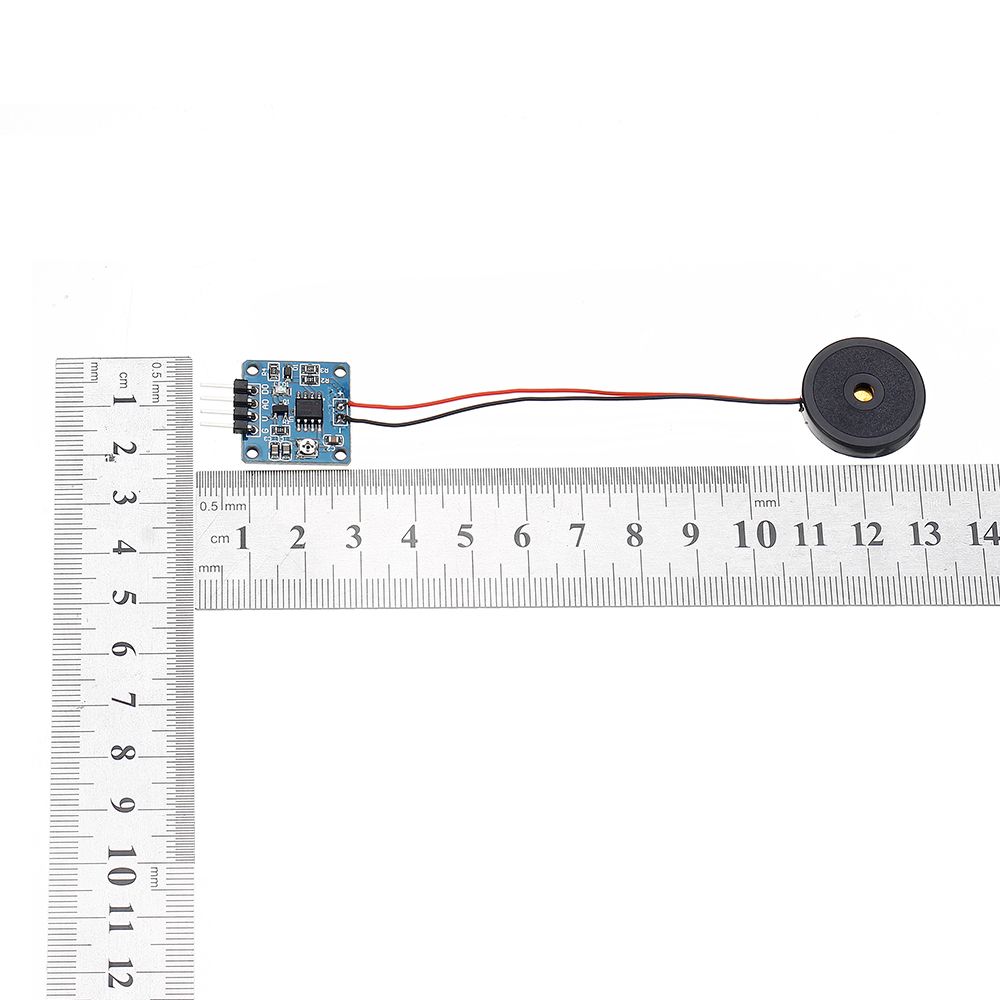

Size: 20mm x 20mm
Weight: 4.5g

Package includes:

10 x Sensor Module




10pcs-TZT-5V-Piezoelectric-Film-Vibration-Sensor-Switch-Module-TTL-Level-Output-1605794

10pcs-TZT-5V-Piezoelectric-Film-Vibration-Sensor-Switch-Module-TTL-Level-Output-1605794

10pcs-TZT-5V-Piezoelectric-Film-Vibration-Sensor-Switch-Module-TTL-Level-Output-1605794

10pcs-TZT-5V-Piezoelectric-Film-Vibration-Sensor-Switch-Module-TTL-Level-Output-1605794

10pcs-TZT-5V-Piezoelectric-Film-Vibration-Sensor-Switch-Module-TTL-Level-Output-1605794

10pcs-TZT-5V-Piezoelectric-Film-Vibration-Sensor-Switch-Module-TTL-Level-Output-1605794
