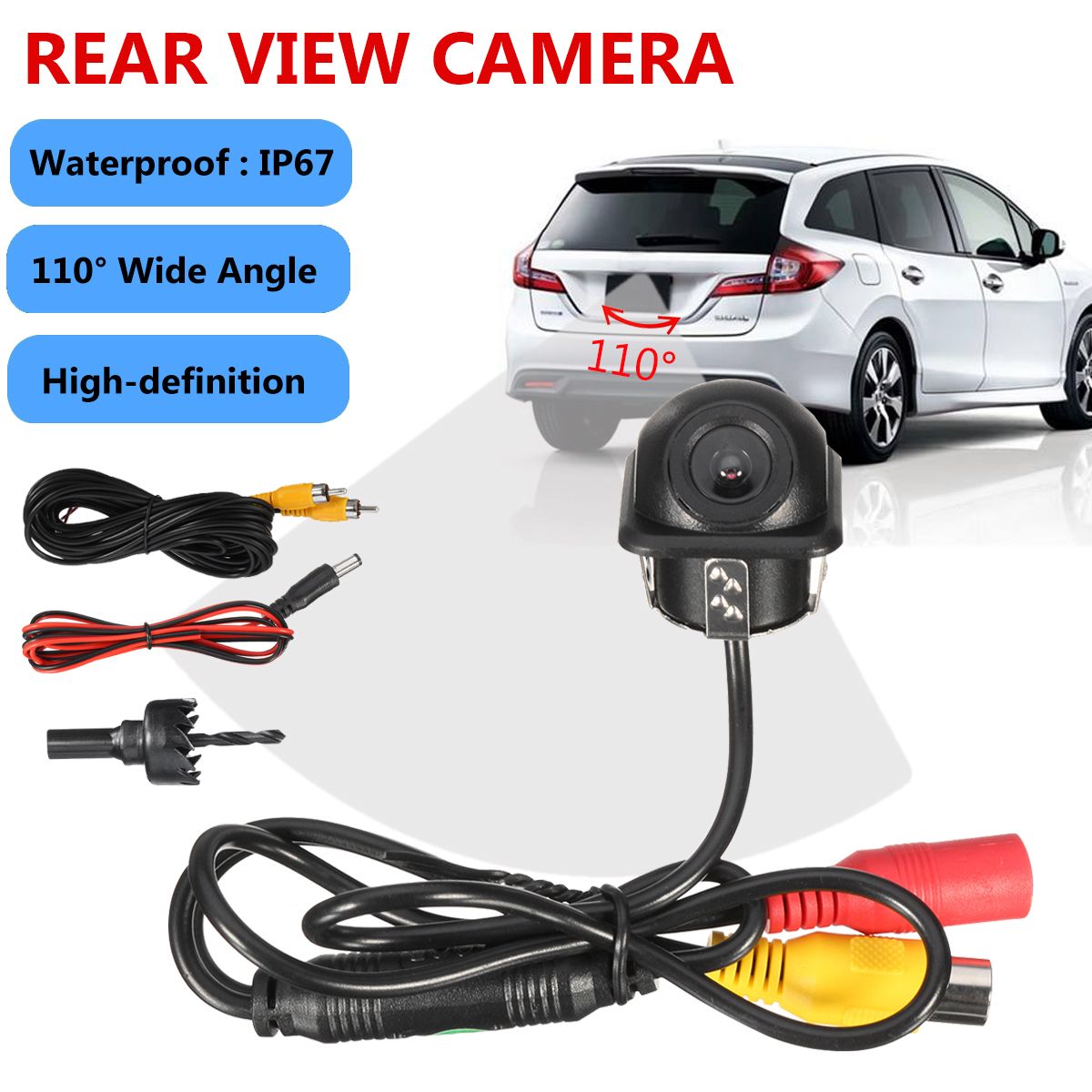

110 Degree HD CCD Car Rear View Parking Reverse Backup Camera Night Vision Waterproof
- Stock: In Stock
- Model: EB0032102
- SKU: EB0032102
1. High sensitivity and low power consumption,anti fog glass.

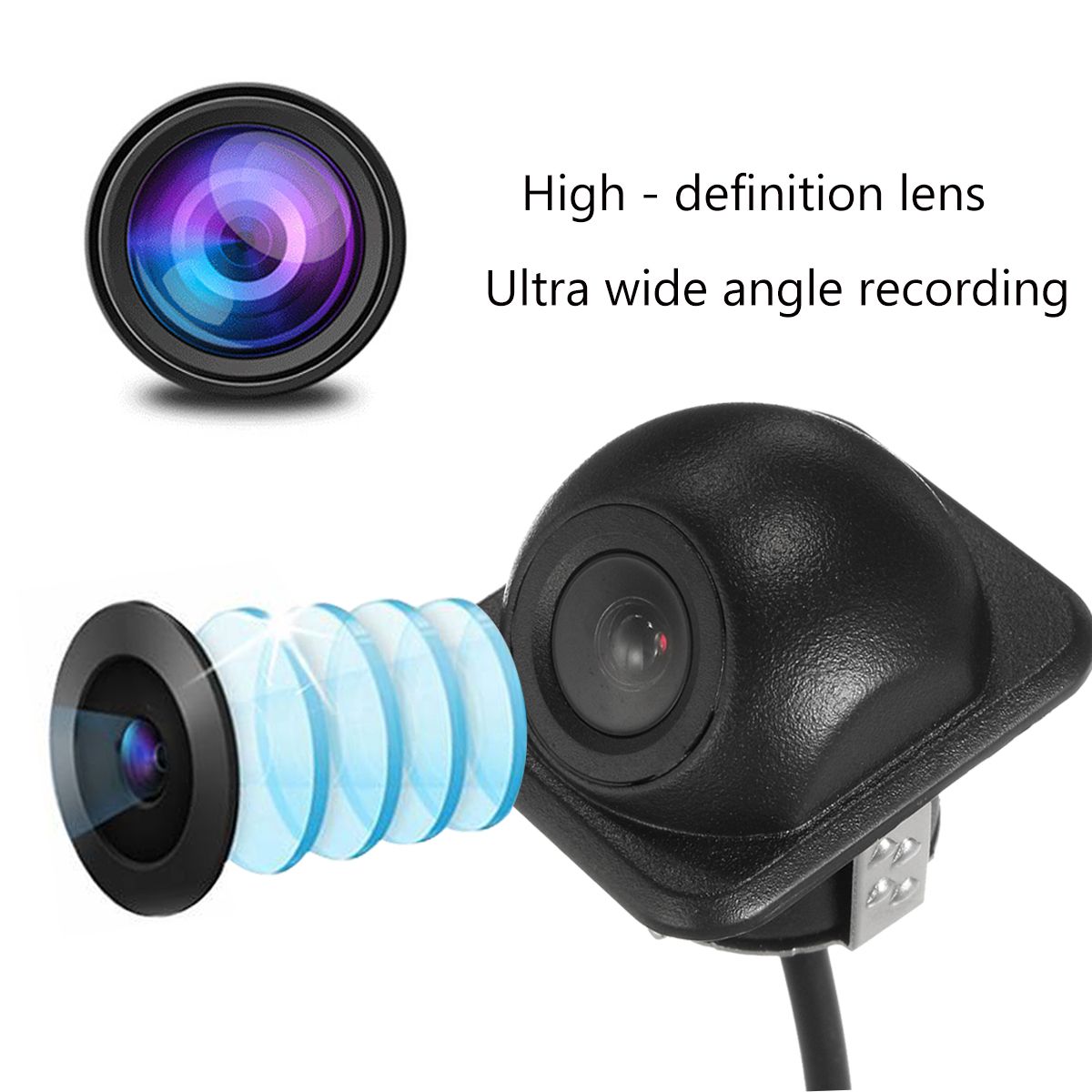

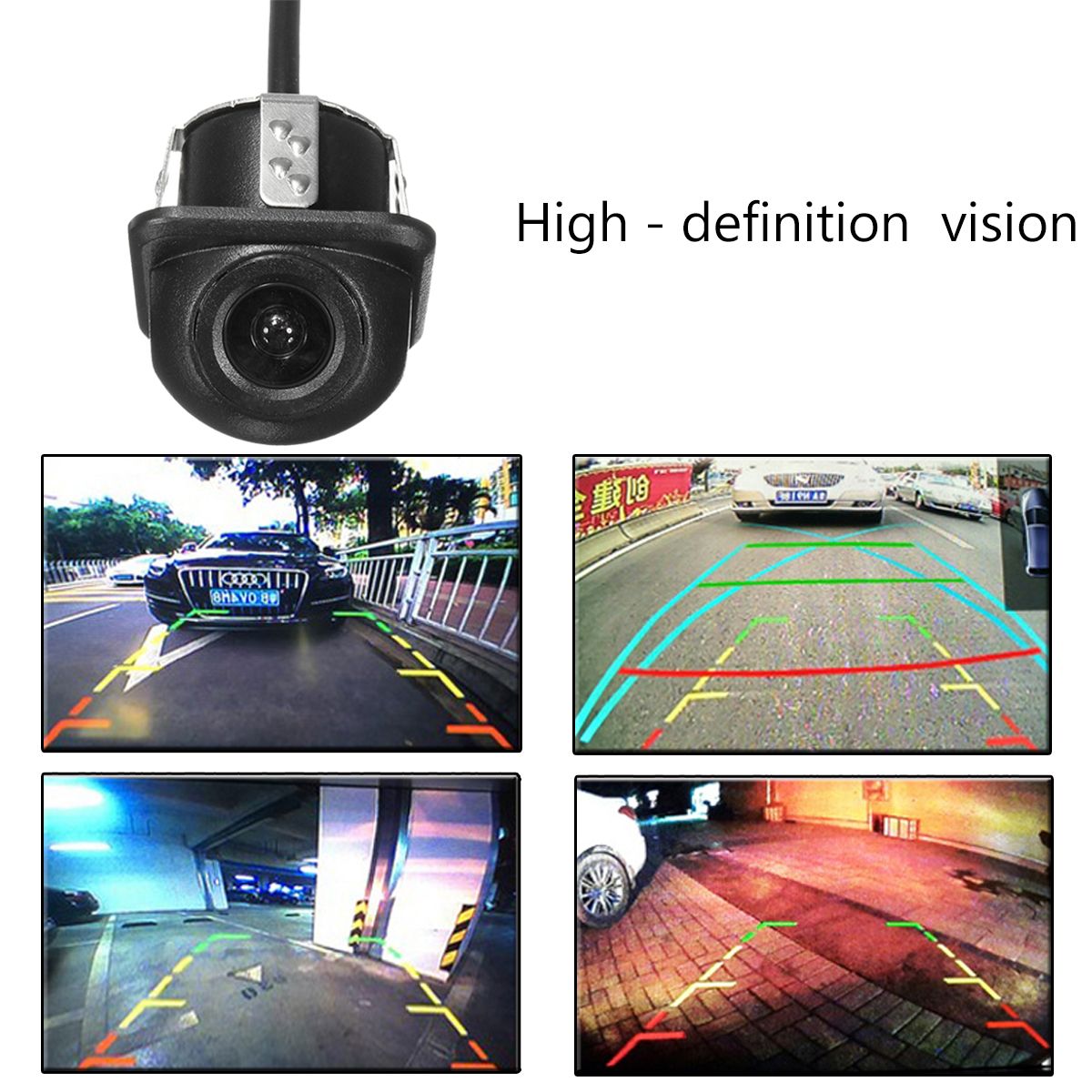

2. High-definition and 110 degree wide viewing angle.
3. Water-proof, shock-proof and anti-jamming functions.
4. Extra-low illumination of 0.2 Lux for clear night vision,it can work within 3 meters at night and other dark environments.
5. Applicable to variety of vehicles:car,truck,RV,etc.
6. Embedded mounting in rear bumper.
7. This camera can give you a full sight of the back of your car when you are driving.
8. To protect your car from collision with invisible obstacle, choose a high definition and good quality camera as ours.
Specification:
| Material | Plastic |
| Color | Black |
| Voltage | 12V |
| Power | 24W |
| Current | 2A |
| View angle | 110° |
| Waterproof rating | IP67 |
| Video Output | 1.0Vpp, 75Ohm |
| Scanning System | 2:1 Interlace |
| S/N Ratio | Greater than 48dB |
| Horizontal Resolution | 480 TV lines |
| Effective Pixels | NTSC:510(H) * 492(V) |
| Current Consumption | No More Than 300mA |
| Image Sensor | CMOS 1/4 MT9V125 or PC1030,color |
| Minimum Illumination | 0.2 Lux/ F1.8(0 Lux with LED) |
| Storage Temperature | -40℃ to + 85°C,95% RH maximum |
| Operating Temperature | -20℃ to + 75°C,95% RH maximum |
| Electronic Shutter | 1/50 to 1/100,000 seconds,1/60 to 1/100,000 seconds |

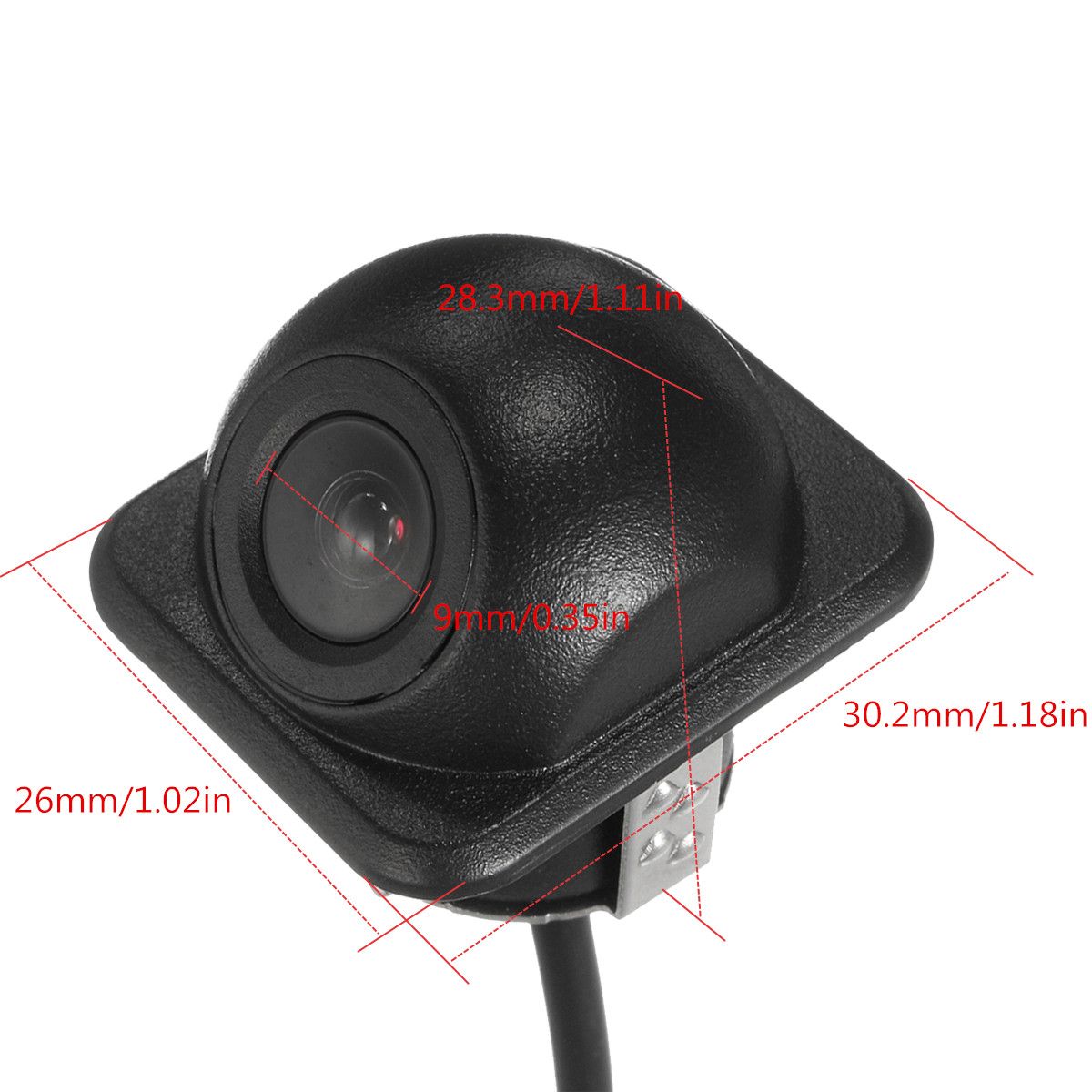

| The size of camera | 30.2mm/1.18in x 26mm/1.02in x 28.3mm/1.11in ( L x W x H ) |

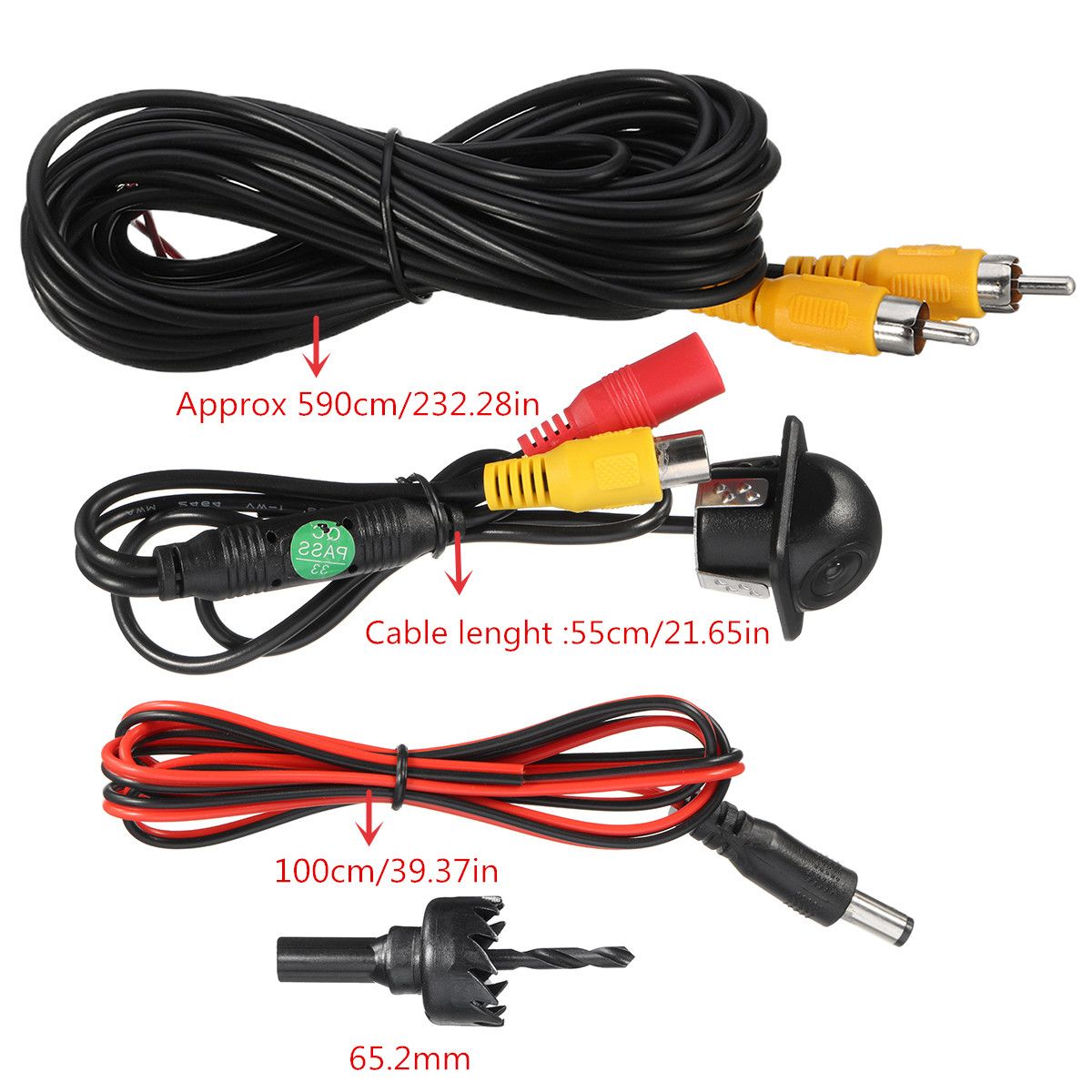

| Cable Length of Camera | Approx.55cm/21.65in |
| Power Supply Cable Length | Approx.100cm/39.37in |
| Video Cable Length | Approx.590cm/232.28in |
| Placement on vehicle | Rear |

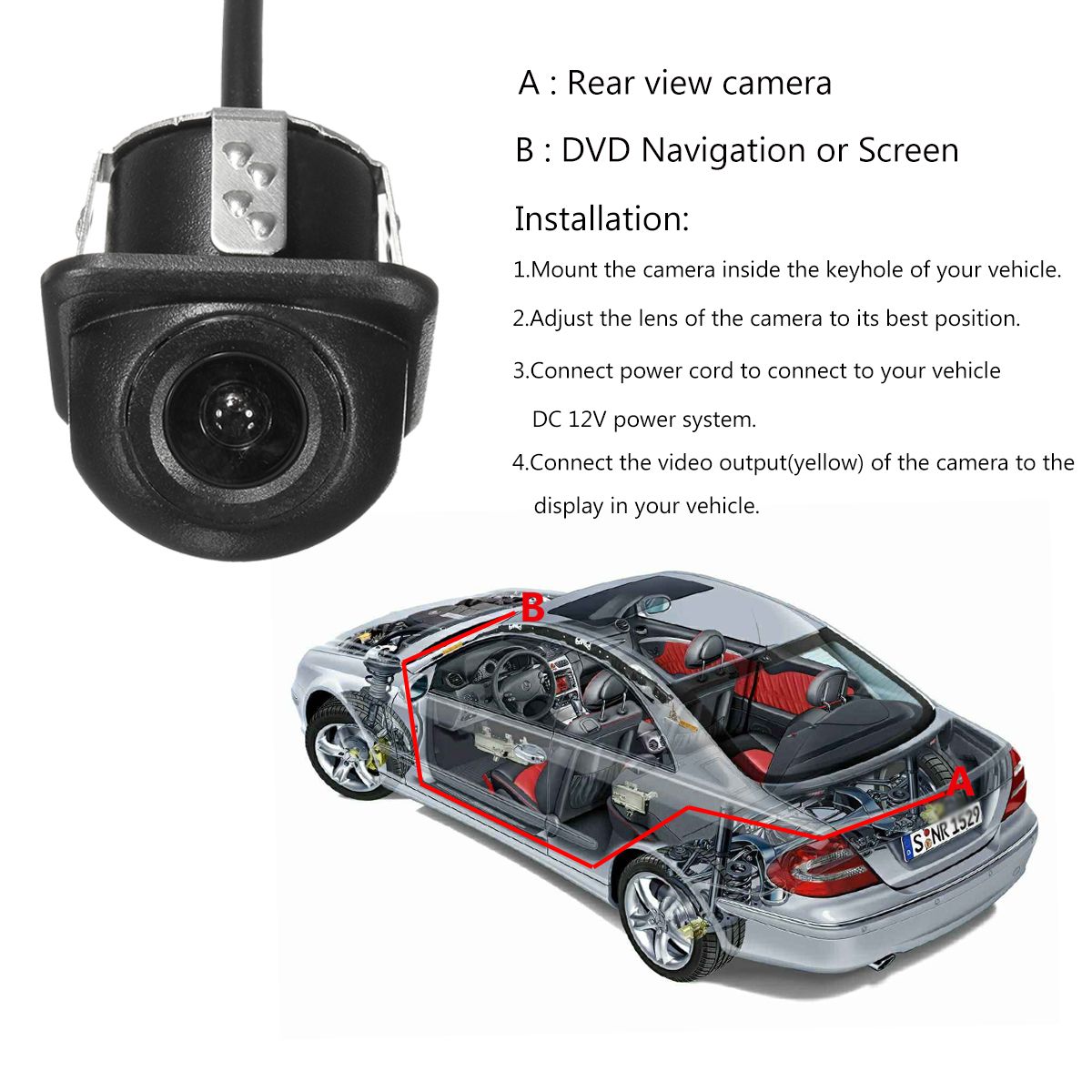

Installation:
1. Mount the camera inside the keyhole of your vehicle.
2. Adjust the lens of the camera to its best position.
3. Connect power cord to connect to your vehicle DC 12V power system.
4. Connect the video output(yellow) of the camera to the display in your vehicle.
Package Included:
1 X Car Rear View Camera
1 X Video Cable
1 X Power Cable
