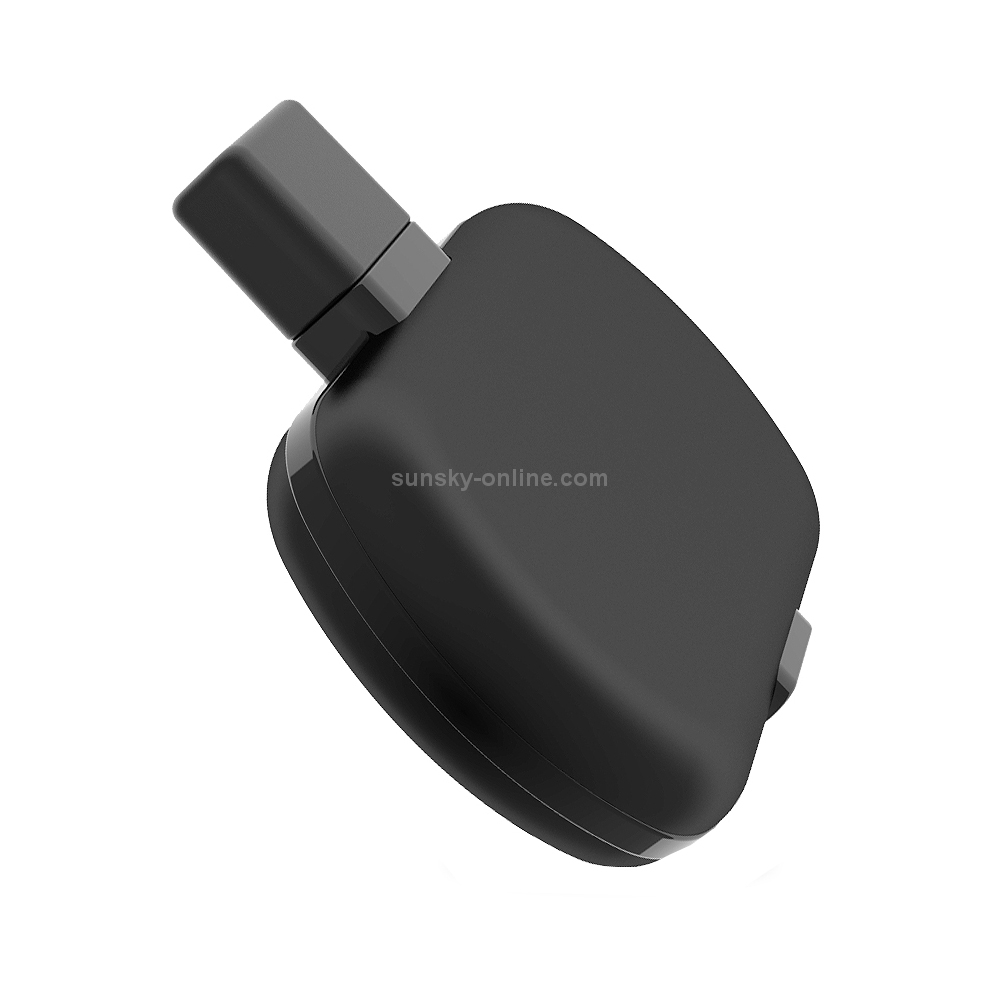

B26 CSR Bluetooth 5.0 One Drag Two Bluetooth Transmitter Type-c Wireless Audio Music Transmitter

Main parameters Bluetooth version Bluetooth V5.0+EDR
Support protocols A2DP, AVRCP, AFH, HFP, HSP
Working frequency range: 2.402GHz -2.480GHz
Power Class power Class 2
Input interface USB TYPE C/USB A (adapter)
The supply mode is powered by a console or power adapter
Dual stream Support (TX mode) Support (one transmitter connected to two bluetooth speakers or headphones simultaneously using one CODEC)
CODEC APTX LL, APTX, SBC
Note that APTX supports apt-x LL CODEC when using single connection (all devices must also support apt-x LL), and double connection supports APTX LL
The input voltage is 5V/9V/12V/15V
Input maximum current 3.1a
Output maximum current 3A
Charging support USB PD2.0 protocol
Bluetooth distance > 10M (no shielding place)

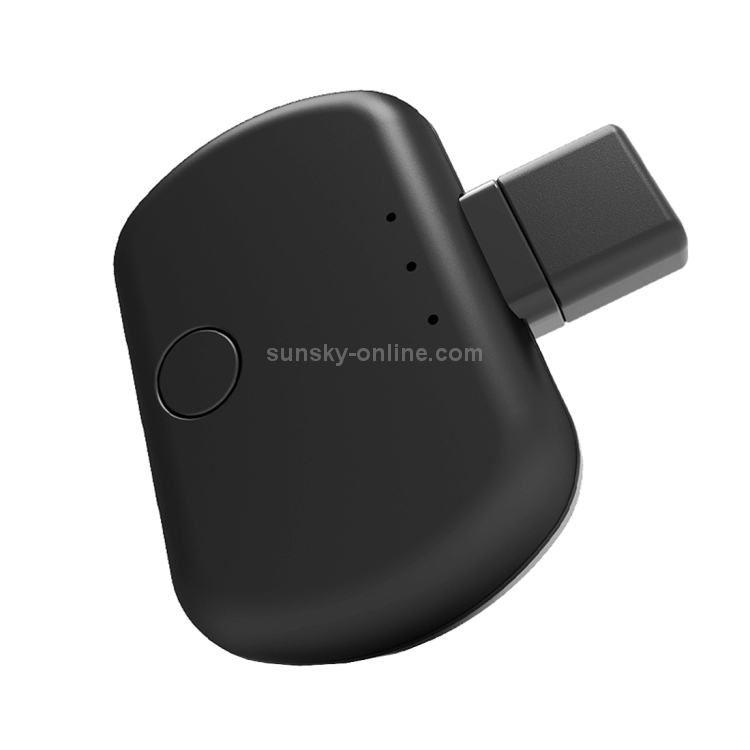

Indicator light there are 3 indicators, and the red LED in the middle is the pairing status light. The left and right blue LED lights indicate a bluetooth device
Click the key to connect back, double click to quickly enter the pairing state

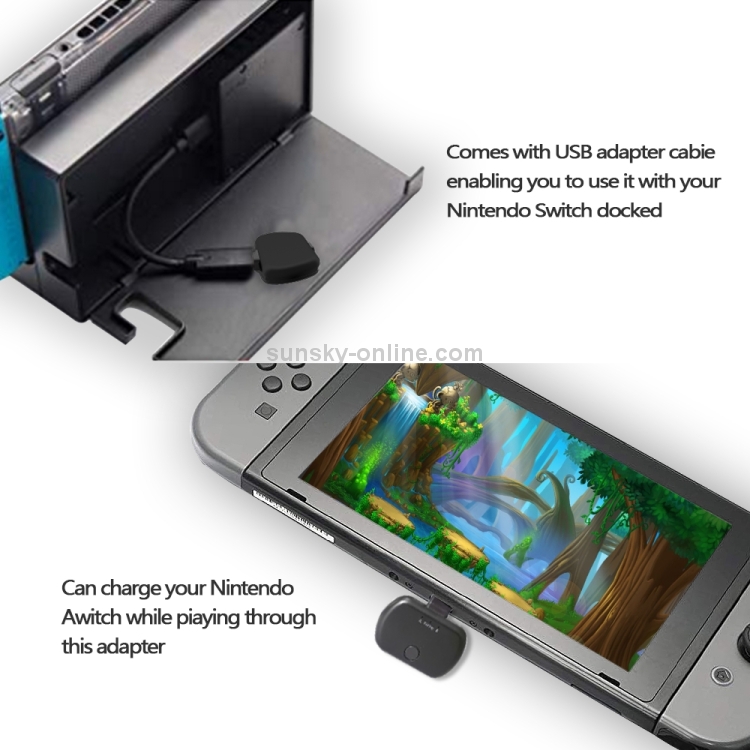

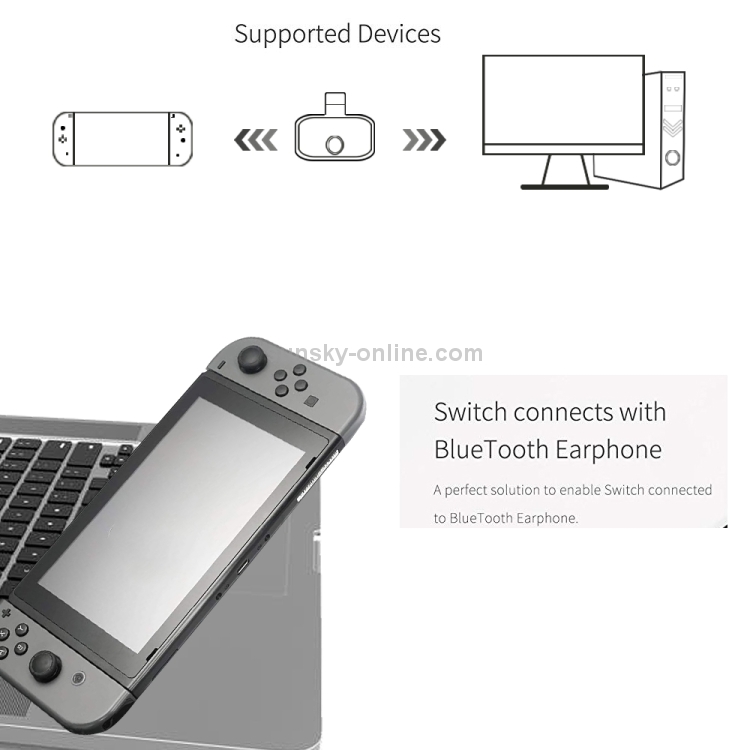

Compatible support Switch and PC audio transmission, support PS4, Switch, PC use, support Switch base mode, connected to the TV can be used
Main features"

The product appearance modelling is exquisite.
Adopt CSR high-end chip design.
Support TX dual stream.
Support role exchange of power supply
Support two headsets to charge the host at the same time
Support host protection shell can also be used
Support SBC, apt-x LL, apt-x
Support TWS (left and right channel separation)

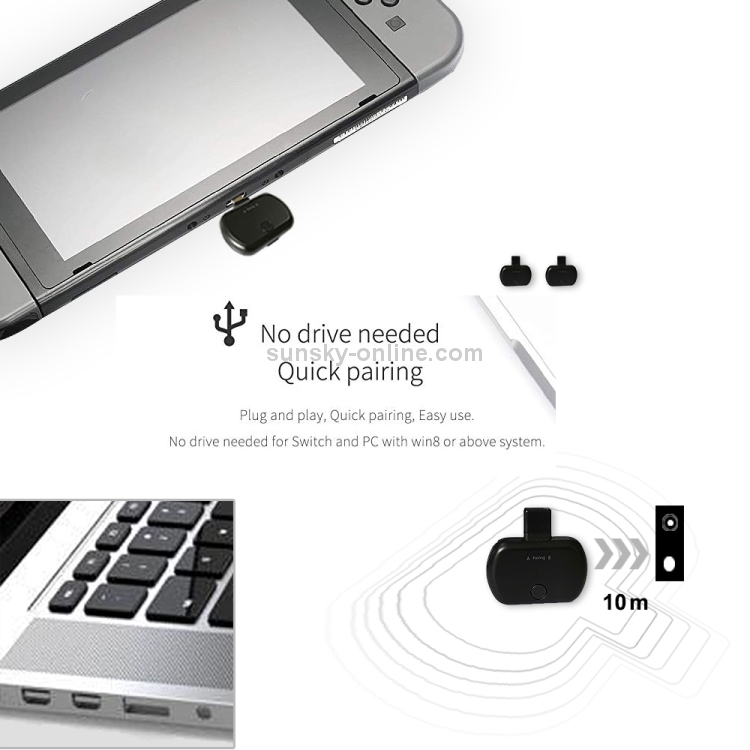

The product connection is simple, without any driver and download APP tedious;

"Functional operation
"On/off connect to the console or power adapter power supply automatically start up, unplug and automatically shut down
Click the key to connect back, double click to quickly enter the pairing state

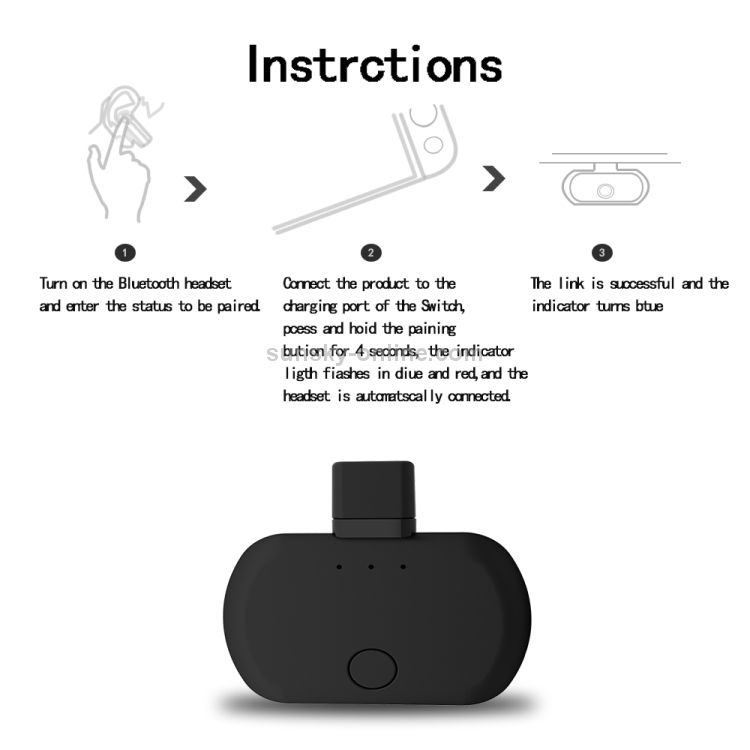

1. Turn on the bluetooth headset and set it to pairing mode.
2. Insert the device into the SWITCH host and double-click the pairing button. The red LED light flashes quickly and the device enters the pairing state.
3. The blue indicator light on the device is on, and the connection is successful. (indicator A lights up after connecting one device and indicator B lights up after connecting the second device)
"
Dimensions and weight dimensions (bare) 46*34 X*11mm
Weight (bare) 36g
Color box size 106*106*22mm
Weight (with color box) 74g
The attachment"
"
USB revolution type-c bus interface cable
Operating instruction
Neutral packing
