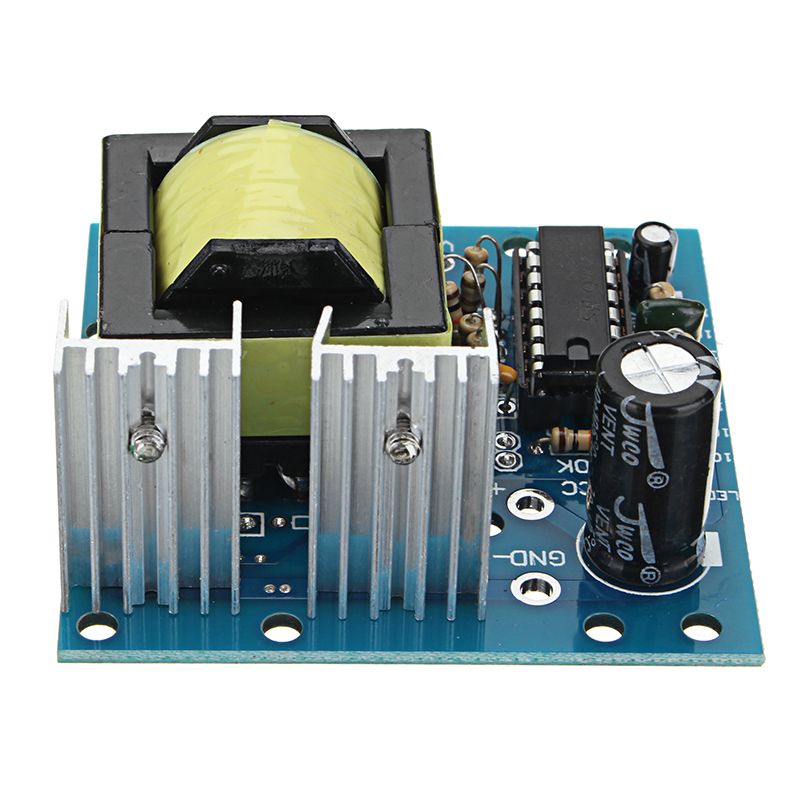

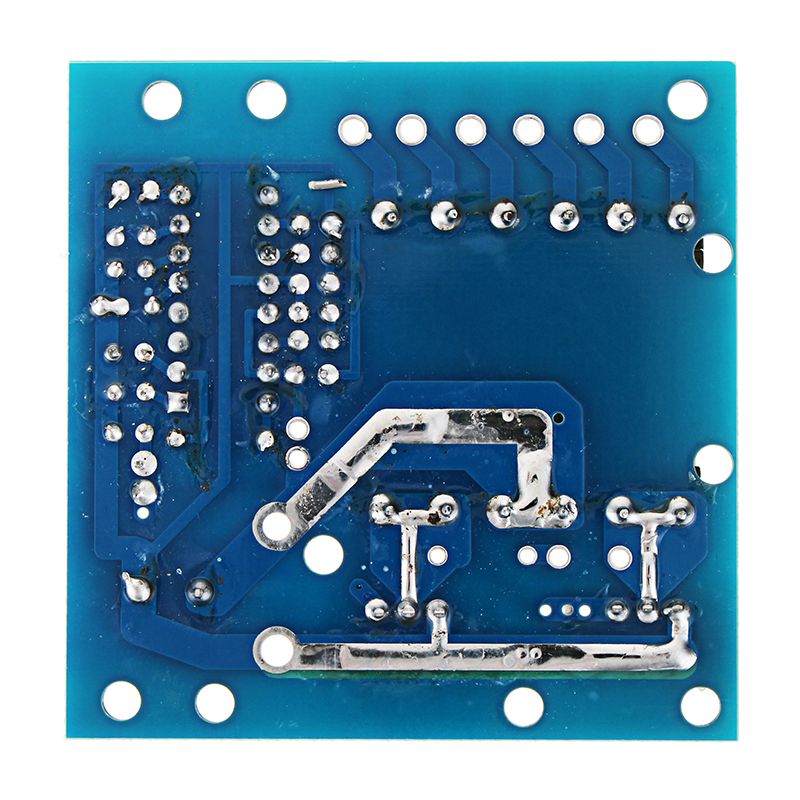

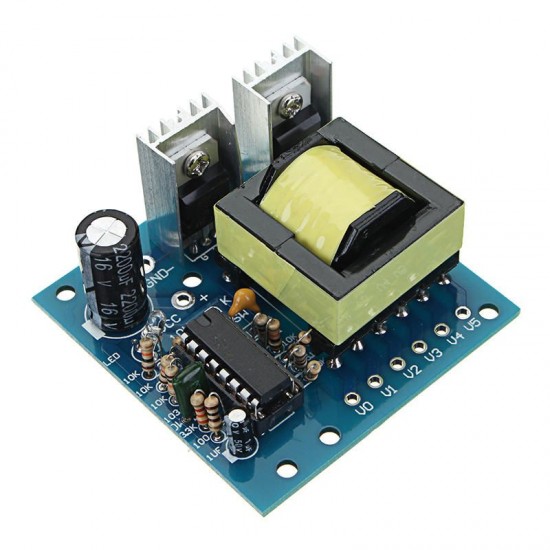

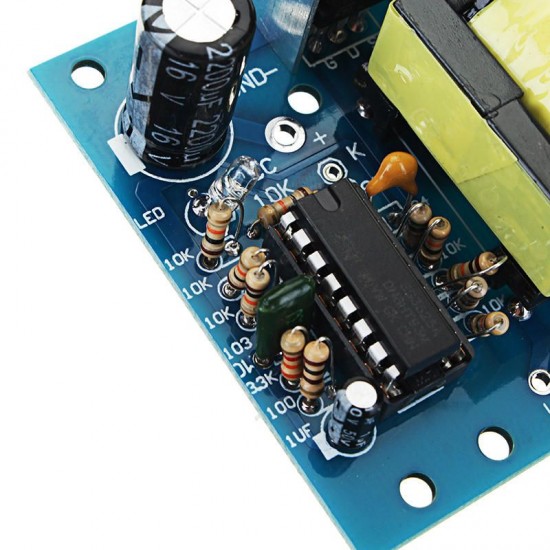

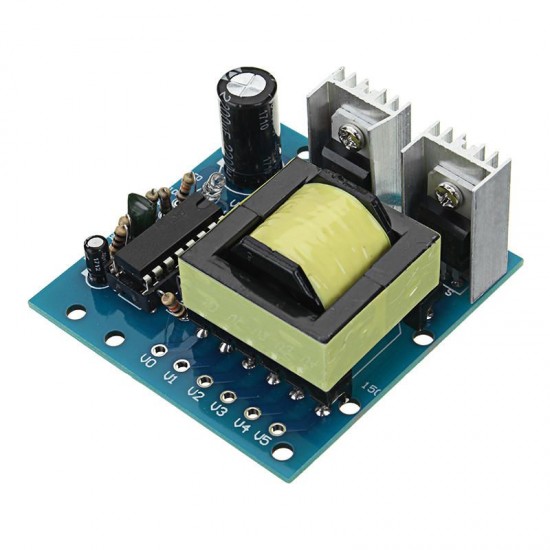

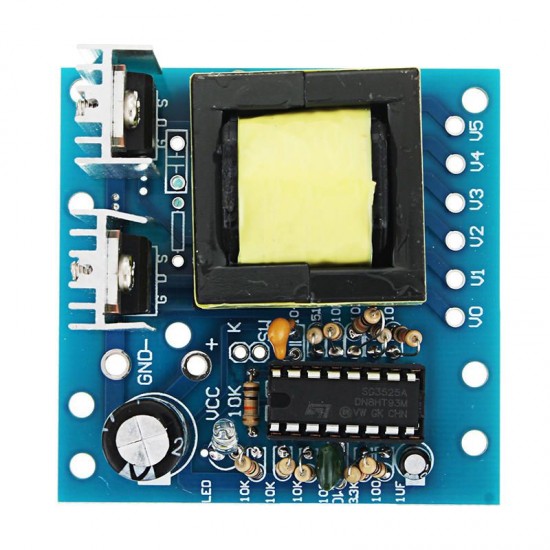

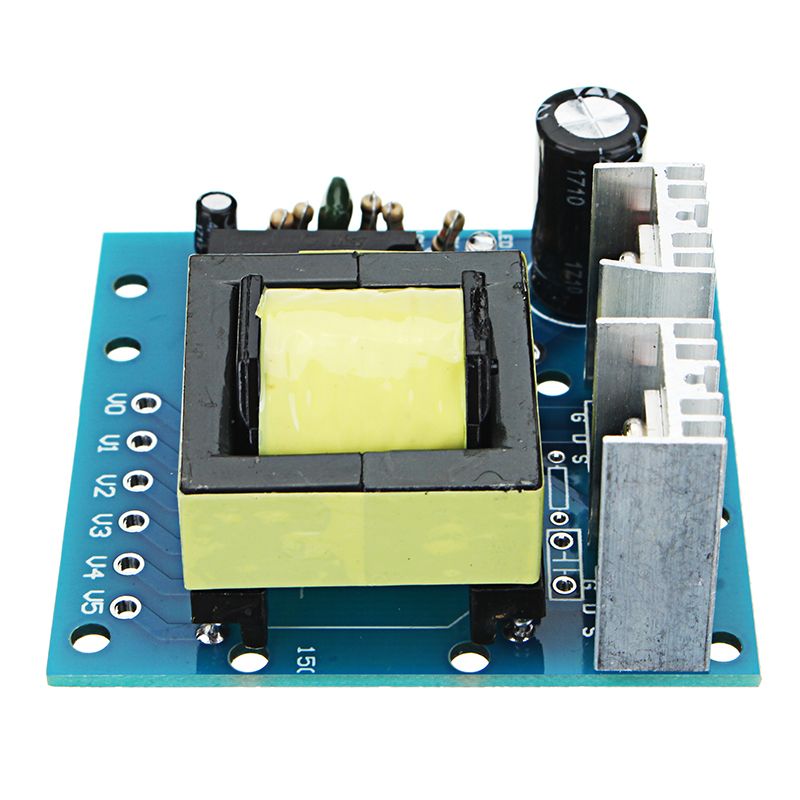

150W Converter DC 12V to AC 220V Inverter Boost Module Step Up Board

Based on 0 reviews. - Write a review

$13.99

Ex Tax: $13.99

Stock: In Stock
Model: EB0043679
SKU: EB0043679

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

Power: 150W

Input voltage: DC12V

Output voltage: AC 0-110V-172V-200V-220V

Quiescent current: about 0.05A

Output waveform: high frequency square wave

Output frequency: about 20KHZ

Protection: None

Warnings:

1. The board belongs to high frequency square AC output; it is not suitable for the inductive appliance, such as motor, fan and coil transformer.

2. While picked up with low-load machines (LED light, mobile phone charger and DVD set-top box), you are suggested to pick up with low voltage point, such as: 172V/110V.

3. You should install a large heat sink to release its long time high-load (¡Y100W) work.

4. You could not connect the power inversely. Besides, power supply and power wire should have large enough current.

5. Do not overload and short-circuit because it without any protections.

6. The number in measured by the output high frequency non-load voltage meter will be a little higher.

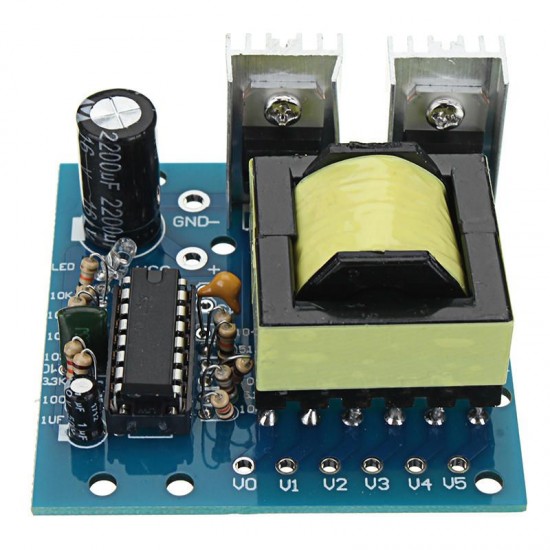

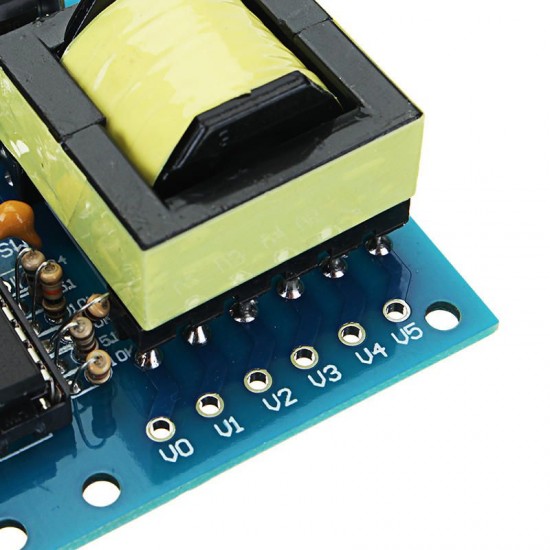

Output wiring the following voltages:

V0--V2=110V

V0--V3=175V

V0--V4=200V

V0--V5=220V

V5--V4=20V

V5--V3=45V

V5--V2=110V

V4--V3=28V

V4--V2=90V

V3--V2=62V

Package includes:

1 x 150W Converter DC 12V to AC 220V Inverter
