20Pcs Left Hand therad Steel Wire Rope Balustrade Kit Lag Screw Terminal Swage 3.2mm for 1/8'' Cable

20Pcs Left Hand therad Steel Wire Rope Balustrade Kit Lag Screw Terminal Swage 3.2mm for 1/8'' Cable
20Pcs Left Hand therad Steel Wire Rope Balustrade Kit Lag Screw Terminal Swage 3.2mm for 1/8'' Cable
20Pcs Left Hand therad Steel Wire Rope Balustrade Kit Lag Screw Terminal Swage 3.2mm for 1/8'' Cable
20Pcs Left Hand therad Steel Wire Rope Balustrade Kit Lag Screw Terminal Swage 3.2mm for 1/8'' Cable
20Pcs Left Hand therad Steel Wire Rope Balustrade Kit Lag Screw Terminal Swage 3.2mm for 1/8'' Cable
20Pcs Left Hand therad Steel Wire Rope Balustrade Kit Lag Screw Terminal Swage 3.2mm for 1/8'' Cable
20Pcs Left Hand therad Steel Wire Rope Balustrade Kit Lag Screw Terminal Swage 3.2mm for 1/8'' Cable
20Pcs Left Hand therad Steel Wire Rope Balustrade Kit Lag Screw Terminal Swage 3.2mm for 1/8'' Cable
20Pcs Left Hand therad Steel Wire Rope Balustrade Kit Lag Screw Terminal Swage 3.2mm for 1/8'' Cable
20Pcs Left Hand therad Steel Wire Rope Balustrade Kit Lag Screw Terminal Swage 3.2mm for 1/8'' Cable
20Pcs Left Hand therad Steel Wire Rope Balustrade Kit Lag Screw Terminal Swage 3.2mm for 1/8'' Cable
20Pcs Left Hand therad Steel Wire Rope Balustrade Kit Lag Screw Terminal Swage 3.2mm for 1/8'' Cable
20Pcs Left Hand therad Steel Wire Rope Balustrade Kit Lag Screw Terminal Swage 3.2mm for 1/8'' Cable
$29.17
Ex Tax: $29.17
  • Stock: In Stock
  • Model: EB008434
  • SKU: EB008434
Description

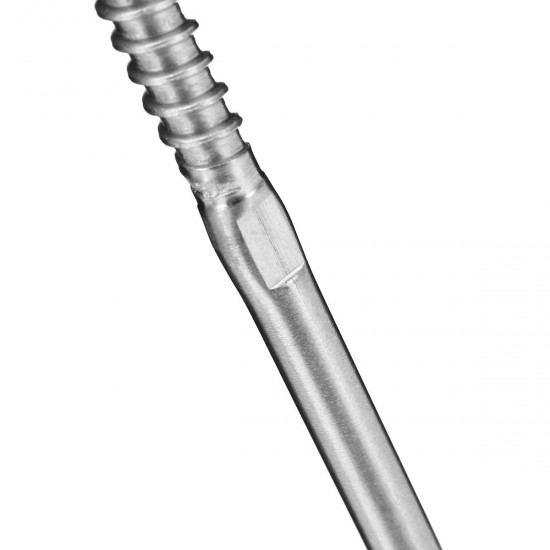

20Pcs Stainless Steel Swage Lag Screw DIY Rope Balustrade Kit for 1/8" Cable

Specification
Material:Stainless Steel
Color:Silver

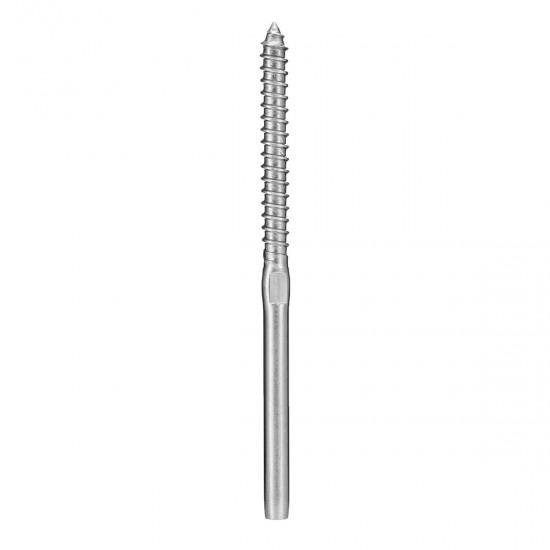

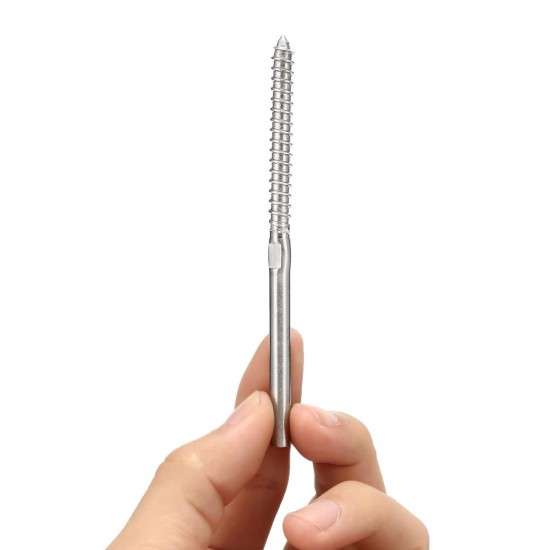

Size:approx.90*6mm
Suitable Diameter of Wire:1/8"(3.2mm)

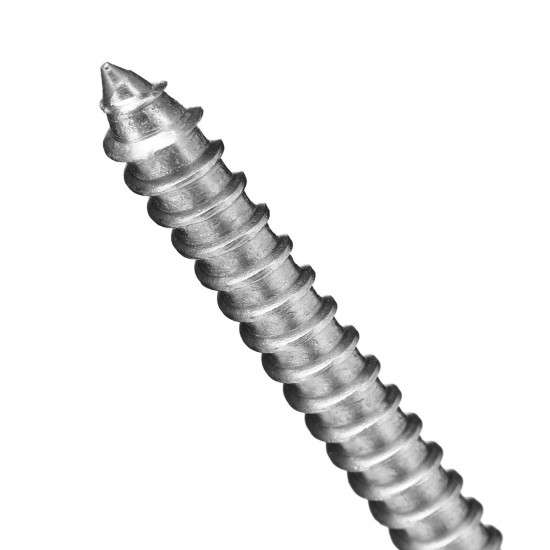

Thread: 1/4"
Quantity:20Pcs
Weight:about 300g
(1cm=10mm=0.39inch)
Measurement Details in the attached picture.

Features
a Made of Stainless steel,high tensile and anti-fatigue strength, and weather protection.
b These stainless steel fittings surface mount a traditional DIY cable railing into wood.
c The fittings are for 1/8" wire of up to 10 meters.
d Perfect for small DIY cable railing project to big scale indoor and outdoor applications.
e Now it's very easy to make a railing for your garden, stairs, and aisles.

Application

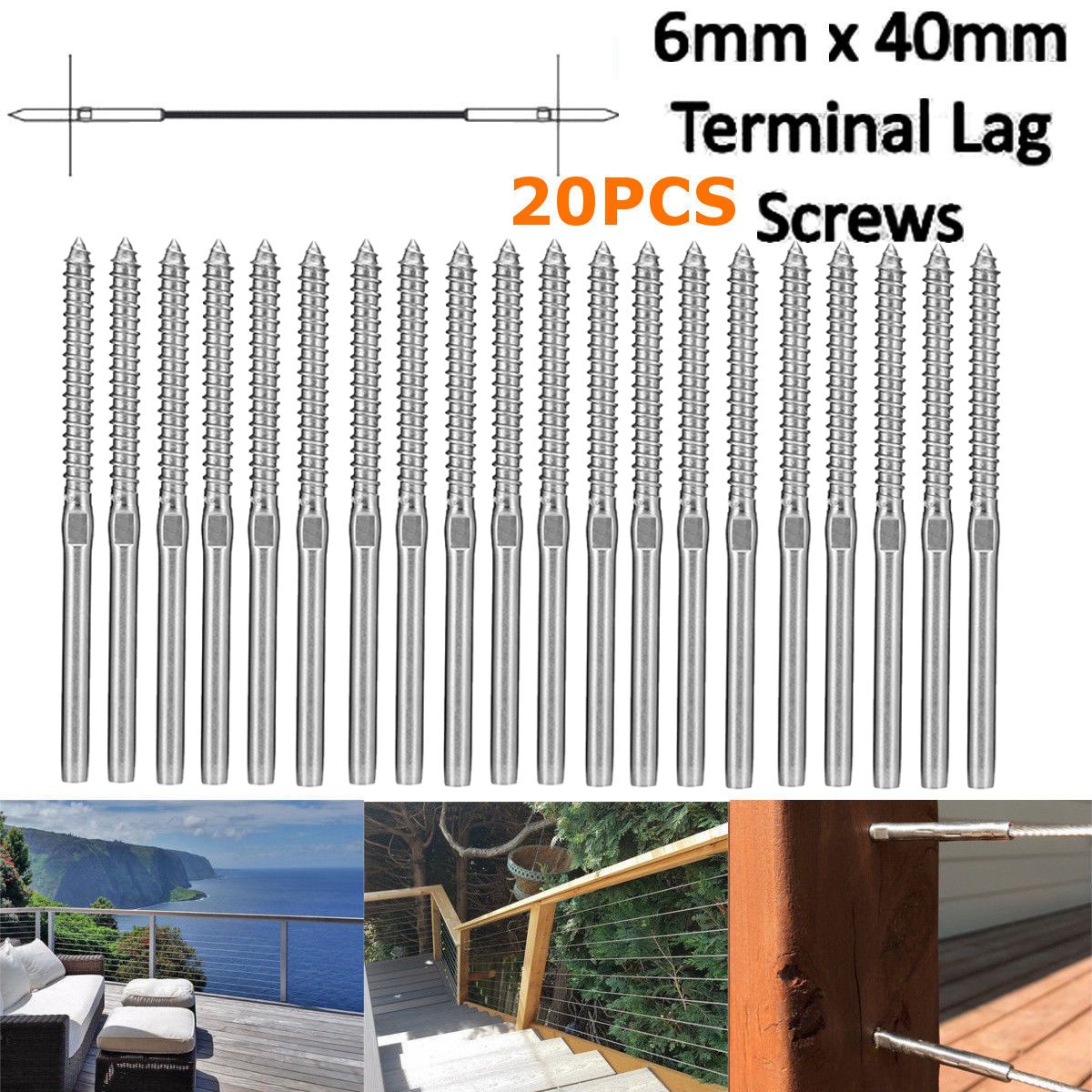

One end of the run uses a Right Hand Thread (RHT) 6mm Terminal Lag Screw to attach to the post or wall. The other end uses a Left Hand Thread 6mm Terminal Lag Screw to attach to the other post or wall. Tension is achieved because of the different threads (the entire wire when built becomes a turnbuckle)

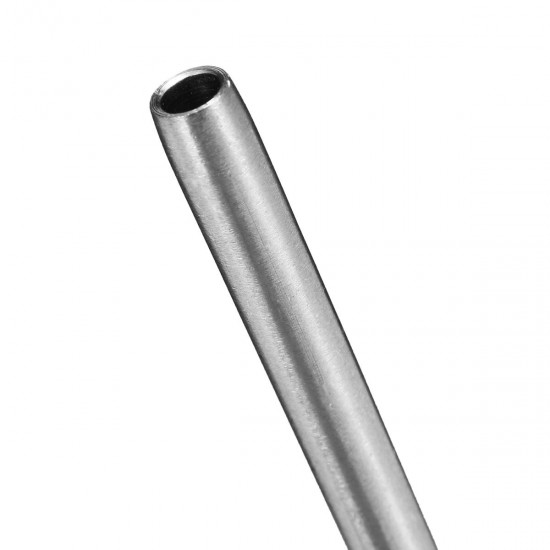

The fittings must be either hydraulically swaged with a press or a hand swager to a wire run of 3.2mm Stainless Steel wire rope. With these types of fittings, to calculate the overall length of Wire Rope needed for the job, the length of a wire run is measured from 'inside post' to 'inside post'.  In order to cut the wire the correct length, the wire is cut 47mm shorter than the inside to inside post distance. (But we recommend that you measure, cut and install a wire before you go completely wild.)

Package included
20Pcs Lag Swage Screw
