20pcs BGA152 BGA132 BGA136 TSOP48 NAND Flash USB 3.0 U Disk PCB IS917 Main Controller Without Flash Memory for Recycle SSD Flash Chips

20pcs BGA152 BGA132 BGA136 TSOP48 NAND Flash USB 3.0 U Disk PCB IS917 Main Controller Without Flash Memory for Recycle SSD Flash Chips
20pcs BGA152 BGA132 BGA136 TSOP48 NAND Flash USB 3.0 U Disk PCB IS917 Main Controller Without Flash Memory for Recycle SSD Flash Chips
20pcs BGA152 BGA132 BGA136 TSOP48 NAND Flash USB 3.0 U Disk PCB IS917 Main Controller Without Flash Memory for Recycle SSD Flash Chips
20pcs BGA152 BGA132 BGA136 TSOP48 NAND Flash USB 3.0 U Disk PCB IS917 Main Controller Without Flash Memory for Recycle SSD Flash Chips
20pcs BGA152 BGA132 BGA136 TSOP48 NAND Flash USB 3.0 U Disk PCB IS917 Main Controller Without Flash Memory for Recycle SSD Flash Chips
20pcs BGA152 BGA132 BGA136 TSOP48 NAND Flash USB 3.0 U Disk PCB IS917 Main Controller Without Flash Memory for Recycle SSD Flash Chips
20pcs BGA152 BGA132 BGA136 TSOP48 NAND Flash USB 3.0 U Disk PCB IS917 Main Controller Without Flash Memory for Recycle SSD Flash Chips
20pcs BGA152 BGA132 BGA136 TSOP48 NAND Flash USB 3.0 U Disk PCB IS917 Main Controller Without Flash Memory for Recycle SSD Flash Chips
20pcs BGA152 BGA132 BGA136 TSOP48 NAND Flash USB 3.0 U Disk PCB IS917 Main Controller Without Flash Memory for Recycle SSD Flash Chips
$73.72
Ex Tax: $73.72
  • Stock: In Stock
  • Model: EB0048581
  • SKU: EB0048581
Specifications:

Main Controller IC : IS917
USB type: USB3.0
PCB size:14*33mm(without the USB port size)
Support IC: BGA152/132/136 TOP48 (two solder chips,every chips need 2CE.But if you weld one chip in PCB,MAX 4CE)
Usage:(USB3.0 interface High speed)
NAND flash R/W Strick
Can be delete all partition
Can be Read & Write

Q&A:

1. support those chips?
Except the latest UFS2.0 chip, other conventional chips are supported;
2. USB2.0 and USB3.0 U disk difference?
USB2.0 slow, only support single-sided paste, 3.0 speed fast, support double-sided paste, the current only BGA152/132/136 TOP48;
3. Why my chip after welding, no display, detection voltage is red light?
May be the problem, one is the chip is broken; two may be welding is not good, there is the problem of welding, in the case of welding chips, the board is bright red.
4. When you get the U-disk PCB,Please check it first.How to check it good or not?
You can plug it into the computer PCB and open your Windows control panel,then go to the check device and printer term,you can see the IS917 in there .that means this product is good,and the red light is working.
5. As for new NAND Memory. Please ask us to get the software for configuring empty new NAND flash Memory, IS917.
 6. When you connect it with the compouter, first of all, if the lights of the u disk PCB is not on, the U disk PCB might be broken. If the lights of the u disk PCB is on and show the green light, firstly might be you need to upgrade usb 3.0 in your computer. If you remove the chips form the phones, the u disk PCB read  the bit is not the original bit of the chip, if you want to read the chips form the phones, we have emmc153/169 data recovery device. If the lights of the u disk PCB is on and show the red lights, firstly might be your chips are broken, secondly might be your soldring is wrong, such as the position of the first pin.

Note:

If you don't know how to WELD THE CHIPS or not the SILLED WELDING. Please do not buy! We only sell the U DISK PCB, we don't teach you to WELD THE CHIPS!!!

Package Included:

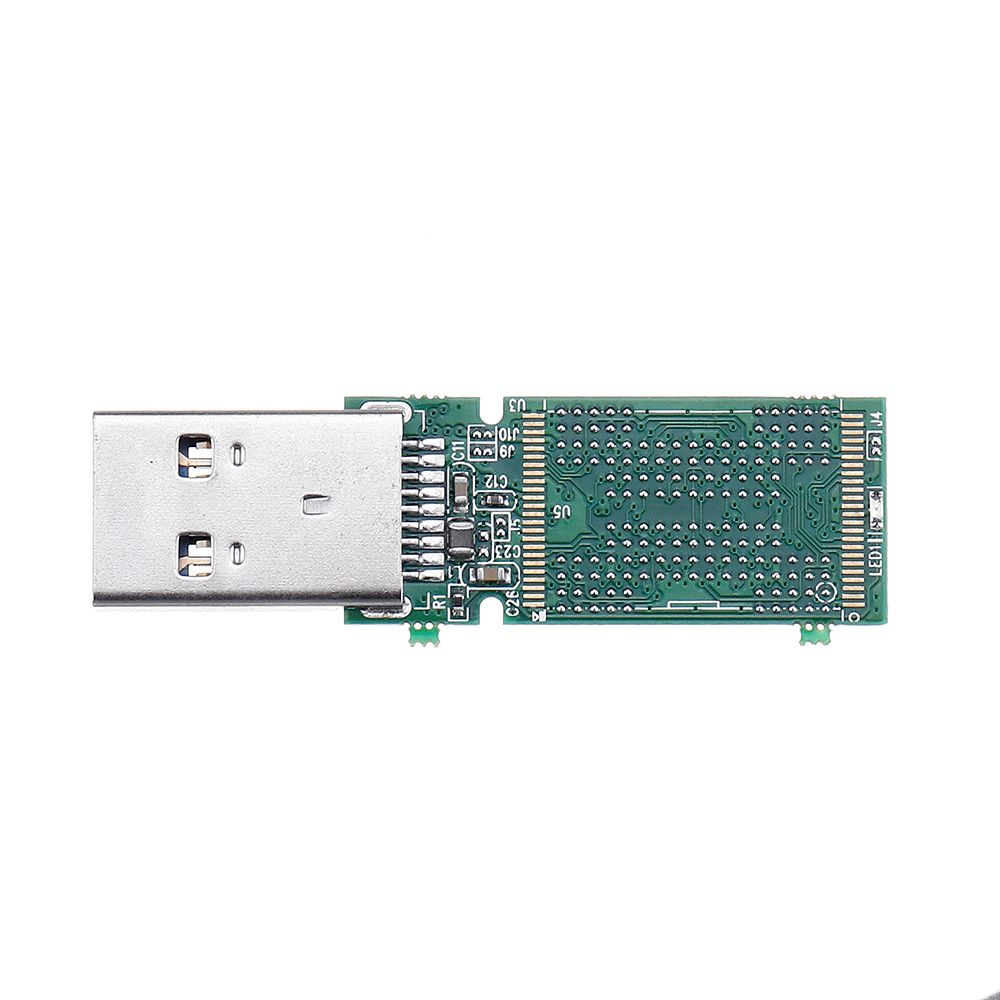

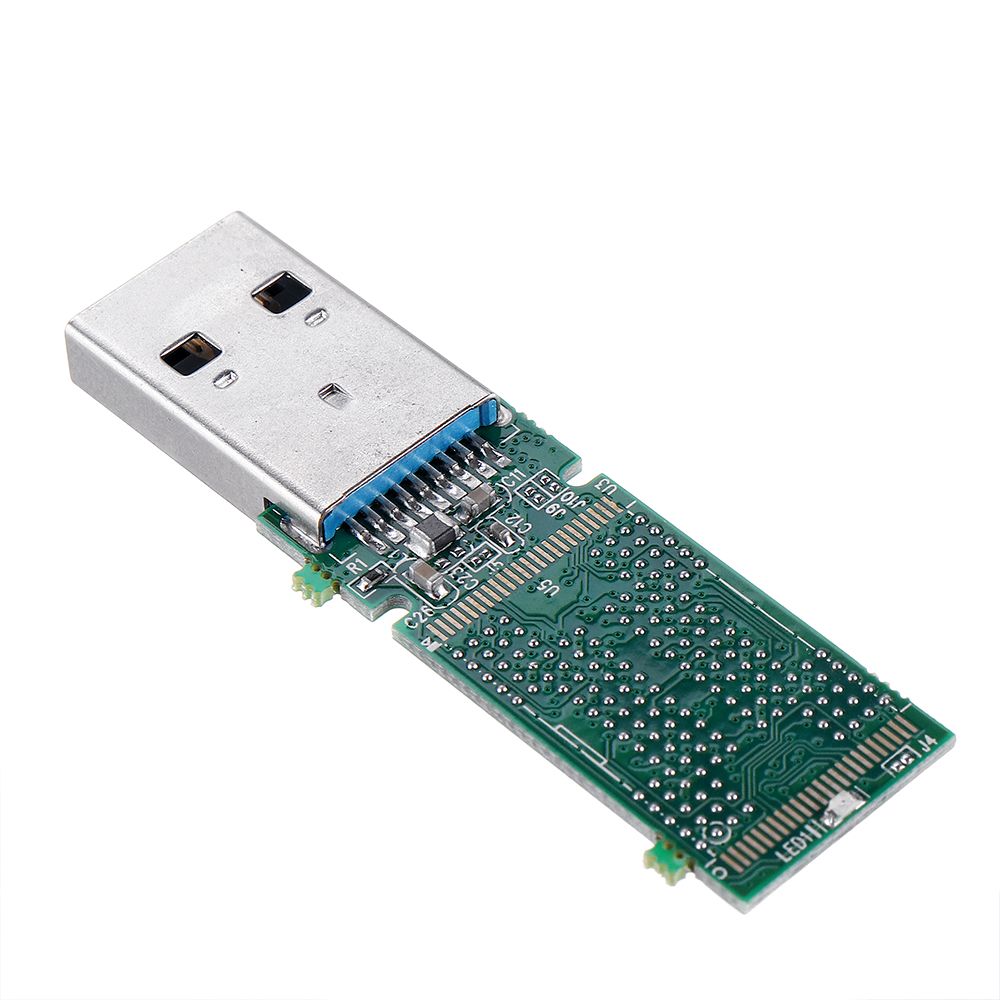

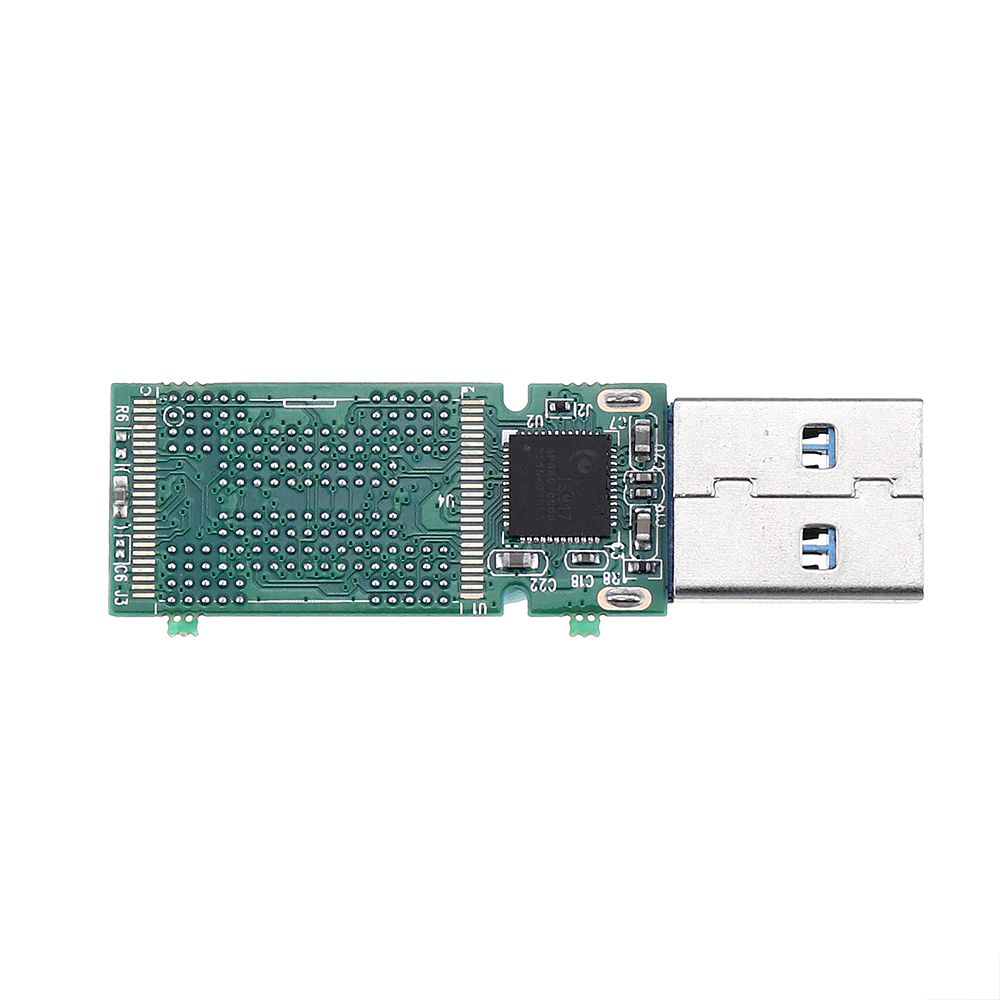

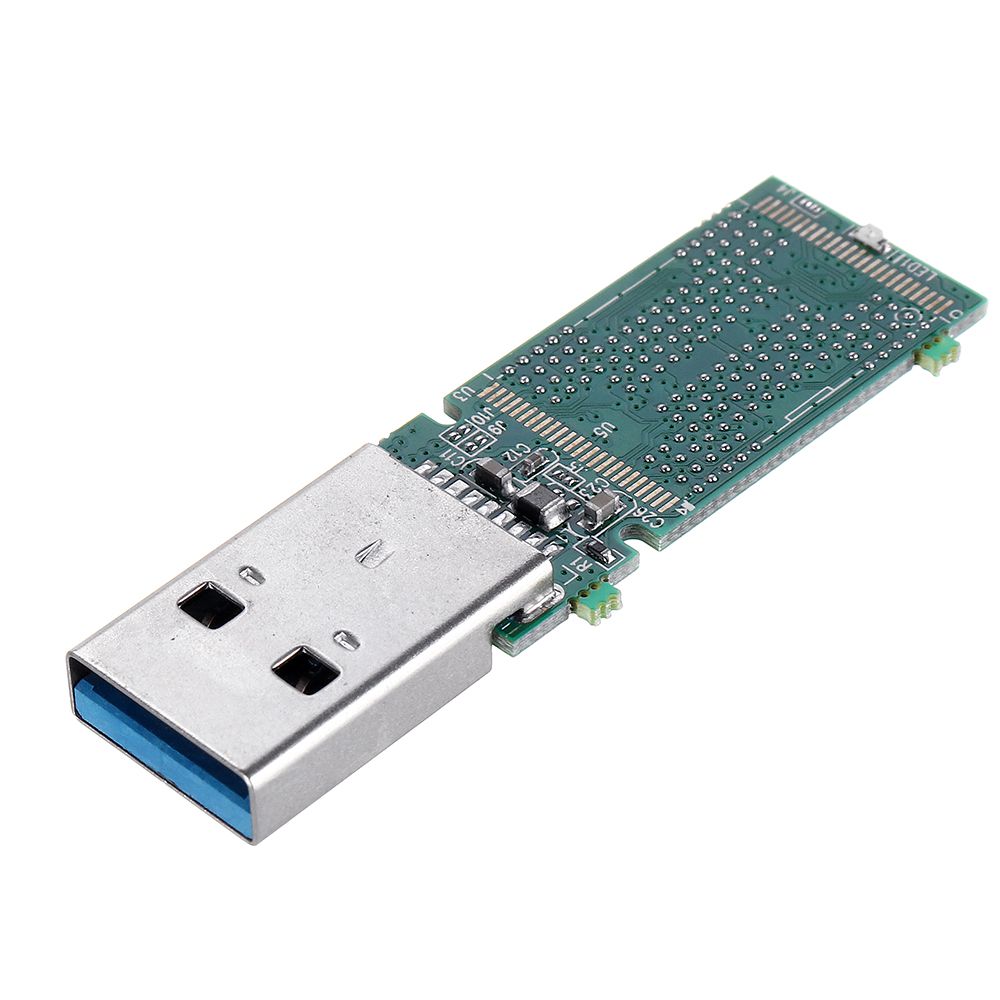

20 x NAND Flash USB 3.0 U Disk PCB IS917 Main Controller


20pcs-BGA152-BGA132-BGA136-TSOP48-NAND-Flash-USB-30-U-Disk-PCB-IS917-Main-Controller-Without-Flash-M-1682102

20pcs-BGA152-BGA132-BGA136-TSOP48-NAND-Flash-USB-30-U-Disk-PCB-IS917-Main-Controller-Without-Flash-M-1682102

20pcs-BGA152-BGA132-BGA136-TSOP48-NAND-Flash-USB-30-U-Disk-PCB-IS917-Main-Controller-Without-Flash-M-1682102

20pcs-BGA152-BGA132-BGA136-TSOP48-NAND-Flash-USB-30-U-Disk-PCB-IS917-Main-Controller-Without-Flash-M-1682102
