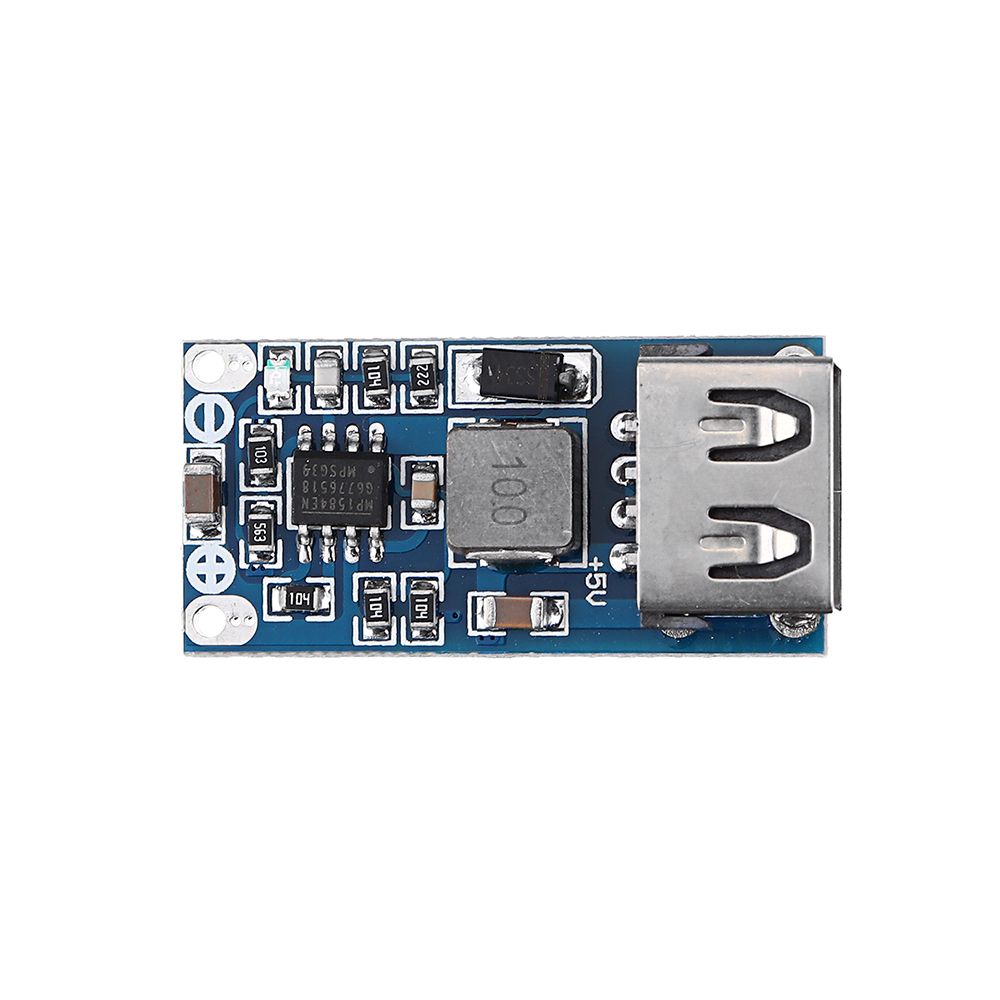

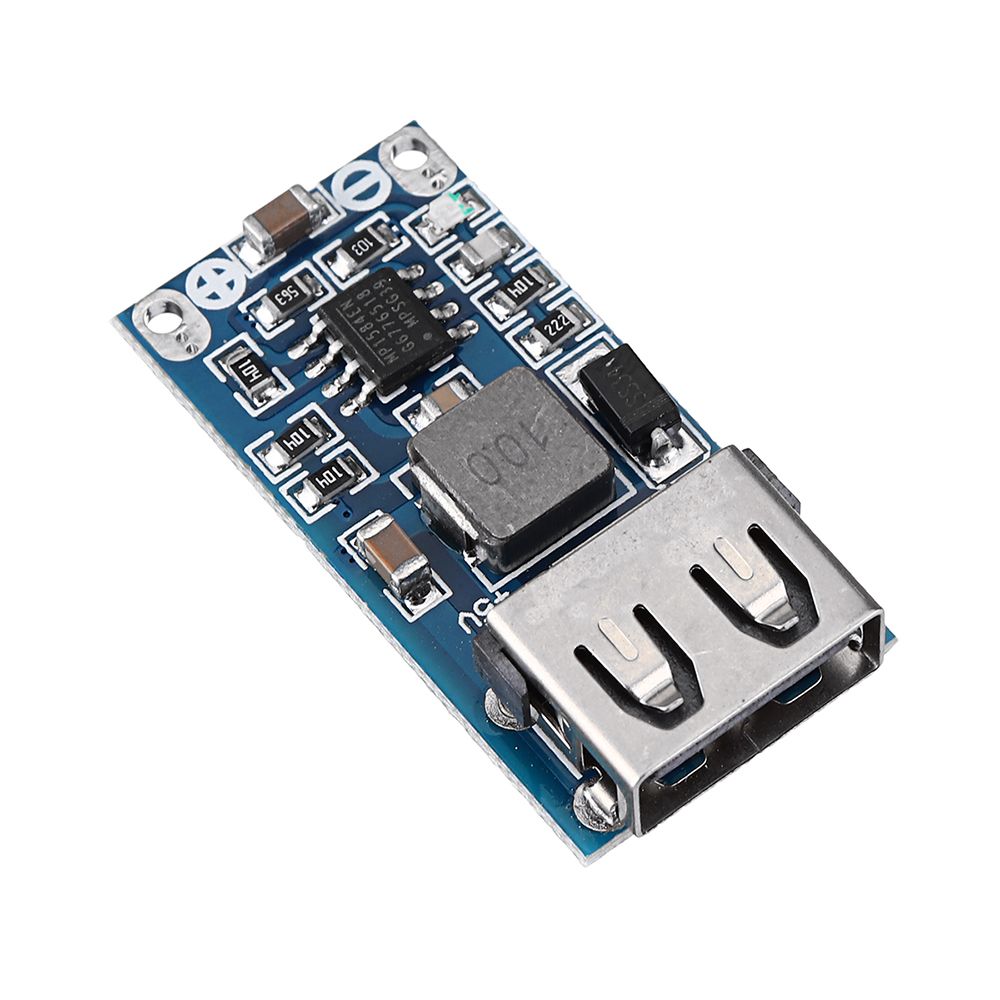

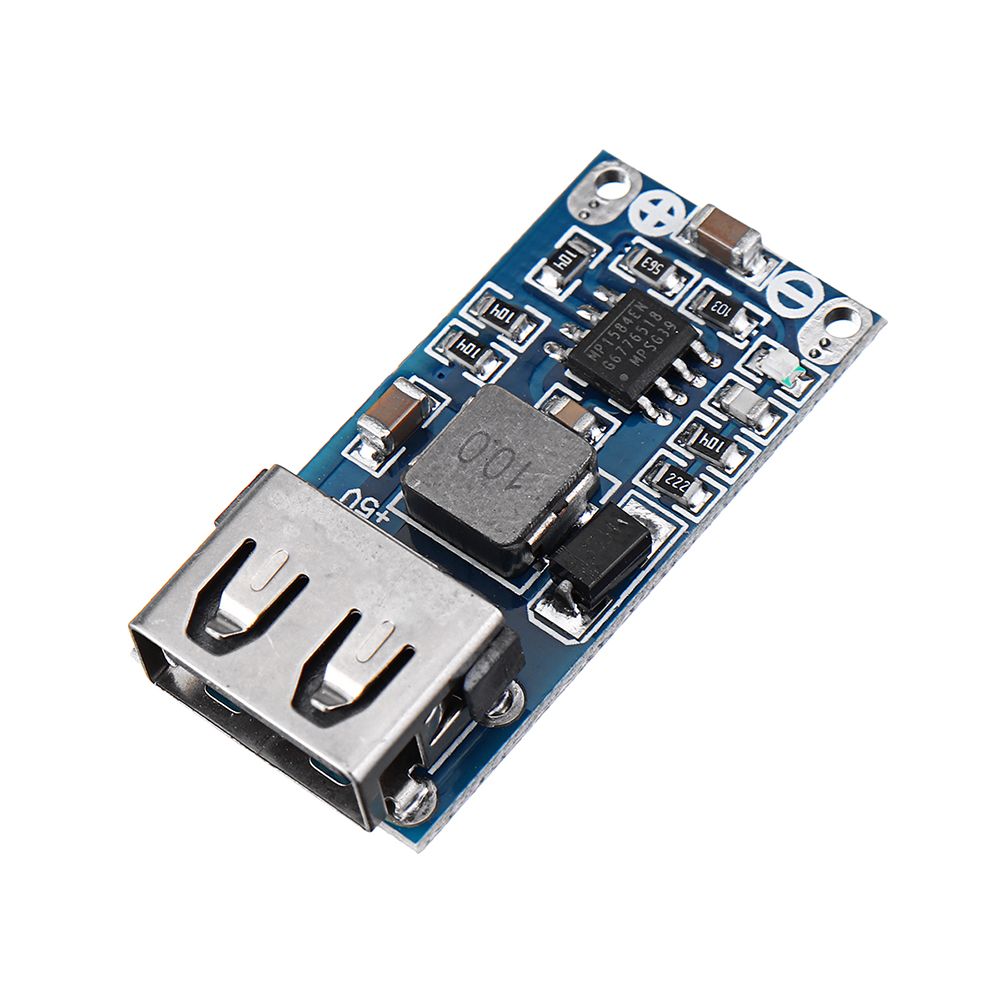

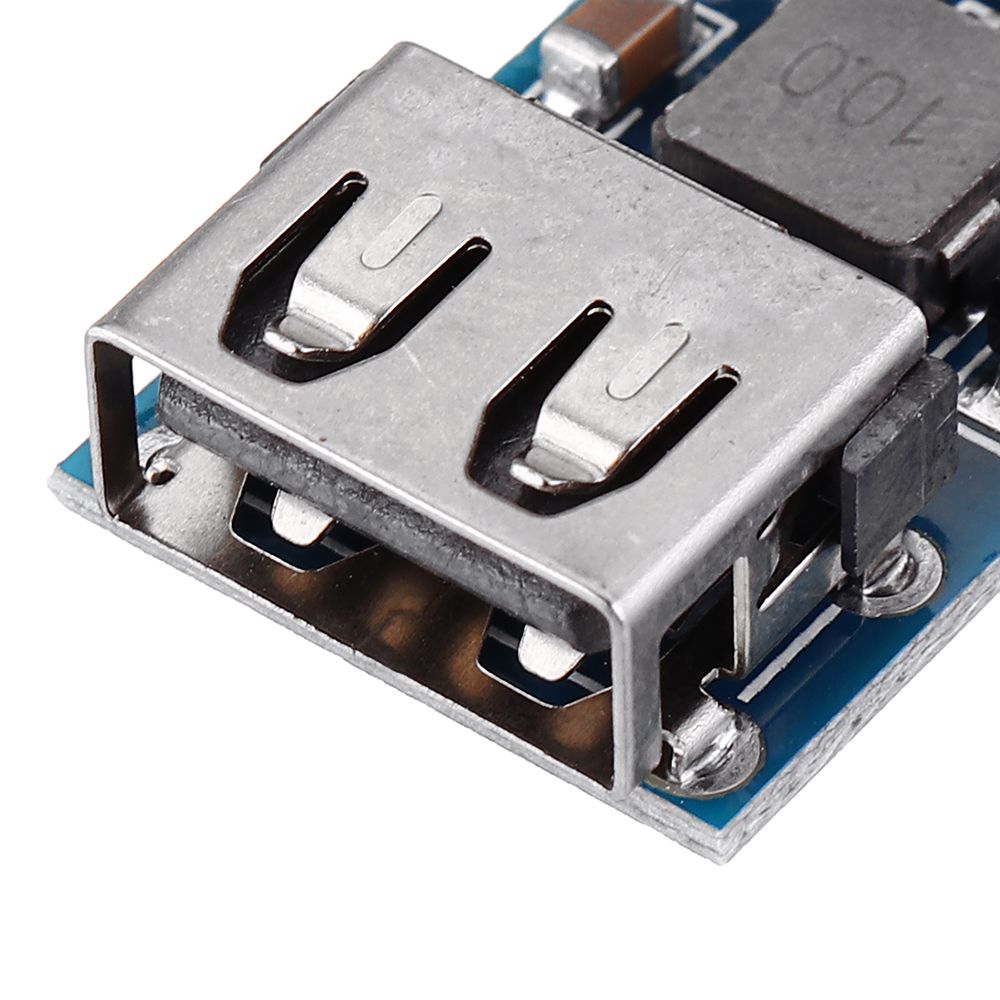

20pcs DC-DC 9V/12V/24V to 5V Step Down Regulator USB Charging Car Power Supply Step-down Buck Charging Module

20pcs DC-DC 9V/12V/24V to 5V Step Down Regulator USB Charging Car Power Supply Step-down Buck Charging Module
20pcs DC-DC 9V/12V/24V to 5V Step Down Regulator USB Charging Car Power Supply Step-down Buck Charging Module
20pcs DC-DC 9V/12V/24V to 5V Step Down Regulator USB Charging Car Power Supply Step-down Buck Charging Module
20pcs DC-DC 9V/12V/24V to 5V Step Down Regulator USB Charging Car Power Supply Step-down Buck Charging Module
20pcs DC-DC 9V/12V/24V to 5V Step Down Regulator USB Charging Car Power Supply Step-down Buck Charging Module
20pcs DC-DC 9V/12V/24V to 5V Step Down Regulator USB Charging Car Power Supply Step-down Buck Charging Module
20pcs DC-DC 9V/12V/24V to 5V Step Down Regulator USB Charging Car Power Supply Step-down Buck Charging Module
20pcs DC-DC 9V/12V/24V to 5V Step Down Regulator USB Charging Car Power Supply Step-down Buck Charging Module
20pcs DC-DC 9V/12V/24V to 5V Step Down Regulator USB Charging Car Power Supply Step-down Buck Charging Module
20pcs DC-DC 9V/12V/24V to 5V Step Down Regulator USB Charging Car Power Supply Step-down Buck Charging Module
20pcs DC-DC 9V/12V/24V to 5V Step Down Regulator USB Charging Car Power Supply Step-down Buck Charging Module
20pcs DC-DC 9V/12V/24V to 5V Step Down Regulator USB Charging Car Power Supply Step-down Buck Charging Module
20pcs DC-DC 9V/12V/24V to 5V Step Down Regulator USB Charging Car Power Supply Step-down Buck Charging Module
$25.99
Ex Tax: $25.99
  • Stock: In Stock
  • Model: EB0045112
  • SKU: EB0045112
Feature:

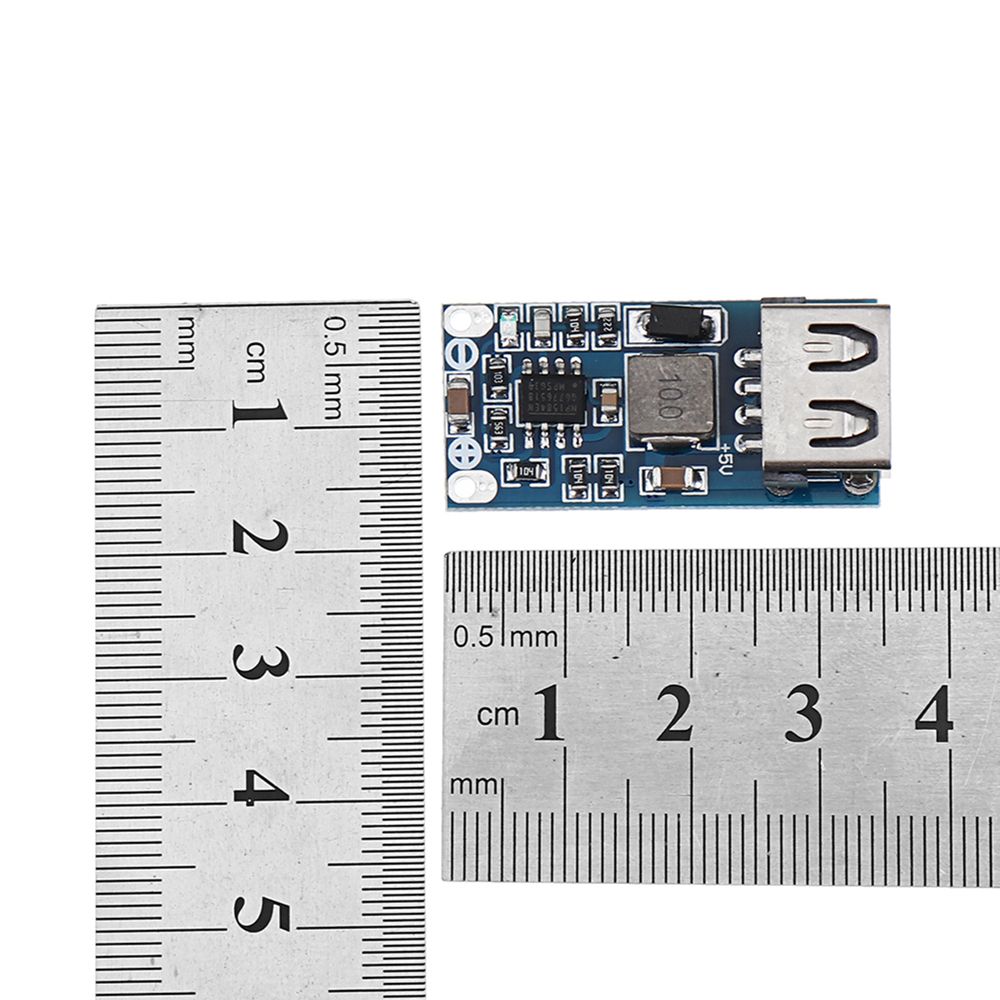

Product size: 35.5 x 17 x 8.3mm

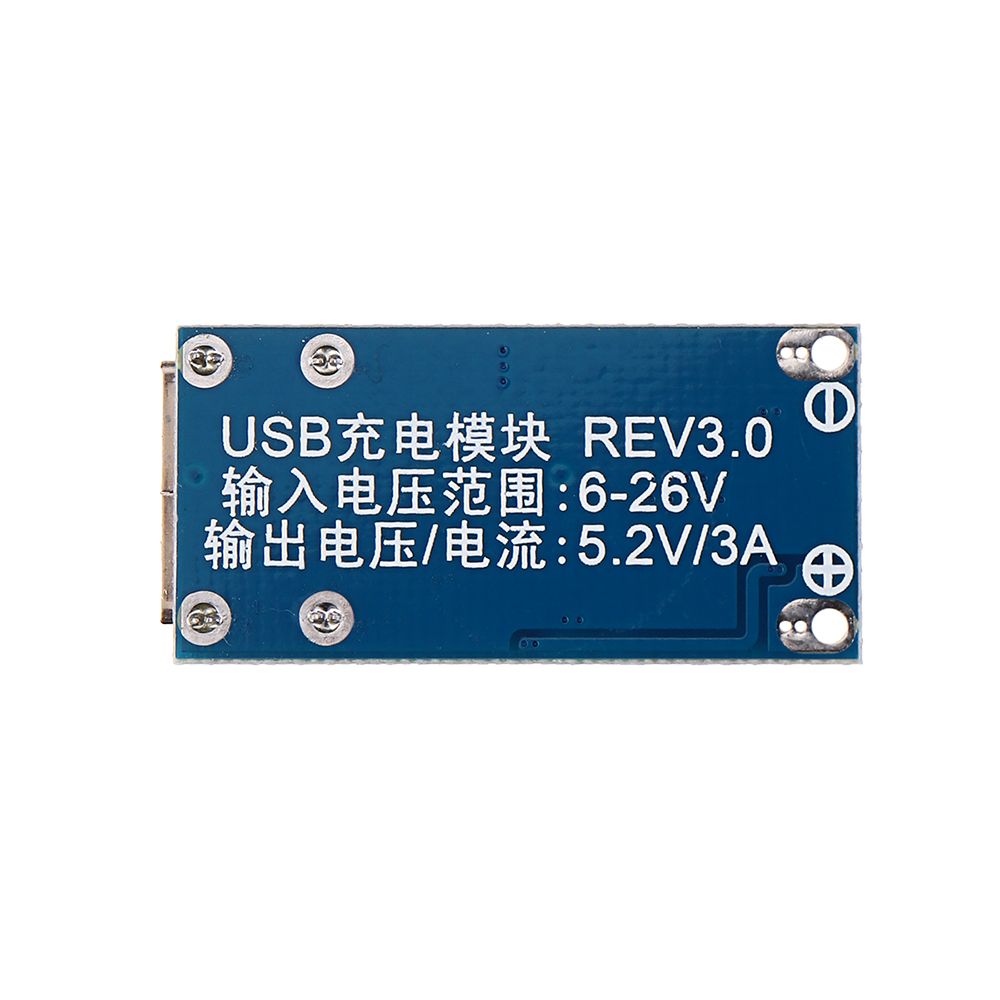

Input voltage range: 6-26V
Output voltage: 5.2V (considering the charging line loss, the output is about 5.2V, the load is about 5V)
Upper limit output current: 3A (in the case of no heat sink, the stable output upper limit current is 2A)

Precautions:

1. The positive and negative poles cannot be reversed, and the input voltage should not exceed 26V, otherwise the chip will be damaged!
2. When powering on, you can't touch the sampling resistor and IC pin on the circuit board by hand. Otherwise, the output voltage may be suddenly damaged and damage the device!
3. Explain to some customers with electronic basics: Do not think that the nominal 3A current will burn out the equipment. The charging current is determined by the device. The charging current for most devices is 0.8-1.5A.

Tip: This is a step-down charging module. The current indicated by 2A refers to the upper limit current of the load. It cannot be compared with the 2A current indicated by the charger.

Project Min.Value Typical Value Max.Value Unit
Standby current (Ven=0V) 15 20 25 uA
No-load current 8 12 18 mA
Renhotec 6 12 26 V
The output voltage 5.1 5.25 5.4 V
Output current 0 2 3 A
Overcurrent protection current 5 5.5 6 A
Conduction internal resistance 80 100 120
On-off level 335 385 435 KHz
High temperature protection 85 90 130 °C
Conversion efficiency (I=7V, 0=5V) 93 95 97 %
Ambient temperature -40 25 85 °C

Package includes:

20 x Power supply module
