Description:

Can be inserted directly into uno mega2560, Ideal for linking up to your   UNO Mini Nano Mega2560 Breadboard etc, or others MCU ( AVR STM32 ARM PIC AT89C51 STC MSP430 STM8 FPGA CPLD etc.)

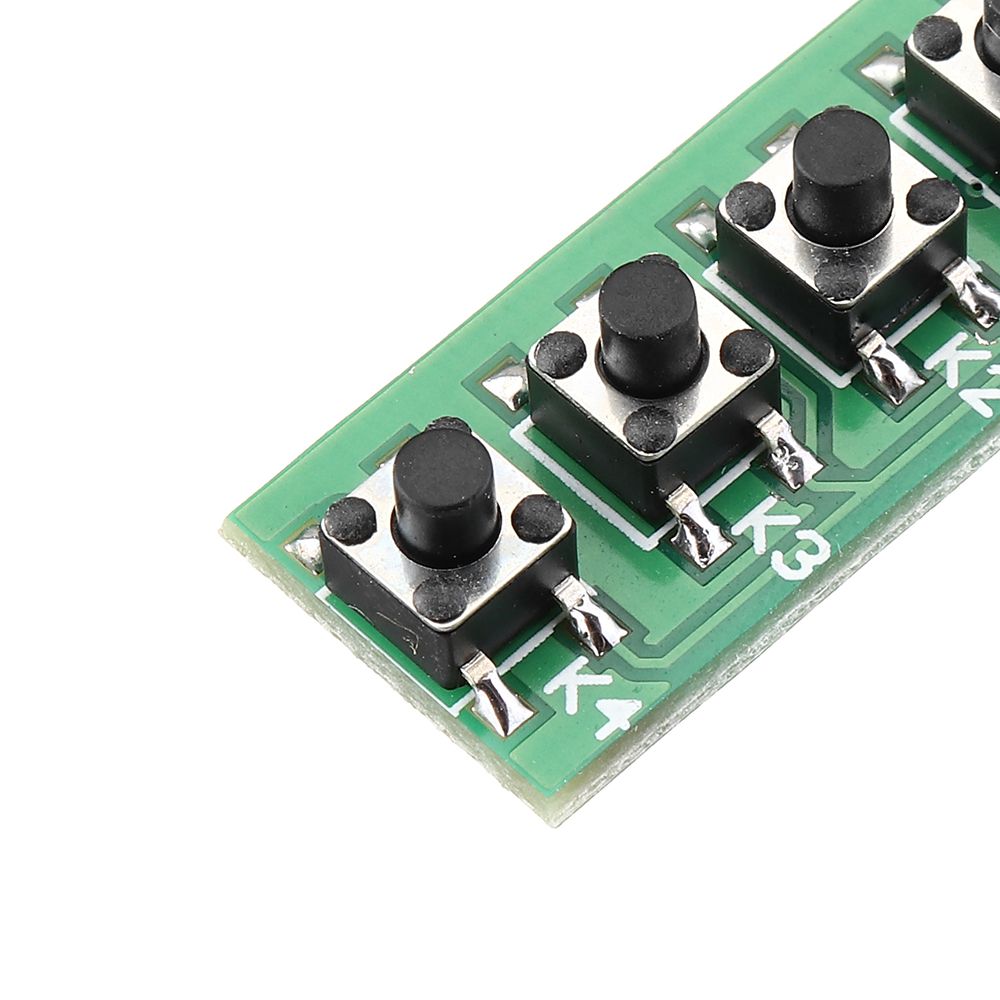

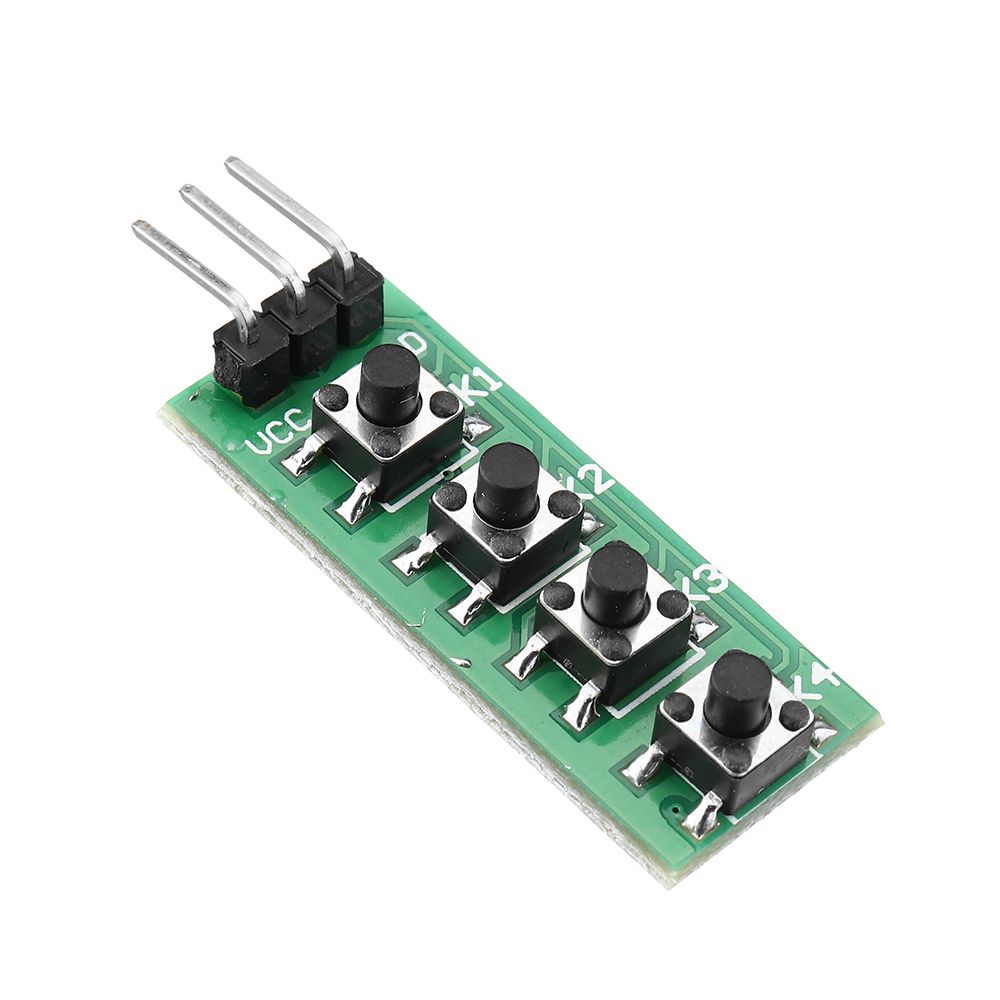

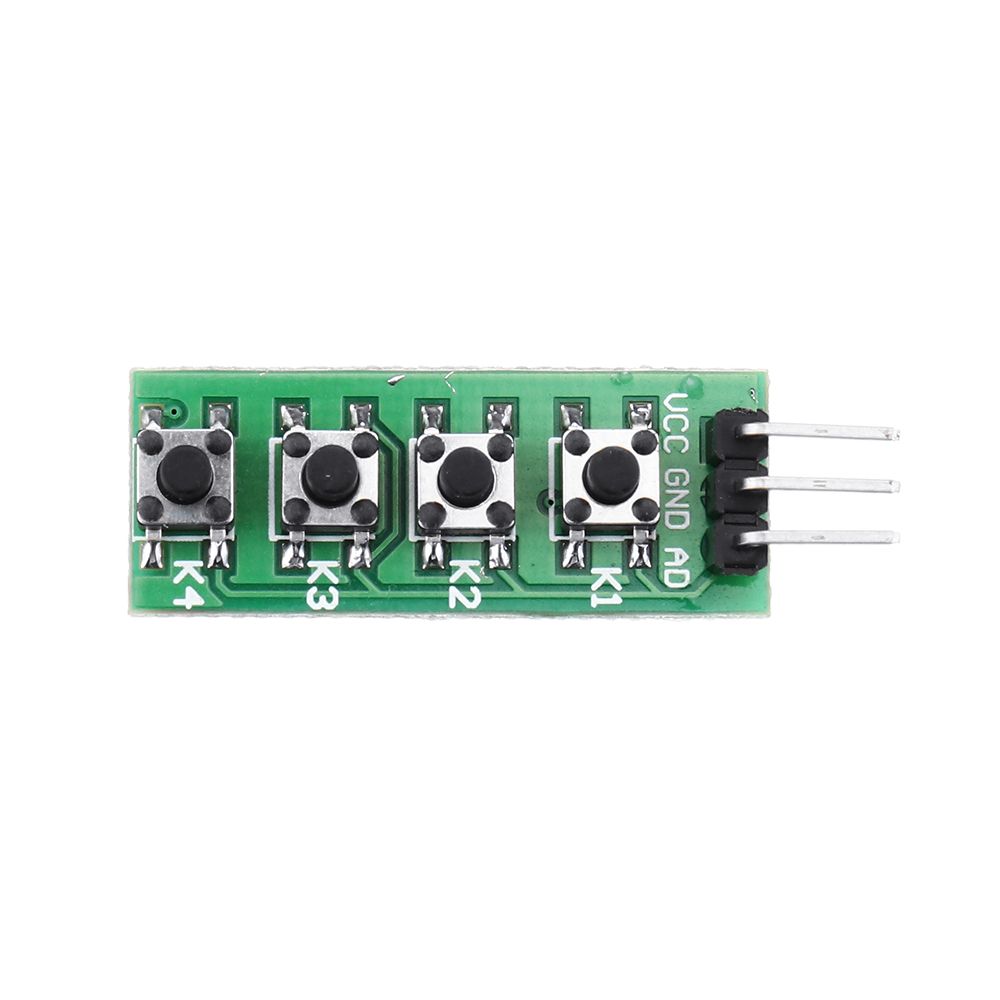

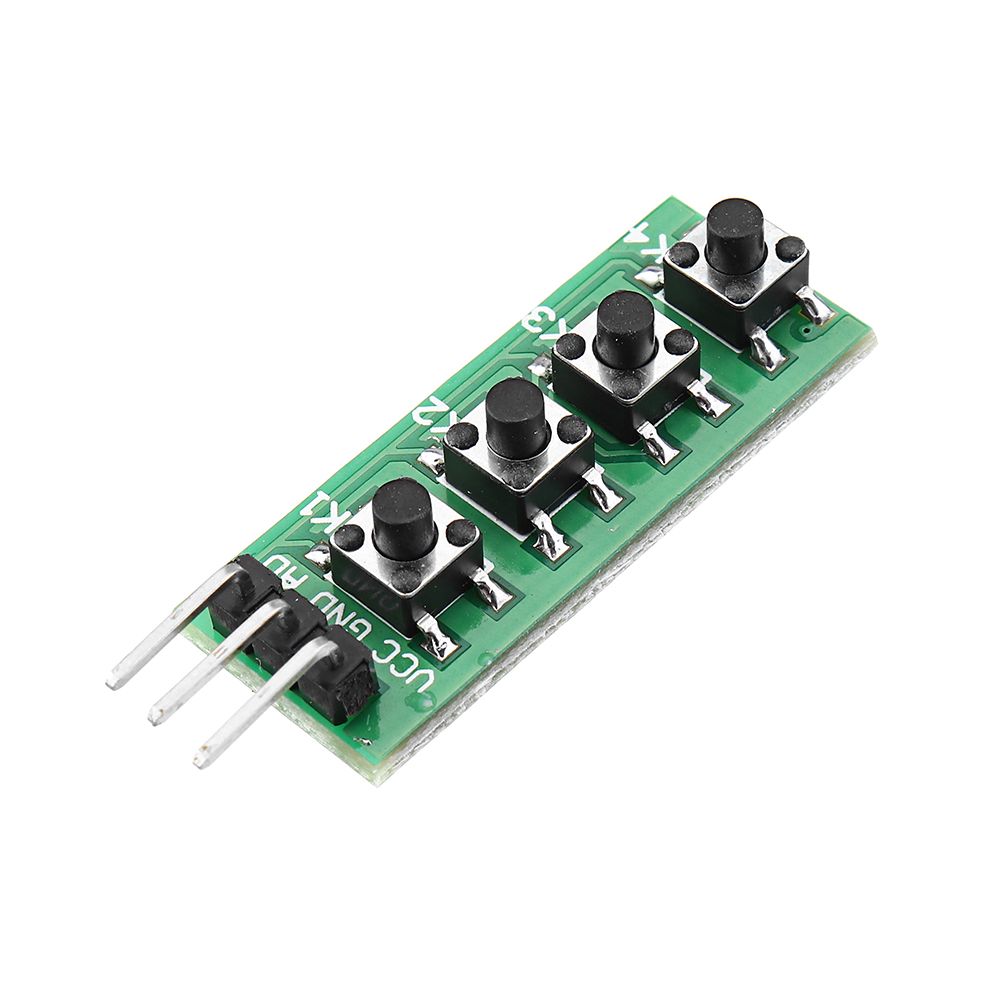

4-button Common Cathode key module
GND "K1 K2 K3 K4" 4 PIN OUT 2.54mm

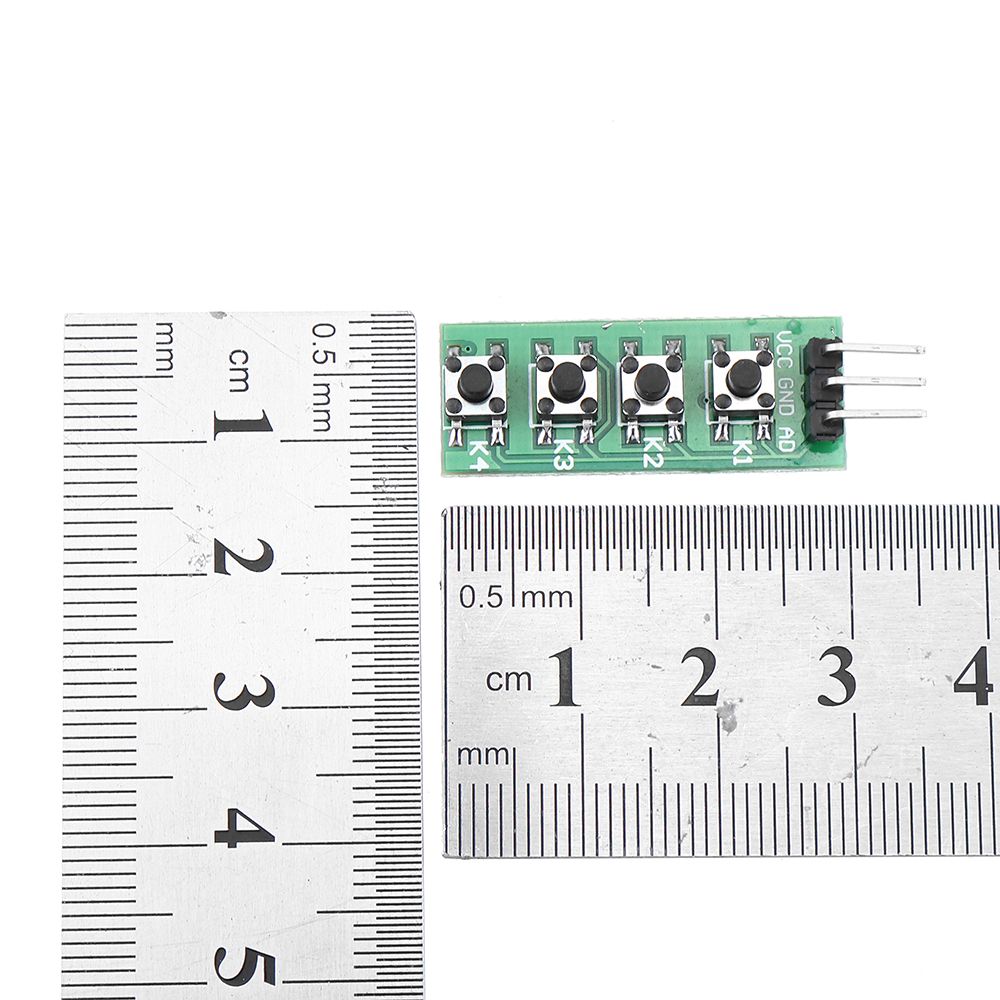

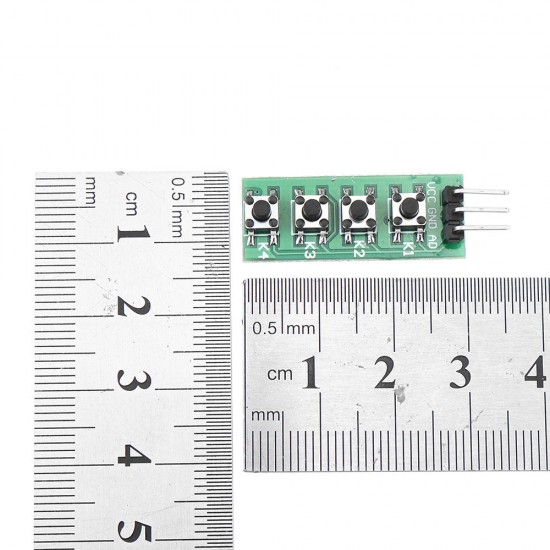

Size: 12.7MM x 33MM.

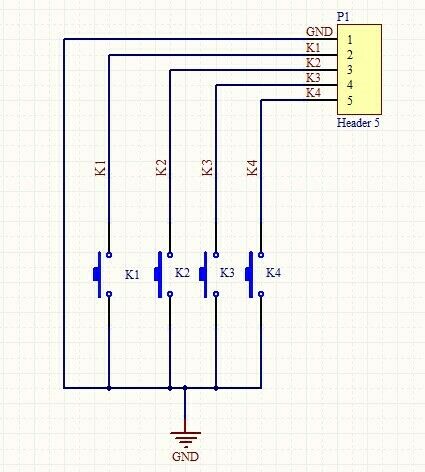

Circuit schematics:

20pcs-Keypad-4-Button-Key-Module-Switch-Keyboard-For-UNO-MEGA2560-Breadboard-1590012

Package includes:

20 x Keyboard


uno/mega2560 Code

//******************************************************//


/*
_4key_uart

This example code is in the public domain.
*/

// Define key pin
int K1 = 13;
int K2 = 12;
int K3 = 11;
int K4 = 10;


// variables will change:
int buttonState = 0; // variable for reading the pushbutton status

// the setup routine runs once when you press reset:
void setup() {
// initialize the keys pin as an input.

pinMode(K1, INPUT);
pinMode(K2, INPUT);
pinMode(K3, INPUT);
pinMode(K4, INPUT);

//Activate key pin internal pull-up resistors
digitalWrite(K1, HIGH);
digitalWrite(K2, HIGH);
digitalWrite(K3, HIGH);
digitalWrite(K4, HIGH);

// initialize serial communications at 9600 bps:
Serial.begin(9600);
}

// the loop routine runs over and over again forever:
void loop() {

buttonState = digitalRead(K1);
if(!buttonState)Serial.print("k1 n" );
do
{
buttonState = digitalRead(K1);
}
while(!buttonState);//Wait button release

buttonState = digitalRead(K2);
if(!buttonState)Serial.print("k2 n" );
do
{
buttonState = digitalRead(K2);
}
while(!buttonState);//Wait button release

buttonState = digitalRead(K3);
if(!buttonState)Serial.print("k3 n" );
do
{
buttonState = digitalRead(K3);
}
while(!buttonState);//Wait button release

buttonState = digitalRead(K4);
if(!buttonState)Serial.print("k4 n" );
do
{
buttonState = digitalRead(K4);
}
while(!buttonState);//Wait button release

delay(100);
}

 //******************************************************//




20pcs-Keypad-4-Button-Key-Module-Switch-Keyboard-For-UNO-MEGA2560-Breadboard-1590012

20pcs-Keypad-4-Button-Key-Module-Switch-Keyboard-For-UNO-MEGA2560-Breadboard-1590012

20pcs-Keypad-4-Button-Key-Module-Switch-Keyboard-For-UNO-MEGA2560-Breadboard-1590012

20pcs-Keypad-4-Button-Key-Module-Switch-Keyboard-For-UNO-MEGA2560-Breadboard-1590012

20pcs-Keypad-4-Button-Key-Module-Switch-Keyboard-For-UNO-MEGA2560-Breadboard-1590012

20pcs-Keypad-4-Button-Key-Module-Switch-Keyboard-For-UNO-MEGA2560-Breadboard-1590012
