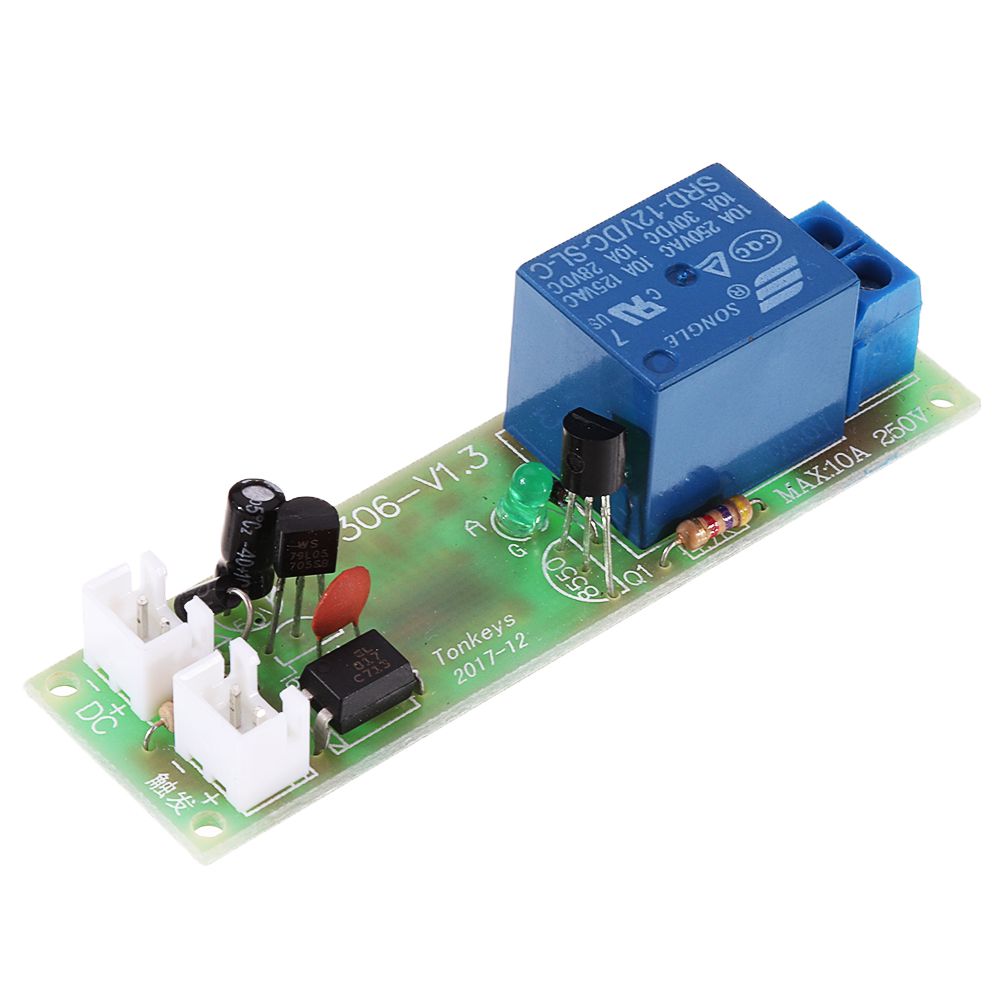

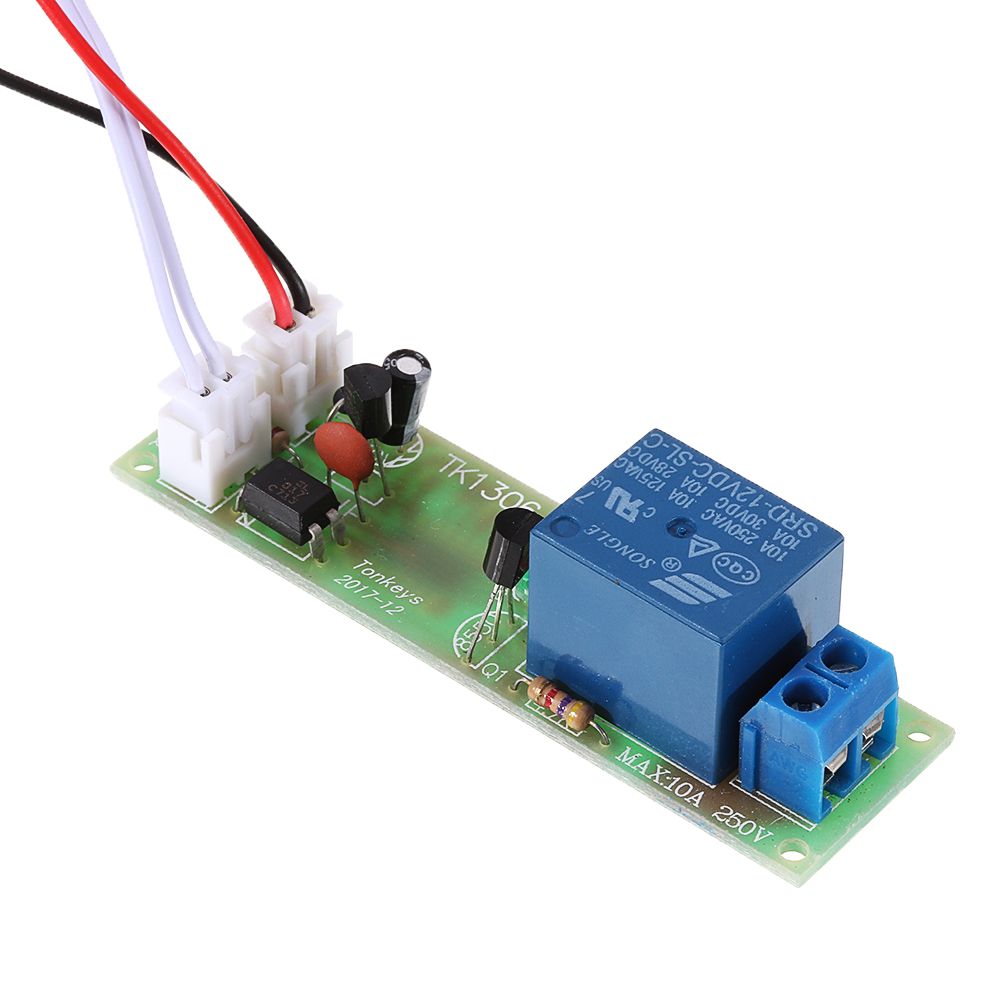

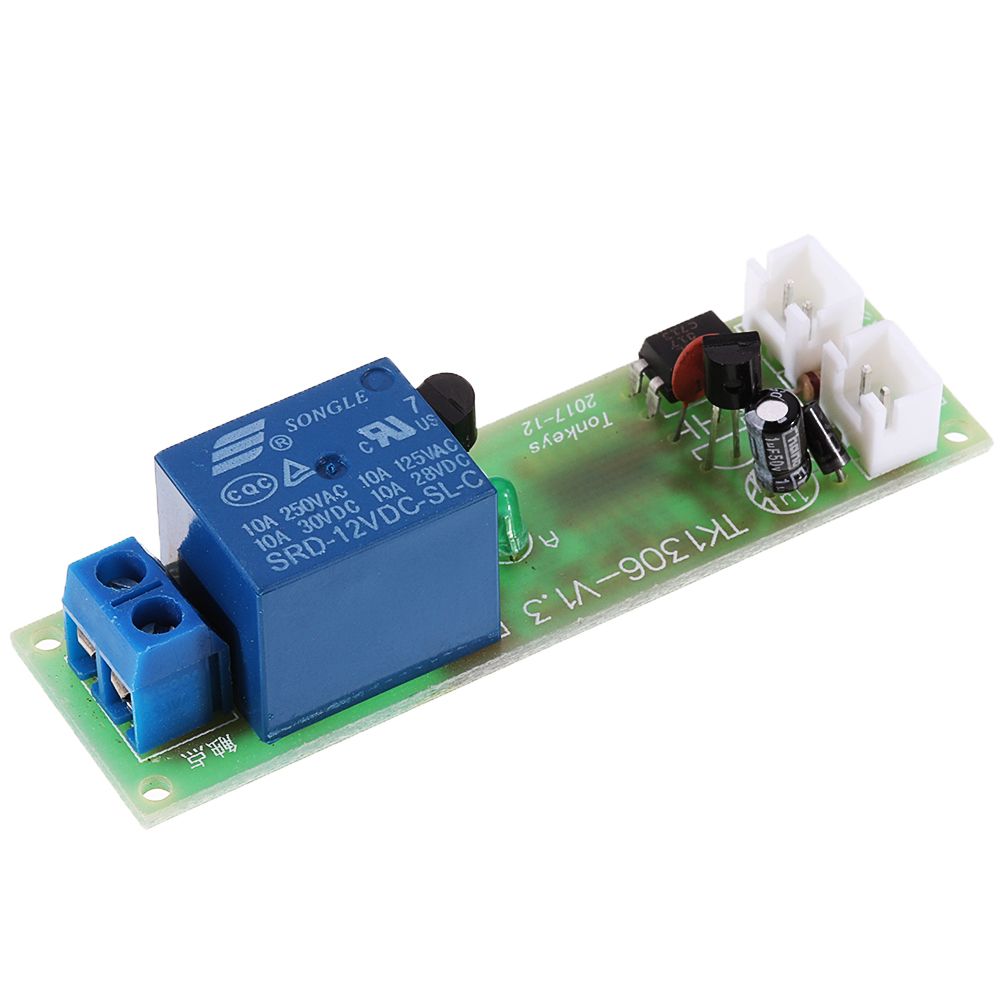

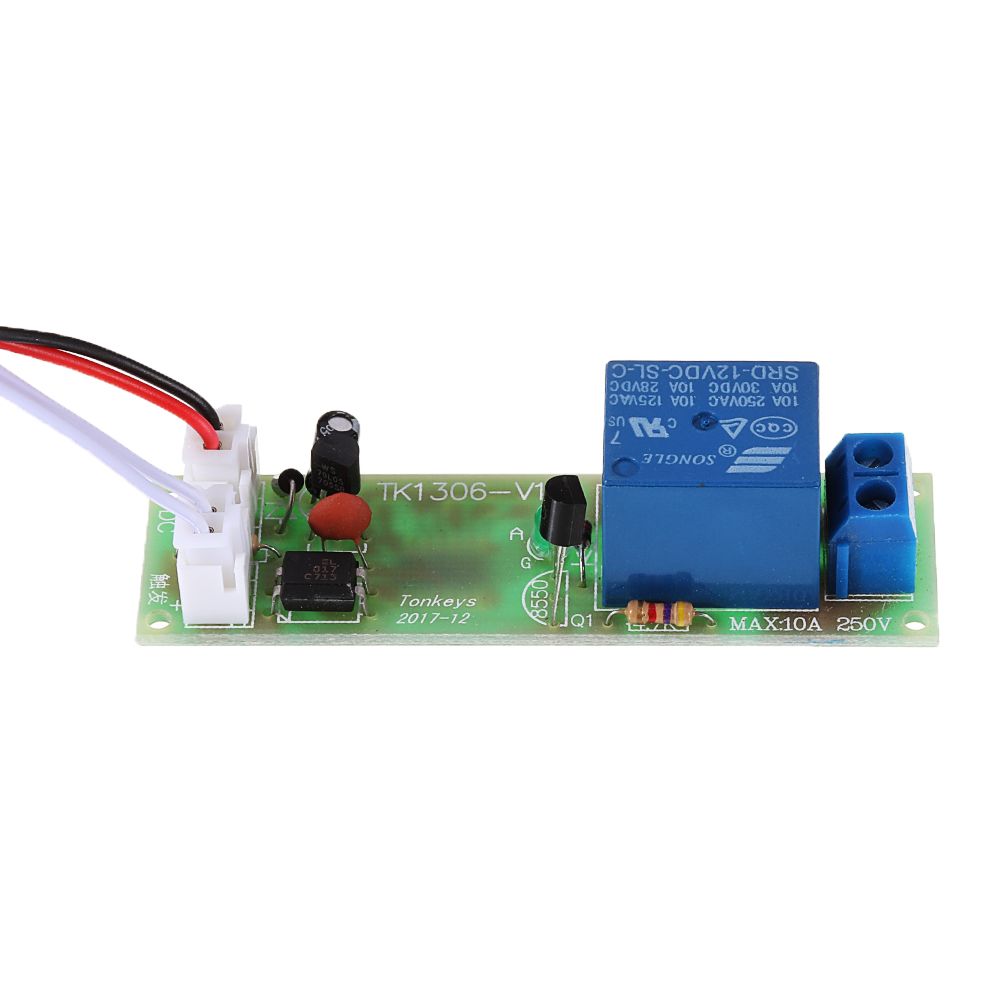

20pcs TK1305A 12V DC Multifunctional Time Delay Relay Module with Optocoupler Isolation

20pcs TK1305A 12V DC Multifunctional Time Delay Relay Module with Optocoupler Isolation
20pcs TK1305A 12V DC Multifunctional Time Delay Relay Module with Optocoupler Isolation
20pcs TK1305A 12V DC Multifunctional Time Delay Relay Module with Optocoupler Isolation
20pcs TK1305A 12V DC Multifunctional Time Delay Relay Module with Optocoupler Isolation
20pcs TK1305A 12V DC Multifunctional Time Delay Relay Module with Optocoupler Isolation
20pcs TK1305A 12V DC Multifunctional Time Delay Relay Module with Optocoupler Isolation
20pcs TK1305A 12V DC Multifunctional Time Delay Relay Module with Optocoupler Isolation
20pcs TK1305A 12V DC Multifunctional Time Delay Relay Module with Optocoupler Isolation
20pcs TK1305A 12V DC Multifunctional Time Delay Relay Module with Optocoupler Isolation
20pcs TK1305A 12V DC Multifunctional Time Delay Relay Module with Optocoupler Isolation
20pcs TK1305A 12V DC Multifunctional Time Delay Relay Module with Optocoupler Isolation
$45.99
Ex Tax: $45.99
  • Stock: In Stock
  • Model: EB0045834
  • SKU: EB0045834

Function 1: Trigger once (relay), then trigger once disconnect (disconnector), each time the relay is triggered once, the module has self-locking function.
Function 2: Turn on immediately after triggering, and disconnect after the delay time arrives.
Function 3: Disconnect immediately after triggering, and turn on after the delay time has elapsed. (Note: the relay will not be turned on for the first time)

Specifications:

Power supply: DC 12V ± 1.5V
Trigger mode: The optocoupler is isolated and triggered. When the input signal voltage is maintained for more than 20 milliseconds, the trigger will be executed. In order to improve the anti-interference ability, signals below 20 milliseconds are filtered out.
Trigger signal requirements: current > 0.5mA, voltage 1.7V ~ 18V, level time > 20mS
Quiescent current: <10mA
Pull-in current: 45mA @12V
Load capacity: AC 10A 250V or DC 10A 30V
Delay error: ±2%
Can be set from 0 seconds to 1 hour, 32 time values can be set.

Package Included:

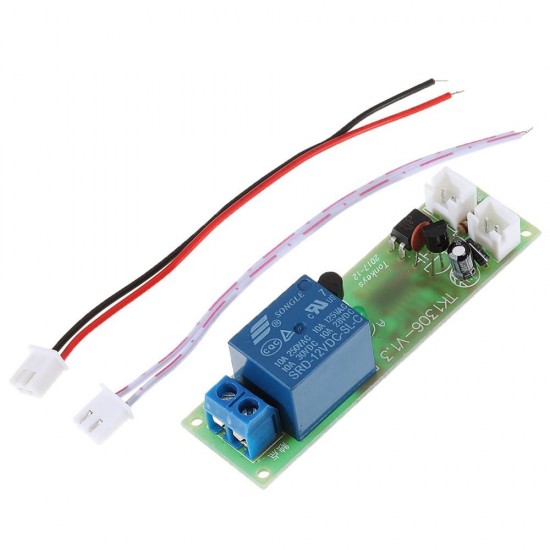

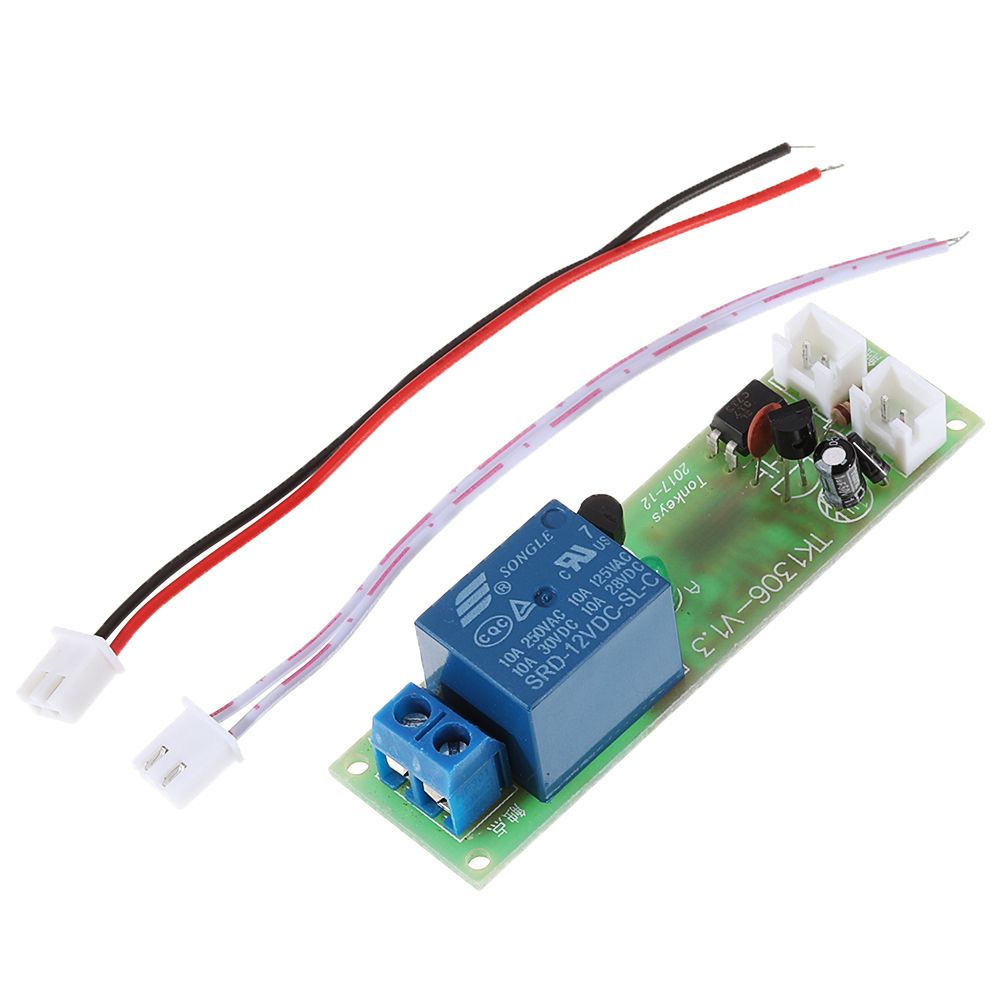

20 x TK1305A 12V DC Multifunctional Time Delay Relay Module
