$44.99
Ex Tax: $44.99
  • Stock: In Stock
  • Model: EB0051861
  • SKU: EB0051861

Available Options

  • Voltage: DC 12V
    Precise details>>
    Content-Length: 3631 v>

    If you need the 868Mhz version, please buy Product ID: EB0041906

    This item will be out of stock soon, you can buy the other chip item: >>>Contact Us<<<


    Description:

    The 915MHz antenna needs to be in connection with the IPEX interface (if the antenna is not connected, it may damage the LoRa chip)
    Lithium battery charge and discharge circuit, when the battery is full, the blue LED will stop working. When using, pay attention to the positive and negative of the battery, otherwise it will be damaged!

    With IO port touch screen touch signal input, you need to add the 100nF pull-down capacitor to this pin!
    Note:This product does not include the battery.


    Example:


    This product is a SX1276 chip based on ESP32 WIFI increased OLED, namely LoRa remote modem, 915MHz frequency, high sensitivity is over-148dBm, + 20dBm output power, high reliability, long transmission distance.
    the onboard 32MB Flash wi-fi antenna, 0.96 inch blue oled display, lithium battery charging circuit, interface and USB serial chip, the perfect support for development environment, can be used for program checking and product development is very easy and fast.
    Operating voltage: 3.3V to 7V
    Operating temperature range: -40 ° C to + 90 ° C
    Support for Sniffer software protocol analysis, Station, SoftAP, and Wi-Fi Direct modes
    Data rates: 150 Mbps @ 11n HT40., 72 Mbps @ 11n HT20, 54 Mbps @ 11g, 11 Mbps @ 11b
    transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
    receiver sensitivity up to -98 dBm
    UDP sustained throughput of 135 Mbps

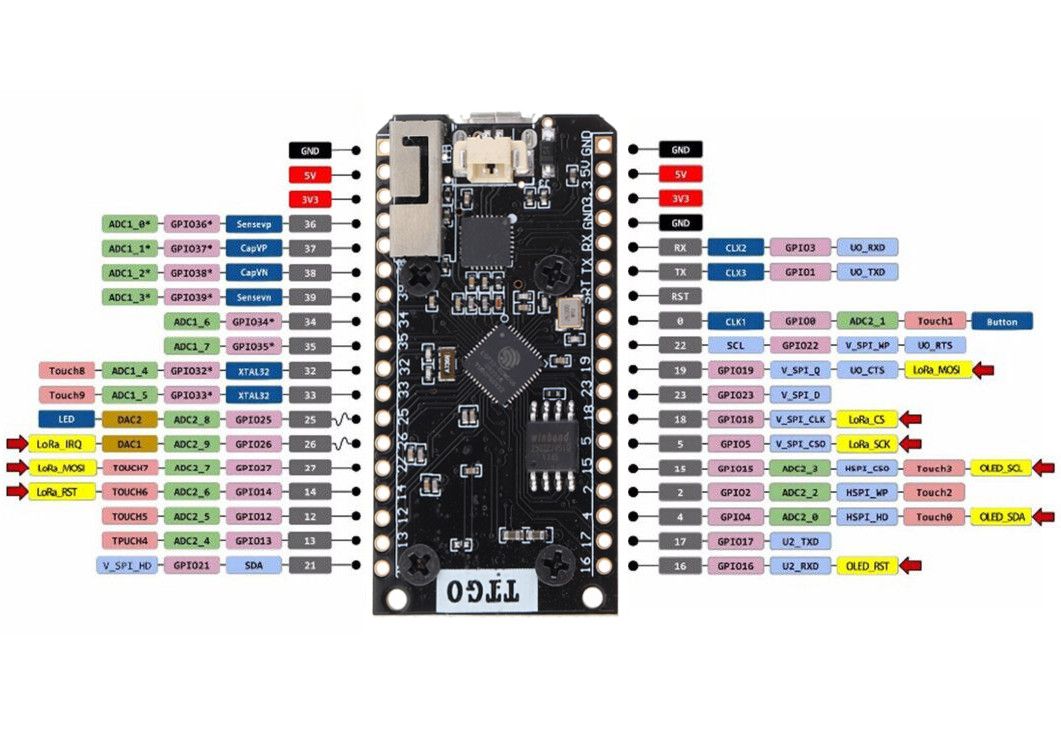

    Pin diagram:

    2Pcs-LILYGO-TTGO-LORA32-915Mhz-ESP32-LoRa-OLED-096-Inch-Blue-Display-bluetooth-WIFI-ESP-32-Developme-1239769

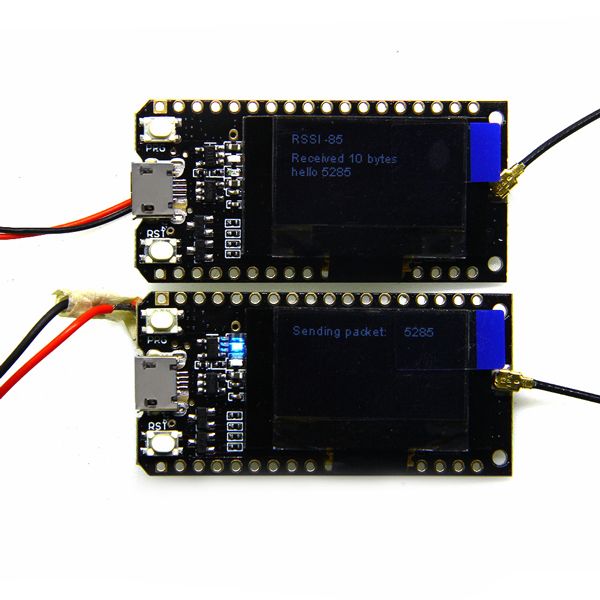

    Test details:

    2Pcs-LILYGO-TTGO-LORA32-915Mhz-ESP32-LoRa-OLED-096-Inch-Blue-Display-bluetooth-WIFI-ESP-32-Developme-1239769

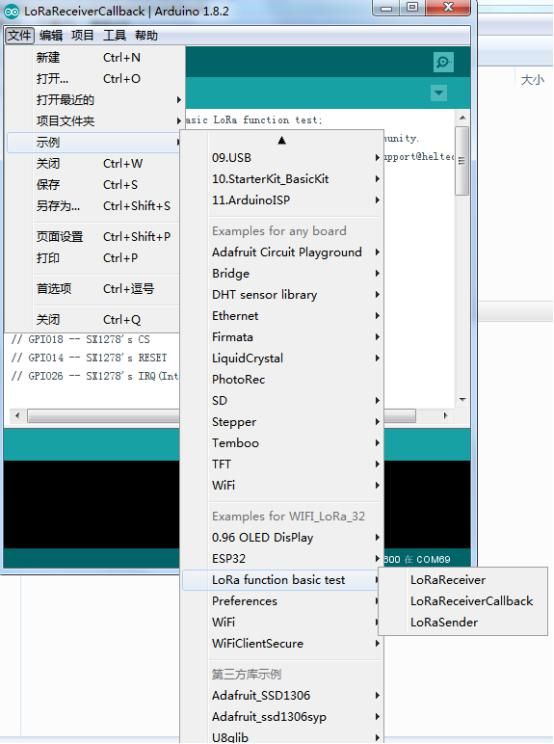

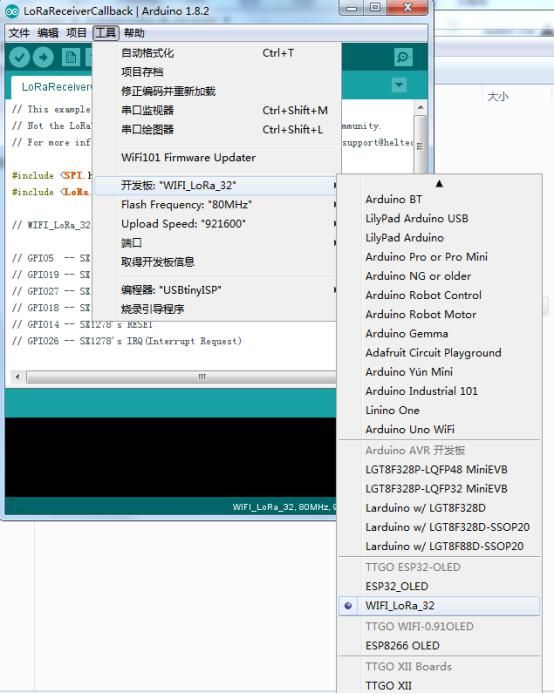

    Use legend:

    2Pcs-LILYGO-TTGO-LORA32-915Mhz-ESP32-LoRa-OLED-096-Inch-Blue-Display-bluetooth-WIFI-ESP-32-Developme-1239769



    For example One: https://www.renhotecic.com/image/download/docx/20210720212137example.docx

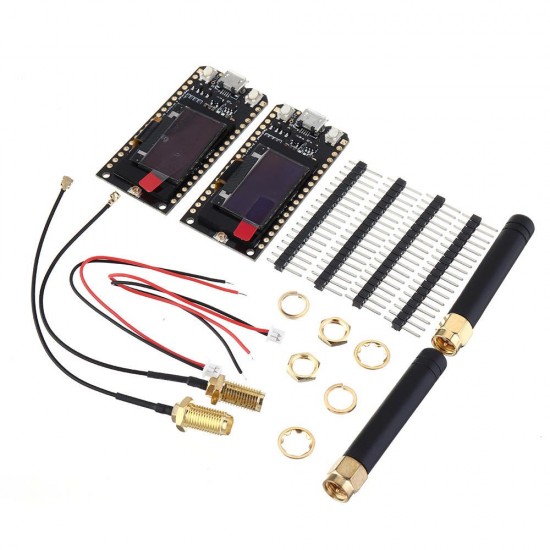

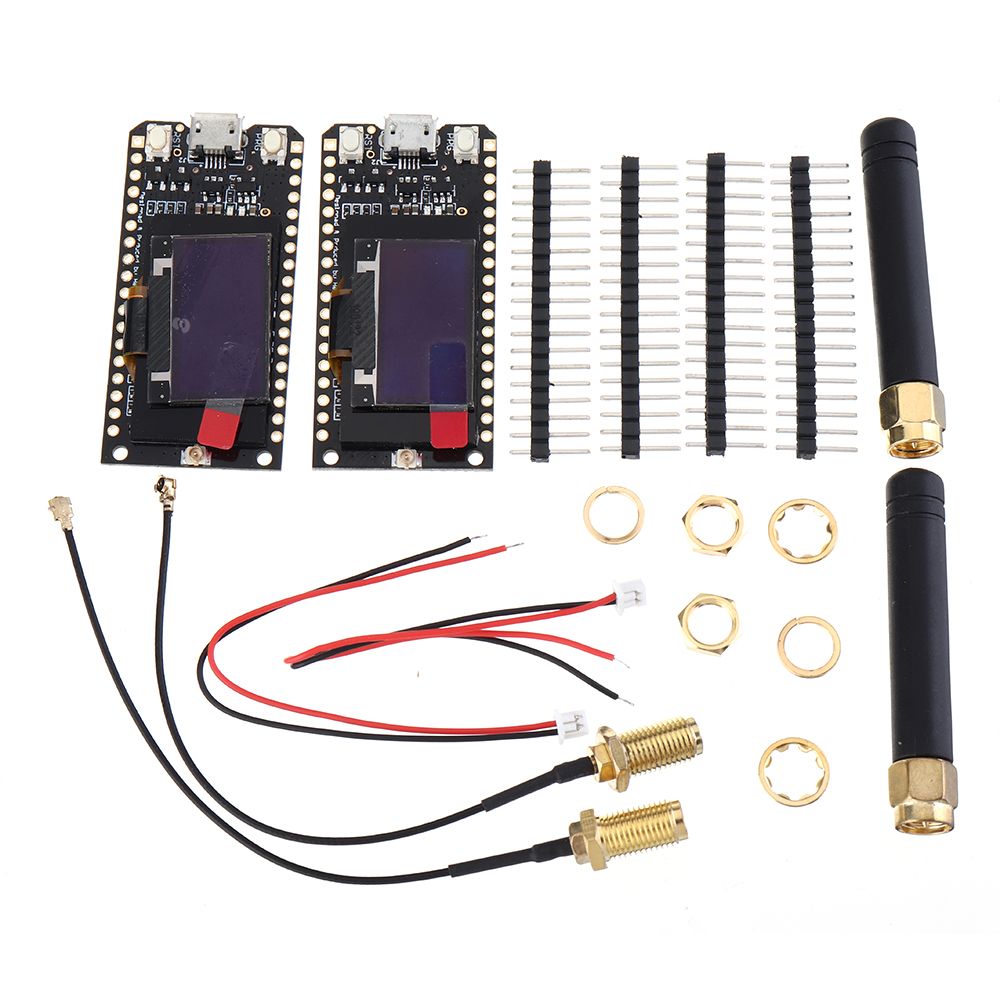

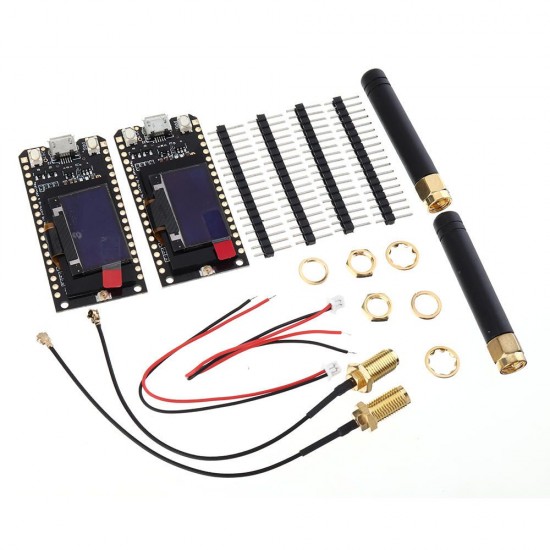

    Package included:

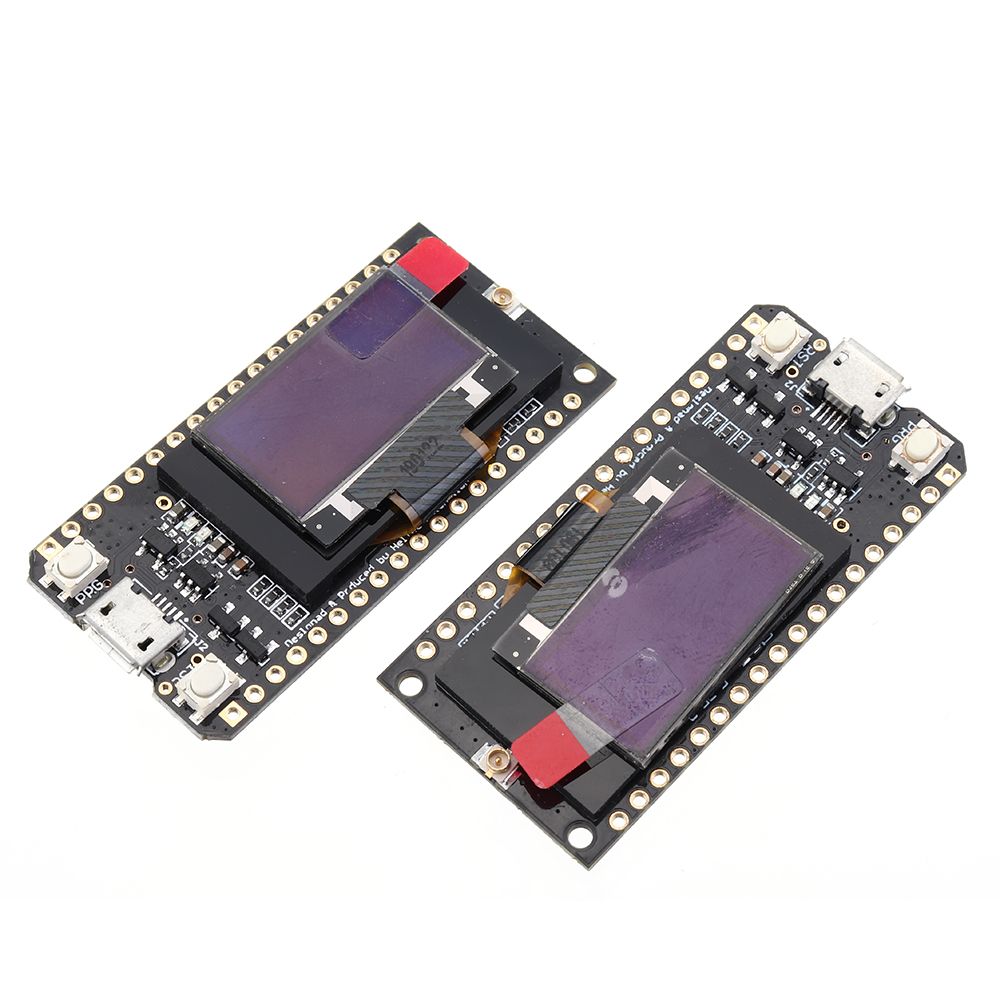

    2 x ESP32 LoRa OLED Module

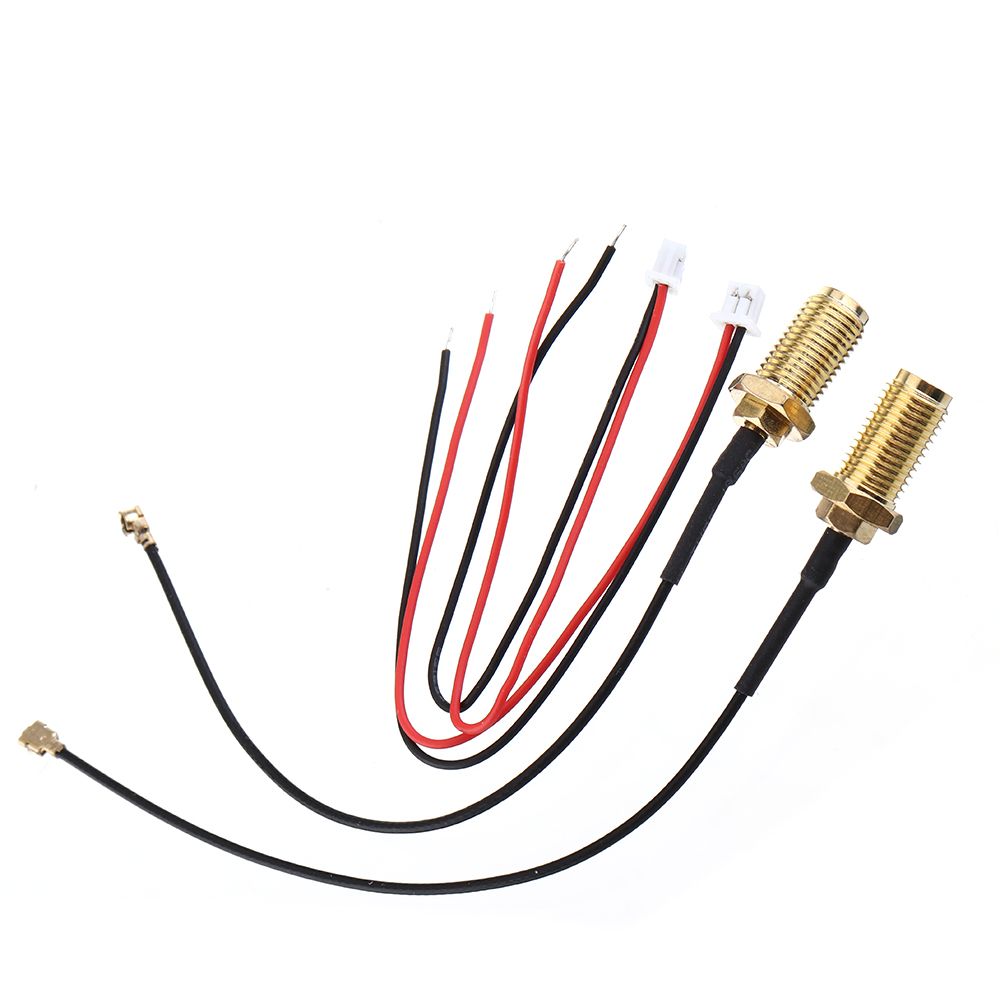

    2 x Line

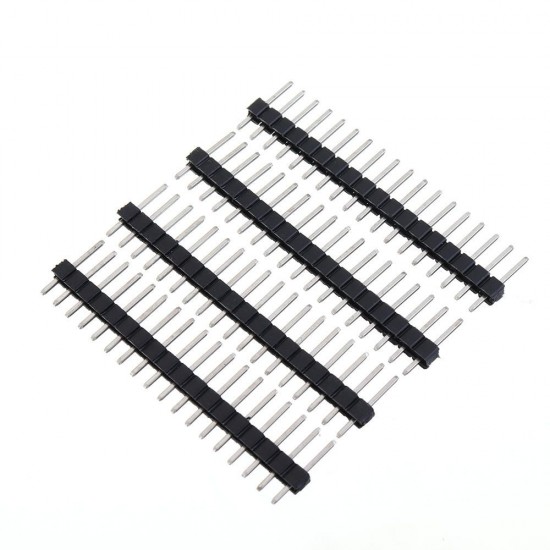

    4 x Pin

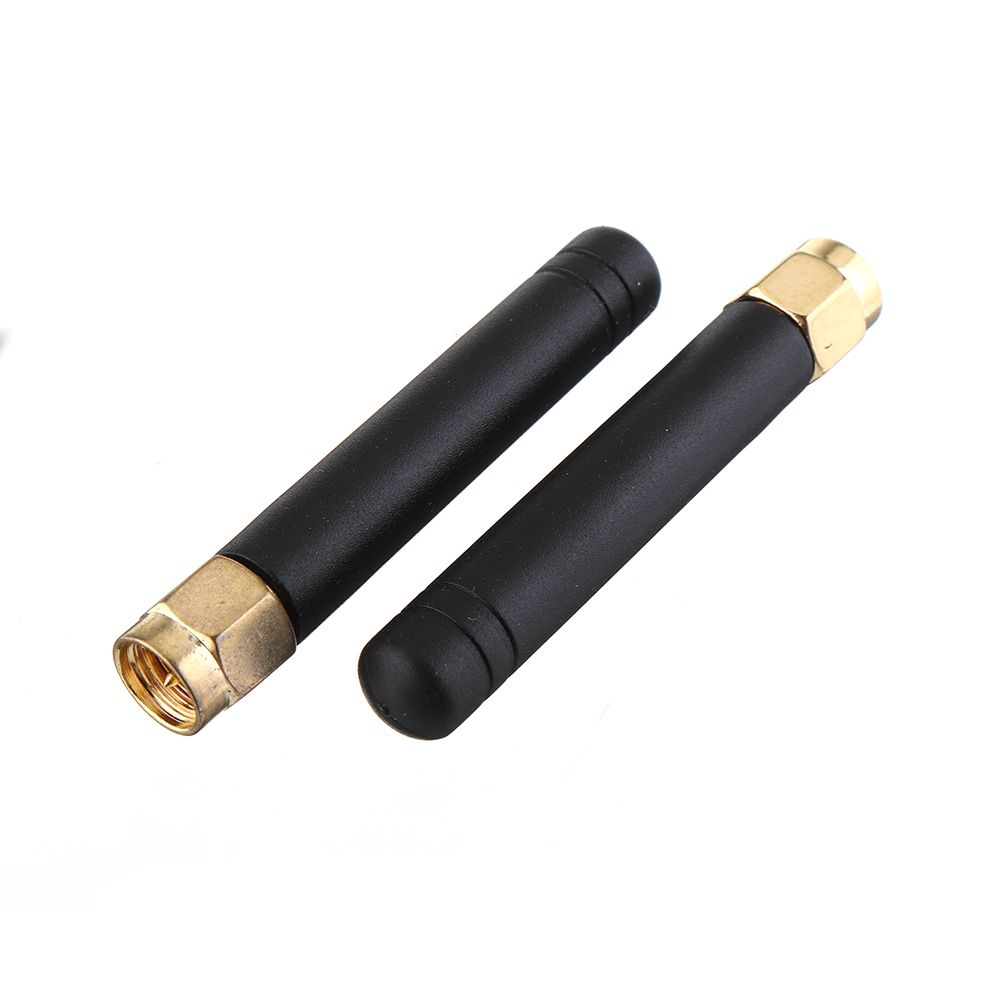

    2 x 915mhz Spring Antenna



    2Pcs-LILYGO-TTGO-LORA32-915Mhz-ESP32-LoRa-OLED-096-Inch-Blue-Display-bluetooth-WIFI-ESP-32-Developme-1239769



    2Pcs-LILYGO-TTGO-LORA32-915Mhz-ESP32-LoRa-OLED-096-Inch-Blue-Display-bluetooth-WIFI-ESP-32-Developme-1239769

    2Pcs-LILYGO-TTGO-LORA32-915Mhz-ESP32-LoRa-OLED-096-Inch-Blue-Display-bluetooth-WIFI-ESP-32-Developme-1239769

    2Pcs-LILYGO-TTGO-LORA32-915Mhz-ESP32-LoRa-OLED-096-Inch-Blue-Display-bluetooth-WIFI-ESP-32-Developme-1239769

    2Pcs-LILYGO-TTGO-LORA32-915Mhz-ESP32-LoRa-OLED-096-Inch-Blue-Display-bluetooth-WIFI-ESP-32-Developme-1239769

    2Pcs-LILYGO-TTGO-LORA32-915Mhz-ESP32-LoRa-OLED-096-Inch-Blue-Display-bluetooth-WIFI-ESP-32-Developme-1239769

    2Pcs-LILYGO-TTGO-LORA32-915Mhz-ESP32-LoRa-OLED-096-Inch-Blue-Display-bluetooth-WIFI-ESP-32-Developme-1239769

    2Pcs-LILYGO-TTGO-LORA32-915Mhz-ESP32-LoRa-OLED-096-Inch-Blue-Display-bluetooth-WIFI-ESP-32-Developme-1239769

    2Pcs-LILYGO-TTGO-LORA32-915Mhz-ESP32-LoRa-OLED-096-Inch-Blue-Display-bluetooth-WIFI-ESP-32-Developme-1239769
