3.2 inch TFT LCD Display Module Touch Screen Shield Kit Onboard Temperature Sensor + Touch Pen/TF card/Mega2560

3.2 inch TFT LCD Display Module Touch Screen Shield Kit Onboard Temperature Sensor + Touch Pen/TF card/Mega2560
3.2 inch TFT LCD Display Module Touch Screen Shield Kit Onboard Temperature Sensor + Touch Pen/TF card/Mega2560
3.2 inch TFT LCD Display Module Touch Screen Shield Kit Onboard Temperature Sensor + Touch Pen/TF card/Mega2560
3.2 inch TFT LCD Display Module Touch Screen Shield Kit Onboard Temperature Sensor + Touch Pen/TF card/Mega2560
3.2 inch TFT LCD Display Module Touch Screen Shield Kit Onboard Temperature Sensor + Touch Pen/TF card/Mega2560
3.2 inch TFT LCD Display Module Touch Screen Shield Kit Onboard Temperature Sensor + Touch Pen/TF card/Mega2560
3.2 inch TFT LCD Display Module Touch Screen Shield Kit Onboard Temperature Sensor + Touch Pen/TF card/Mega2560
$29.99
Ex Tax: $29.99
  • Stock: In Stock
  • Model: EB0050442
  • SKU: EB0050442
>
NOTE:  The screen may have a bright pixel that will light all the day on but it does not affect the application.

Description:

No additional modules, this kit can achieve rich projects such as character display, image reading and display, touch sketchpad, temperature measurement and display.

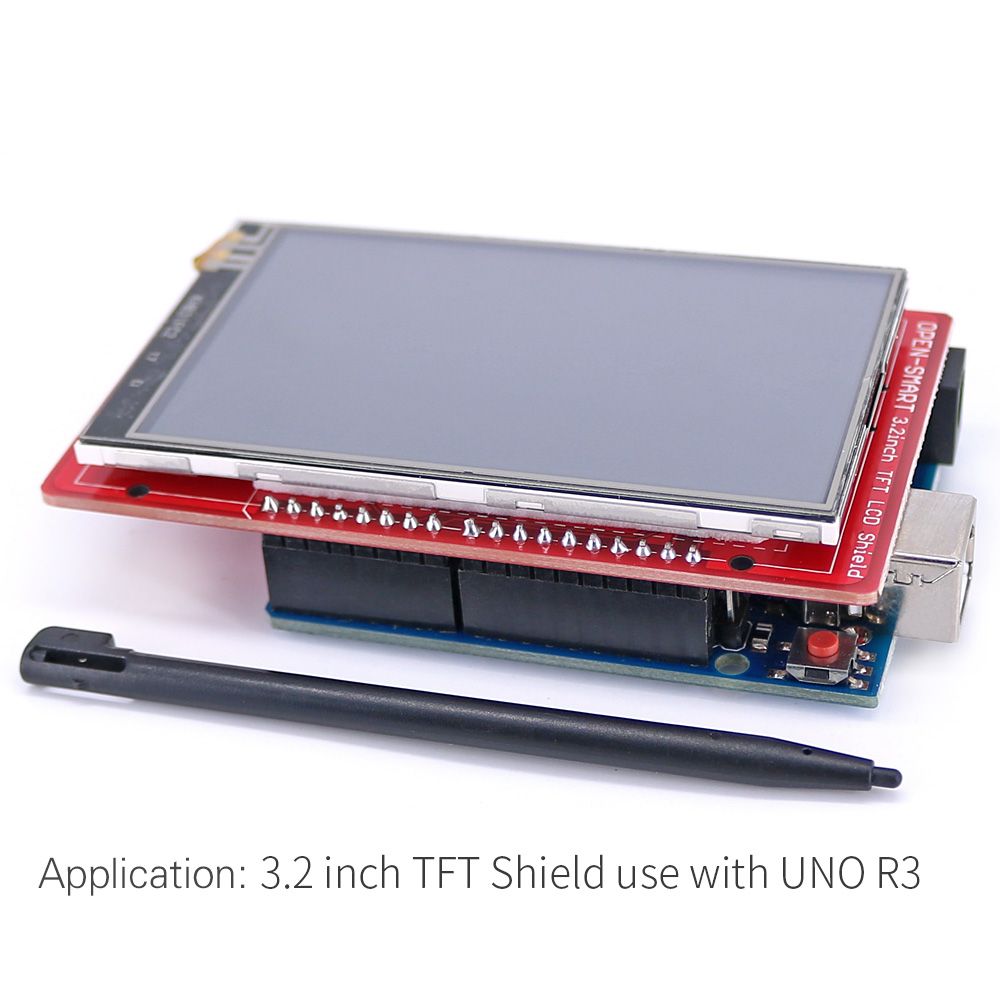

The kit includes a UNO R3 board which is 100% compatible with the UNO R3 program, expansion shields, IDE.
The kit includes a 3.2 inch TFT touch screen expansion board using a standard Shield interface and it has good compatibility. It integrates a 3.2-inch touch screen, I2C temperature sensor, TF card holder, level conversion circuit, and the secondary development is easy.
With the GPRS module, you can design your Arduino phone.
With the NFC reader module, you can create access control systems with the photos show.
With voltage and current sensors, you can make an oscilloscope.

Feature:

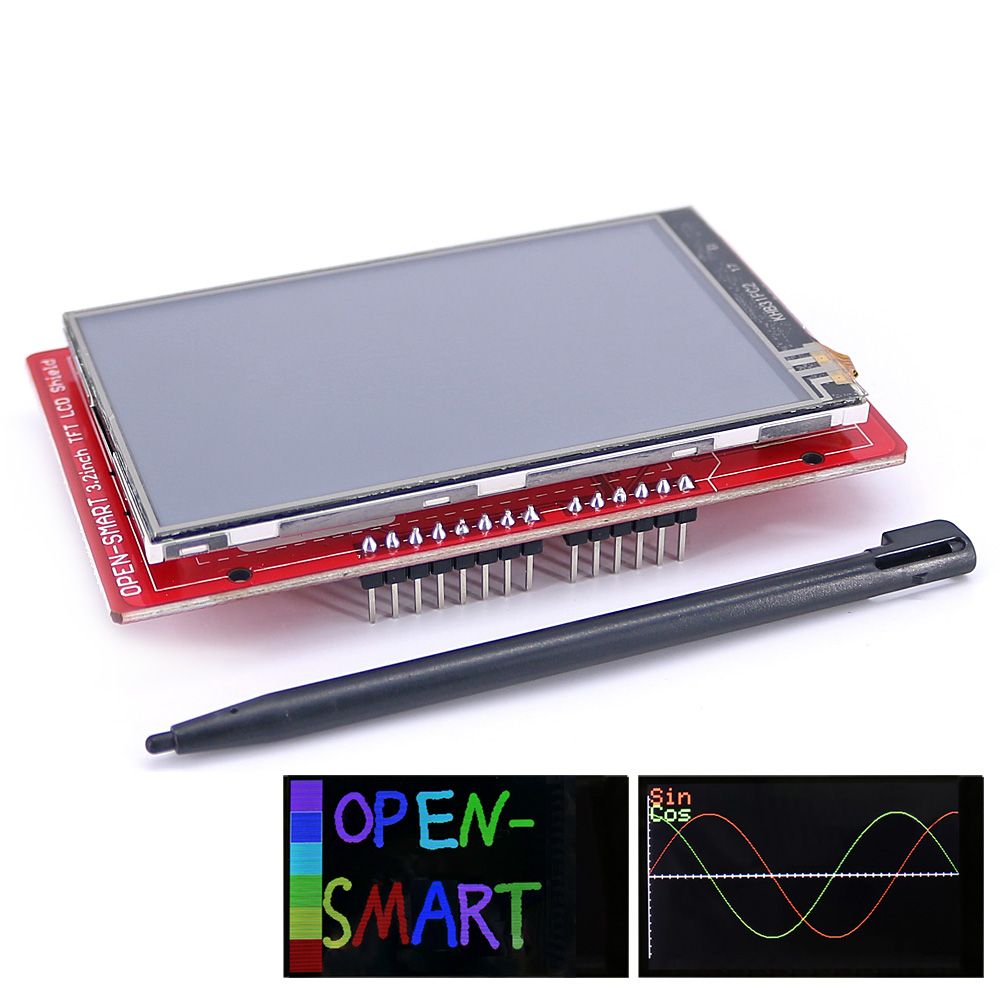

- Can use it directly to display characters, graphics and BMP format images. And touch controlling is available;

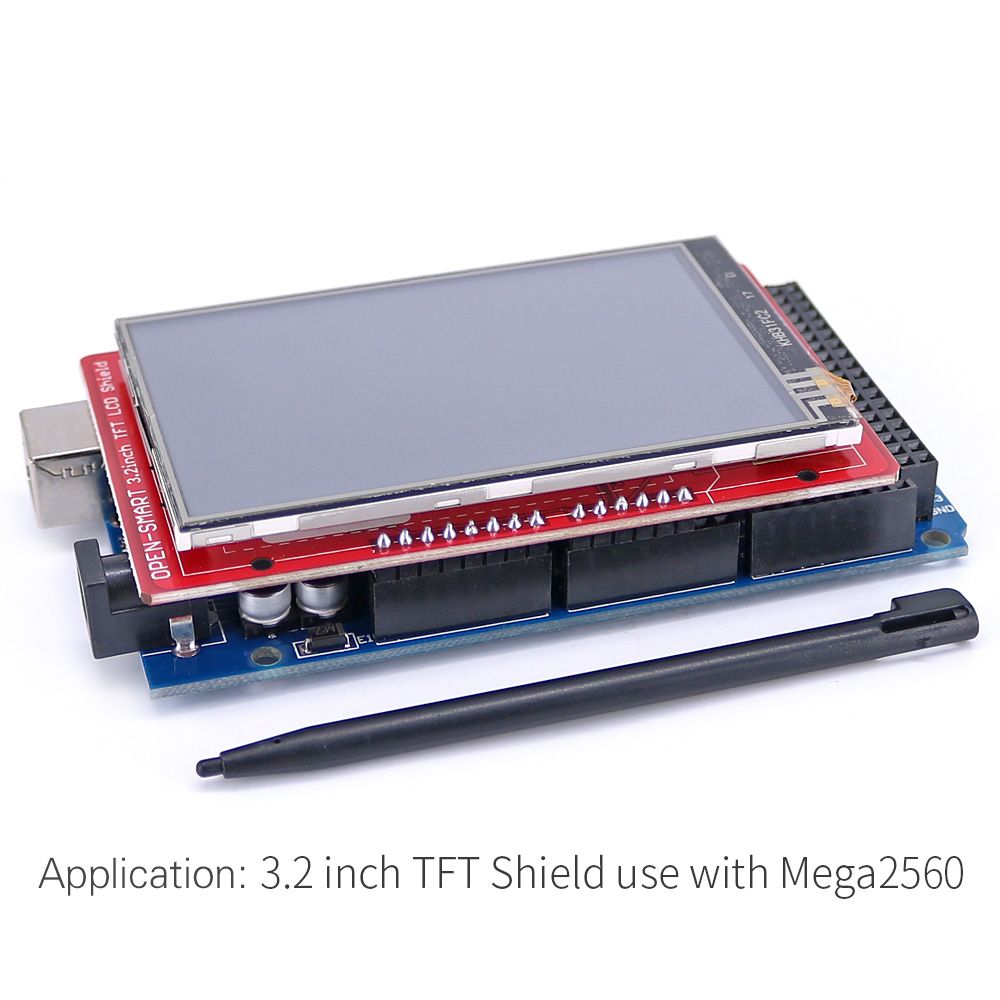

- Compatibility: As the SD card is connected to SPI pins of ICSP  interface, compatible with UNO R3 / Mega2560 / Leonardo
- Library: TFTLibrary and Adafruit_GFX;
- Touch screen type: resistive touchscreen.
- Touch Pen: length is 9cm;
- Resolution: 240X400;
- Display size: 3.2 inch;
- Operating voltage: 5V;
- Logic level: 5V / 3.3V;
- On-board 3.3V / 300mA regulator circuit;
- Operating current: the maximum is 150mA
- Use the A0 ~ A3 pins, D4 ~ D13 pins. And  I2C interface, D0 / D1 / D2 / D3 is available, please refer to the product schematics for the details.
- Onboard Micro SD slot, support Micro SD / TF Card;
- Onboard LM75 temperature sensor: default I2C address is 0X48, scale is -55 ~ 125'C
- Very suitable for digital photo frame, oscilloscope, function generator, detection system monitor.
​- LED negtive pin of the TFT is short to GND now, and the new version TFT backlight can not be controlled now.

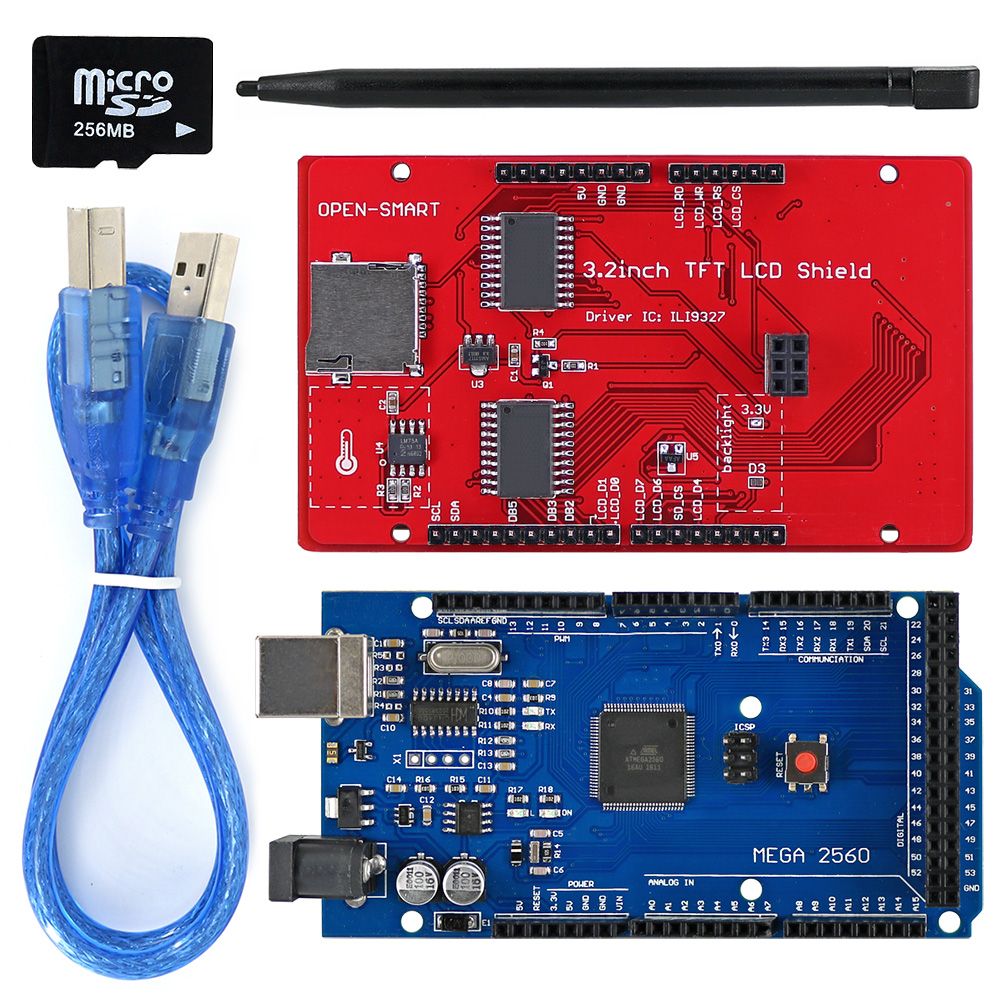

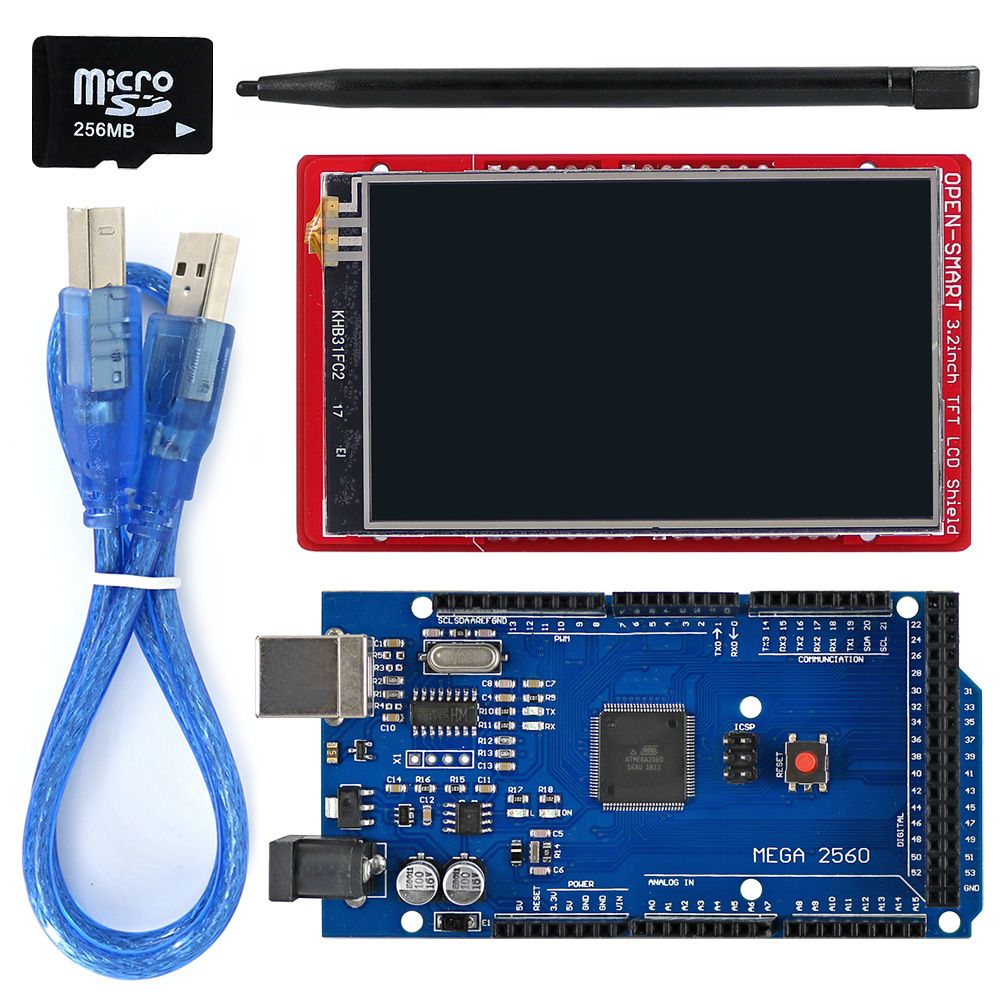

Package includes:


1 x Shield
1 x Mega2560 R3 board
1 x USB cable (50cm)
1 x Micro SD card (256MB)
1 x Touch pen
