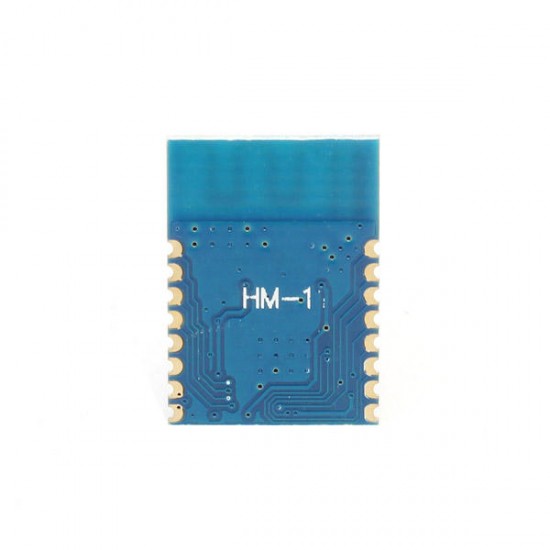

3Pcs HM-11 bluetooth 4.0 BLE Serial Module Board SMD 2.4 GHz
- Stock: In Stock
- Model: EB0042843
- SKU: EB0042843
>>>Manual: Click here to open<<<
Introduction:

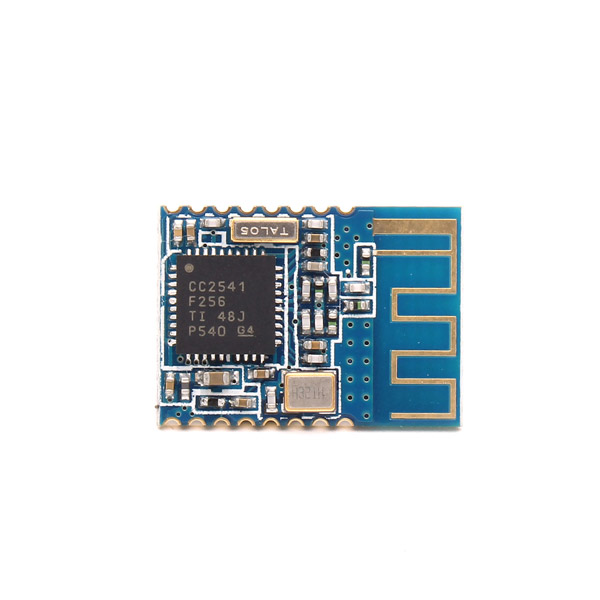

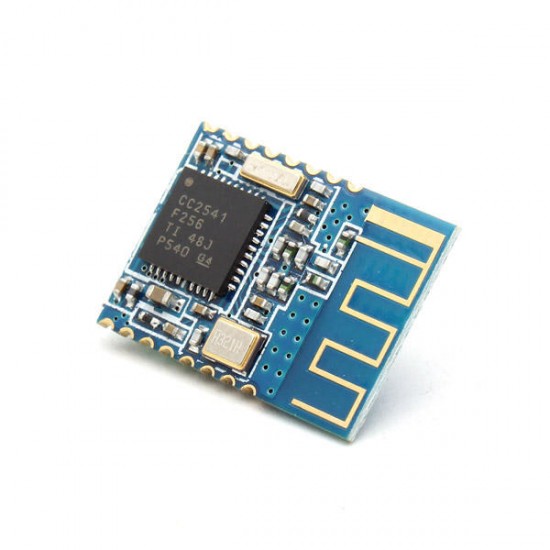

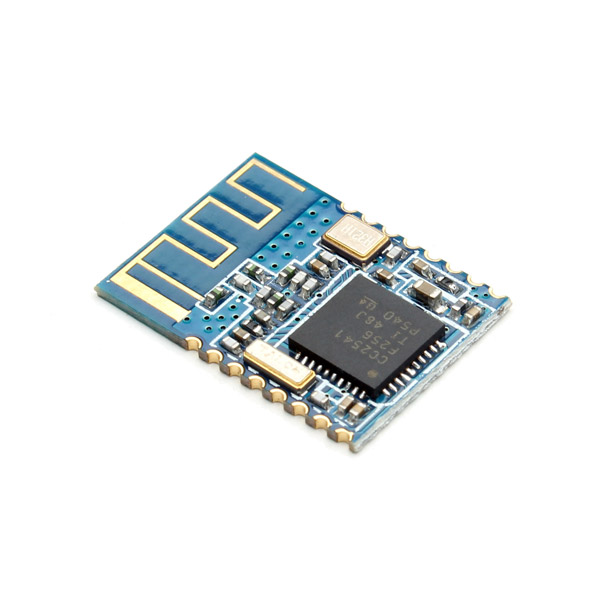

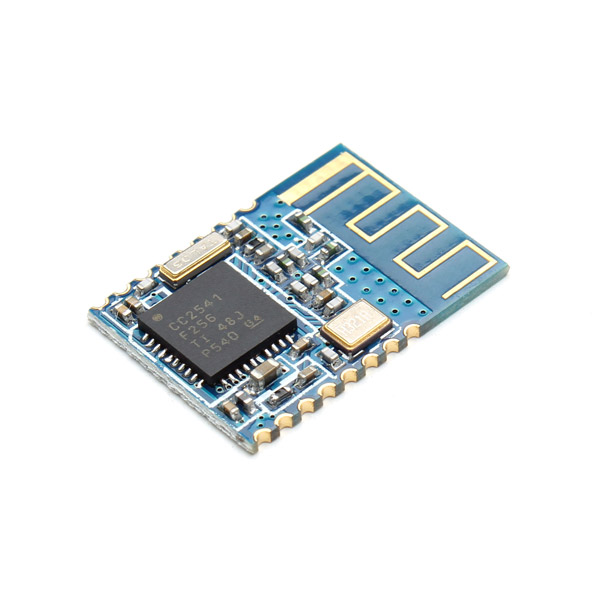

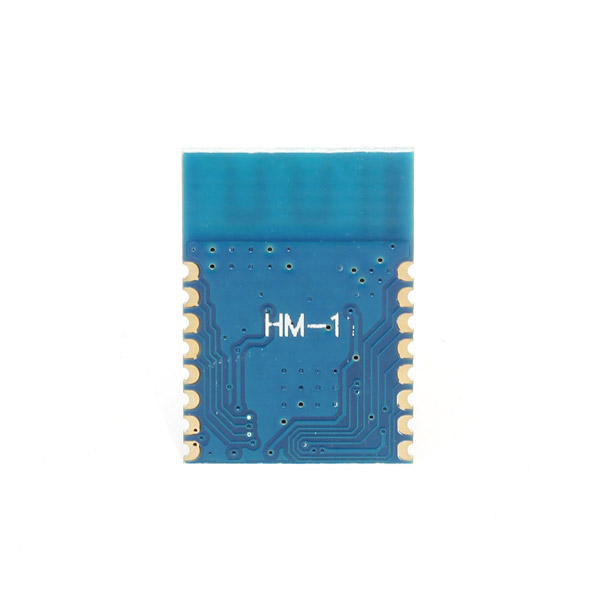

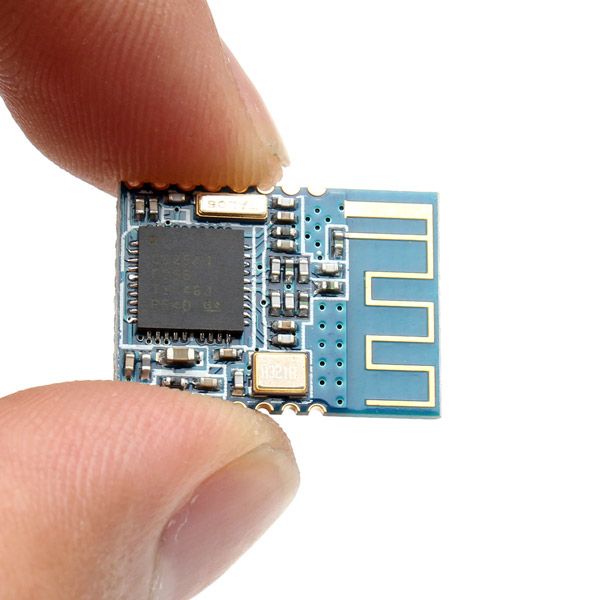

This is a SMD BLE module used in our BLE Bee and Xadow BLE. It is based on TI CC2541 chip, enables robust network nodes to be built with low total bill-of-material costs and highly suited for ultralow power consumption systems. The module is small and easy to use, with the preprogrammed firmware of manufacturer, you could quickly build BLE communications via its AT command. Supporting BLE communications with apple os and Android 4.3.
Feature:
Bluetooth protocol: Bluetooth Specification V4.0 BLE
Working frequency: 2.4 GHz ISM band
Interface way: a serial port
Open environment within 30 meters can realize communication between modules
To send and receive no byte limit between modules
Modulation method: GFSK (Gaussian Frequency Shift Keying)
Transmission power: - DBM, 23-6 DBM, 0 DBM, 6 DBM, can be modified by the AT command
Use TI CC2541 chip, configuration space of 256 KB, support the AT command, the user can according to need to change the role (master, slave mode) and the serial port baud rate, name of equipment, matching parameters such as passwords, use agile.
Power supply: + 3.3 VDC 50 mA
Working temperature: - 5 ~ + 65 Centigrade
Specification | Value |
Microprocessor | CC2541 |
Resources | Support the AT command, the user can according to need to change the role (master, slave mode) and the serial port baud rate,name of equipment,Matching parameters such as password, the use of flexible. |
Outline Dimension | 13.5mm x 18.5mm x 2.3mm |
Power supply | 3.3V |
Communication Protocol | Uart(3.3V LVTTL) |
IO counts | 2 |
Key input IO | 1 |
LED Indicators IO | 1 |
Connectivity | Socket compatible with XBee |
Specification | Min | Typ | Max | Unit |
Max Input Voltage | -0.3 |
| 3.6 | V |
Working Input Voltage | 2 | 3.3 | 3.6 | V |
Transmit Current |
| 15 |
| mA |
Receive Current |
| 8.5 |
| mA |
Deep Sleep Current |
| 600 |
| uA |
Operating Temperature | -40 |
| 65 | °C |
Pin | Name | Description |
1 | UART_RTS | UART |
2 | UART_TX | UART |
3 | UART_CTS | UART |
4 | UART_RX | UART |
5 | NC |
|
6 | NC |
|
7 | NV |
|
8 | NV |
|
9 | VCC | Power supply 3.3V |
10 | NC |
|
11 | RESETB | Reset, active low at least in 5ms |
12 | GND | GND |
13 | PIO3 | IO port, used for connect to DHT11/DS18B20 |
14 | PIO2 | Digital input, output |
15 | PIO1 | LED indicator |
16 | PIO0 | Button pin |
Package includes:
3 x Module
,
,
,
,
