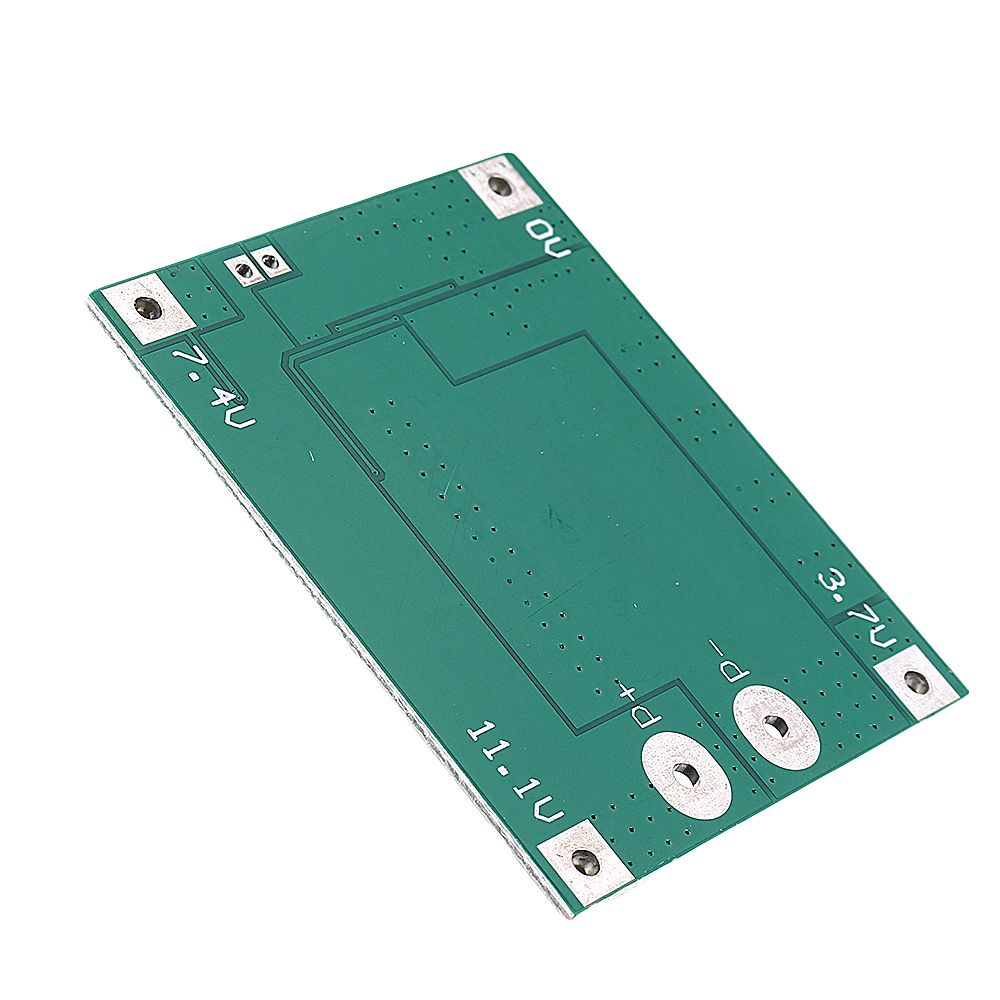

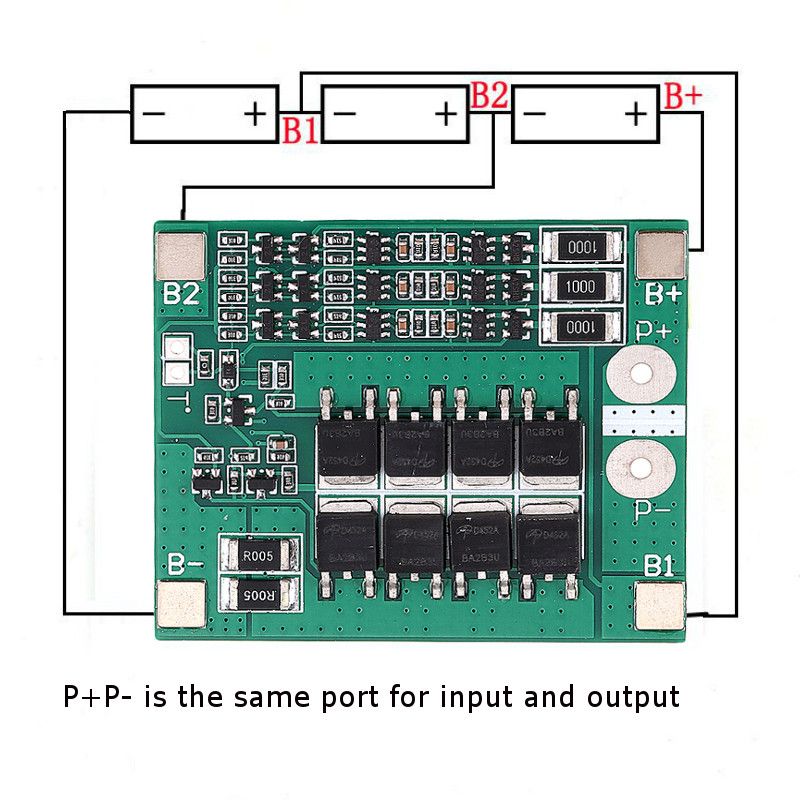

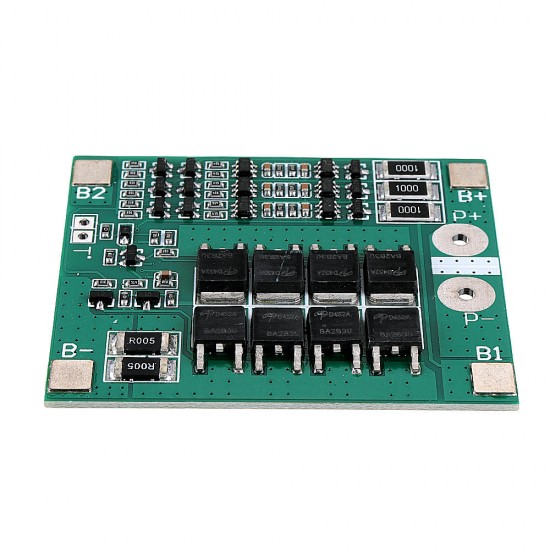

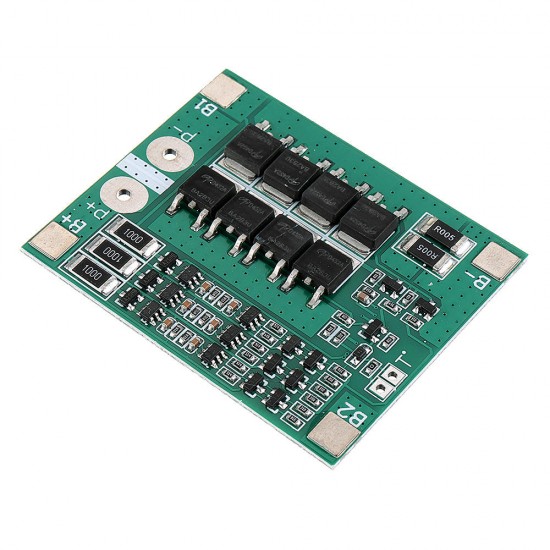

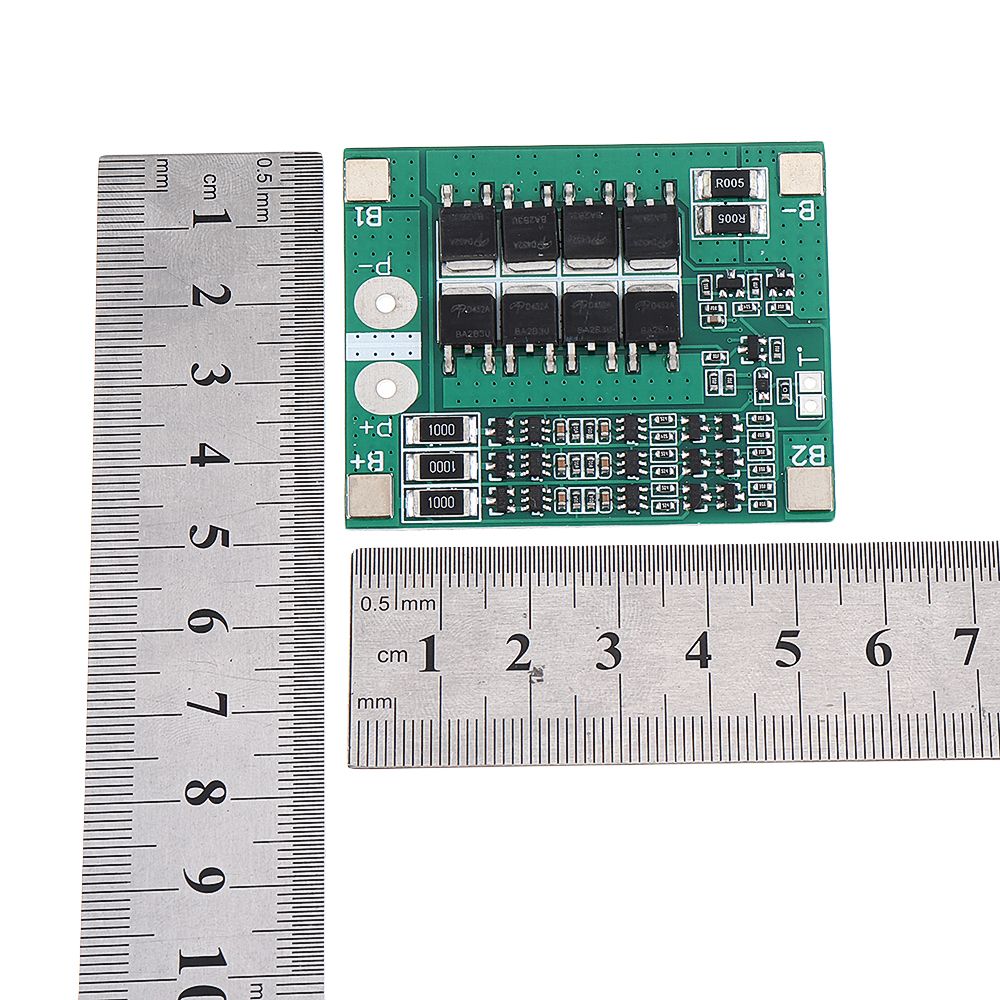

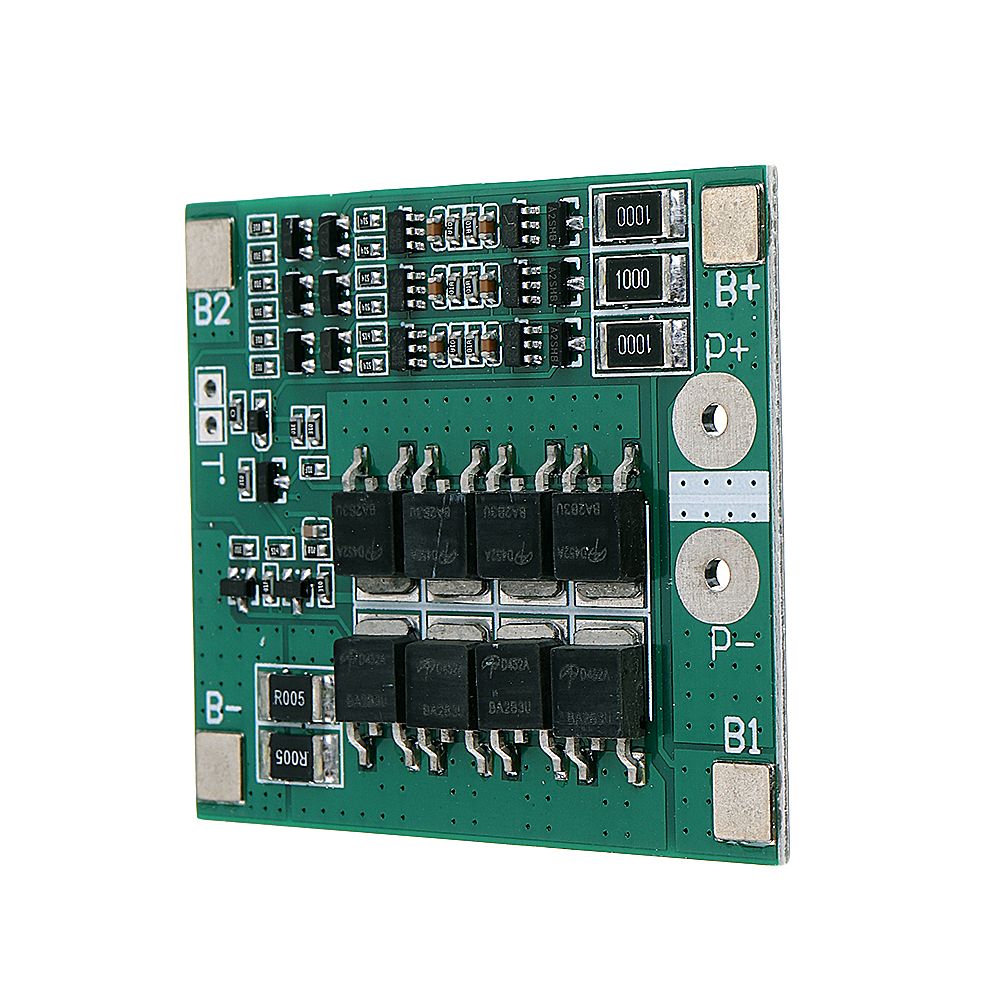

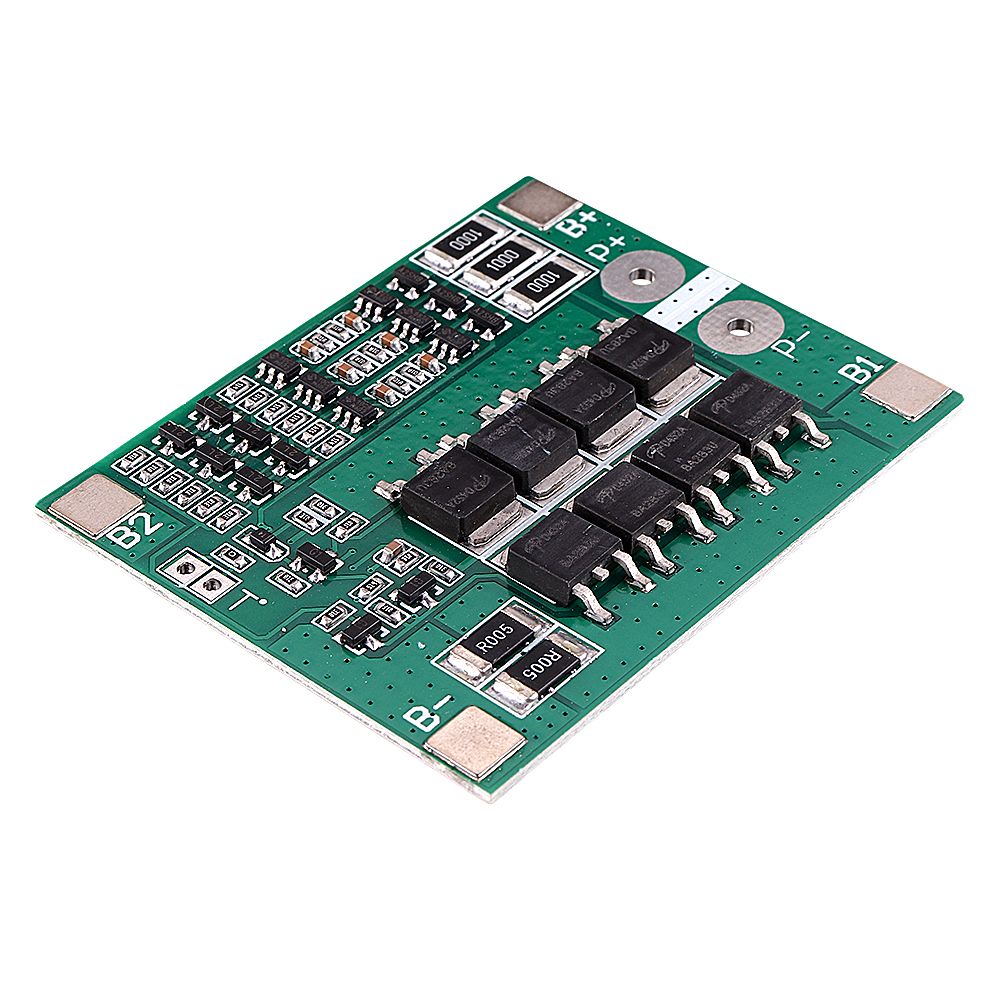

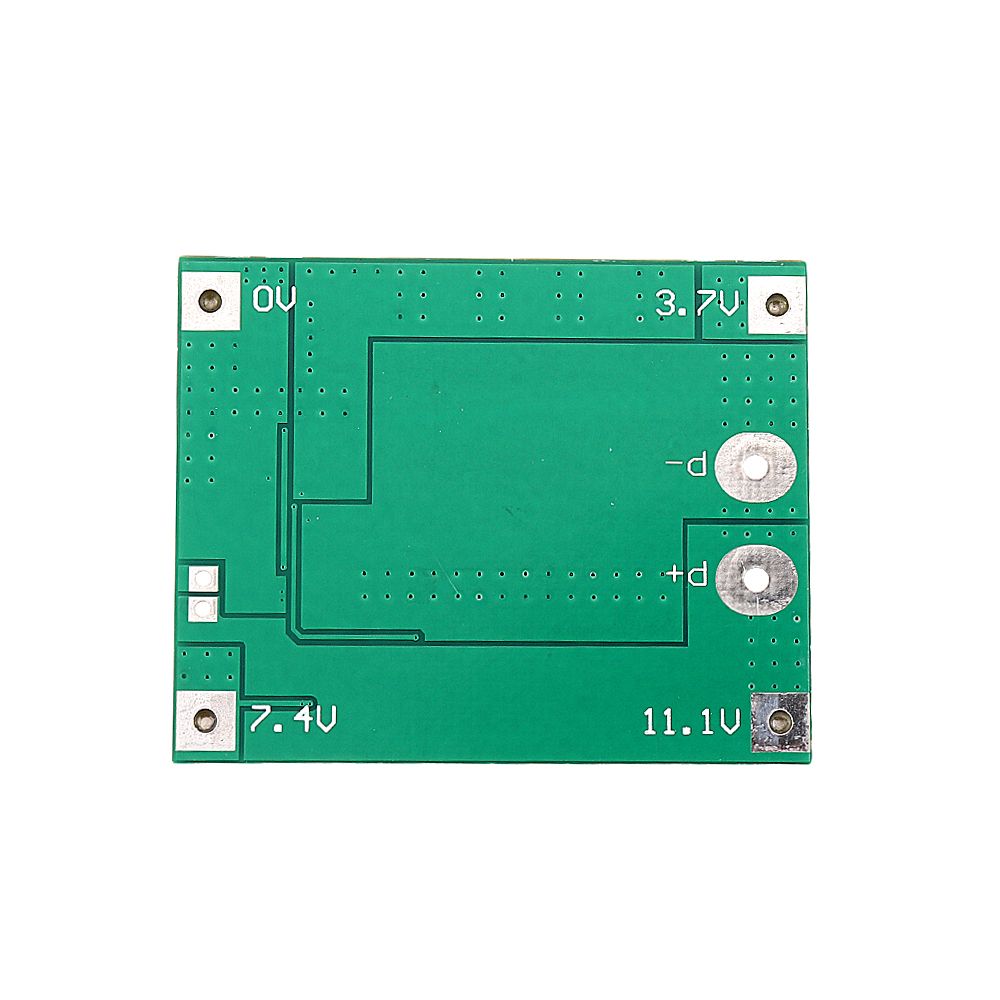

3S String 25A 11.1V 12V 14.8V 16.8V 18650 Lithium Battery Overcharge and Over Discharge Protection Board
- Stock: In Stock
- Model: EB0049393
- SKU: EB0049393
Feature:
| Basic project | Specification | Unit | Remarks | |
| Current | Continuous discharge current | 25 | A | |
| Instantaneous discharge current | 75 | A | ||
| Charging | Charging voltage | Lithium battery charger 12. 6V | V | Switching power supply 13-16V |
| Recharging current | 25 (max) | A | ||
| Overcharge protection | Overcharge detection voltage | 4.28 ± 0.05 | V | Single core |
| Overcharge protection delay | 0.5 | S | ||
| Overcharge release voltage | 4.08 ± 0.05 | V | Single core | |
| Electricity balanceB | Balance detection voltage | 4. 2 soil 0.05 | V | |
| Balance release voltage | 4.2±0.05 | V | ||
| Balance current | 45 | mA | ||
| Over discharge protection | Over-discharge detection voltage | 2. 55 ±0.08 | V | |
| Over-discharge detection delay | 0.1 | s | ||
| Over discharge release voltage | 2.9±0. 1 | V | ||
| Overcurrent protection | Overcurrent detection voltage | 150 | mV | |
| Overcurrent detection delay | 10 | mS | ||
| Overcurrent protection current | 75±5 | A | ||
| Overcurrent protection release condition | Disconnect load | |||
| Short circuit protection | Short circuit protection condition | External load short circuit | ||
| Short circuit detection delay | 250 | uS | ||
| Short circuit protection release condition | Disconnect load | |||
| Temperature protection | Temperature protection | / | °C | External temperature switch |
| Internal resistance | Main circuit conduction internal resistance | <=20 | ||
| Self-consumption | Working current | <=30 | uA | |
| Sleep current (when current is over-discharged) | <=20 | uA | ||
| Operating temperature | Temperature | -20~+80 | °C |
Package includes:
1 x Battery protection board
