$10.99
Ex Tax: $10.99
  • Stock: In Stock
  • Model: EB0047186
  • SKU: EB0047186
>
Description:

Working voltage: DC 5V
Working current: 70MA
Standby current: 1UA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger

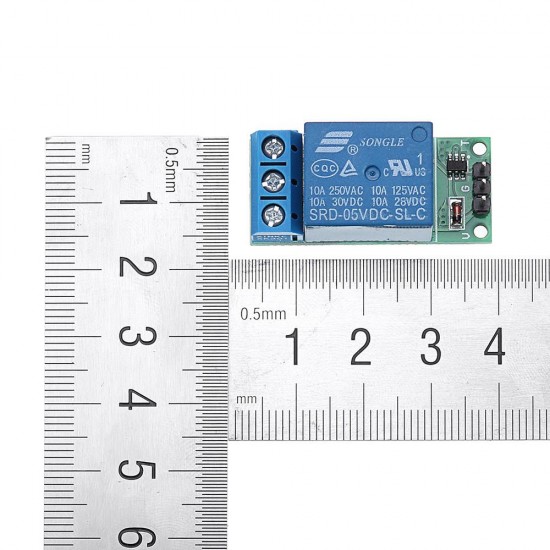

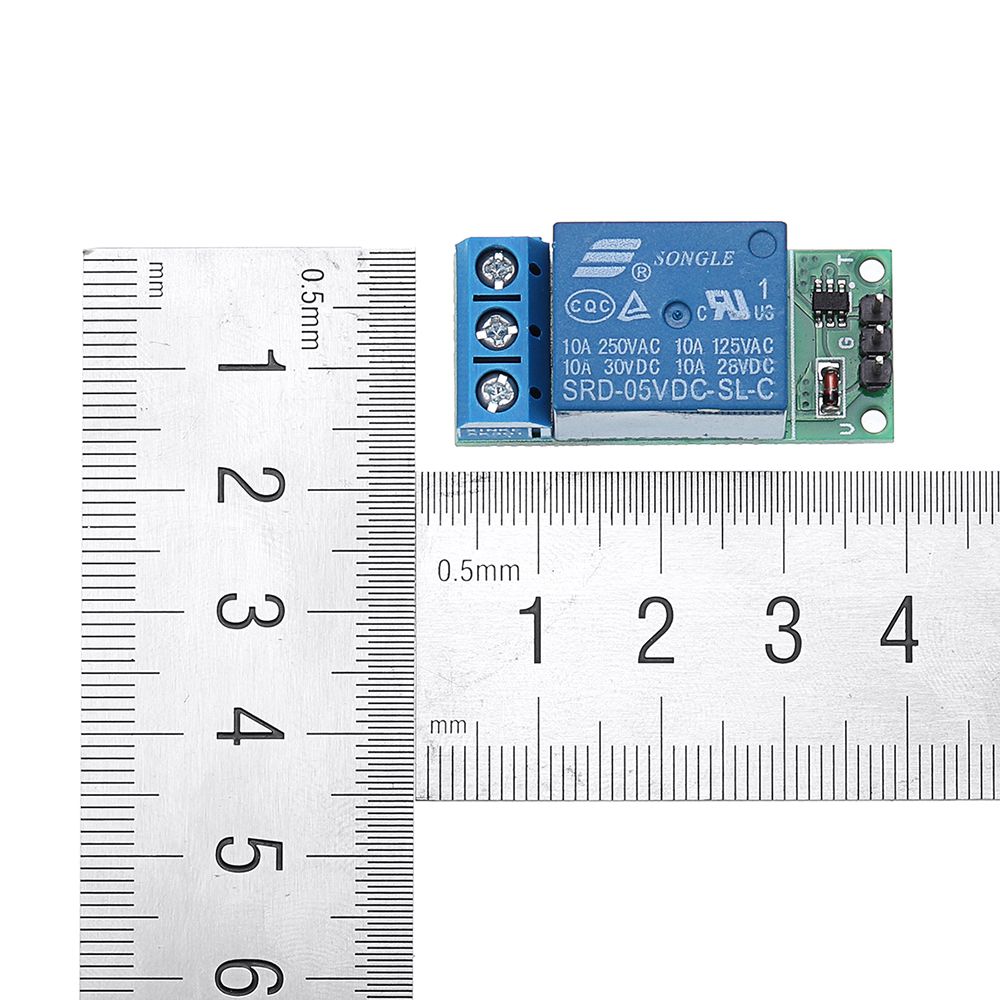

Size: 35mm * 16mm  * 18.5mm (L * W * H),  Very small size
Weight: 13.5 g

USE 1:
By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on.

USE 2:
By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, the  third low-pulse, the relay pull, and so on.

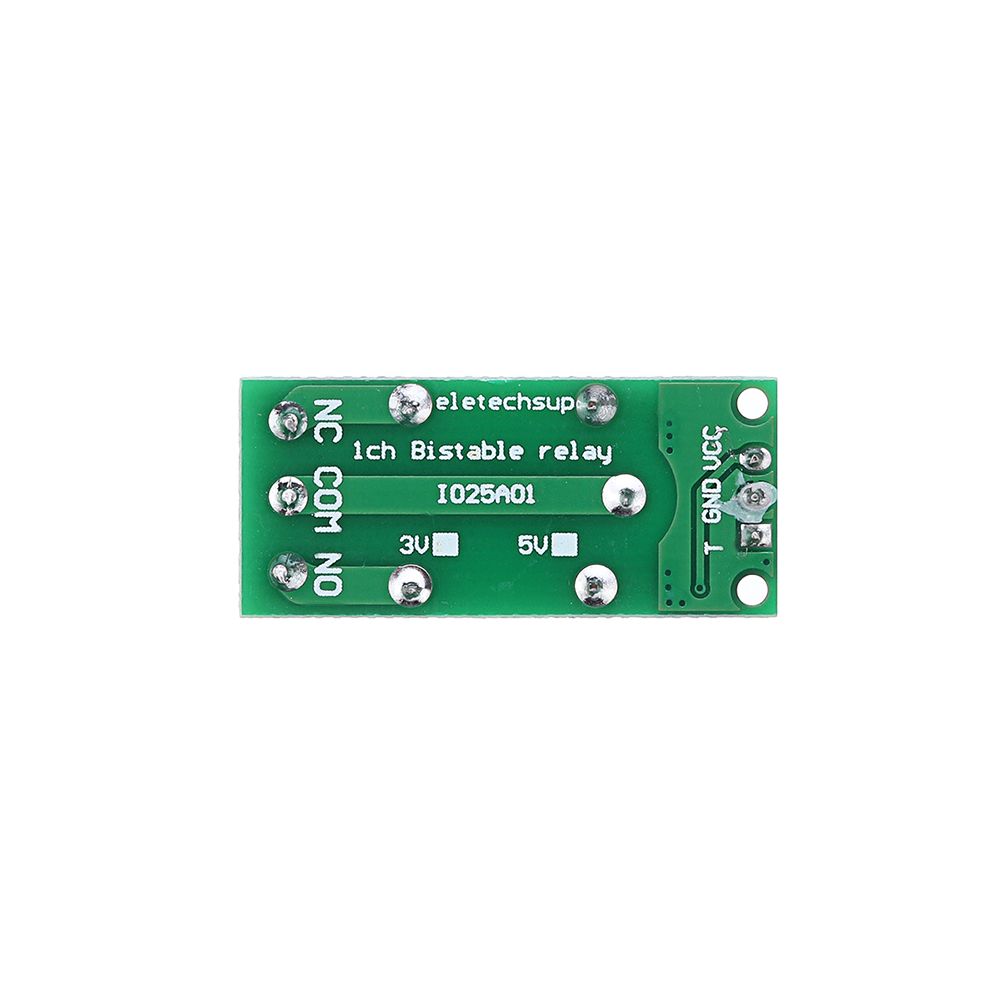

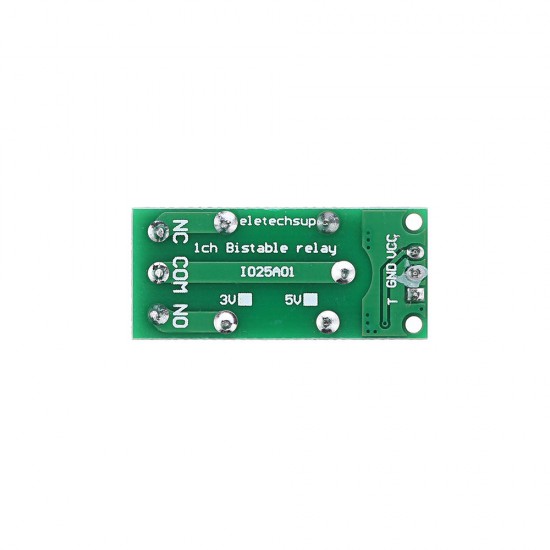

Module interface:

1. VCC: positive power supply (VCC)
2. GND: negative power supply (GND)
3. T: Low pulse trigger

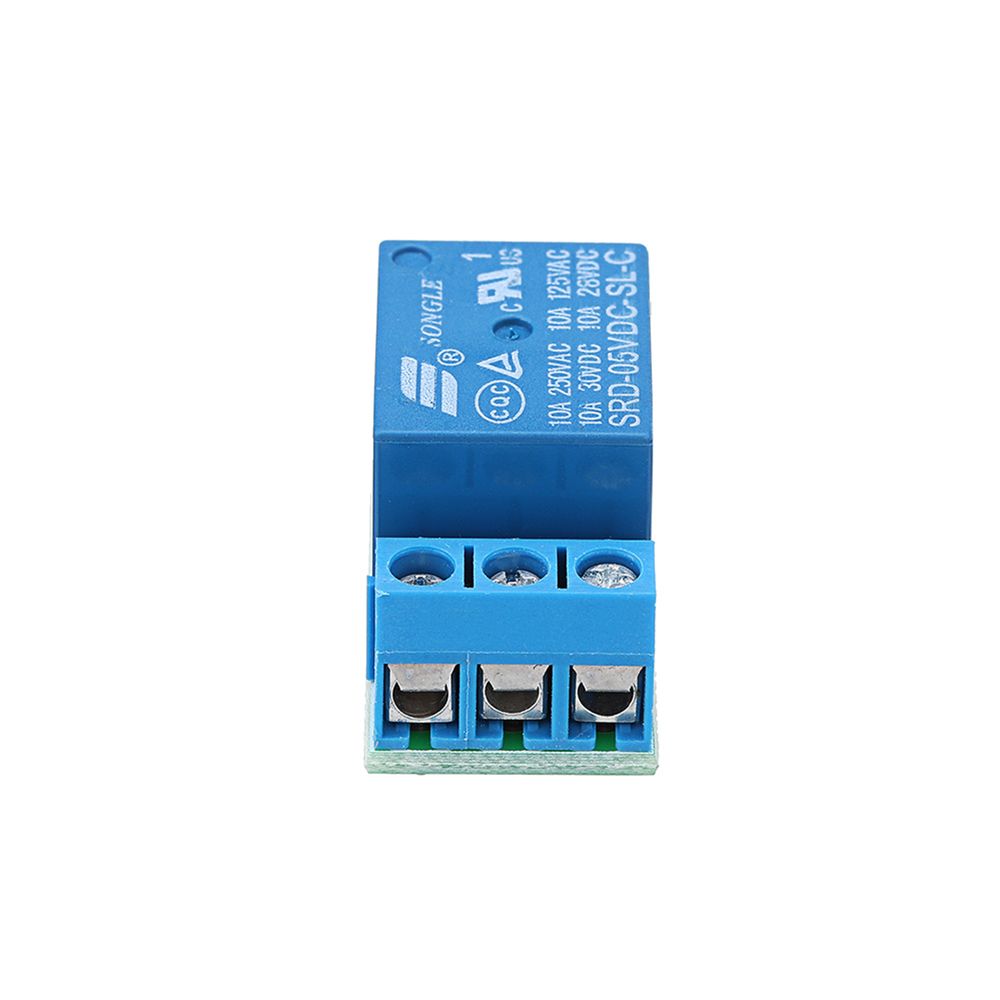

Relay outputs:

1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface

USE: By default, the relay is released, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on

Typical applications:

Automotive electronics
Motor
LED
Smart Home
Emergency lighting
MCU development board
Toy car

Package includes:

3 x Relay module
