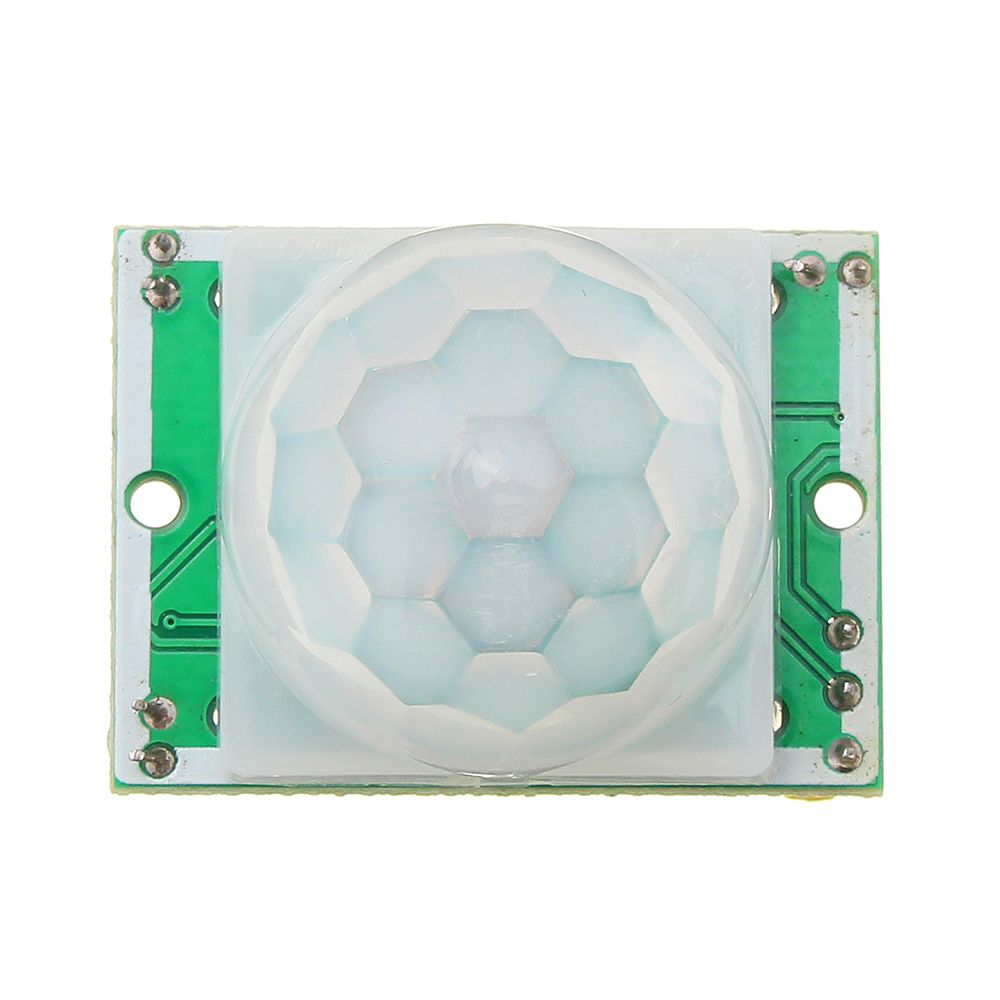

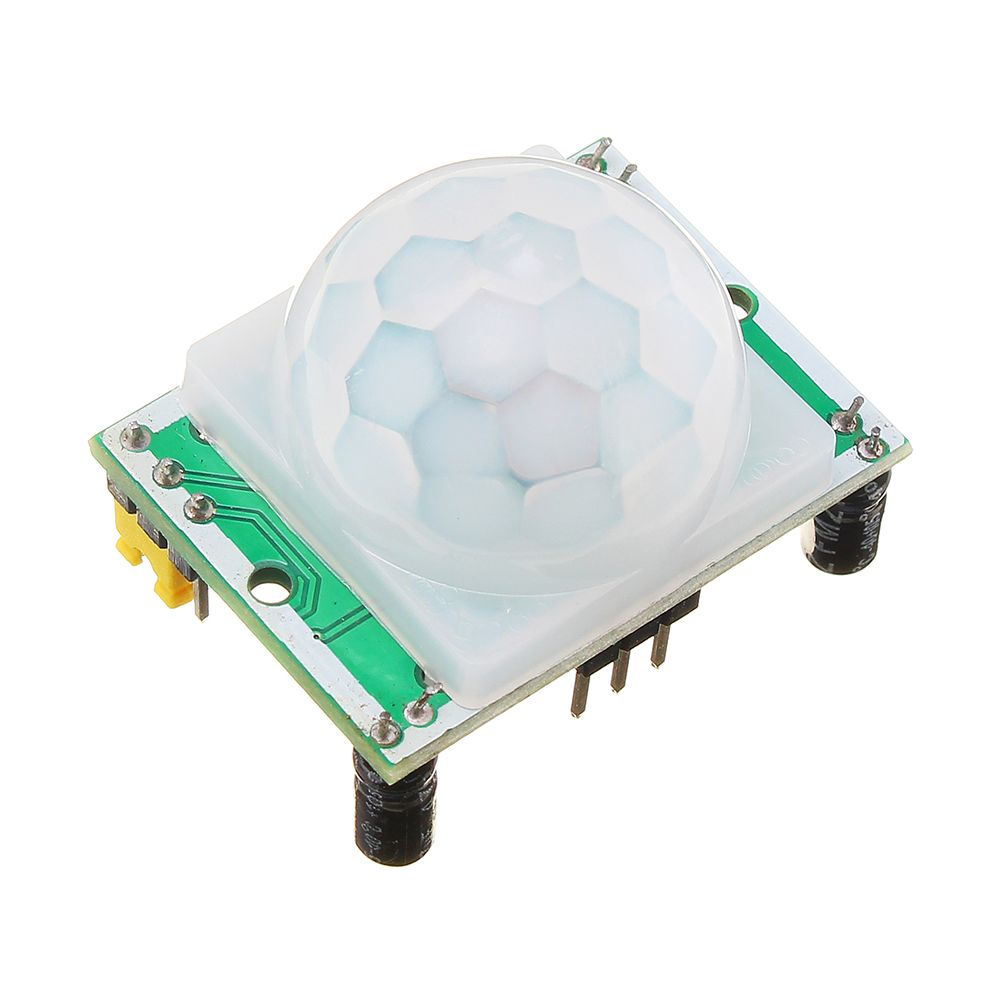

3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module

3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
3pcs Mini IR Pyroelectric Infrared PIR Motion Human Body Sensor Detector Module
$8.99
Ex Tax: $8.99
  • Stock: In Stock
  • Model: EB0043940
  • SKU: EB0043940

Features:

Weight: 7g (approx)

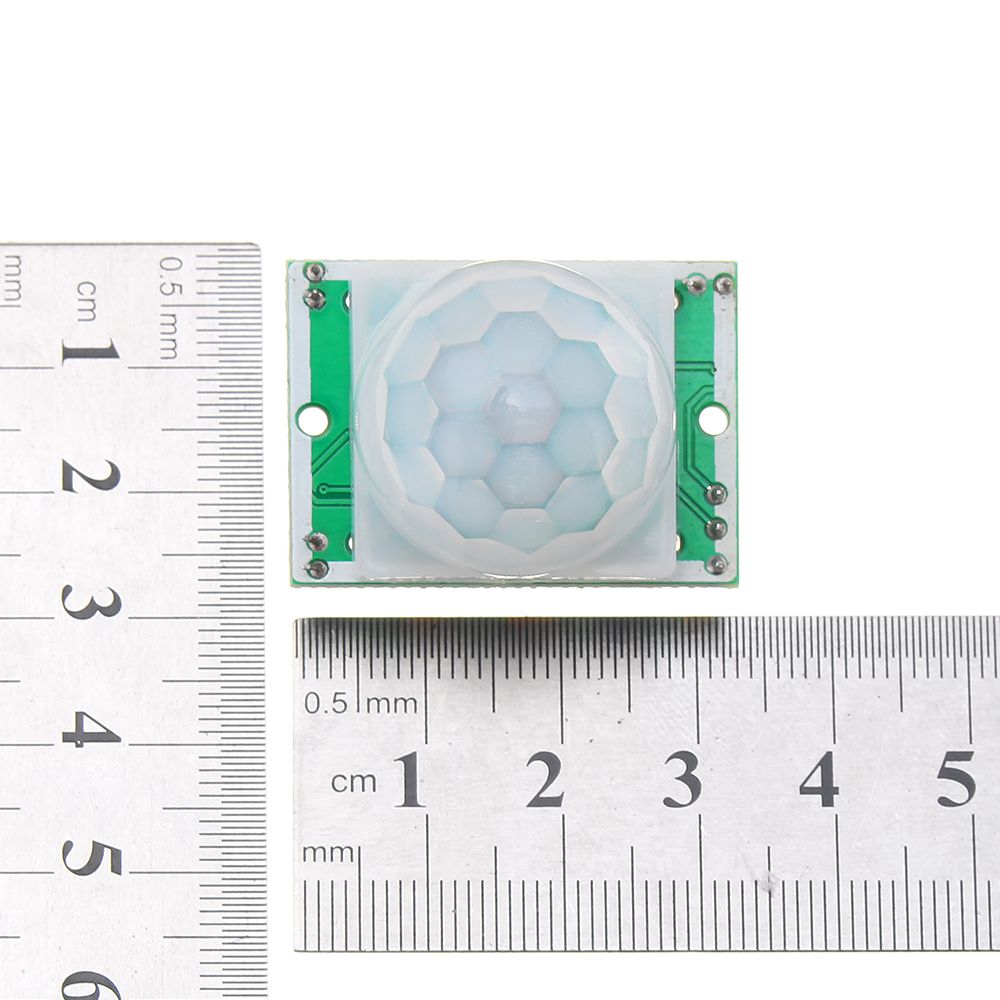

Dimension: 3.2cm x 2.4cm x 2.8cm (approx)

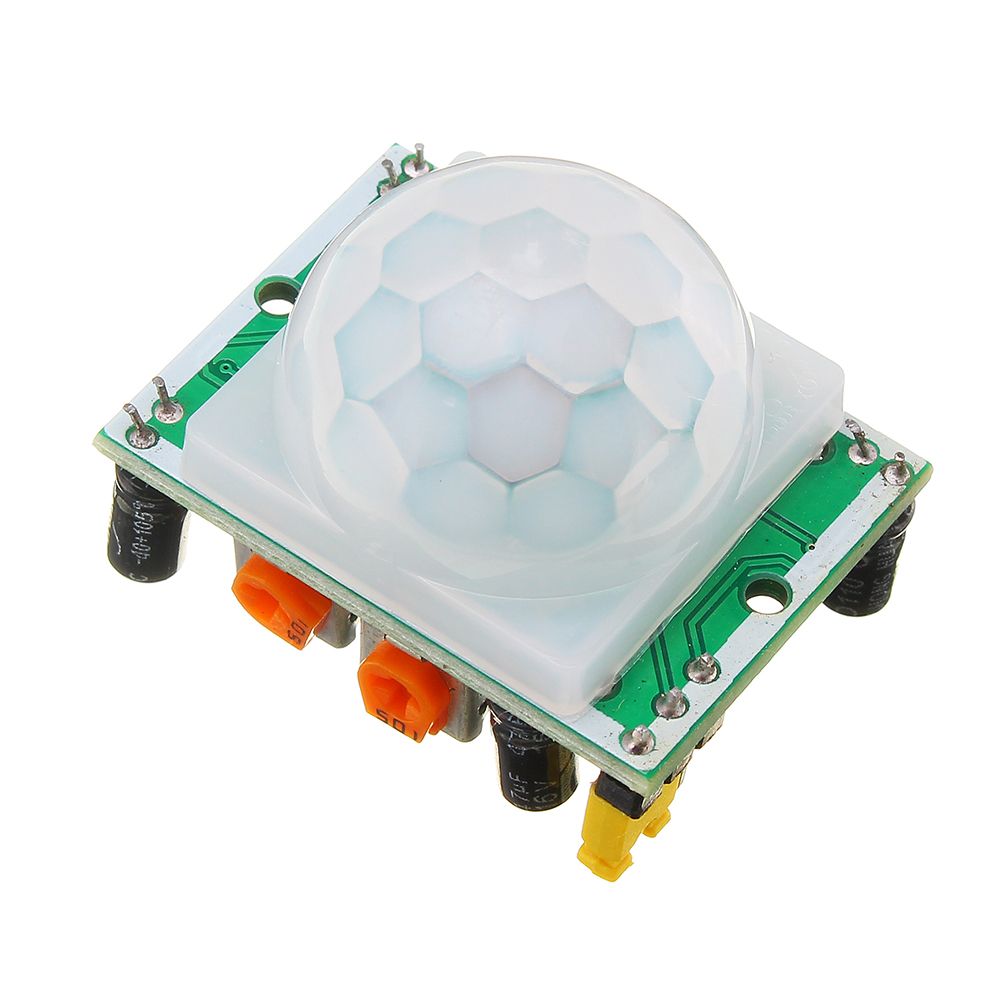

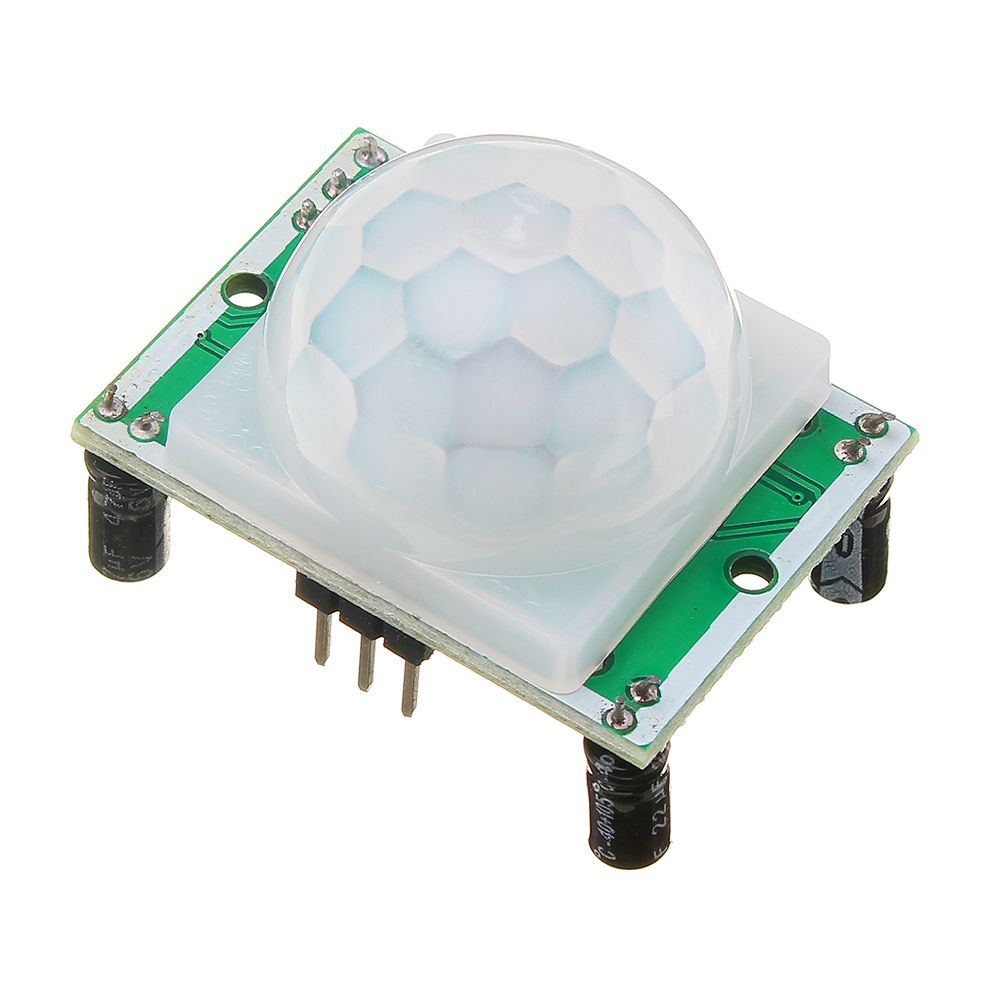

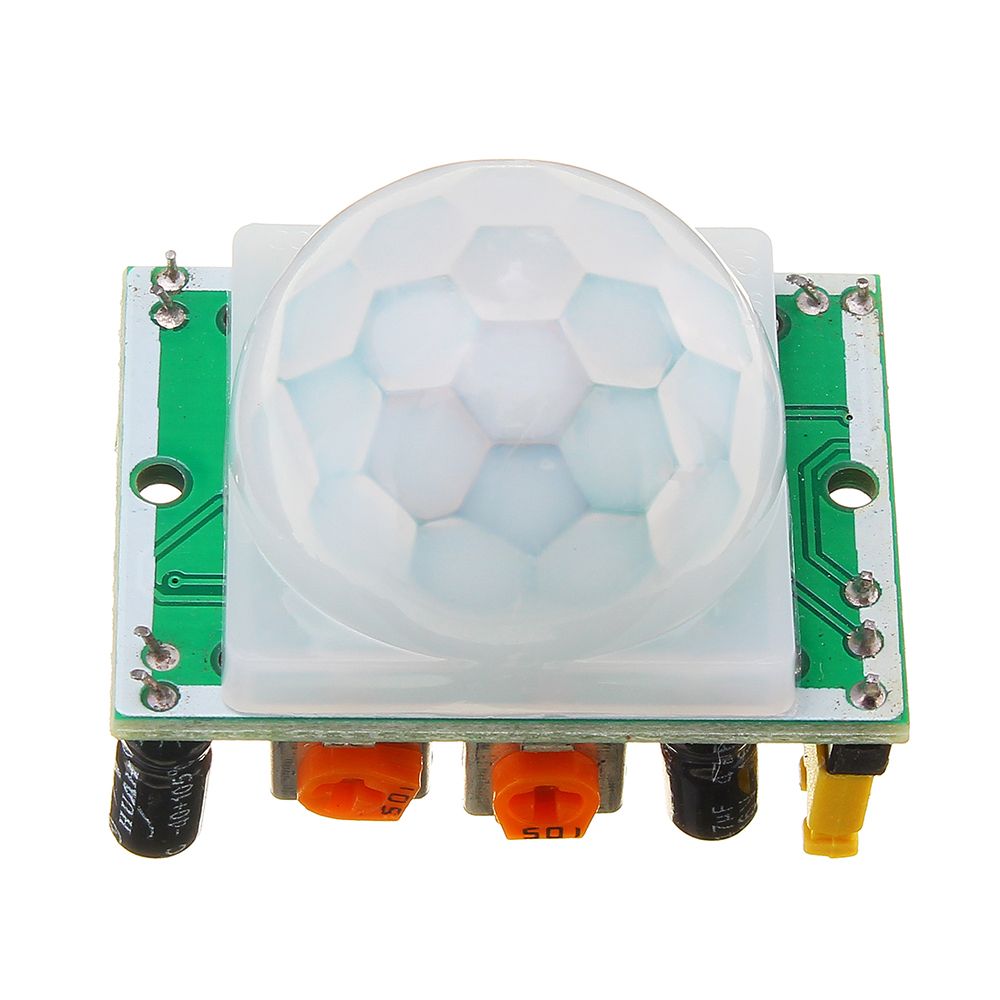

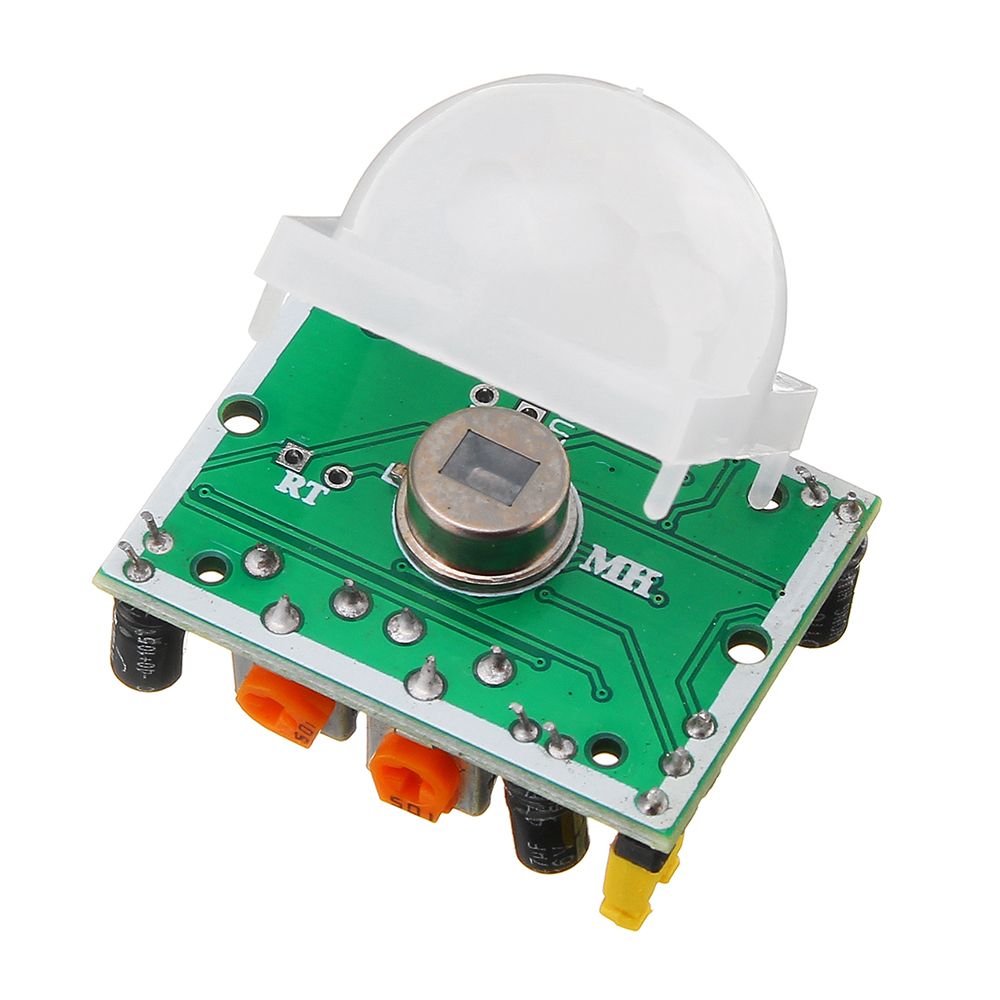

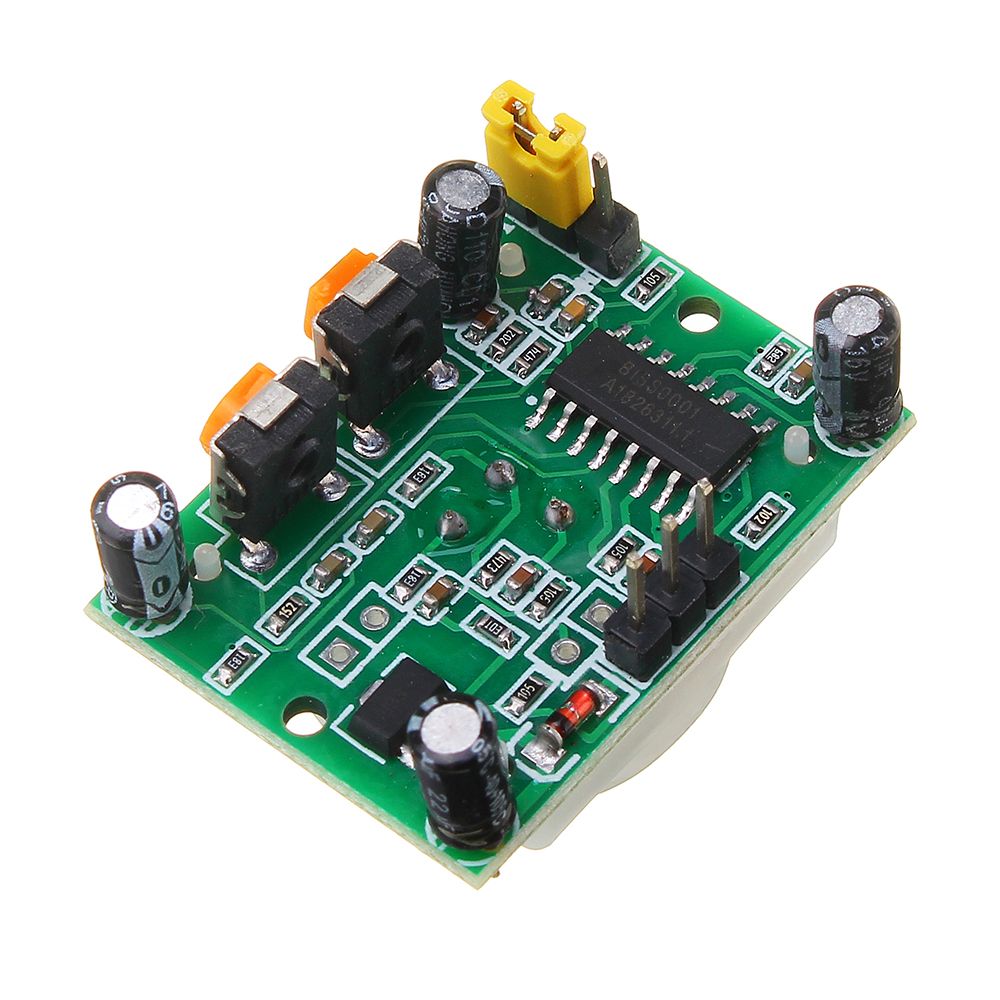

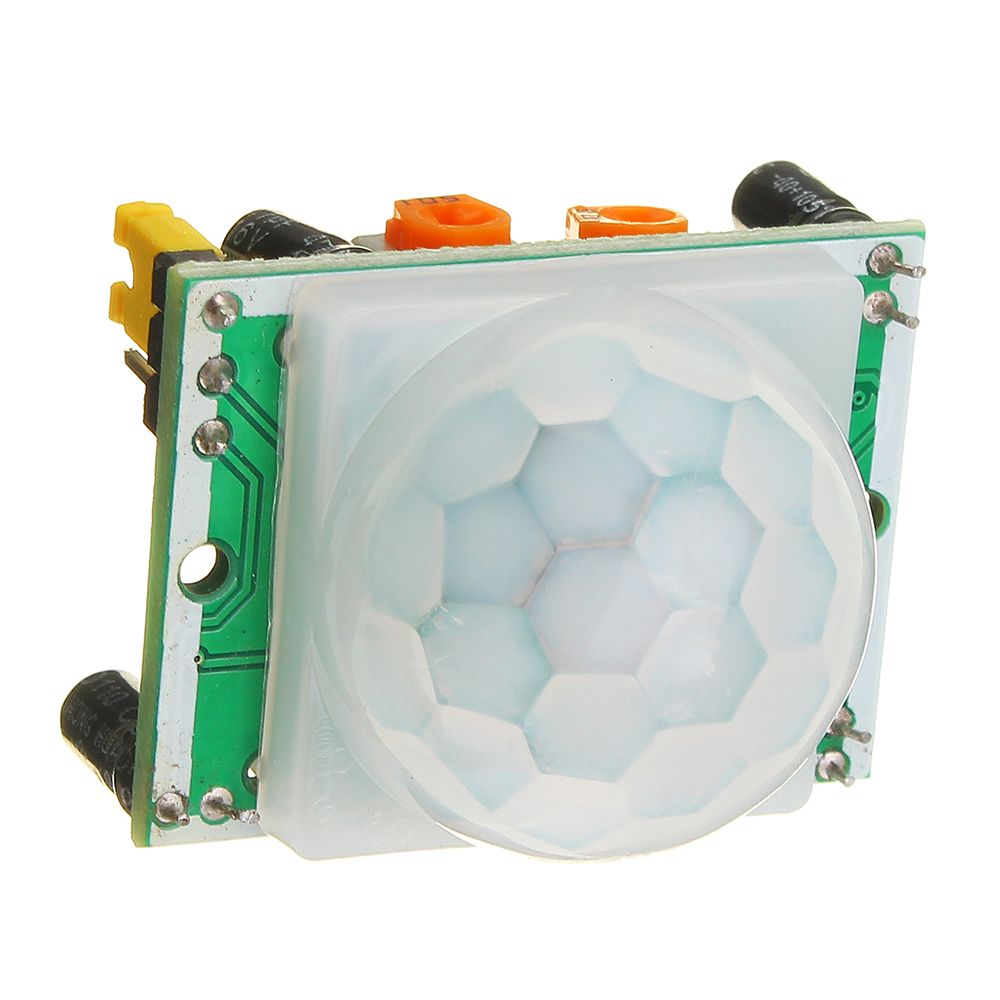

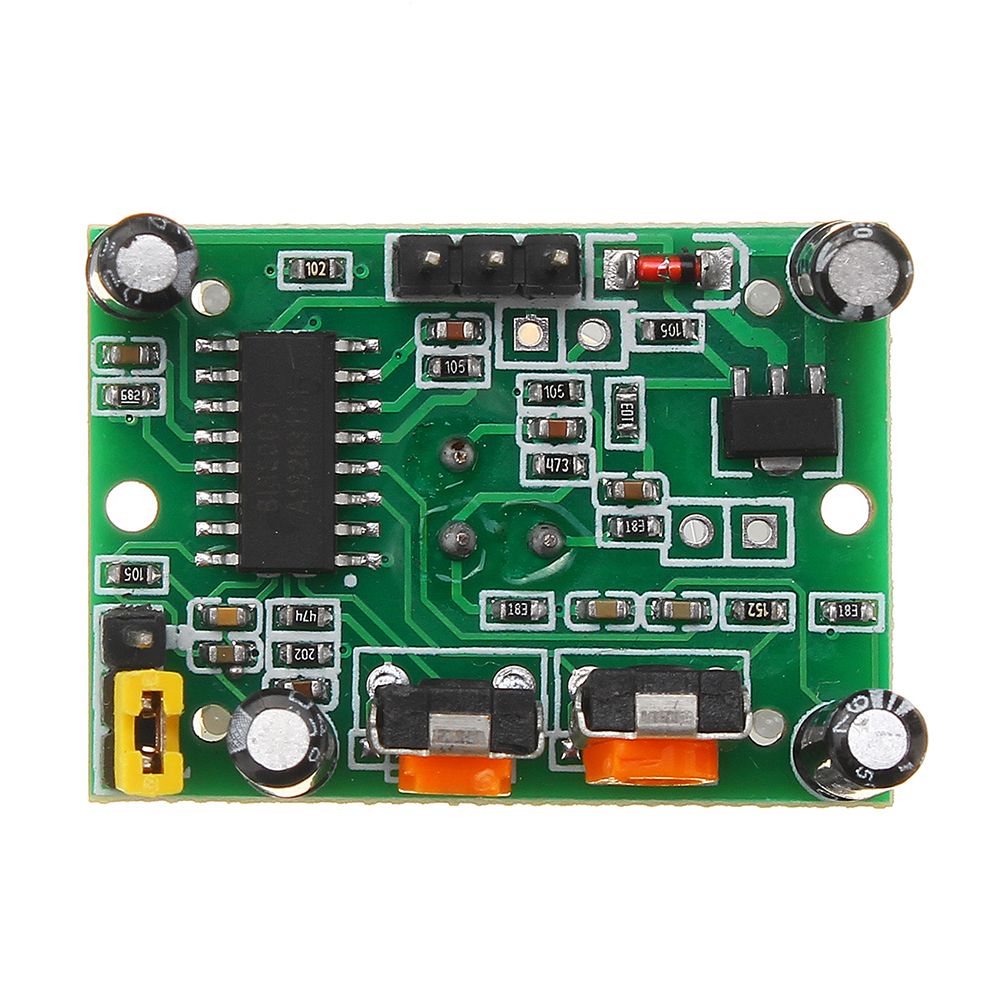

Infrared sensor with control circuit board
The sensitivity and holding time can be adjusted
Working voltage range: DC 4.5V- 20V
Current drain:<60uA
Voltage output: High/Low level signal:3.3V TTL output
Detection distance: 3--7M(can be adjusted)
Detection range: <140°
Delay time: 5-200S(can be adjusted, default 5s +-3%)
Blockade time: 2.5 S (default)
Trigger: L: Non-repeatable trigger  H: Repeat Trigger (default)
Work temperature:-20-+80°C
Trigger method: L unrepeatable trigger / H repeatable trigger

Note:

Sensitive Setting: turn to right, distance increases (About 7M); turn to left, distance reduce (About 3M)
Time Setting: turn to right, time increases (About 300S); turn to left, time reduce (About 5S).
Infrared sensor with control circuit board. The sensitivity and holding time can be adjusted.

Package Included:

3 x IR Detector Module
