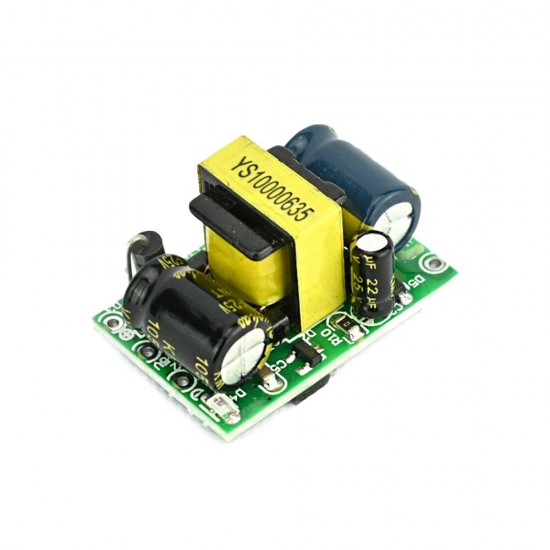

5Pcs YS-U5S5W AC to DC 5V 800mA Switching Power Supply Module AC to DC Converter 4W Regulated Power Supply

5Pcs YS-U5S5W AC to DC 5V 800mA Switching Power Supply Module AC to DC Converter 4W Regulated Power Supply
5Pcs YS-U5S5W AC to DC 5V 800mA Switching Power Supply Module AC to DC Converter 4W Regulated Power Supply
5Pcs YS-U5S5W AC to DC 5V 800mA Switching Power Supply Module AC to DC Converter 4W Regulated Power Supply
5Pcs YS-U5S5W AC to DC 5V 800mA Switching Power Supply Module AC to DC Converter 4W Regulated Power Supply
5Pcs YS-U5S5W AC to DC 5V 800mA Switching Power Supply Module AC to DC Converter 4W Regulated Power Supply
5Pcs YS-U5S5W AC to DC 5V 800mA Switching Power Supply Module AC to DC Converter 4W Regulated Power Supply
5Pcs YS-U5S5W AC to DC 5V 800mA Switching Power Supply Module AC to DC Converter 4W Regulated Power Supply
5Pcs YS-U5S5W AC to DC 5V 800mA Switching Power Supply Module AC to DC Converter 4W Regulated Power Supply
5Pcs YS-U5S5W AC to DC 5V 800mA Switching Power Supply Module AC to DC Converter 4W Regulated Power Supply
5Pcs YS-U5S5W AC to DC 5V 800mA Switching Power Supply Module AC to DC Converter 4W Regulated Power Supply
5Pcs YS-U5S5W AC to DC 5V 800mA Switching Power Supply Module AC to DC Converter 4W Regulated Power Supply
$15.99
Ex Tax: $15.99
  • Stock: In Stock
  • Model: EB0044834
  • SKU: EB0044834

>>>Manual: Click here to open<<<


Specifications:


ModelYS-U5S5W
Output characteristicsOutput voltage5V
Rated current0.8A
Current range0-1A
Ripple<60mVp-p
Output accuracy±1%
Voltage regulation rate<±1%
Load regulation rate±1.2%
Rated power4W
Adjustable output range/
Setup, rise, hold time500ms80ms80ms/220VAC
Input characteristicsInput voltage rangeAC100-264V
Input current<0.2A
Frequency range47Hz-63Hz
Effectiveness75%
Start impact circuitCOLD START<30AA/230VAC
Leakage current<2mA/220VAC
Protection characteristicsOver power protection150-170% rated power, automatic recovery after fault removal
Overvoltage protectionDC OUT >150%
Output short circuit protectionIntermittent power interruption to eliminate short-circuit power recovery
Environmental parametersWorking temperature, humidity-20℃ to +60℃@100%LOAD,+60℃LOAD:20%-90%RH
Storage temperature and humidity-40℃ to +105℃   10%-95%RH
Safety and EMC standardsEMI. Safety standards/
Withstand voltageI/P-O/P:1KVAV 1min
Insulation resistanceI/P-O/P;500VDV/100M Ohms

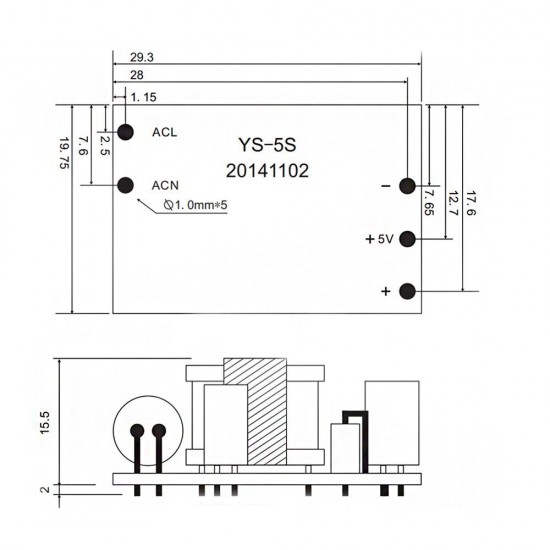

OtherDimensions (length x width x height)29.5*20*17mm
Weight9.8g(1pcs)


Package Included:


5 x YS-U5S5W AC to DC 5V 800mA Switching Power Supply Module
