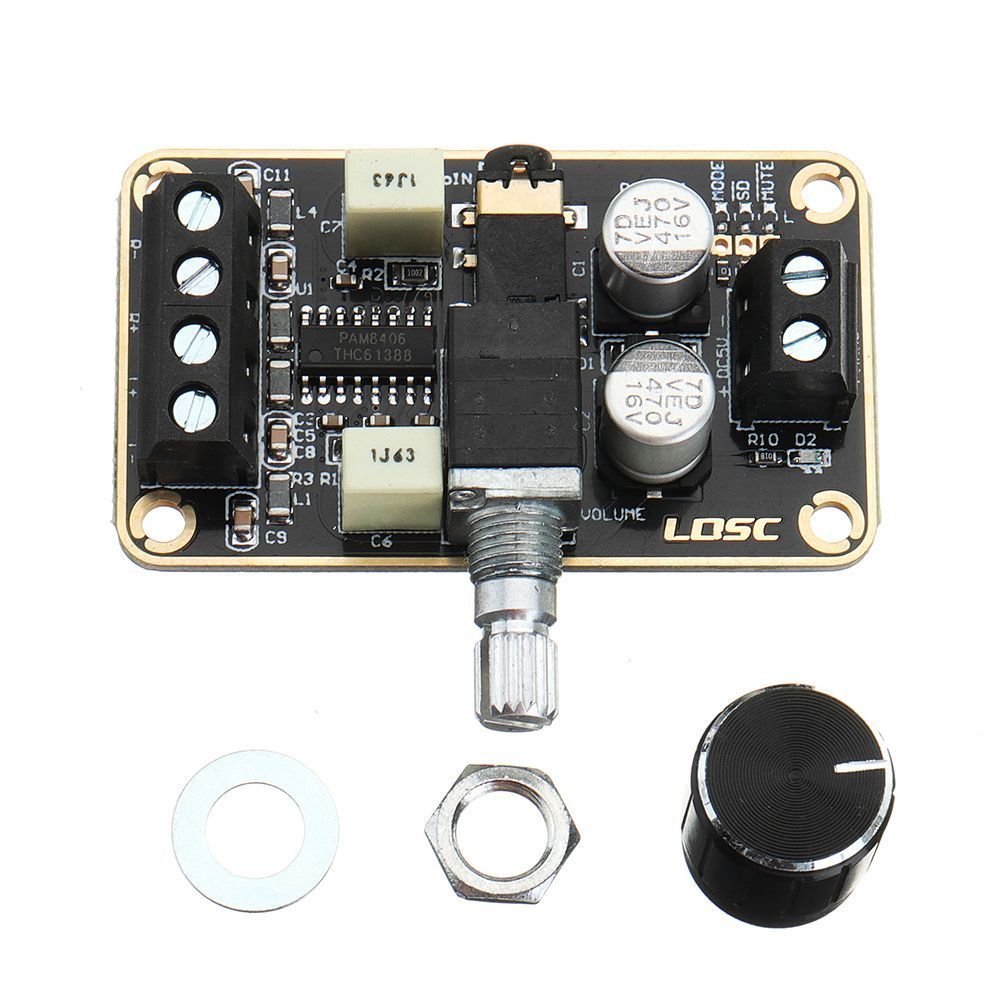

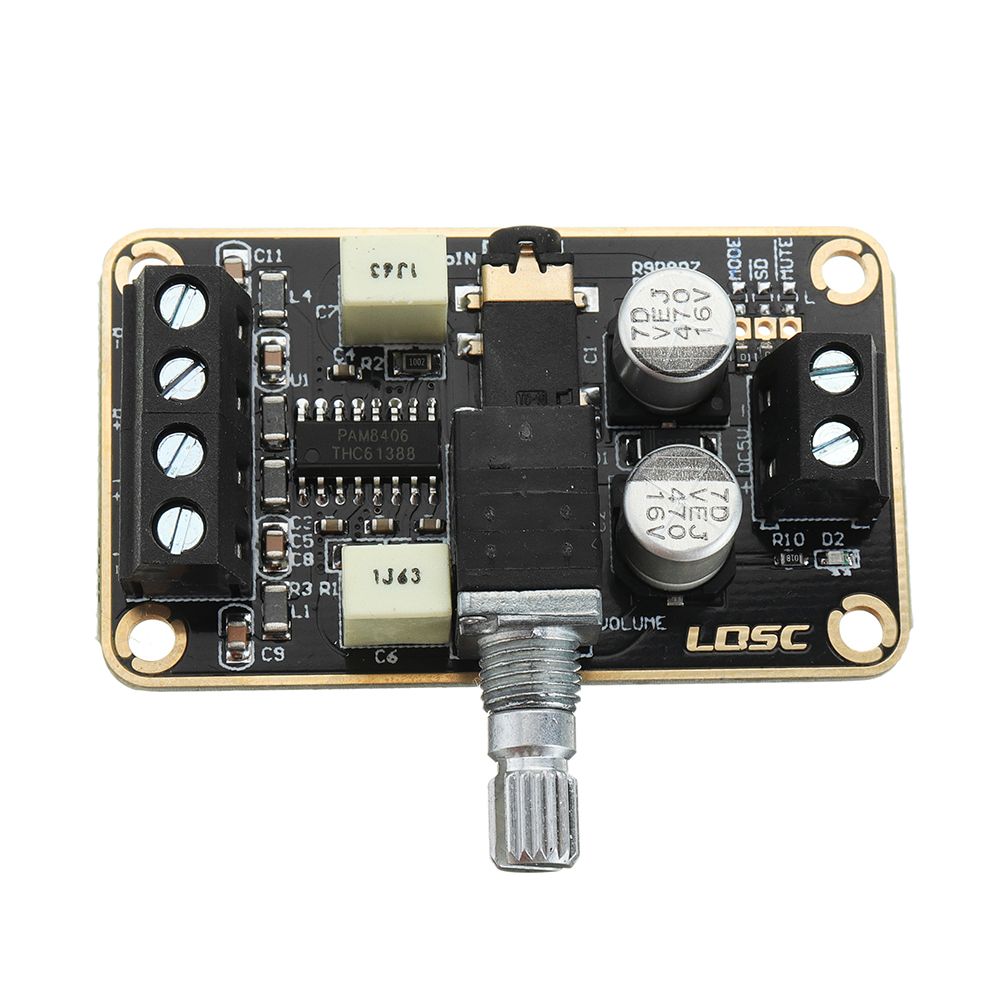

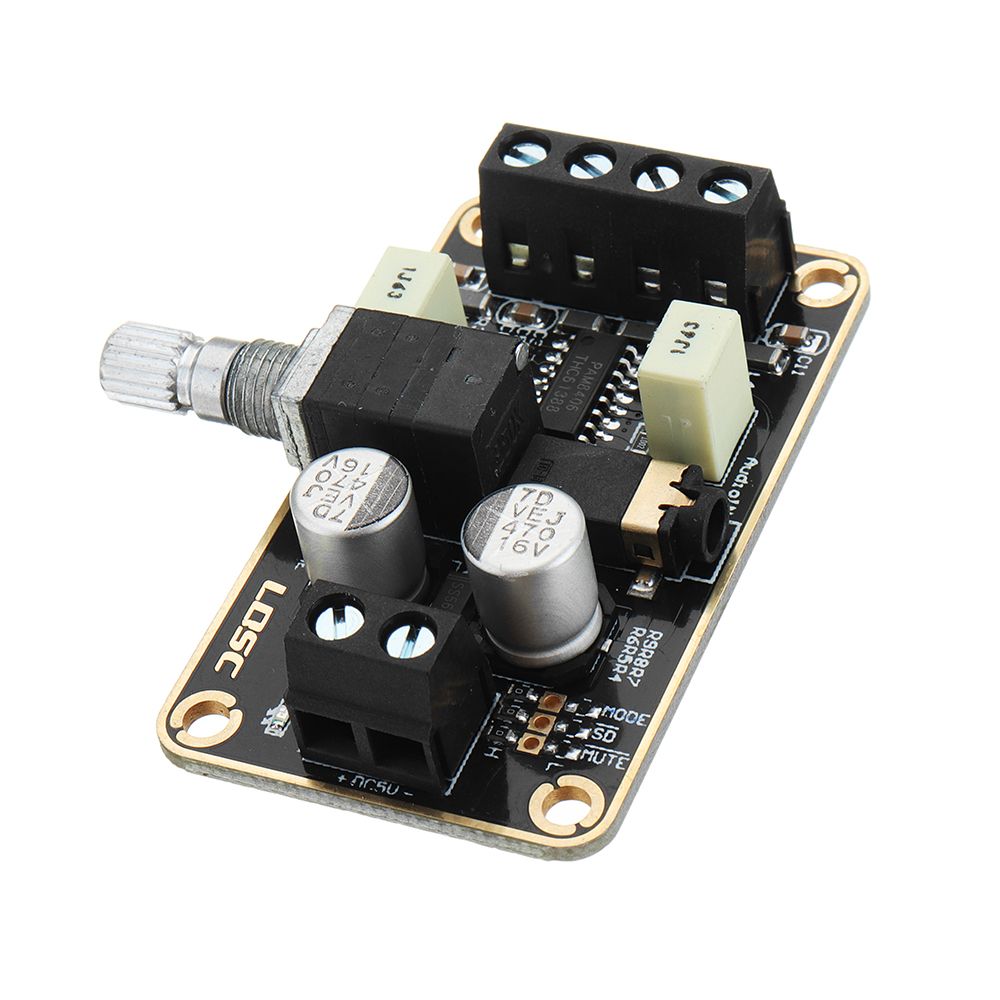

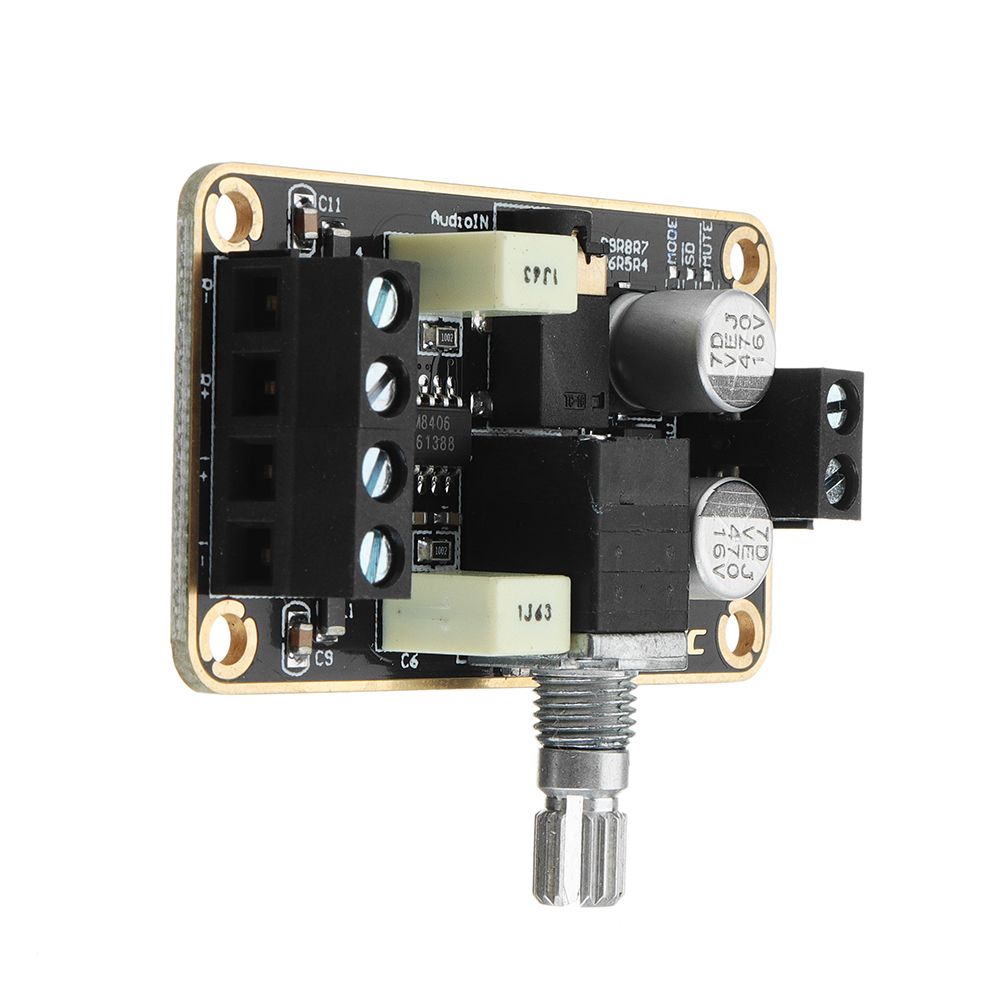

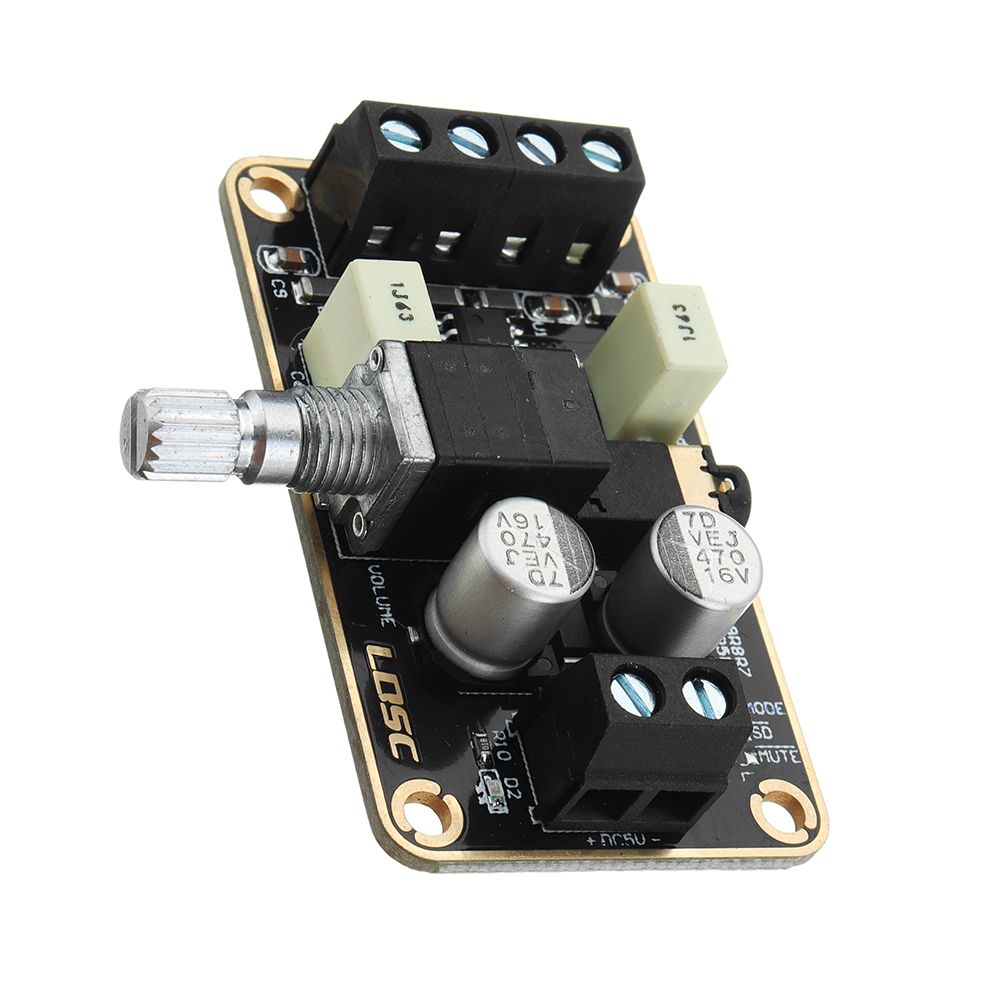

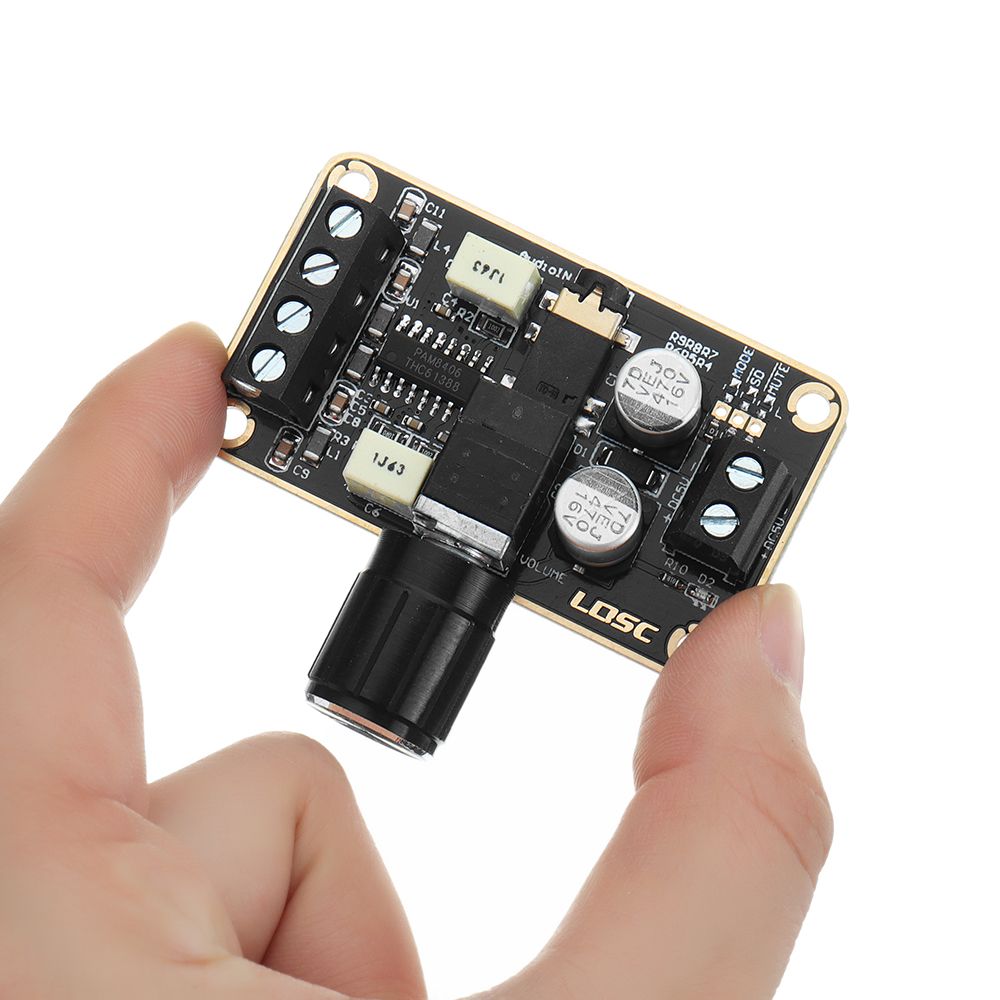

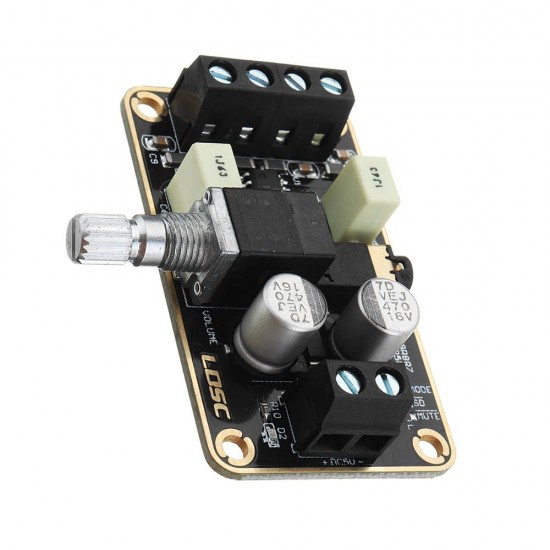

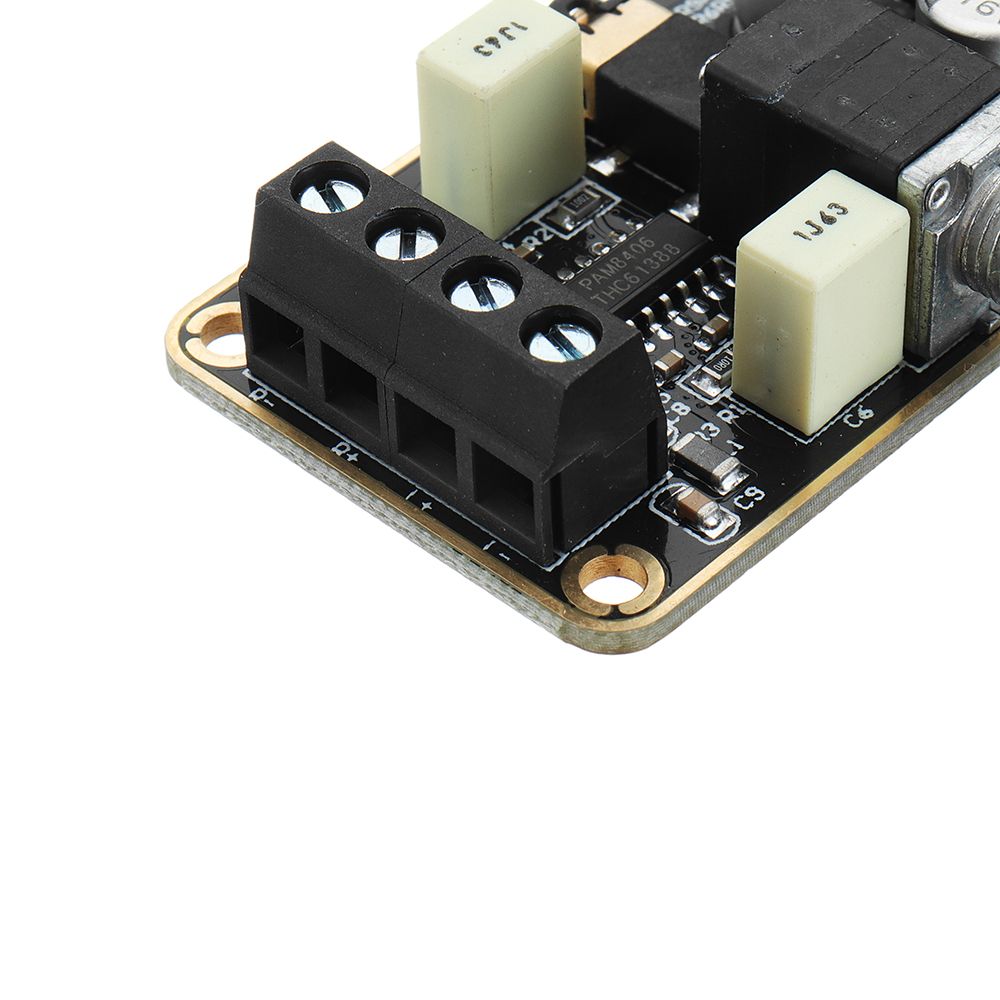

5Wx2 Stereo Dual Channel Digital Amplifier Board PAM8406 Audio Amplifier Module 5V Class D Amplifier
- Stock: In Stock
- Model: EB0051760
- SKU: EB0051760
Supply voltage: DC 5V (Do not overvoltage, overvoltage will burn IC)
Input method: single-ended
Output power: 5W 2Ω 5V /3W 4Ω 5V /1.8W 8Ω 5V
Whether APP is supported: No
Whether stage: HiFi
Channel: 2
Impedance: 2-8 Ohm
Performance:
Efficiency: >90%
Total Harmonic Distortion plus Noise: <10%
Low quiescent current
Noise suppression
Protection: reverse power supply input protection, short-circuit, overheat, pass EMI
Additional features:

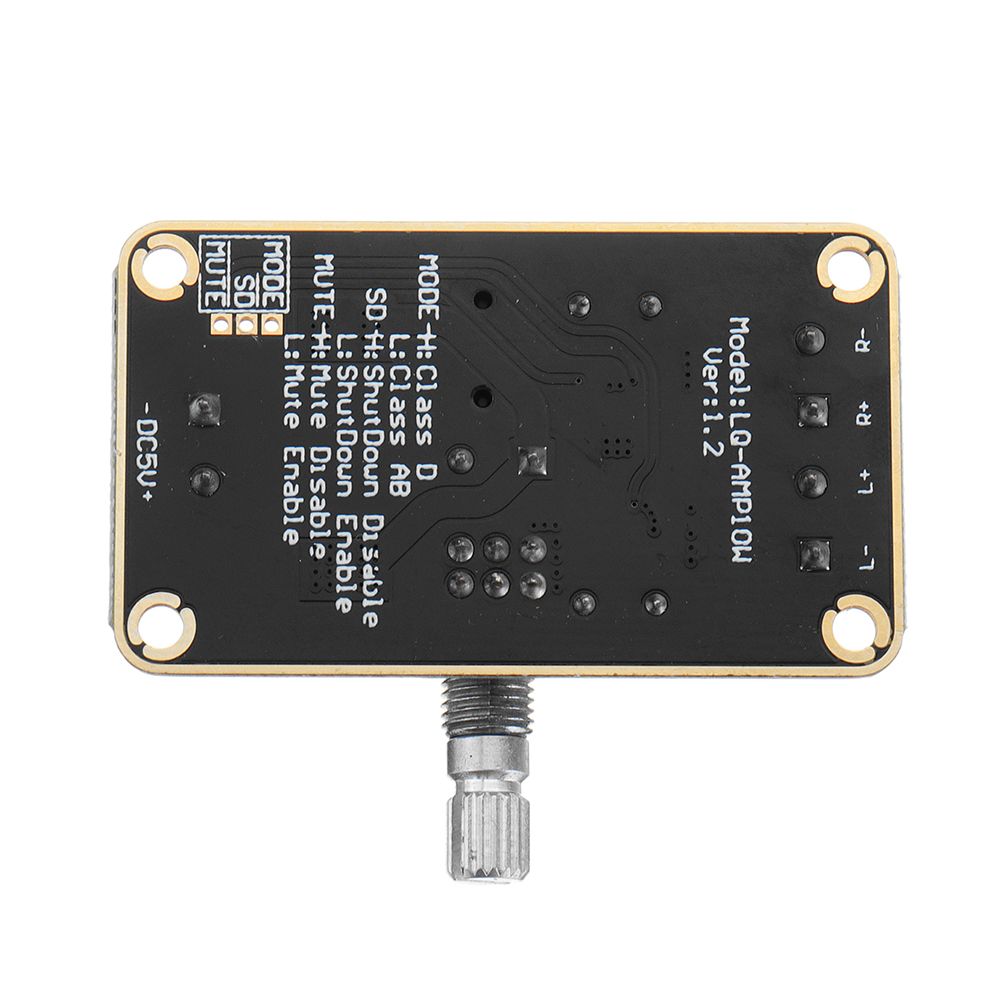

External power amplifier type selection function (MODE: high level Class D, low level Class AB, factory default high level)
External Shutdown (SD: Chip Shutdown at Low Level, Factory Default High Level)
Can be muted externally (MUTE: low-level mute, factory default high level)
Package included:
1 x 5Wx2 Stereo Dual Channel Digital Amplifier Board
