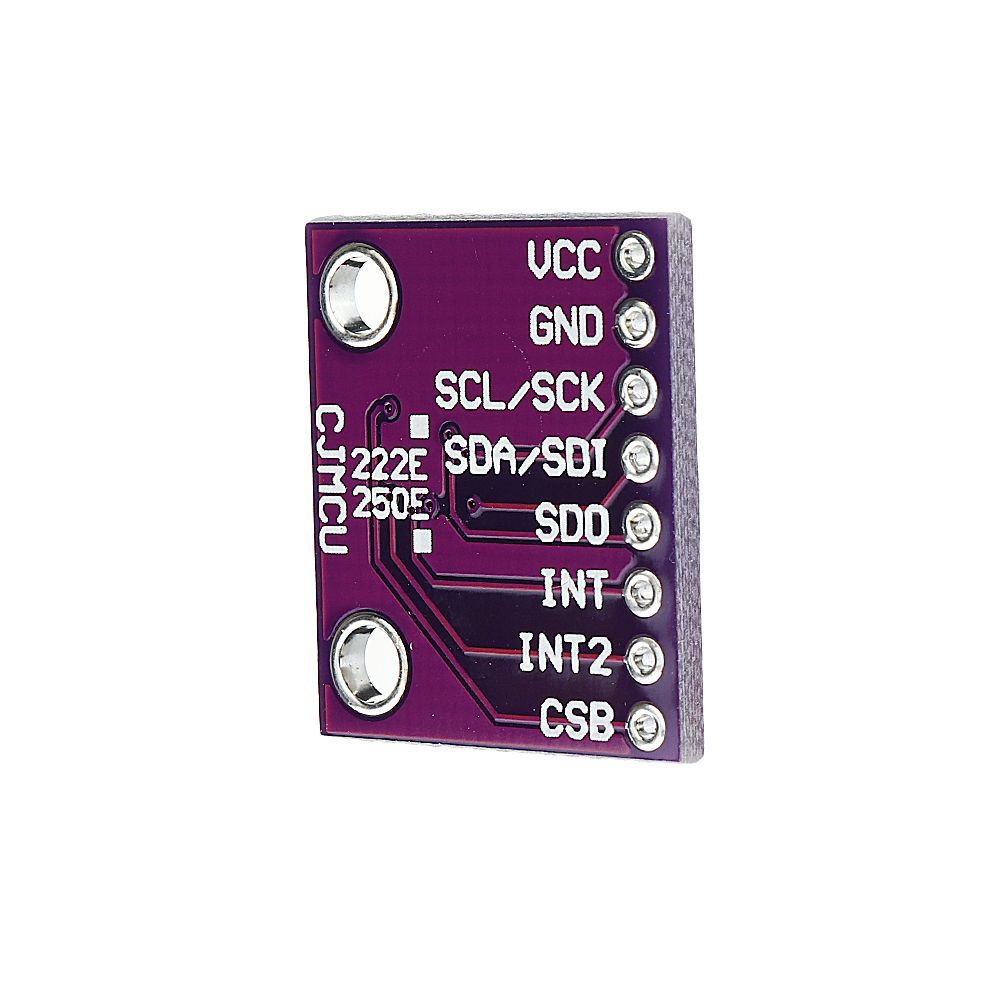

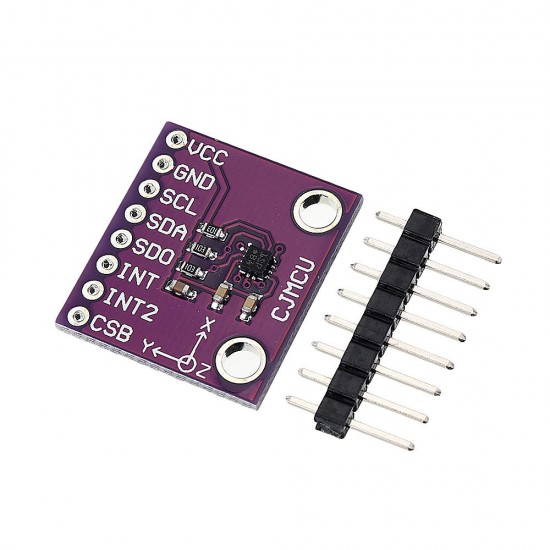

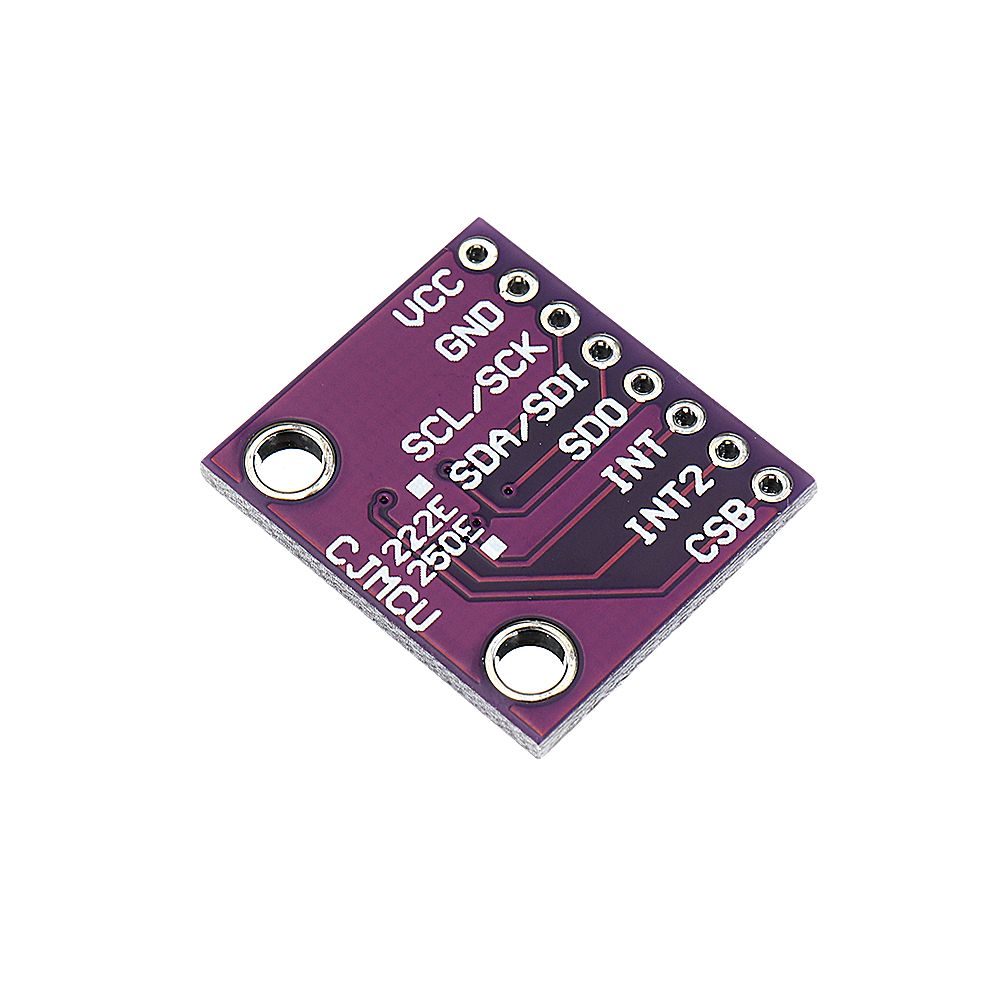

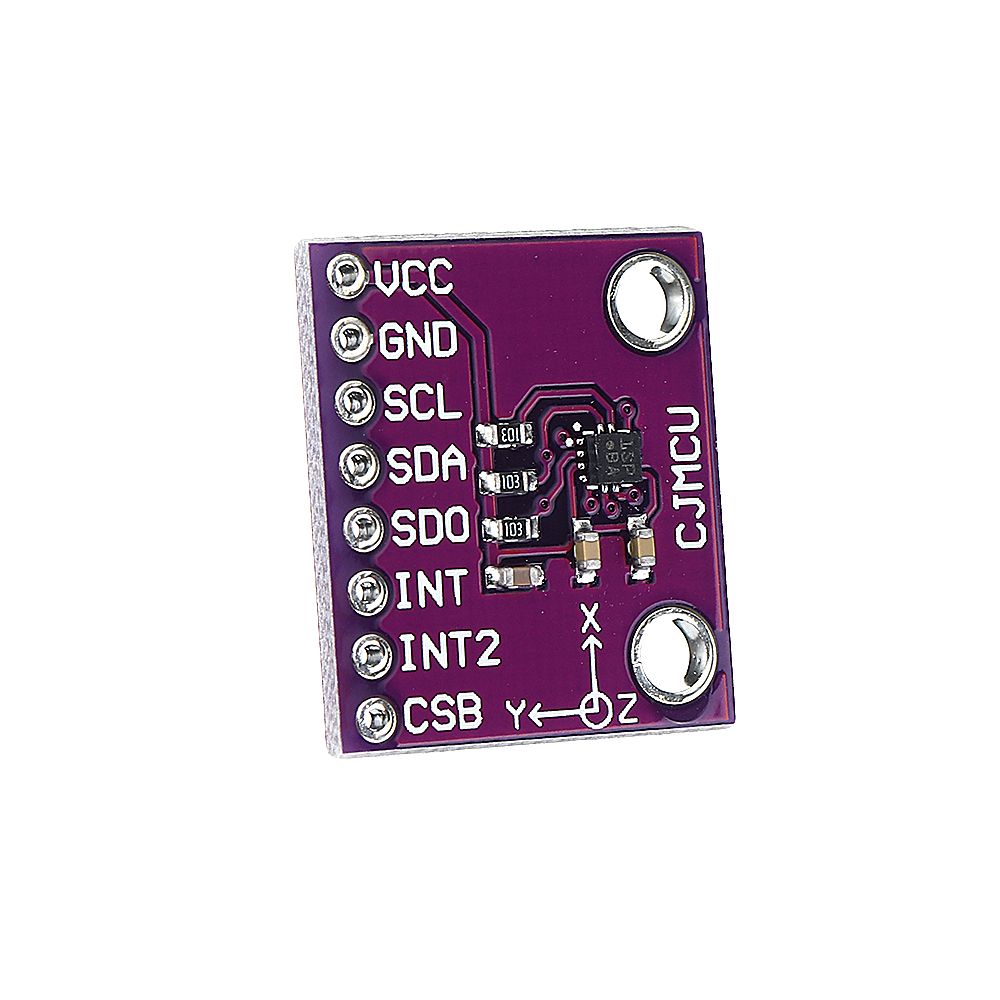

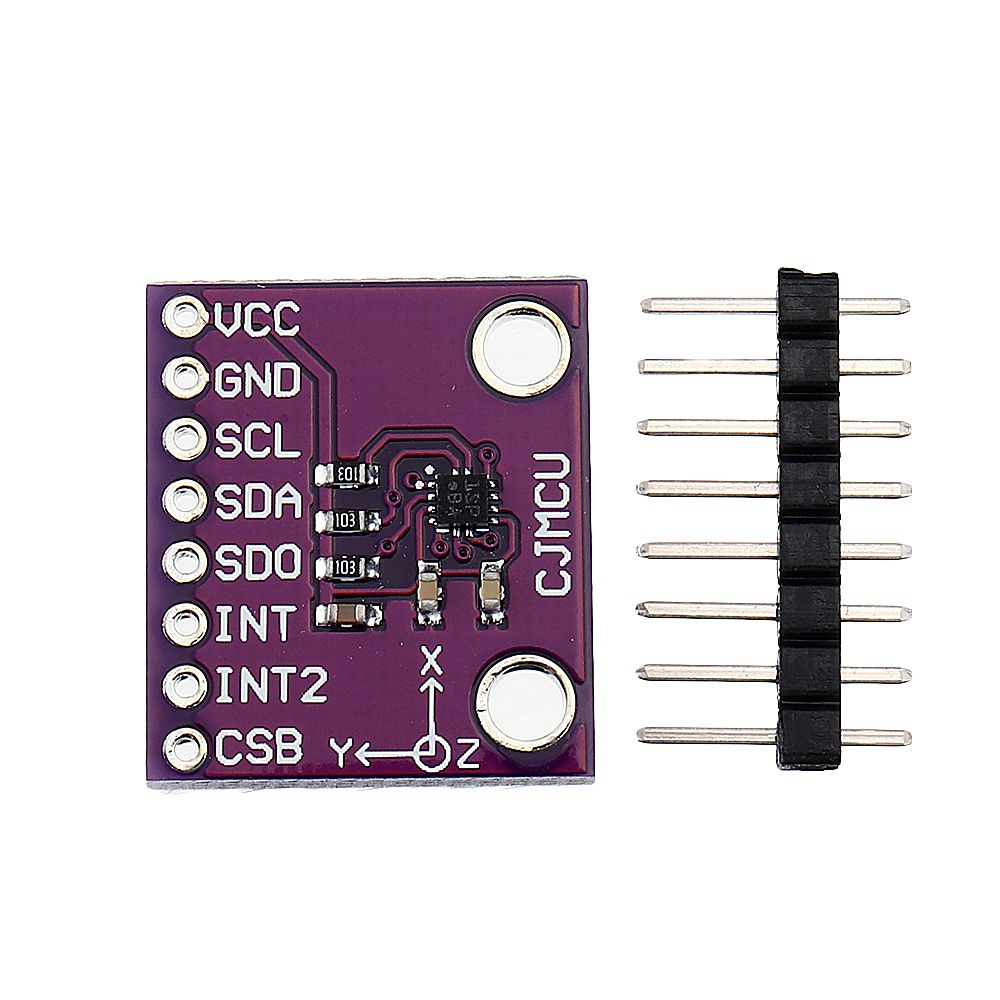

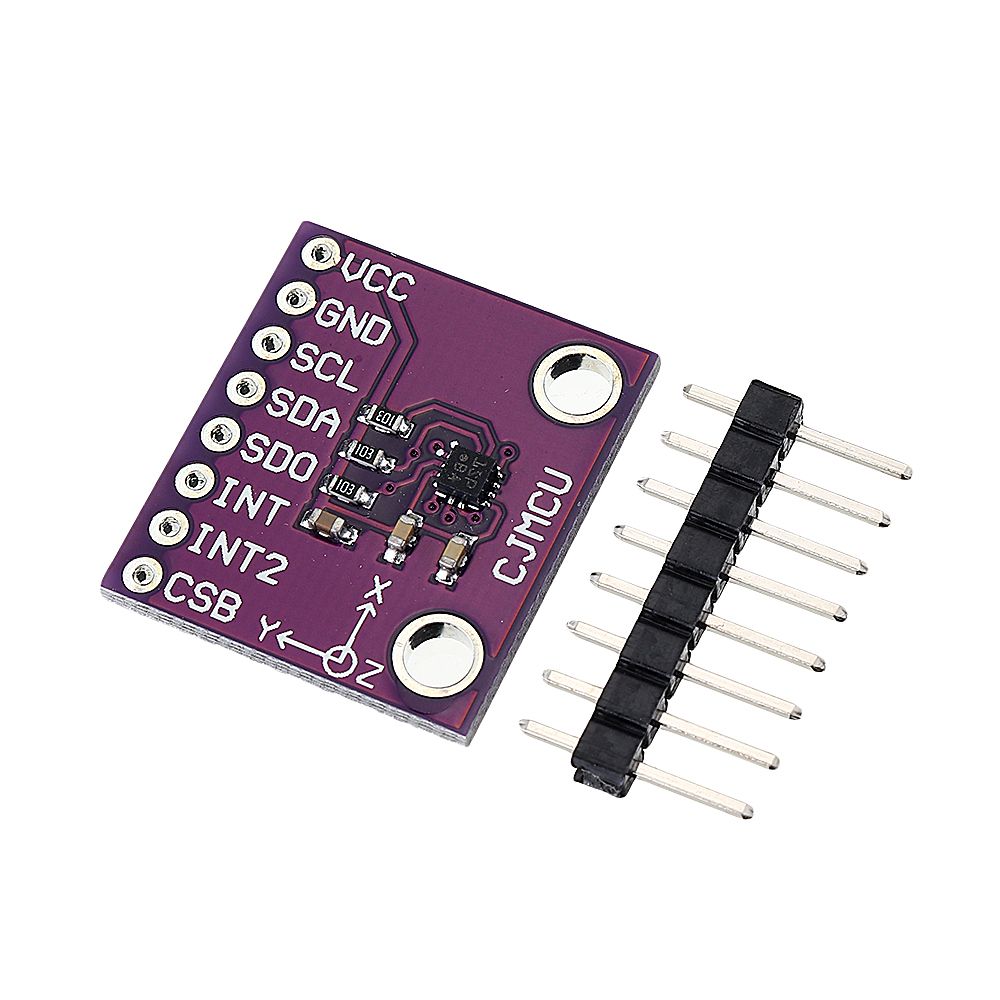

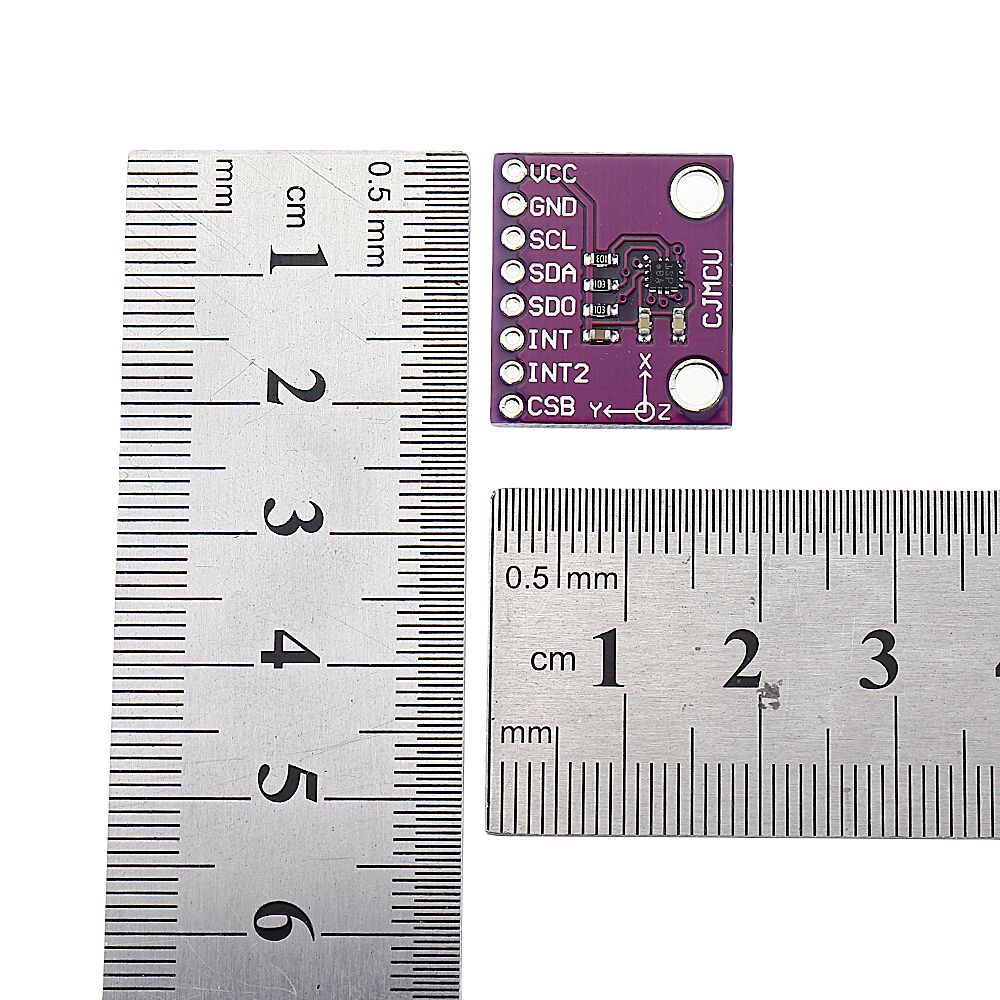

5pcs -250E BMA250E Sensor Module Three-axis Low G Acceleration Sensor Triaxial Accelerometer SPI IIC Interface

5pcs -250E BMA250E Sensor Module Three-axis Low G Acceleration Sensor Triaxial Accelerometer SPI IIC Interface
5pcs -250E BMA250E Sensor Module Three-axis Low G Acceleration Sensor Triaxial Accelerometer SPI IIC Interface
5pcs -250E BMA250E Sensor Module Three-axis Low G Acceleration Sensor Triaxial Accelerometer SPI IIC Interface
5pcs -250E BMA250E Sensor Module Three-axis Low G Acceleration Sensor Triaxial Accelerometer SPI IIC Interface
5pcs -250E BMA250E Sensor Module Three-axis Low G Acceleration Sensor Triaxial Accelerometer SPI IIC Interface
5pcs -250E BMA250E Sensor Module Three-axis Low G Acceleration Sensor Triaxial Accelerometer SPI IIC Interface
5pcs -250E BMA250E Sensor Module Three-axis Low G Acceleration Sensor Triaxial Accelerometer SPI IIC Interface
5pcs -250E BMA250E Sensor Module Three-axis Low G Acceleration Sensor Triaxial Accelerometer SPI IIC Interface
5pcs -250E BMA250E Sensor Module Three-axis Low G Acceleration Sensor Triaxial Accelerometer SPI IIC Interface
5pcs -250E BMA250E Sensor Module Three-axis Low G Acceleration Sensor Triaxial Accelerometer SPI IIC Interface
5pcs -250E BMA250E Sensor Module Three-axis Low G Acceleration Sensor Triaxial Accelerometer SPI IIC Interface
5pcs -250E BMA250E Sensor Module Three-axis Low G Acceleration Sensor Triaxial Accelerometer SPI IIC Interface
5pcs -250E BMA250E Sensor Module Three-axis Low G Acceleration Sensor Triaxial Accelerometer SPI IIC Interface
$19.99
Ex Tax: $19.99
  • Stock: In Stock
  • Model: EB0046879
  • SKU: EB0046879
>
Feature:

The BMA250E is a triaxial, low-g acceleration sensor with digital output for consumer applications. It allows measurements of acceleration in three perpendicular axes. An evaluation circuitry (ASIC) converts the output of a micromechanical acceleration-sensing structure(MEMS) that works according to the differential capacitance principle.
Package and interfaces of the BMA250E have been defined to match a multitude of hardware requirements. Since the sensor features an ultra-small footprint and a fat package it is ingeniously suited for mobile applications.
The BMA250E offers a variable VDDIO voltage range from 1.2V to 3.6V and can be programmed to optimize functionality, performance and power consumption in customer-specific applications.

Parameter:

Working temperature: -40~85 degree
Power supply: 3.3V
IIC communication frequency: 400KHZ (MAX)
Power consumption current: 130MA (2KHZ data rate)
Low power current: 6.5MA (40HZ data rate)
Communication interface: SPI (maximum 10MHZ) & I2C (maximum 400KHZ), 2 interrupt interface

Package includes:

5 x Sensor Module
