5pcs 5V 16MHz for Pro Mini 328 Add A6/A7 Pins for Arduino - products that work with official for Arduino boards

5pcs 5V 16MHz for Pro Mini 328 Add A6/A7 Pins for Arduino - products that work with official for Arduino boards
5pcs 5V 16MHz for Pro Mini 328 Add A6/A7 Pins for Arduino - products that work with official for Arduino boards
5pcs 5V 16MHz for Pro Mini 328 Add A6/A7 Pins for Arduino - products that work with official for Arduino boards
5pcs 5V 16MHz for Pro Mini 328 Add A6/A7 Pins for Arduino - products that work with official for Arduino boards
5pcs 5V 16MHz for Pro Mini 328 Add A6/A7 Pins for Arduino - products that work with official for Arduino boards
5pcs 5V 16MHz for Pro Mini 328 Add A6/A7 Pins for Arduino - products that work with official for Arduino boards
5pcs 5V 16MHz for Pro Mini 328 Add A6/A7 Pins for Arduino - products that work with official for Arduino boards
5pcs 5V 16MHz for Pro Mini 328 Add A6/A7 Pins for Arduino - products that work with official for Arduino boards
5pcs 5V 16MHz for Pro Mini 328 Add A6/A7 Pins for Arduino - products that work with official for Arduino boards
5pcs 5V 16MHz for Pro Mini 328 Add A6/A7 Pins for Arduino - products that work with official for Arduino boards
5pcs 5V 16MHz for Pro Mini 328 Add A6/A7 Pins for Arduino - products that work with official for Arduino boards
5pcs 5V 16MHz for Pro Mini 328 Add A6/A7 Pins for Arduino - products that work with official for Arduino boards
5pcs 5V 16MHz for Pro Mini 328 Add A6/A7 Pins for Arduino - products that work with official for Arduino boards
$23.99
Ex Tax: $23.99
  • Stock: In Stock
  • Model: EB0041790
  • SKU: EB0041790
Feature:

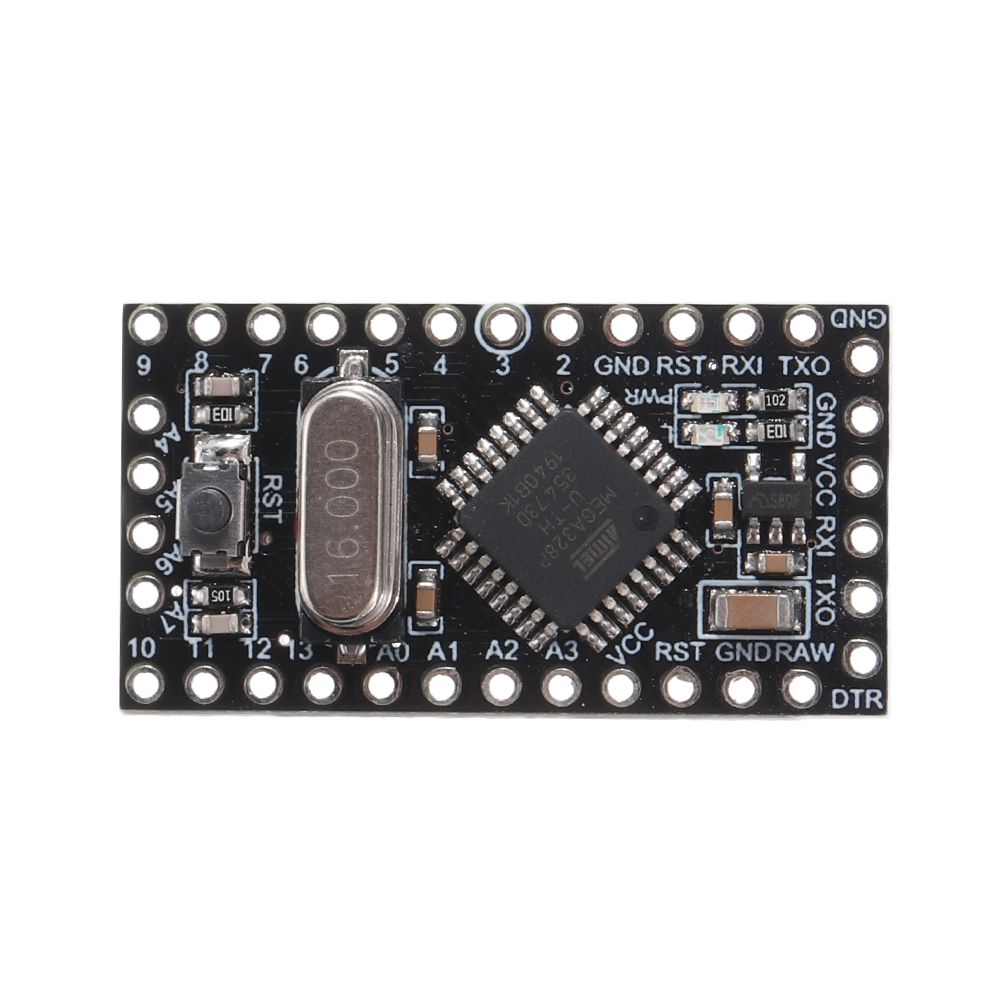

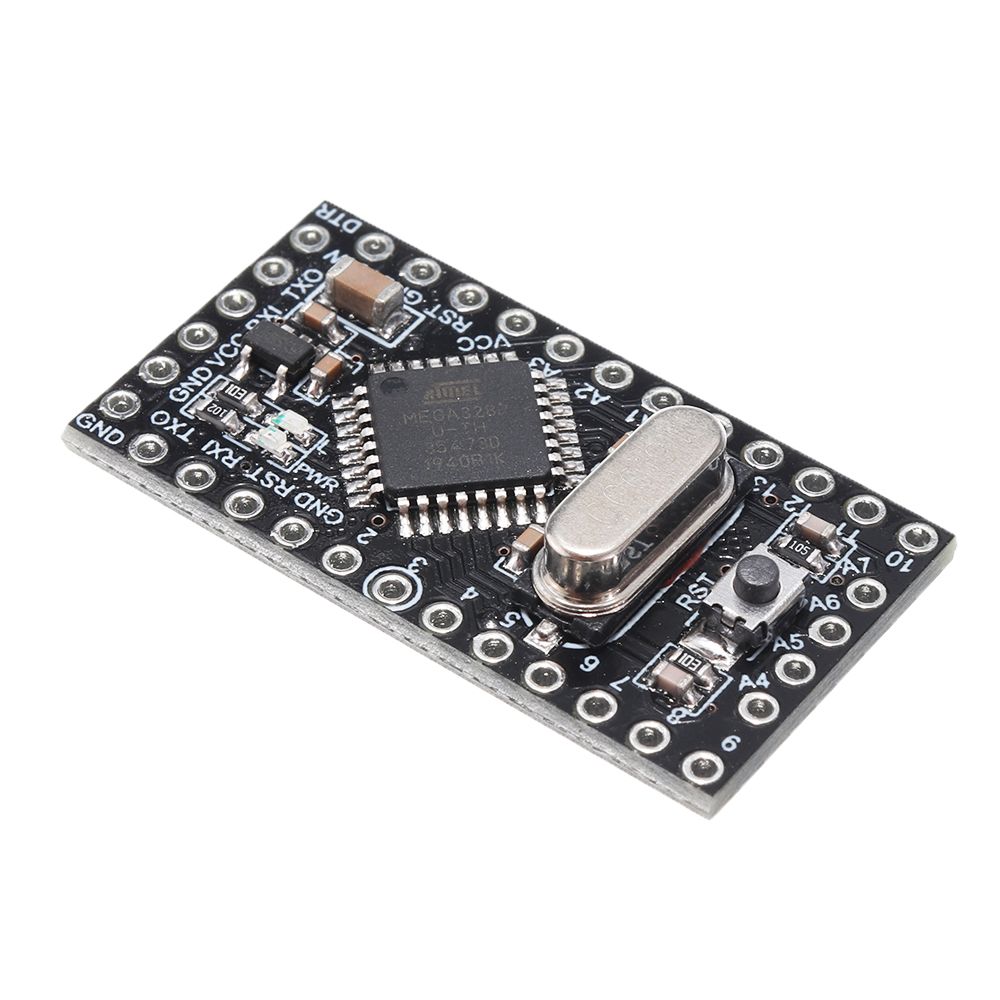

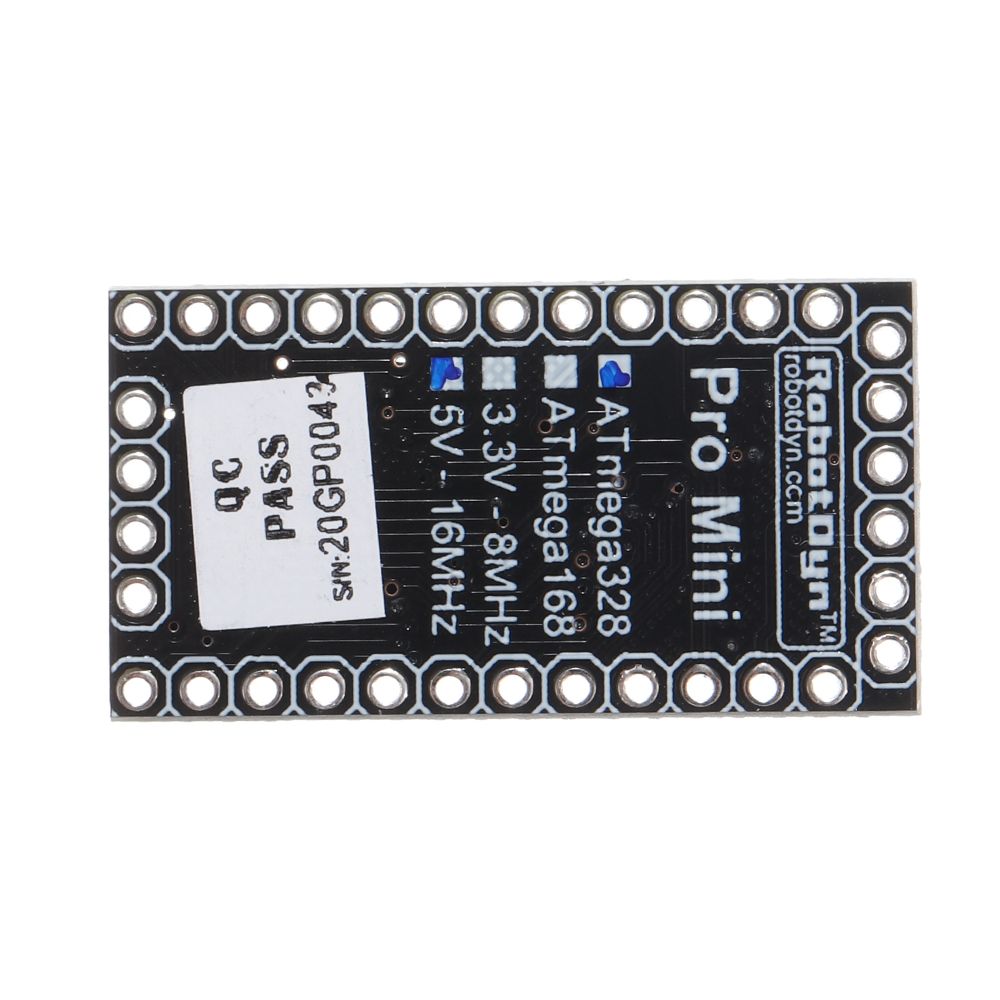

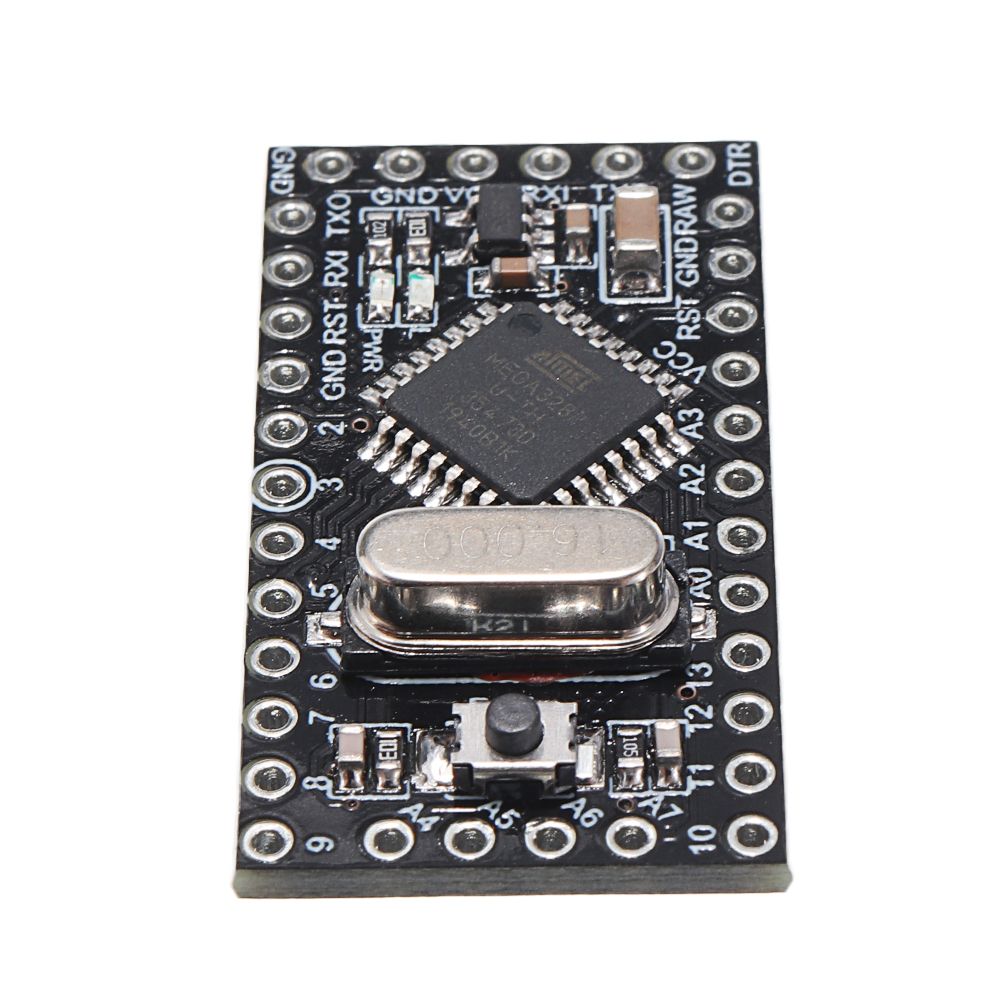

Pro Mini is based on the ATmega328 (AVR) microcontroller. Has 14 digital Inputs / Outputs (6 from which can be used as PWM outputs), 8 analog Inputs. Reset button. Mounting receptacles are included in the package but aren't soldered. For connection Pro Mini to the computer, it is necessary to use the USB-UART adapter, which you can find on our site. Or for updating of firmware via the ISP interface (the programmator is required). Unregulated power is applied to RAW, with 4-9V (for 3.3V) and 6-9V (for 5V), and the peak of 12V. The power supply regulator will reduce it to a logic level. (Please note that the higher the input voltage the higher after current stabilizer. Operating current up to 350mA.

MicrocontrollerATMega328
Power Out3.3V/5V-400mA
Power Consumption3.3V/5V 400mA
Logic Level3.3V/5V
Clock Frequency8MHz
Operating Supply Voltage3.3V (Contact Us5V (This item)
Digital I/O14(6-PWM)
Analog I/O8
Memory Size16Kb/32Kb
Data RAM Type/Size2Kb
Data ROM Type/Size1Kb
Interface TypeISP
Operating temperature−40С°/+85С°

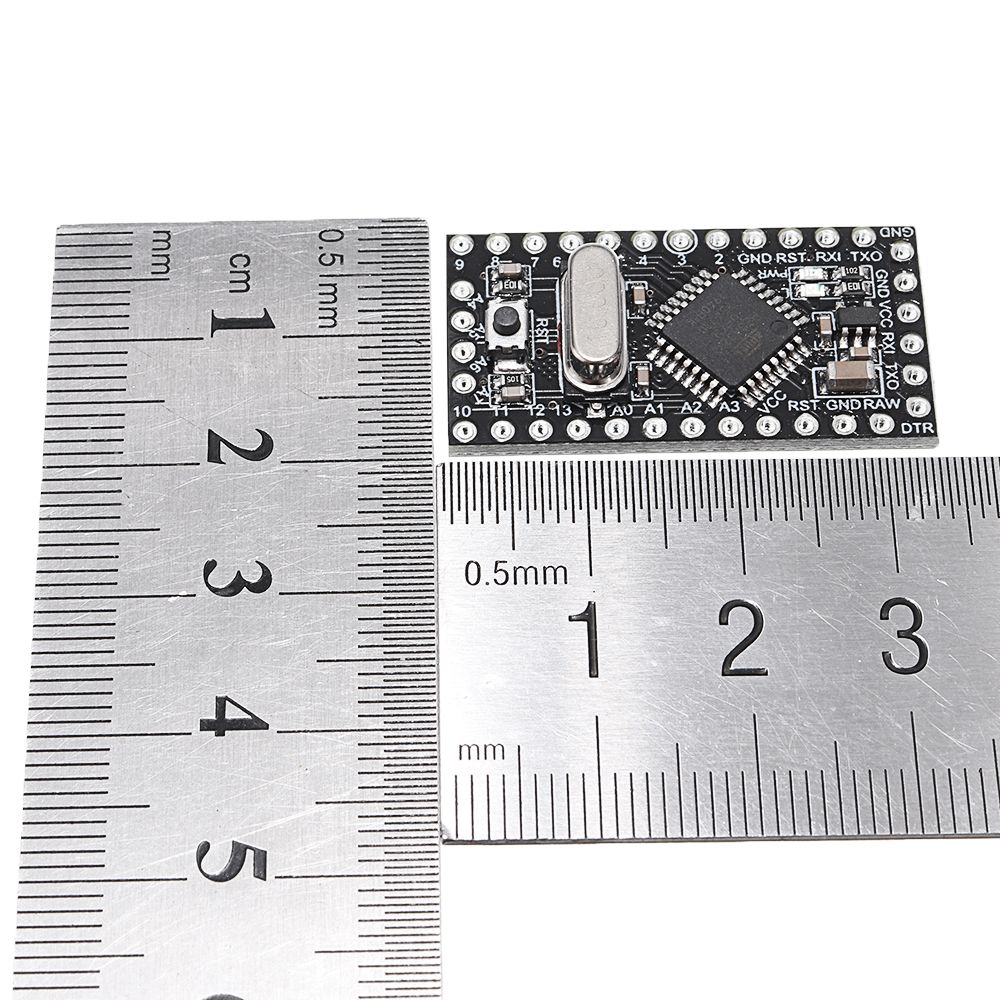

Length×Width33.02×17.78mm

Package includes:

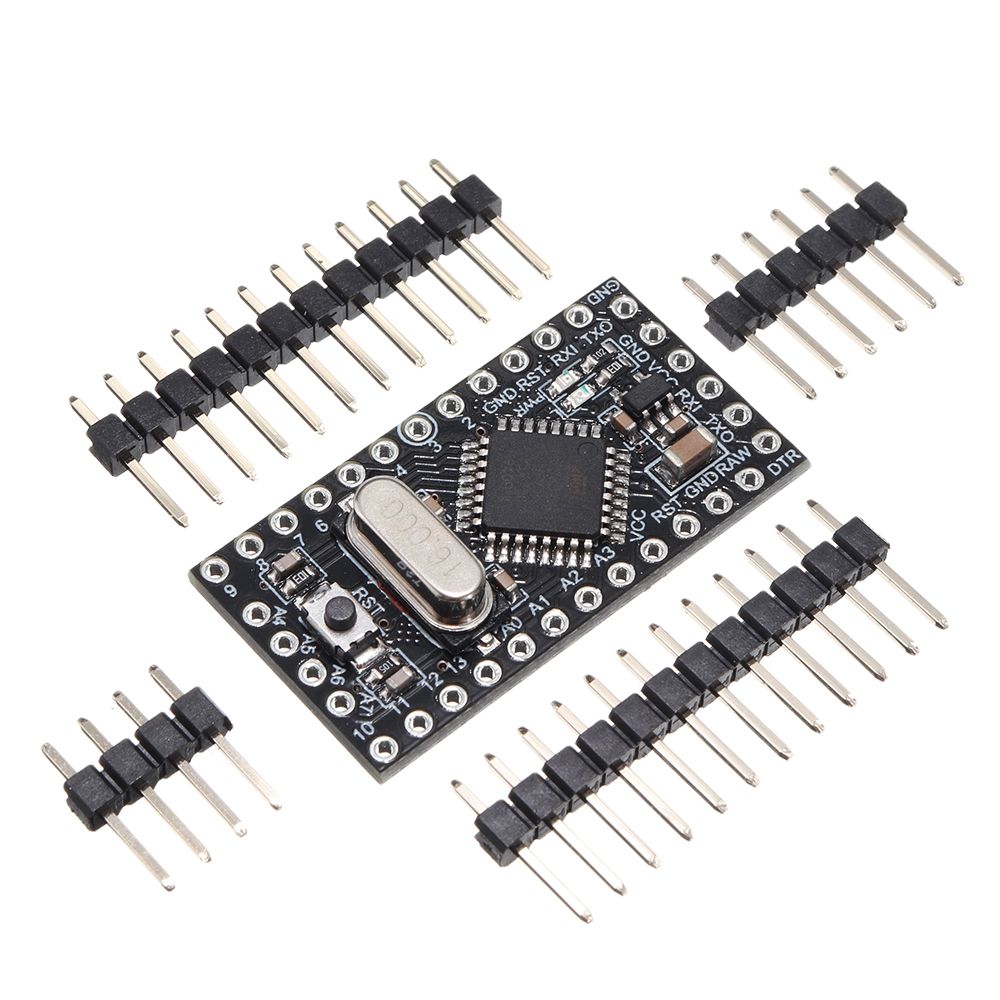

5 x Pro Mini with unsoldered pins
