5pcs DMP-L1 WiFi Intelligent Lighting Module Built-in ESP ESP8285 WiFi Chip For Smart Home

Based on 0 reviews. - Write a review

$27.99

Ex Tax: $27.99

Stock: In Stock
Model: EB0042904
SKU: EB0042904

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

The core processor of DMP-L1 module adopts industrial chip ESP8285. The chip integrates an enhanced version of the Tensilica's L106 Diamond Series 32-bit core processor in smaller size packages. ESP8285 has a complete Wi-Fi network function, which can be used independently from the controller. Its built-in cache memory greatly provides CPU performance.

DMP-L1 module supports standard IEEE802.11 b/g/n/e/i protocol and complete TCP/IP protocol stack.

DMP-L1 module uses built-in Flash, which can make the chip work at - 40 125 C.

DMP-L1 module has built-in LED control algorithm, which can make its external IO control LED driver.

DMP-L1 module has built-in DoHome cloud service, and can use DoHome series APP to control LED.

DMP-L1 module contains external infrared interface, which can support infrared remote control at the same time.

DMP-L1 module has built-in factory test program, which can make the factory produce test quickly.

Features:

Built-in ESP WiFi chip.

Supporting four-way LED control.

Built-in LED driver control algorithm to support dimming, color adjustment and rhythm control.

Supporting Local Area Network Priority Control.

Supporting cloud control.

Supporting infrared remote control.

Support Google Assistant, Amazon Alexa, Skycat Elf, Xiaodu Intelligence, Jingdong Dingdong, Xiaoai classmates and other speakers.

Support Android and iOS device control.

Support 802.11 b/g/n/e/i.

Support ESP-Touch Intelligent Distribution Network Model and AP Distribution Network Model.

Support OTA remote upgrade.

Support batch production testing.

Specification:

Ball bulb control pin: 4

Working temperature range: - 40°C - 125°C

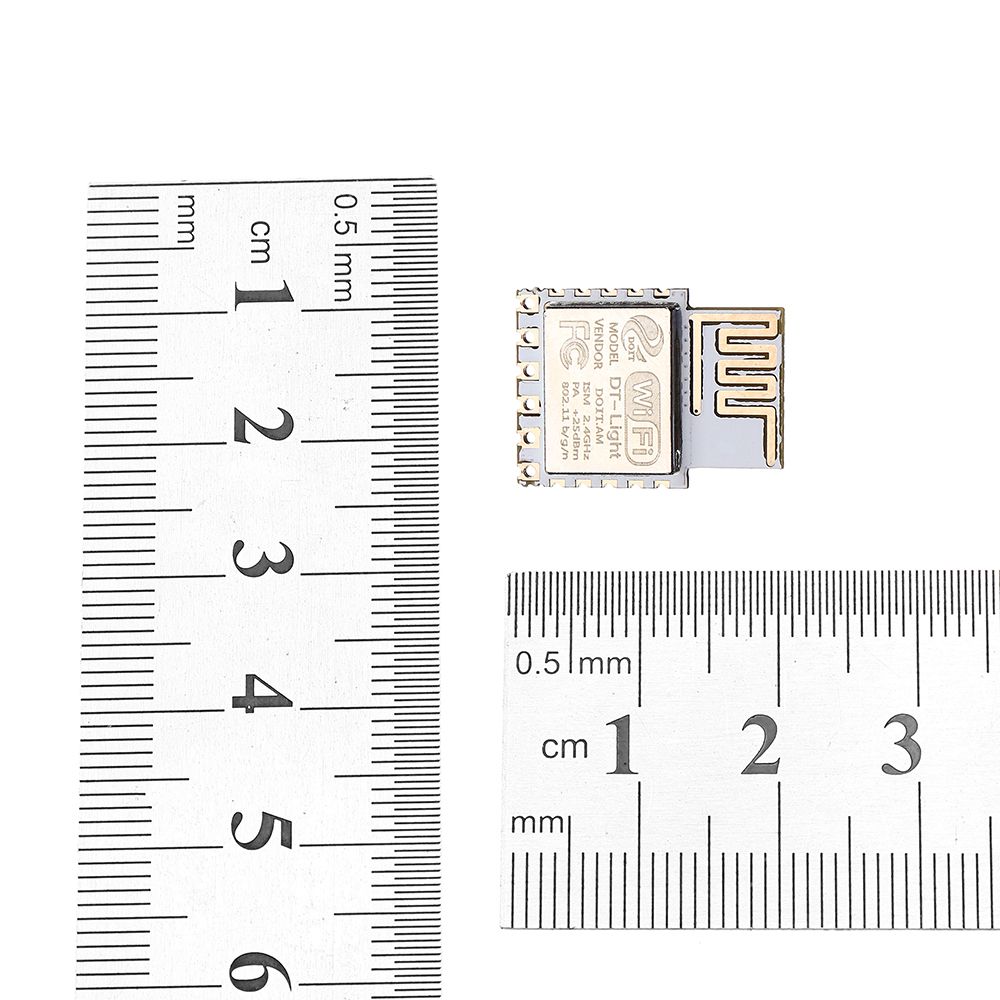

Module size: 15mm x 20mm

Module color: White

Package included:

5 x DMP-L1 WiFi Intelligent Lighting Module

5pcs-DMP-L1-WiFi-Intelligent-Lighting-Module-Built-in-ESP-ESP8285-WiFi-Chip-For-Smart-Home-1433008
