5pcs RCWL-0516 4-28V 3mA Microwave Radar Sensor Human Body Induction Switch Module Prober
- Stock: In Stock
- Model: EB0043769
- SKU: EB0043769
- Voltage: 12V,16.8V,18V,24V,28V
Precise details:

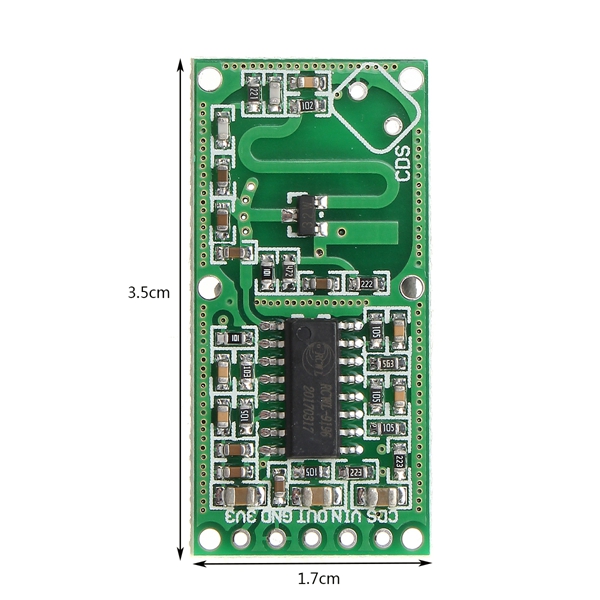

Features:Size: approx. 1.7 x 3.5cm / 0.67 x 1.38"
Operating voltage: 4 - 28V
Operating current: 2.8mA (typical), 3mA (max)
Probe distance: 5-9m
Transmitting power: 20mW (typical), 30mW (max)
Output voltage: 3.2 - 3.4V
Output voltage driving capacity: 100mA
Output control low level: 0V
Output control high level: 3.3V
Operating temperature: -20 - 80 ℃
Storage temperature: -40 - 100℃
Trigger way: repeat trigger
Adjustable distance, high sensitivity, the module has a far sensing distance, reliable, large induction angle and has a wide supply voltage range
Widely used in a variety of human induction lighting and burglar alarm and so on.
More document click to download:0516

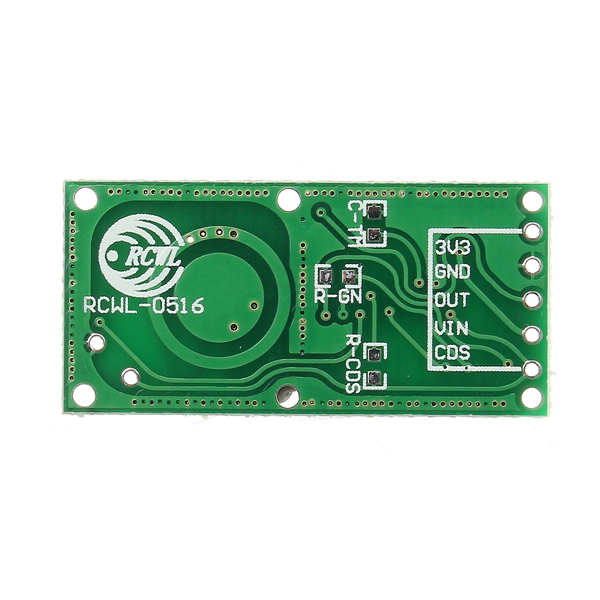

Adjustment part introduction:
C-TM:
Adjust repeat trigger time, default trigger time is 2s; increasing capacitor's capacity will make repeat trigger time longer; and actual counting trigger time can operate as below: Stick capacitor on C-TM, test 9196 3-pin frequency F, repeat trigger time T=(1/f)*32768.
R-GN:
Probe distance adjustment;connect with resistor and probe distance will become shorter; if not connect, probe distance is 7m; if connect with 1M ohm resistor, probe distance is 5m.
R-CDS:
Internal VCC parallel connect with internal 1M ohm resistor to CDS pin (that is 196 9-pin) by R-CDS, CDS connects with photoresistor, you can close probe function at night.

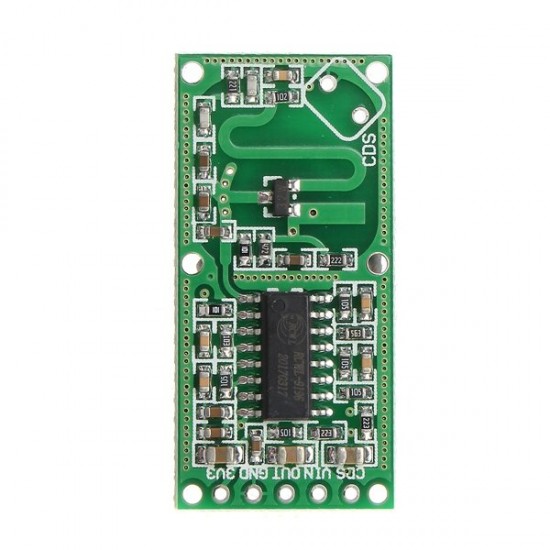

Pin definition:
3V3: 3V3 power output
GND: ground
OUT: control output; when probe moving objects, it will output high level
VIN: input voltage, 4-28V
CDS: enable control chip, lower than 0.7V, OUT will output low level all the time

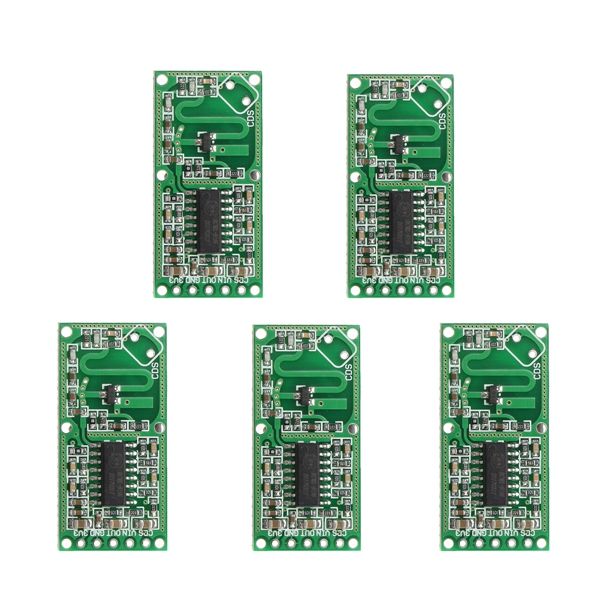

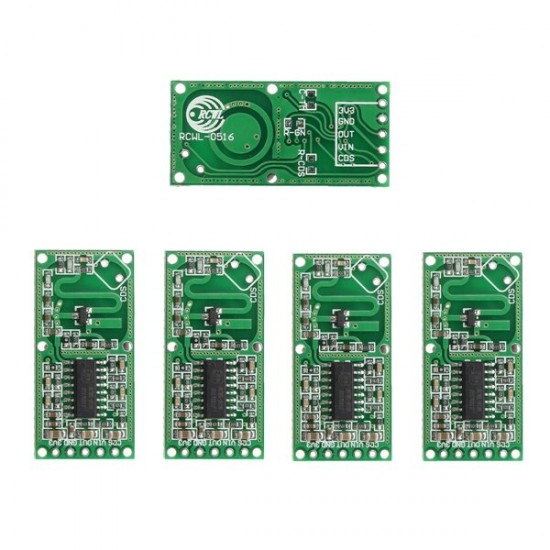

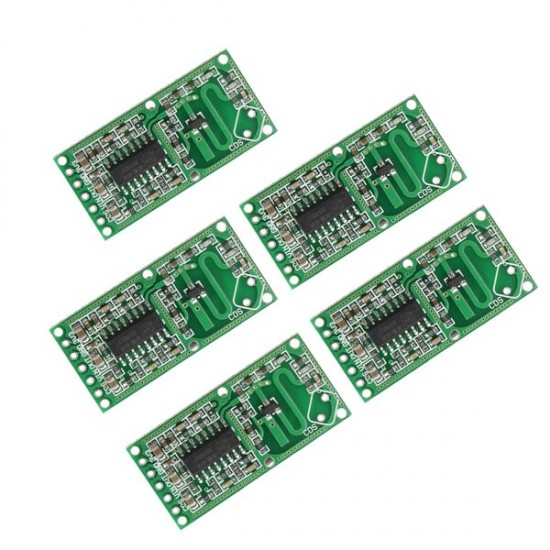

5 x RCWL-0516 sensor module
Size: approx. 1.7 x 3.5cm / 0.67 x 1.38"
Operating voltage: 4 - 28V
Operating current: 2.8mA (typical), 3mA (max)
Probe distance: 5-9m
Transmitting power: 20mW (typical), 30mW (max)
Output voltage: 3.2 - 3.4V
Output voltage driving capacity: 100mA
Output control low level: 0V
Output control high level: 3.3V
Operating temperature: -20 - 80 ℃
Storage temperature: -40 - 100℃
Trigger way: repeat trigger
Adjustable distance, high sensitivity, the module has a far sensing distance, reliable, large induction angle and has a wide supply voltage range
Widely used in a variety of human induction lighting and burglar alarm and so on.
More document click to download:0516
Adjustment part introduction:
C-TM:
Adjust repeat trigger time, default trigger time is 2s; increasing capacitor's capacity will make repeat trigger time longer; and actual counting trigger time can operate as below: Stick capacitor on C-TM, test 9196 3-pin frequency F, repeat trigger time T=(1/f)*32768.
R-GN:
Probe distance adjustment;connect with resistor and probe distance will become shorter; if not connect, probe distance is 7m; if connect with 1M ohm resistor, probe distance is 5m.
R-CDS:
Internal VCC parallel connect with internal 1M ohm resistor to CDS pin (that is 196 9-pin) by R-CDS, CDS connects with photoresistor, you can close probe function at night.
Pin definition:
3V3: 3V3 power output
GND: ground
OUT: control output; when probe moving objects, it will output high level
VIN: input voltage, 4-28V
CDS: enable control chip, lower than 0.7V, OUT will output low level all the time
5 x RCWL-0516 sensor module
,
,
