7 Inch LCD Display Screen DIY Kit HD LED 800x480 For Raspberry Pi

The module color (green / blue) will send random delivery


Description:

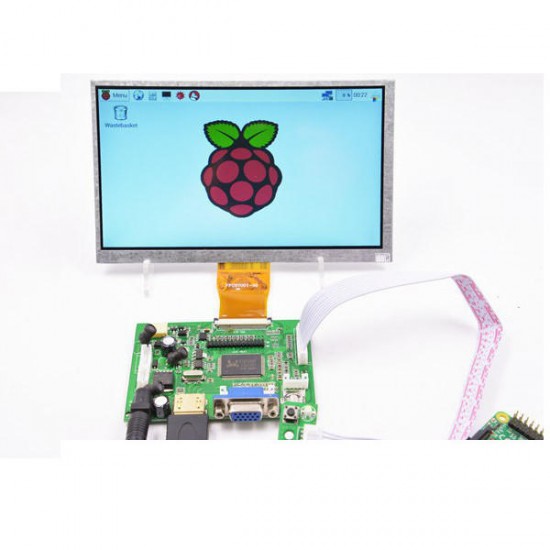

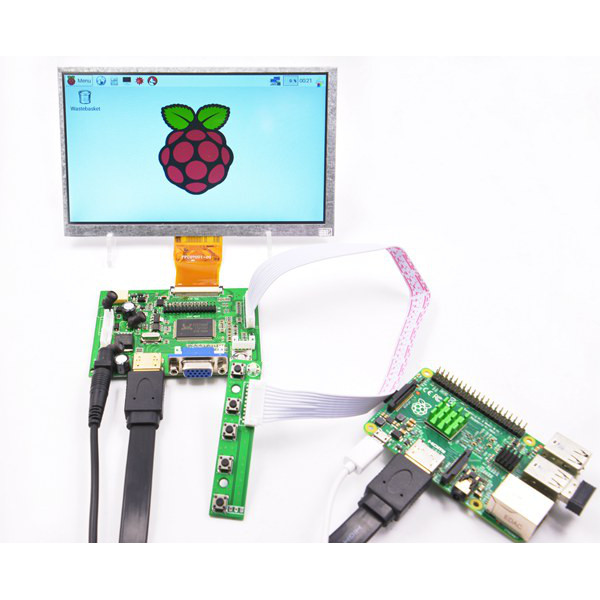

This 7 inch High-resolution 800*480 LCD display module kit is especially designed as a monitor for Raspberry Pi 2 Model B and Raspberry Pi B+ B A+.
For use with a Raspberry Pi we suggest editing config.txt to set the HDMI to the native 800x480 in case it doesn't detect the resolution properly.
The easiest way to edit the config.txt is to put the Pi TF card into an every day computer and edit config.txt with any text editor and save.

Feature:

Screen size: 7 inch LCD
Operating voltage: 5V (current requirement 1A-2A), for example car power need to add a 5V regulator
Rated power: 6-7W

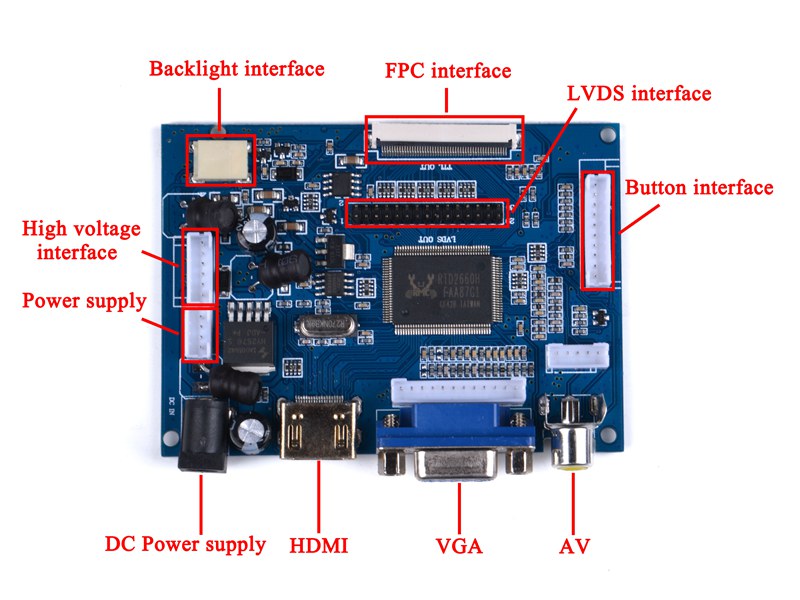

Signal input: 2 AV + VGA + HDMI (HDMI 1.2)
Support 5V DC voltage input, you can use USB, or power bank, but the positive and negative can not be reversed, to avoid damage the circuit board
Resolution: 800 * 480
Plug and Play: Renhotec
OSD language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese
Control: Multi-function OSD operation or potentiometer adjust the brightness and color
Features: Using mature program, clear display
Support image flip up and down, the image can conversion 4: 3 / 16: 9 display format

LCD screen parameters:

Display size: 7 inch
Touch screen: Not support
Dimensions: 165 (W) × 100 (H) × 5 (D) mm
Viewing area: 154.08 (H) × 85.92 (V)
Resolution: 800 × 3 (RGB) ×480
Viewing angle: L70 ° R70 ° U50 ° D60
Panel type: TFT
Contrast ratio: 500: 1
Interface type: Digital
The number of connection: 50 PIN Digital (TTL) TCON
Backlight: LED
Applications: mobile DVD, digital photo frame, car systems, multimedia applications and other audiovisual systems

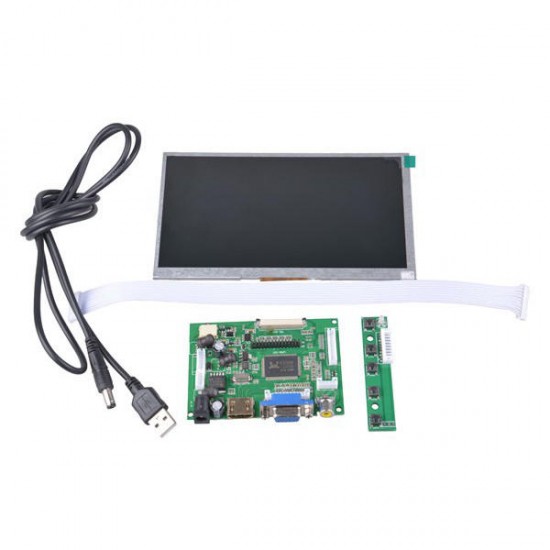

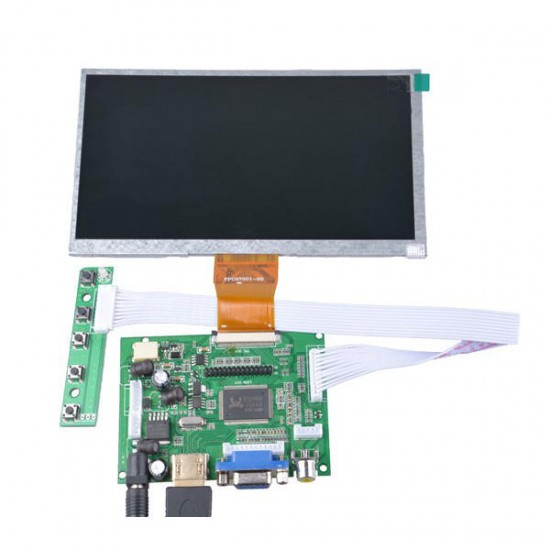

Package includes:

1 x 7-inch LCD screen

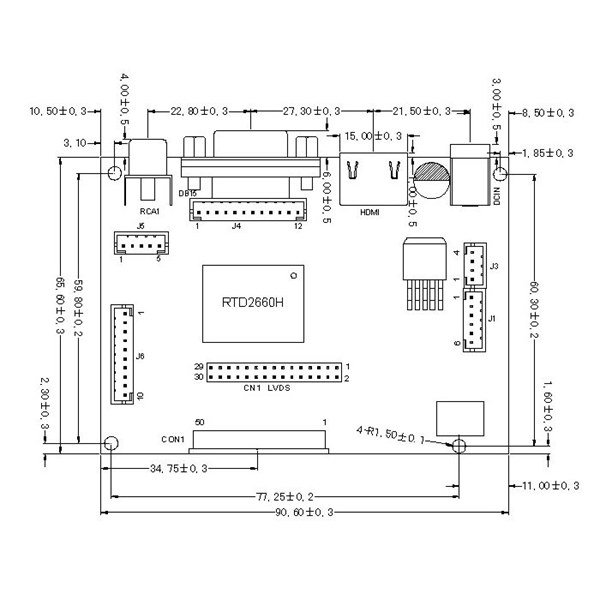

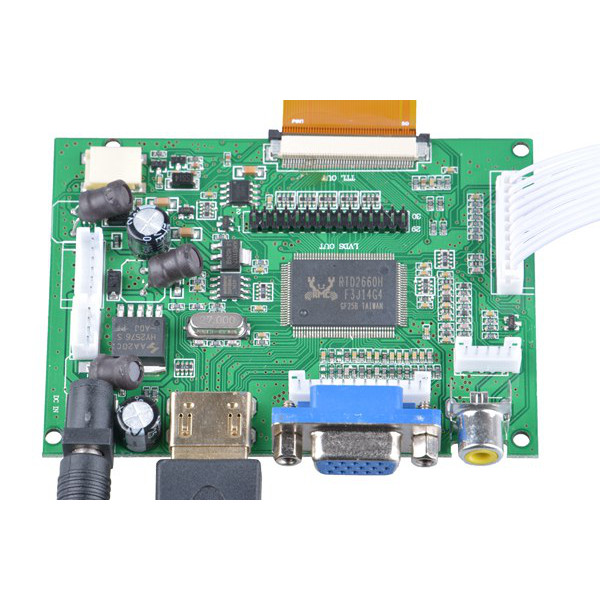

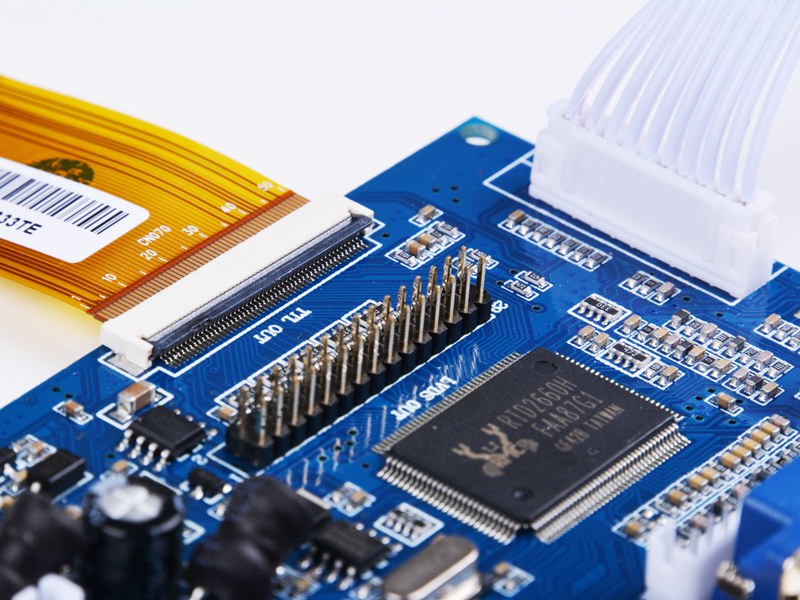

1 x LCD Driver board
1 x White cable (connected to the key board)

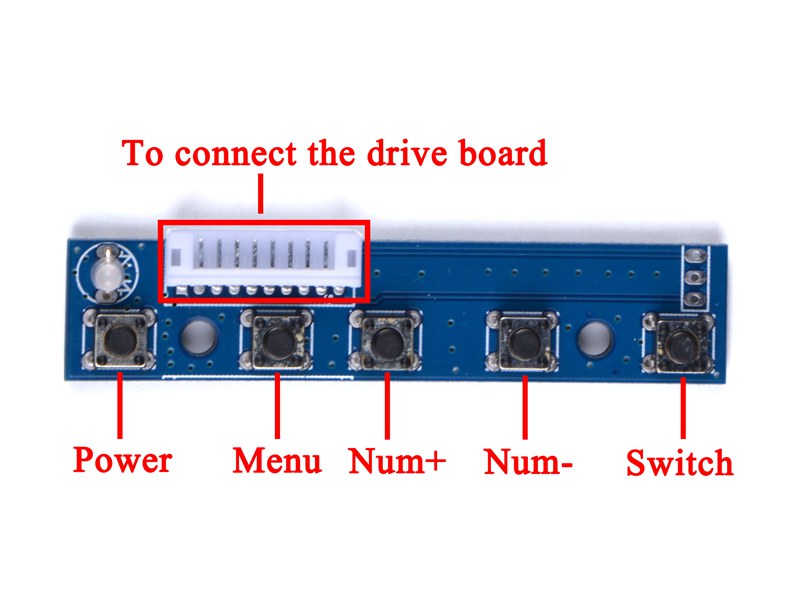

1 x Long green key board

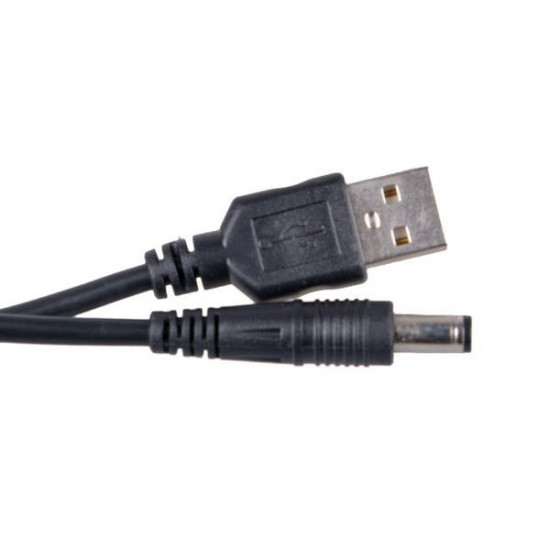

1 x USB to DC5.5V power line

Note: The Raspberry Pi main board and heat sink are not included!!
