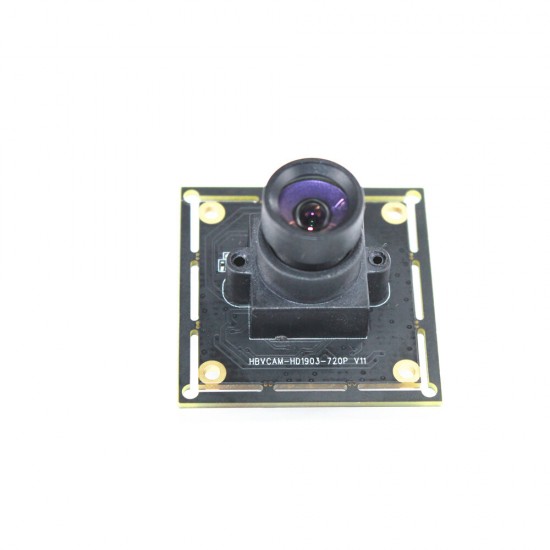

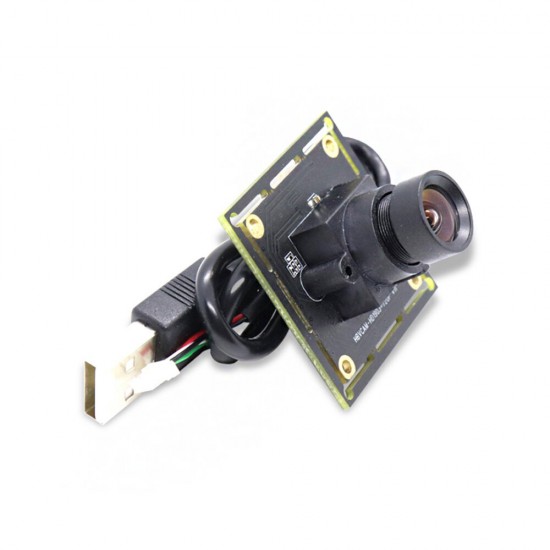

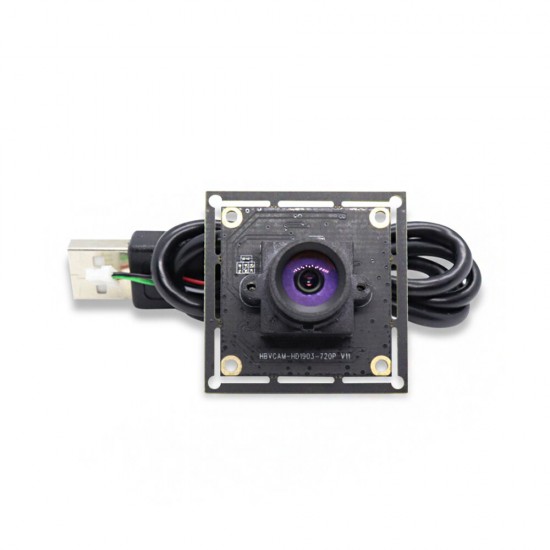

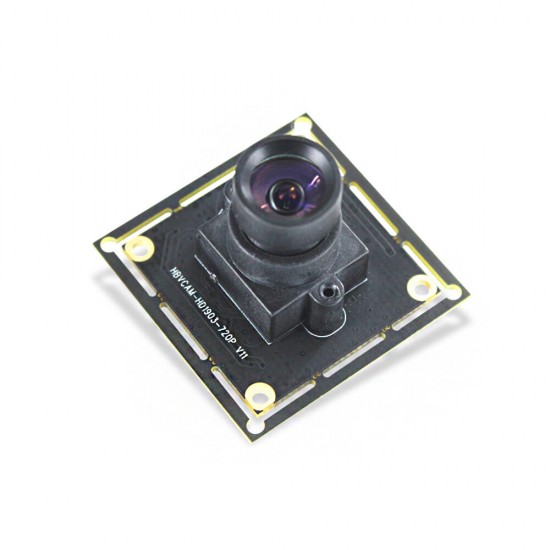

75° 1 Million Pixels HD Camera Module 1 Megapixel for Face Recognition USB PC8100 Module1280*720 30fps
- Stock: In Stock
- Model: EB0049254
- SKU: EB0049254
>>>Manual: Click here to open<<<
Specifications:
| Model No. | HBVCAM-HD1903-720P V11 |
| Model Size | 38mm × 38mm × 24.6mm±0.5MM |
| Temperature (Operation) | -20°C to 85°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 80mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | CP8210 (1/3” ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1280*720 |
| Sensitivity | 3.2V /(lux-sec) |
| Pixel Size | 4.0μm x4.0μm |
| Maximum Image Transfer Rate | MJPEG 160x120 25FPS / YUY2 160x120 25FPS |
| MJPEG 320x240 25FPS / YUY2 320x240 25FPS | |
| MJPEG 352x288 25FPS / YUY2 352x288 25FPS | |
| MJPEG 640x480 25FPS / YUY2 640x480 25FPS | |
| MJPEG 1280X720 20FPS / | |
| S/N Ratio | 39B |
| Max Dynamic Range | 120B |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 4.2mm |
| FOV | 75° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 0.7 |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM |
Package Included:
1 x 75° 1 Million Pixels HD Camera Module
