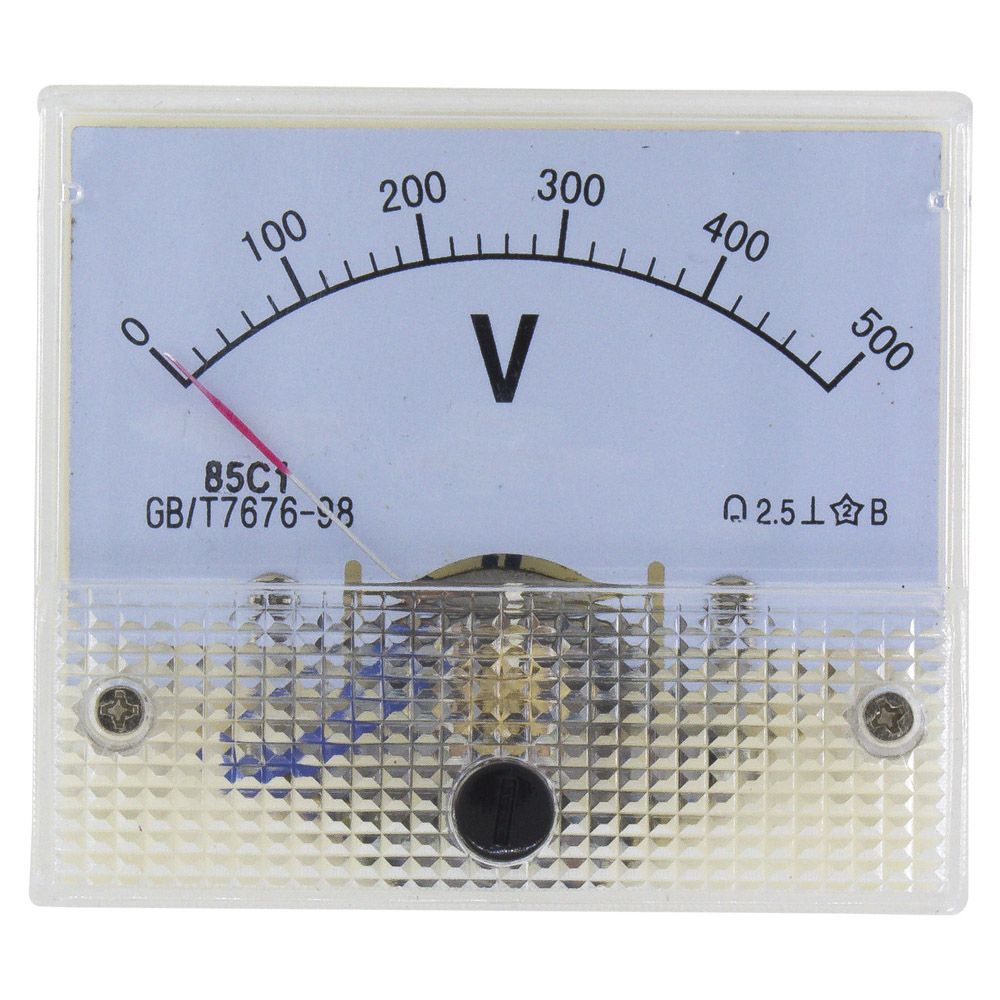

85C1-V DC Pointer Voltmeter Voltage Meter 5V/50V/100V/250V 85C1 Series Analog Volt Meter 64*56 mm Size
- Stock: In Stock
- Model: EB003057
- Dimensions: 64.00mm x 56.00mm x 60.00mm
- SKU: EB003057
| Model number | Type | Range |
| 85C1-UA | Ammeter (μΑ) | Connect directly: 50, 100, 150, 200, 300, 500μΑ |
| 85C1-MA | Ammeter (mA) | Connect directly: 1, 2, 3, 5, 10, 15, 20, 30, 50, 75, 100, 150, 200, 300, 500mA |
| 85C1-A | Ammeter (A) | Connect directly: 1, 2, 3, 5, 7.5, 10A, 20A Need shunt: 15, 20, 30, 50, 75, 100, 150, 200, 300, 1000, 1500A |
| 85C1-V | Voltmeter | 5, 10, 15, 20, 30, 50, 75, 100, 150, 250, 300, 450, 500, 600, 750, 1000V |
| 85C1-HZ | Frequency meter | 50Hz: 10V, 20mA, 4-20mA |
| Model number | 85C1 series |
| Accuracy level | 1.5/2.5 level |

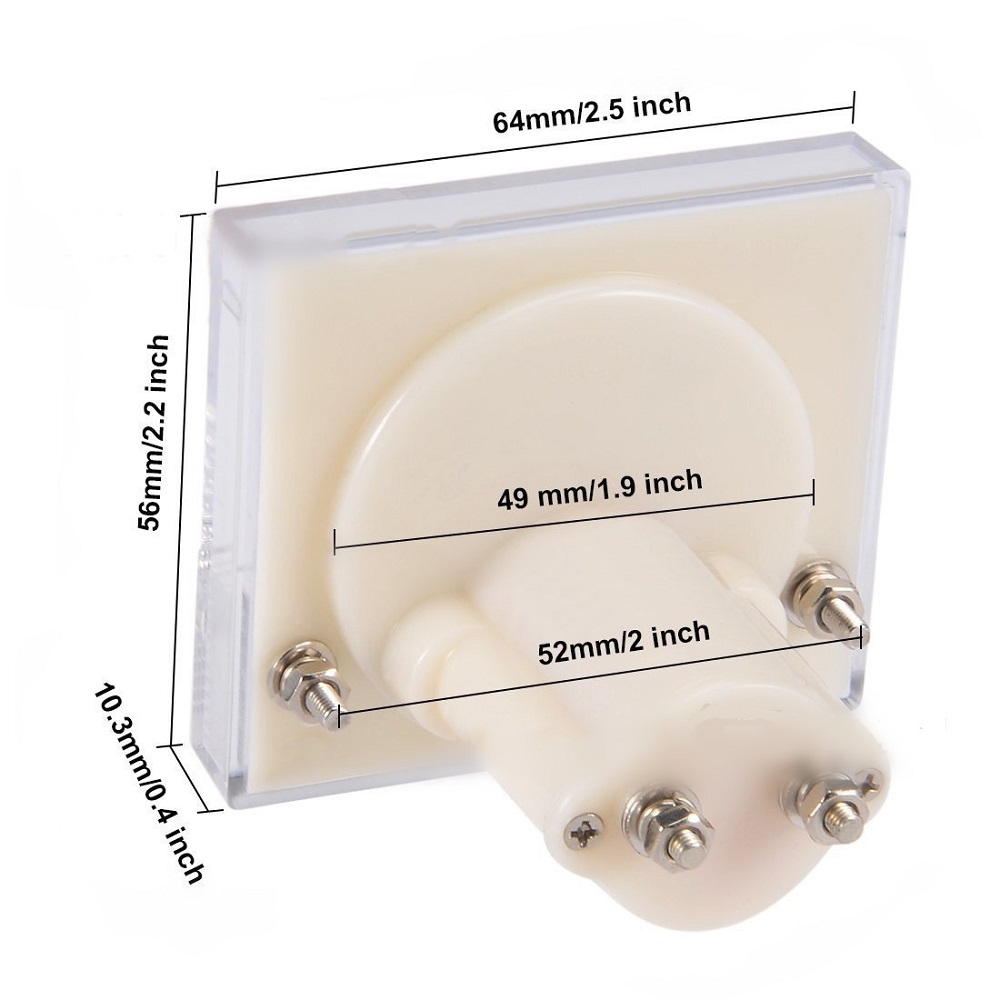

| External dimensions | 64x56x60 mm |
| Perforation dimensions | 49 10 |
| Matched shunt | FL-2 |
| Resistance to mechanical forces | Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
| Dielectric strength | 2KV 50Hz for 1min |
| Voltage affection | The measured tolerance don't exceed base tolerance when the measured value changed 15% |
| Work position | Vertical |
| Operating temperature | -20 to 50 °C |
| Operating humidity | 85% RH max, non-condensing |
Package includes:
1 x 85C1 DC voltage meter

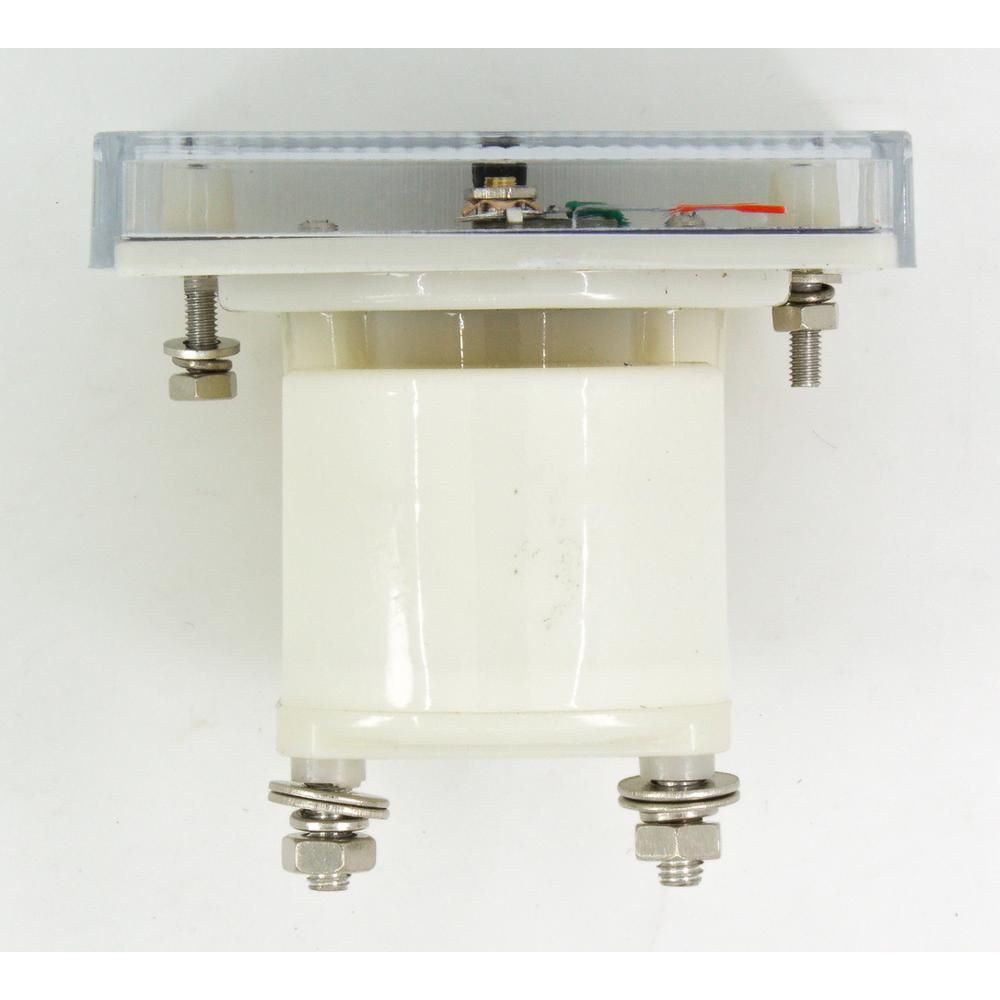

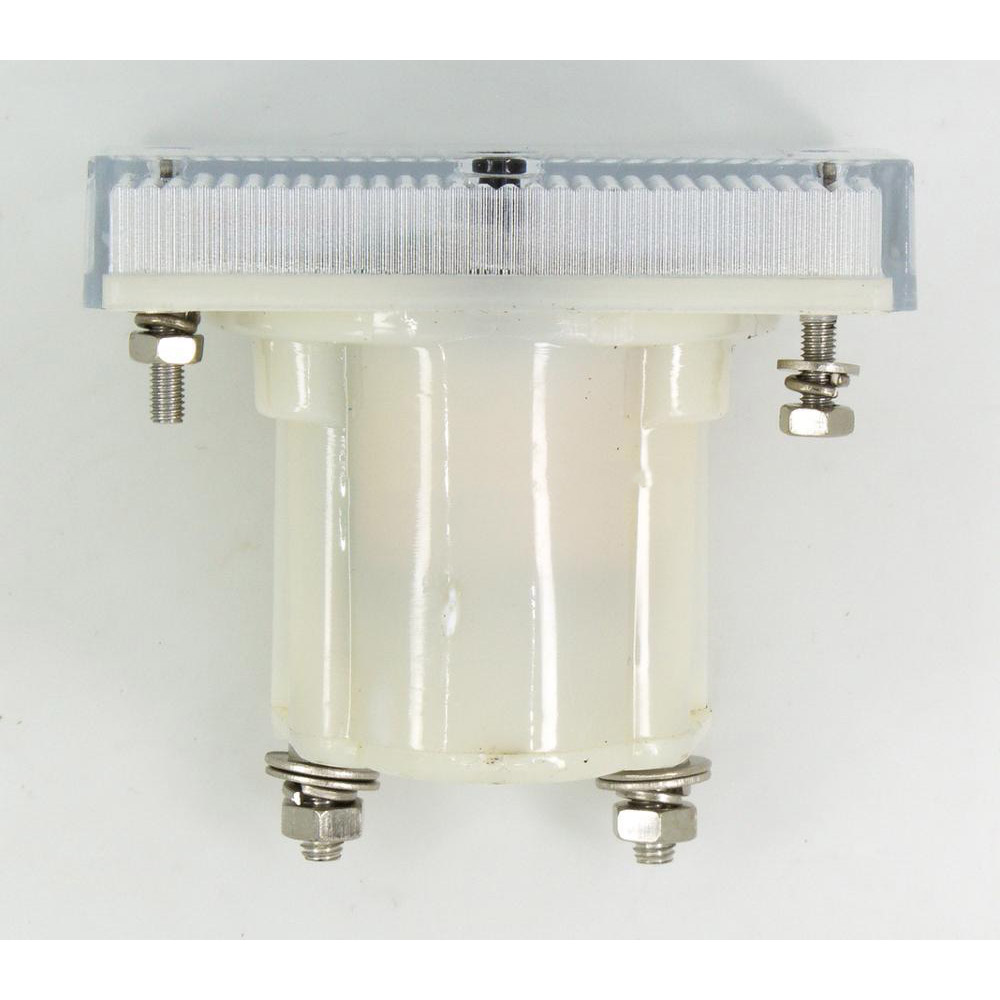

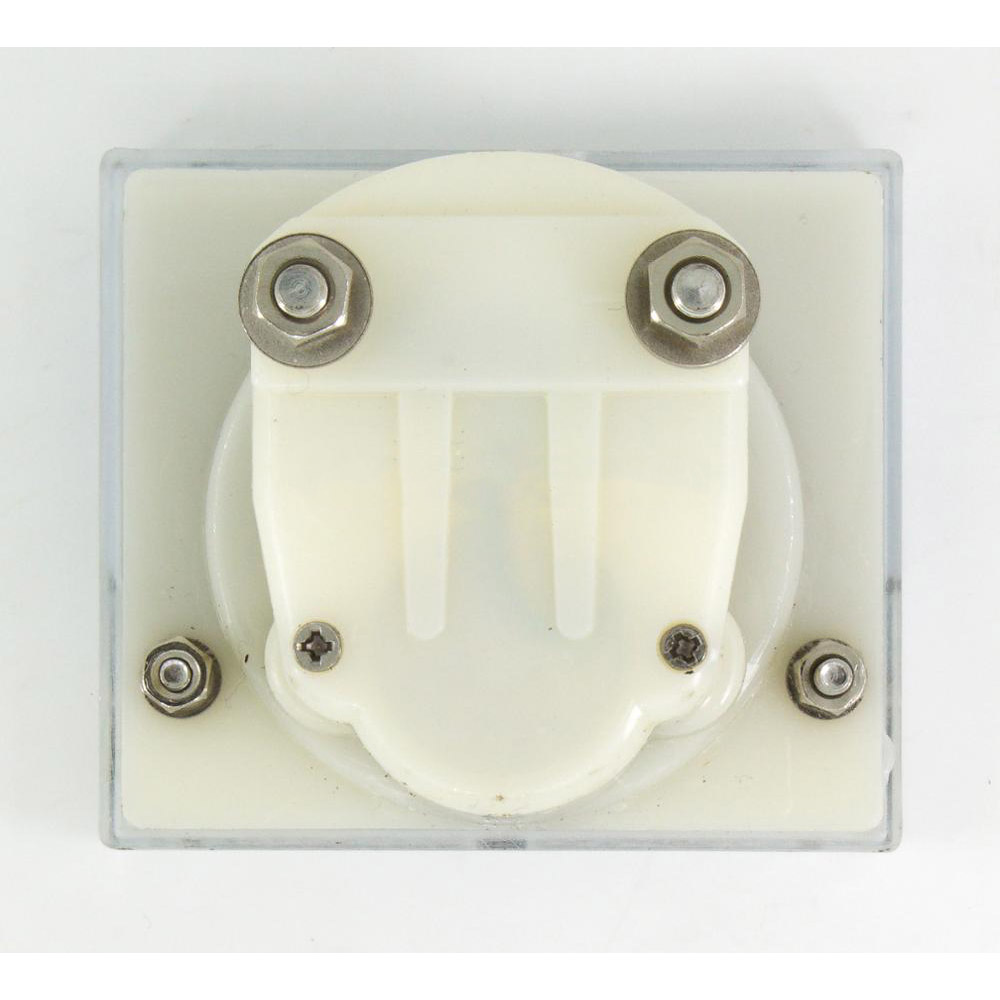

Details pictures:
