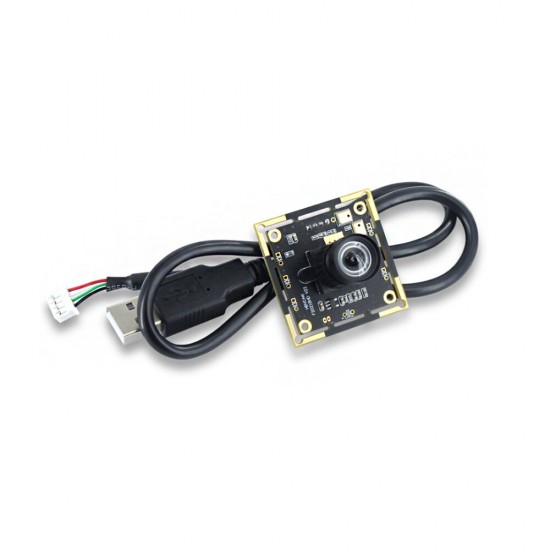

92° 2 Million Pixel USB Camera Module 1080P HD for Face Recognition with Microphone 2MP Wide-angle Cam Module

92° 2 Million Pixel USB Camera Module 1080P HD for Face Recognition with Microphone 2MP Wide-angle Cam Module
92° 2 Million Pixel USB Camera Module 1080P HD for Face Recognition with Microphone 2MP Wide-angle Cam Module
92° 2 Million Pixel USB Camera Module 1080P HD for Face Recognition with Microphone 2MP Wide-angle Cam Module
92° 2 Million Pixel USB Camera Module 1080P HD for Face Recognition with Microphone 2MP Wide-angle Cam Module
92° 2 Million Pixel USB Camera Module 1080P HD for Face Recognition with Microphone 2MP Wide-angle Cam Module
92° 2 Million Pixel USB Camera Module 1080P HD for Face Recognition with Microphone 2MP Wide-angle Cam Module
92° 2 Million Pixel USB Camera Module 1080P HD for Face Recognition with Microphone 2MP Wide-angle Cam Module
92° 2 Million Pixel USB Camera Module 1080P HD for Face Recognition with Microphone 2MP Wide-angle Cam Module
92° 2 Million Pixel USB Camera Module 1080P HD for Face Recognition with Microphone 2MP Wide-angle Cam Module
92° 2 Million Pixel USB Camera Module 1080P HD for Face Recognition with Microphone 2MP Wide-angle Cam Module
92° 2 Million Pixel USB Camera Module 1080P HD for Face Recognition with Microphone 2MP Wide-angle Cam Module
$23.99
Ex Tax: $23.99
  • Stock: In Stock
  • Model: EB0048924
  • SKU: EB0048924
  • Price Tag: US$ 15.99 - US$ 30.99
  • Voltage: DC5V
Precise details>>
>

>>>Manual: Click here to open<<<


Specifications:


Model No. HBVCAM-F20216HD-92°
Model Size 38MM*38MM*24MM
Temperture(operation) 30℃ to 70℃
Temperture(stable image) 0℃ to 50℃
Assembly technique STM(ROSH)
 Focus Fixed
Object distance 30-infinity
Resolution 60LW/PH(Center)
PCB prinsting ink Black
Interface USB2.0
Power Supply  USB BUS Power
Supply Voltage DC 5V
Maximum power consumption 800nW
Operating system Windows XPWindows 7810 /vista/Android 4.0 / mac/ Linux with Standard UVC Protocol
Sensor F22
Maxumum Resolution 1920*1080
Sensitivity 3900mV
Pixel Size 3um*3um
Maximum Image Transfer Rate MJPEG 640*480 30FPS / YUY2 640x480 30FPS
MJPEG 1024*768 30FPS / YUY2 800*600 30FPS
MJPEG 1280*720 30FPS / YUY2 1024*768 30FPS
MJPEG 1280*960 30FPS /
MJPEG 1600*960 30FPS /
MJPEG 1920*1080 30FPS /
S/N Ratio  38db
Max Dynamic Range  73db
Max Dynamic Range Electronic rolling shutter
AGC/AEC/Whiter balance Auto
Output Formats YUY2/MJPEG
Microphone Renhotec
Lens Construction  2G2P
F/No 2.8
EFL 3.5mm
FOV 92°
TV Distortion <-0.7%
Relative Illumination (Sensor) 70%
IR Filter  650 ± 10nm
Module Package  Anti-electrostatic tray
Certifications  FCC/CE/ROSH


Package Inlcuded:


1 x 92° 2 Million Pixel USB Camera Module 1080P HD


92deg-2-Million-Pixel-USB-Camera-Module-1080P-HD-for-Face-Recognition-with-Microphone-2MP-Wide-angle-1730522
