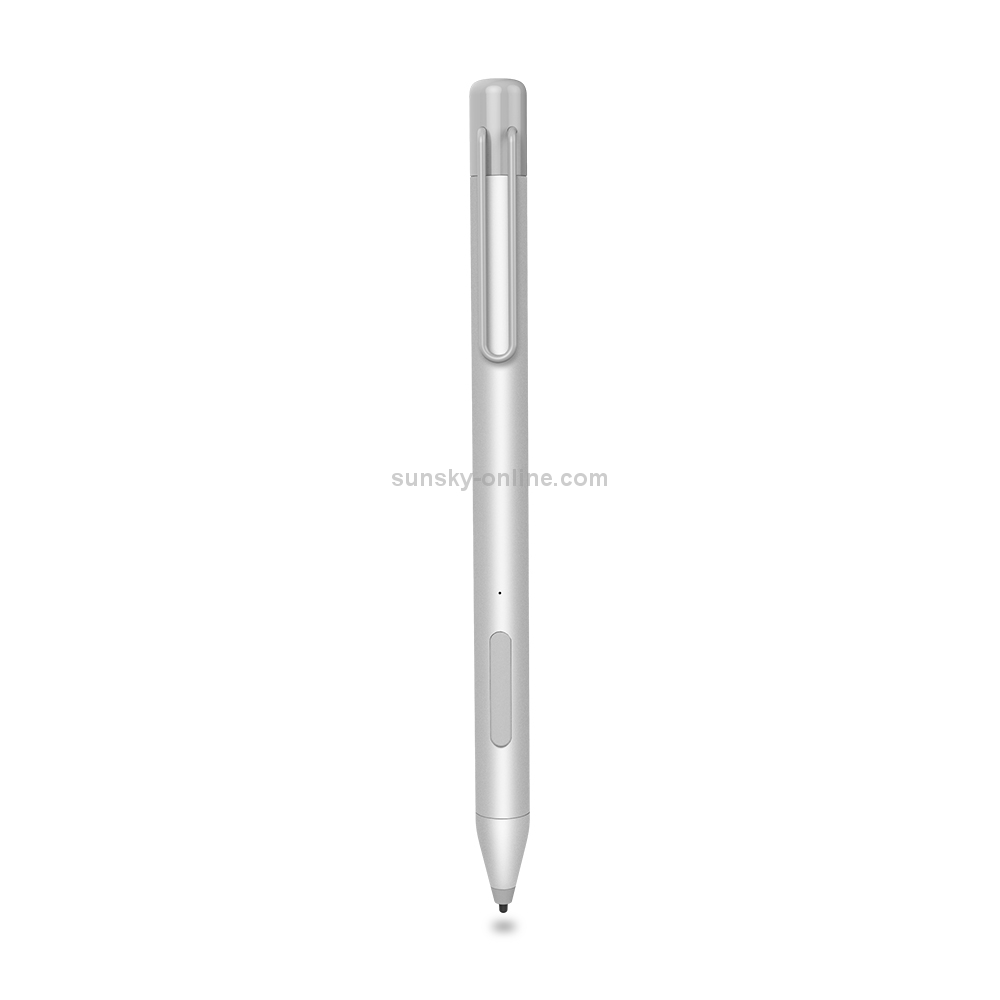

H3 For CHUWI Hi9 Plus / HiPad LTE / Hi13 / SurBook / MiniBook(8100Y) Tablet Active Capacitive Stylus Pen(Silver)
- Stock: In Stock
- Model: IP8G0447B
- SKU: IP8G0447B
Description
1. PCB board material: FR-4.
2. PCB circuit board fire resistance: UL94v-0.
3. Refill: replaceable.
4. Number of buttons: 2.
5. Button pressure: 160 +/- 30 gf.
6. Key life: 100000 times.
7. Key stroke: 0.20mm.
8. Battery capacity: 580mAh.
9. Life time: 2 hours a day, can be used for about 200 days.
10. Battery nominal voltage: 1.5V.
11. Battery cut-off voltage: 0.9V.
12. Refill material: Conductive POM.
13. Pen cap, pen mouth (metal part), pen holder, press material: aluminum alloy 6063.
14. Pen mouth (plastic part): ABS.
15. PCBA bracket material: PC.
16. Refill material: copper alloy 59.
17. Pen clip, spring material: stainless steel.
18. Working mode: The refill touches the screen and is in working mode when the pressure changes continuously.
19. Sleep mode: No pressure change for 30 seconds, G-sensor starts timing, and then rests for 30 seconds and then enters sleep power saving mode.
20. Hover mode: The distance between the refill and the screen is less than 5mm (the screen is not touched), and the cursor appears on the screen, indicating that the active pen has been woken up and ready to enter the working mode.
21. Storage temperature: -20-60 degrees Celsius.
22. Storage humidity: 10% to 90% RH.
23. Operating temperature: 5-40 degrees Celsius.
24. Operating humidity: 20% to 80% RH.
25. Length: approximately 143.6mm.
26. Width: approximately 9.6mm.
27. Tip diameter: about 1.67mm.
28. Total weight (with battery): 19.8 +/- 3.0g.
| Package Weight |
|
