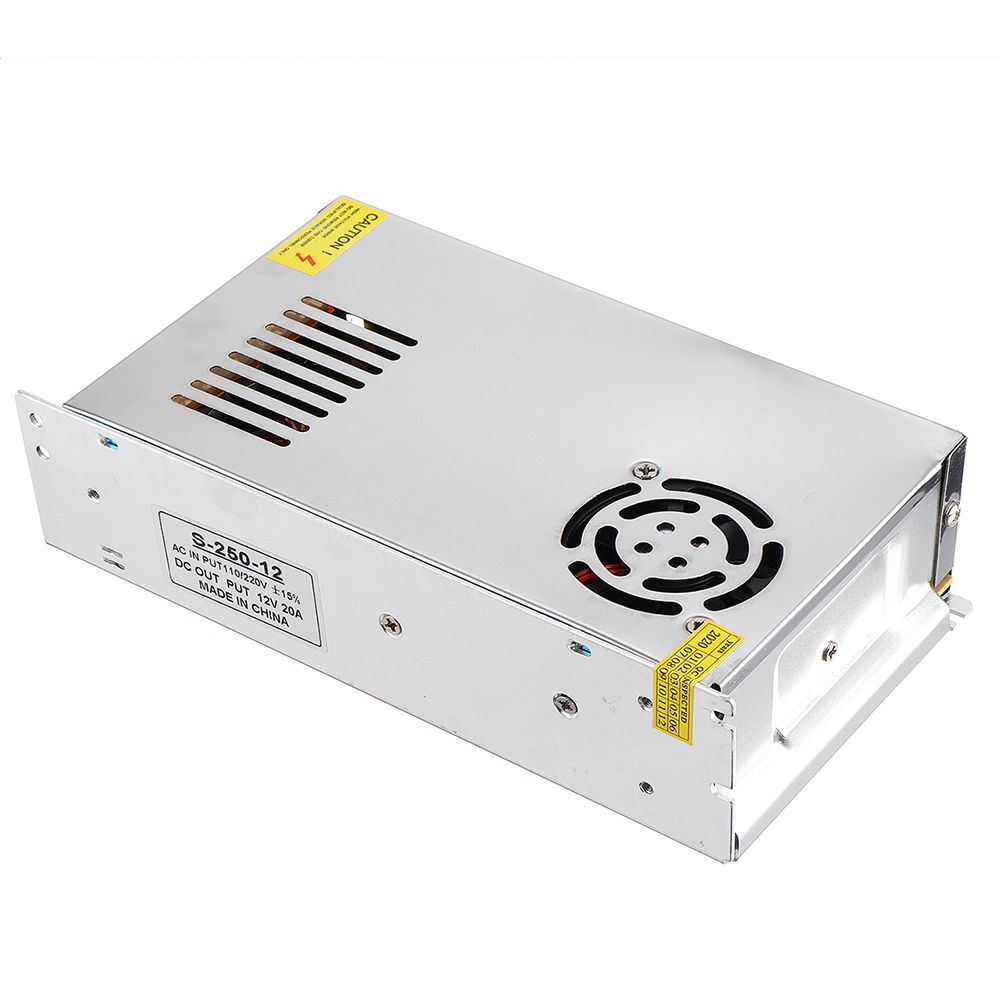

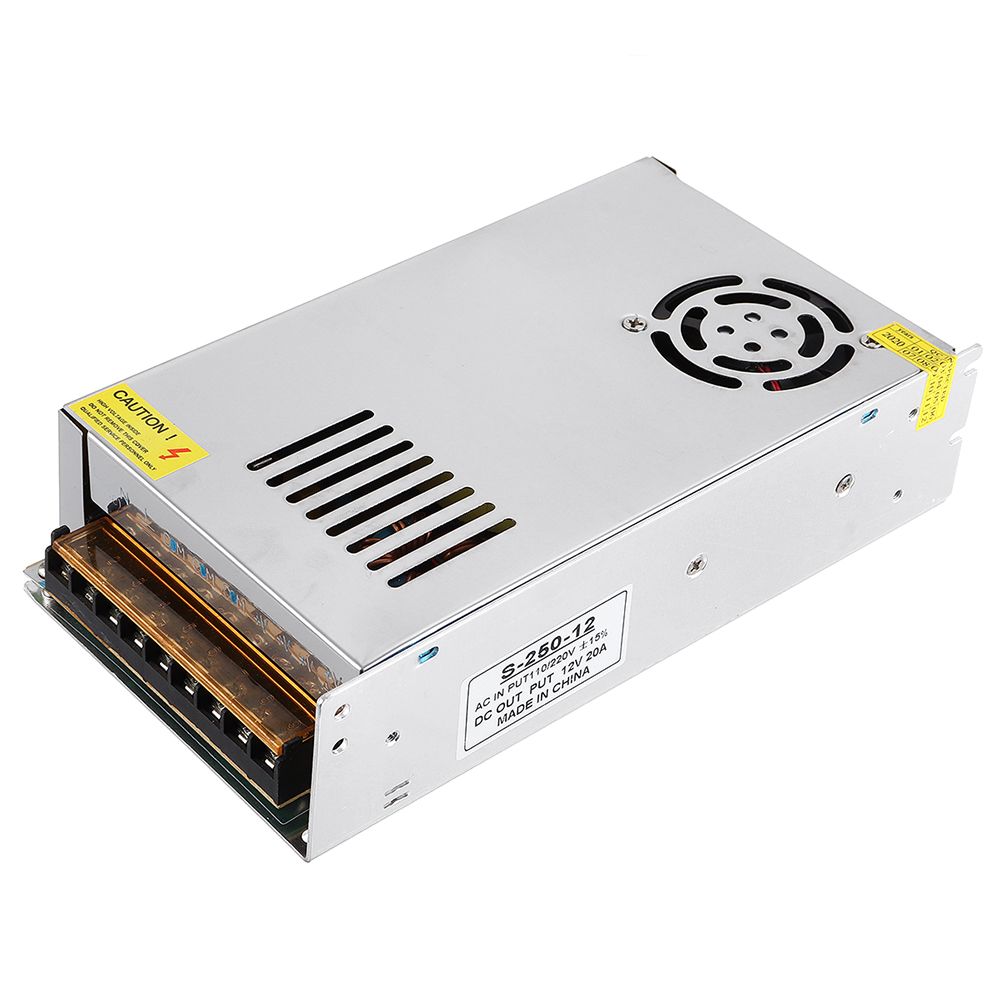

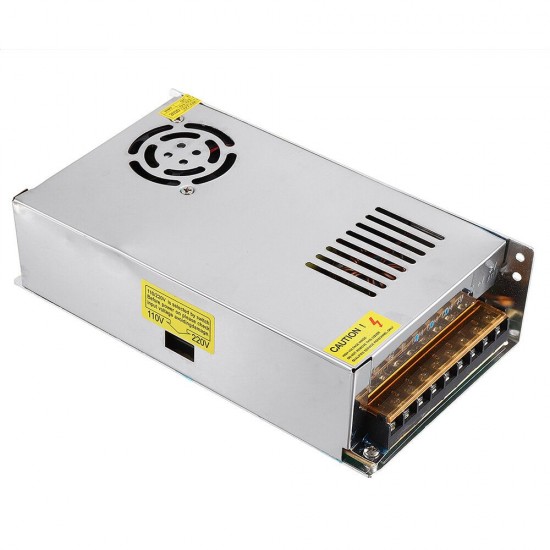

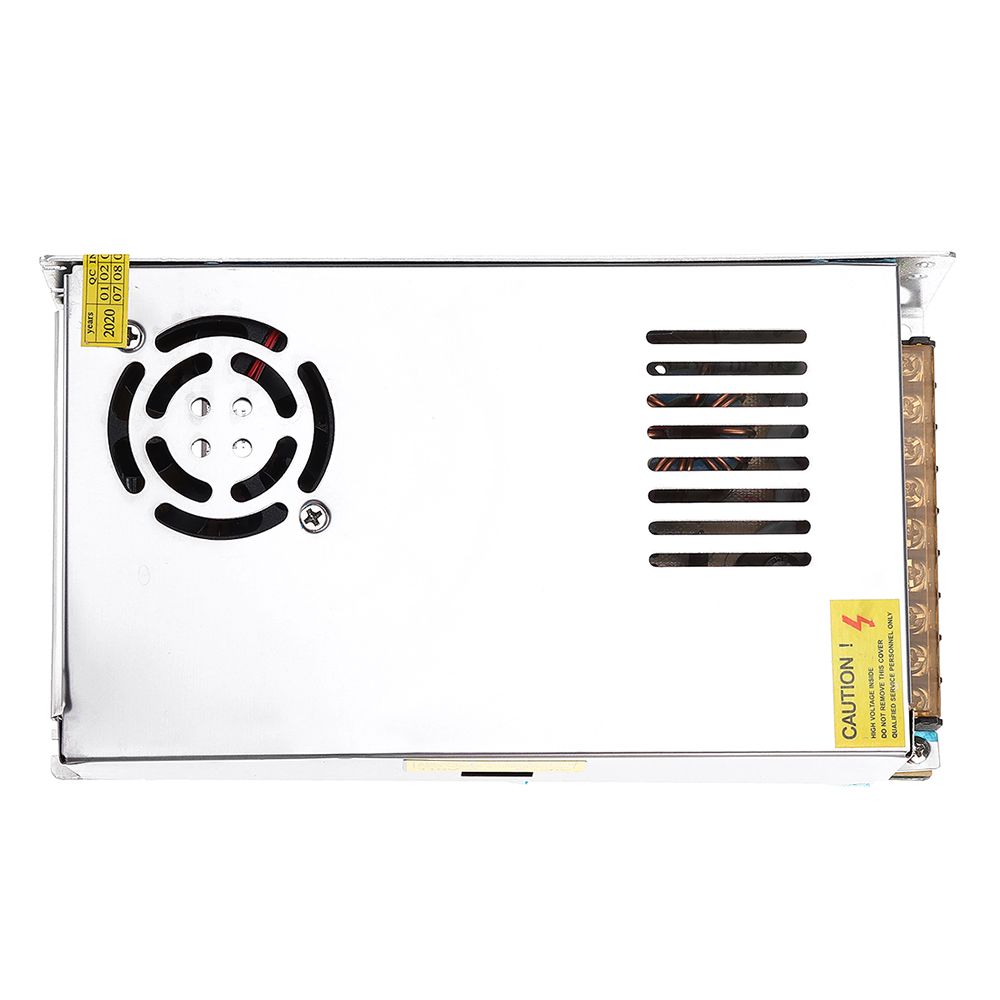

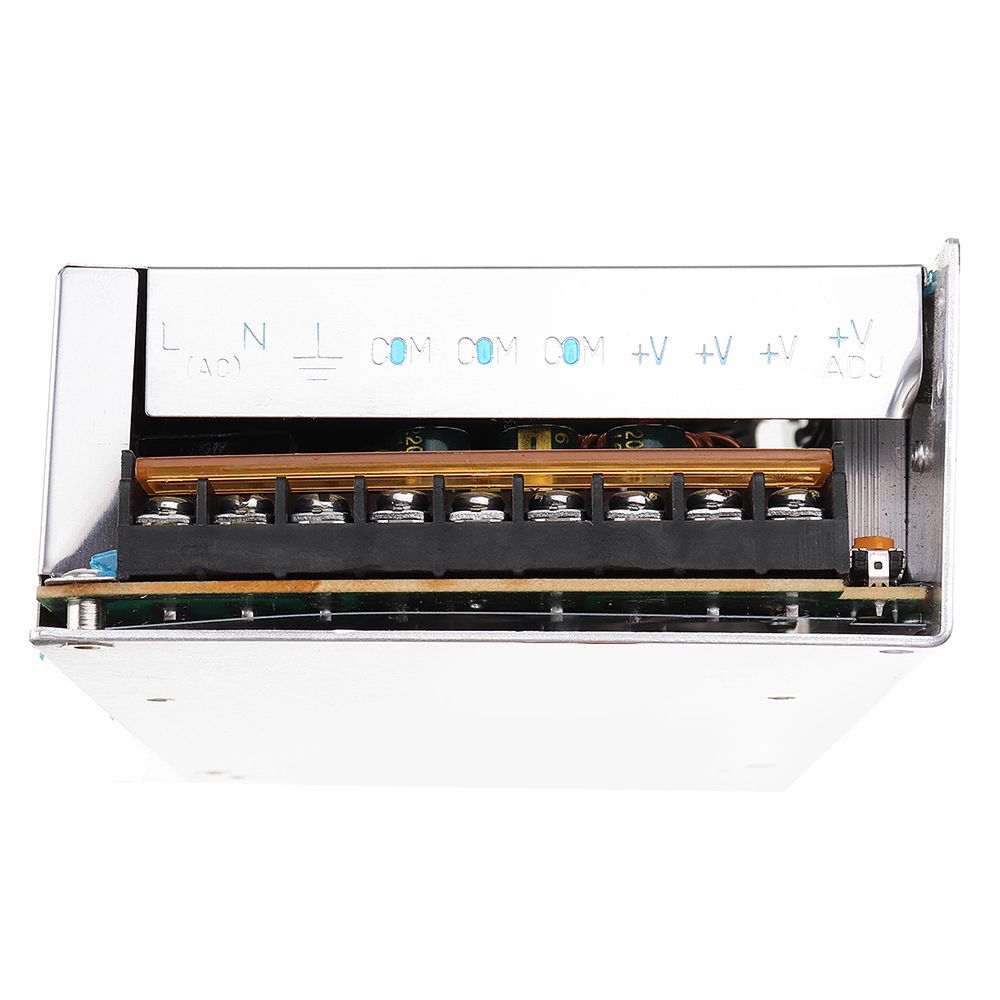

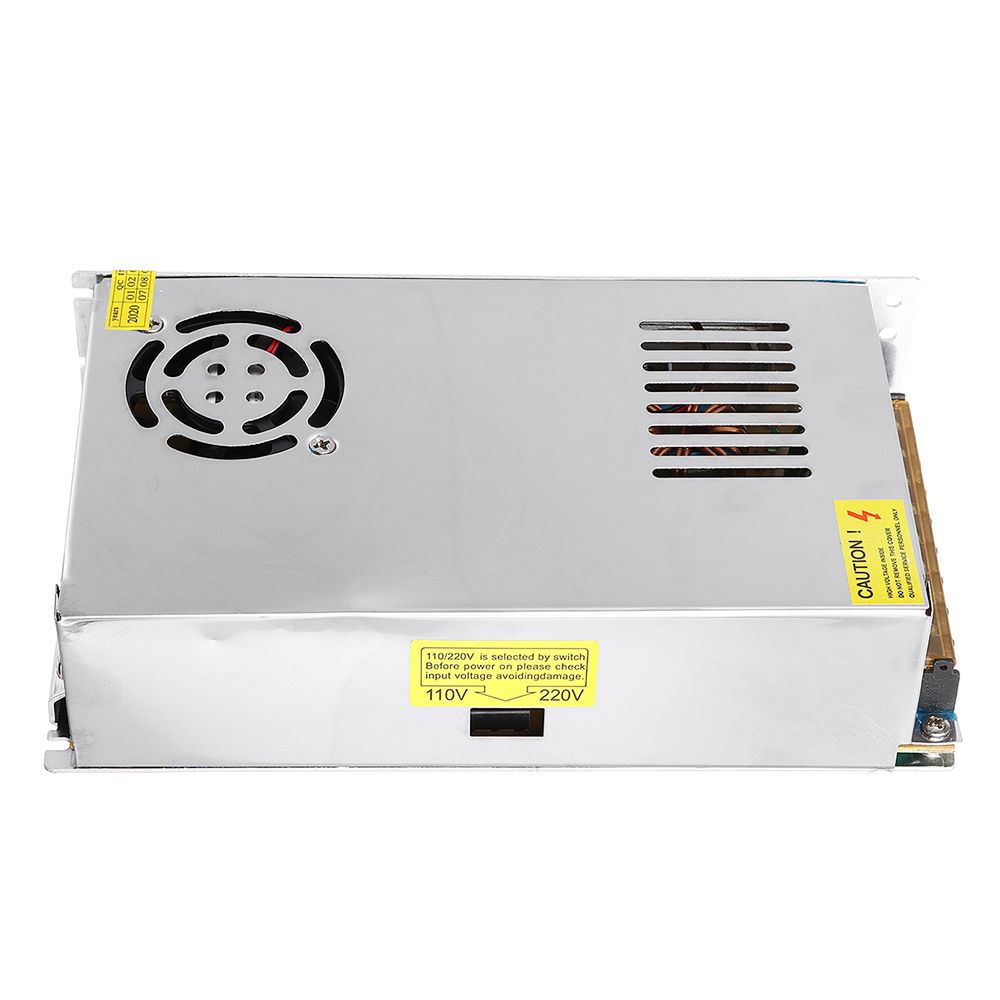

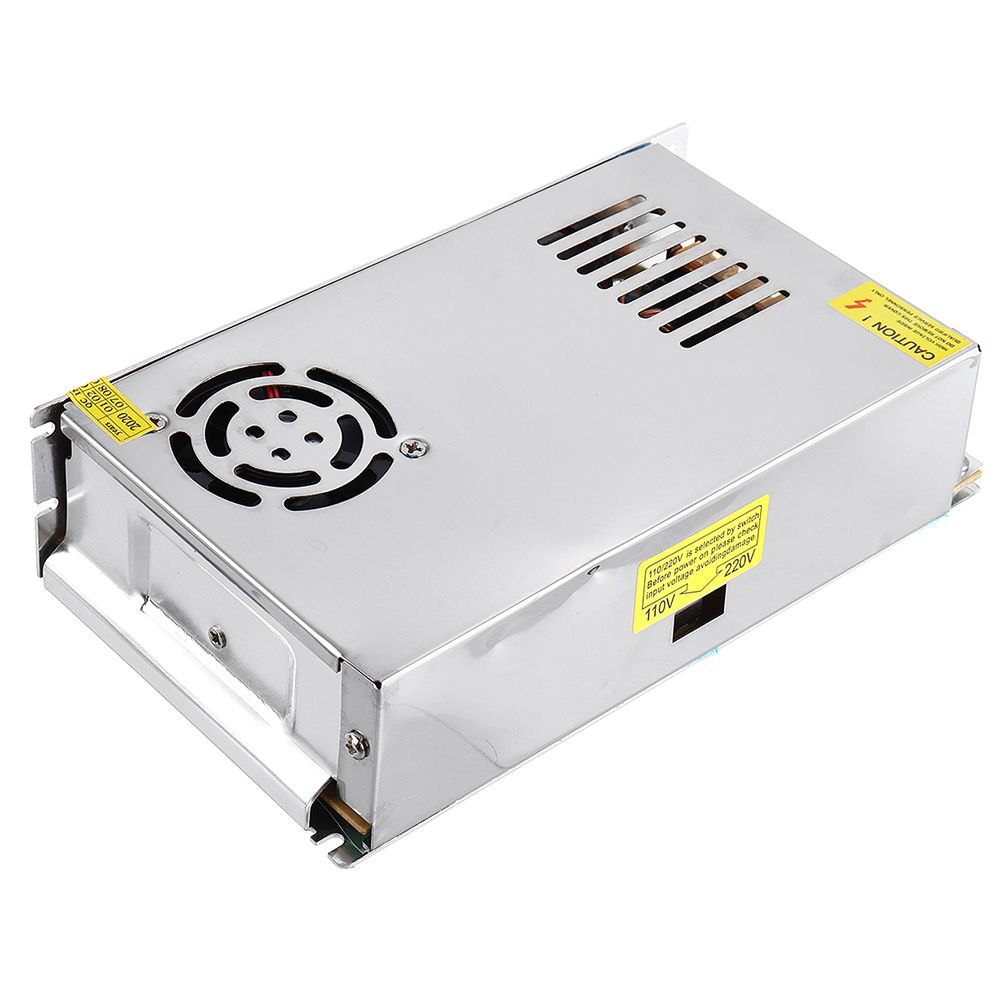

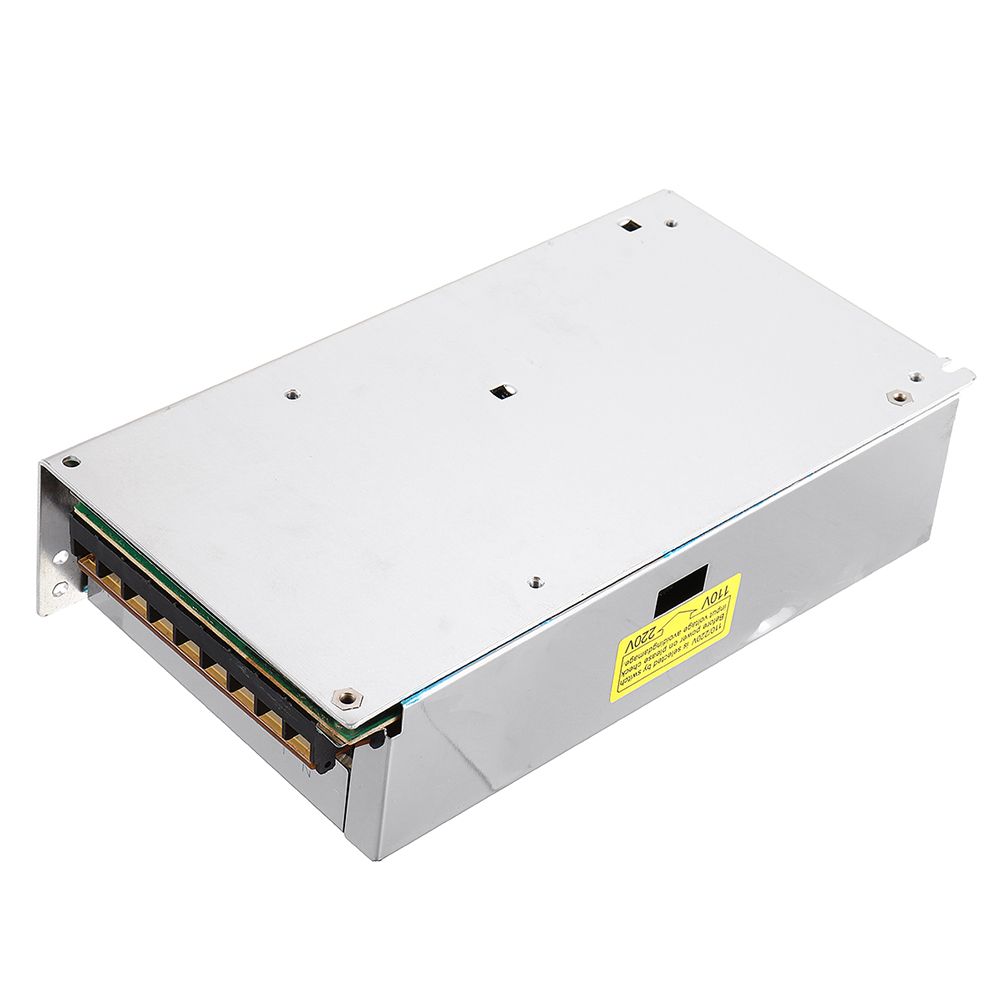

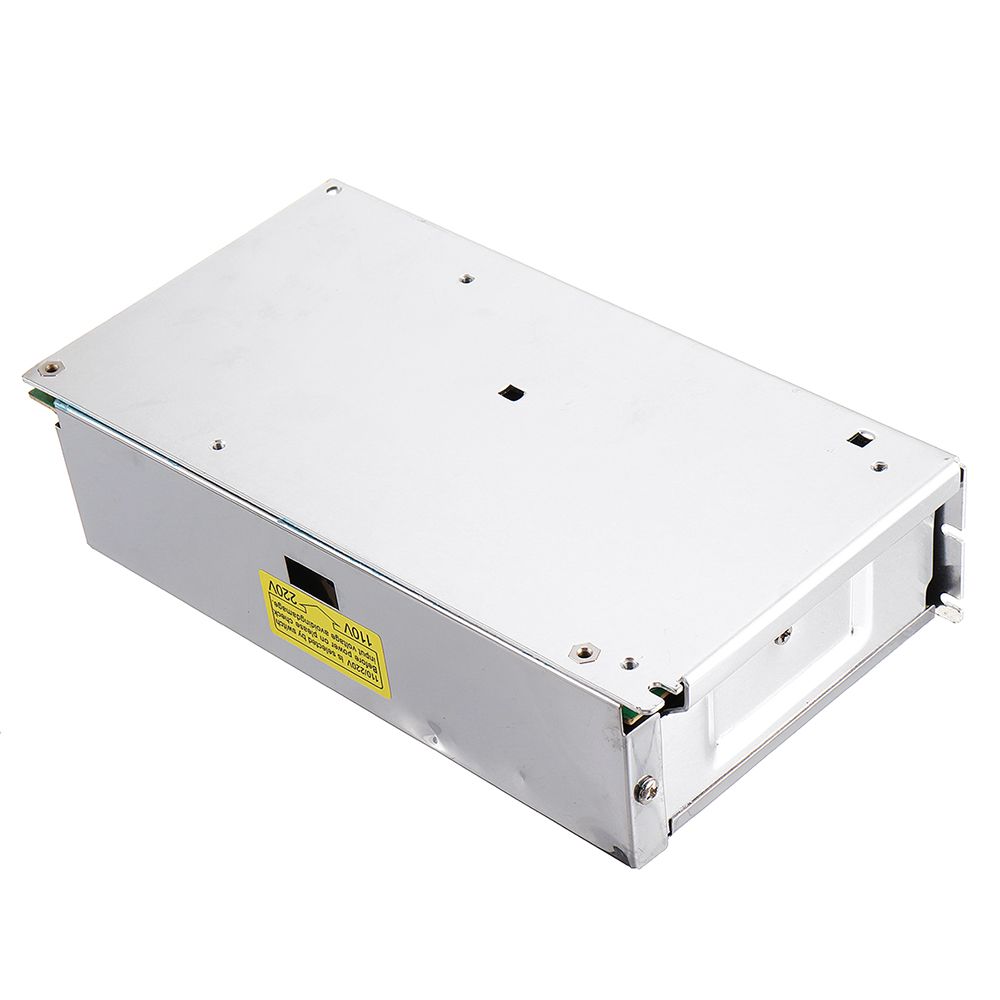

AC110V/220V to DC12V 20A 250W with Fan Switching Power Supply 200*110*50mm
- Stock: In Stock
- Model: EB0043699
- SKU: EB0043699
- Voltage: DC 12V
Precise details:
| Project | Technical indicators | Remarks |
| Basic requirements | 12V 20A 250W | Common |
| Dimensions | 200*110*50mm | |
| Operating temperature | -10°C to +50°C, 20% to 95% RH (no condensation) | |
| Storage temperature | -20°C to +85°C, 20% to 95% RH (no condensation) | |
| Temperature Coefficient | 0.02~0.05%/°C | |
| Heat dissipation method | Natural cooling | |
| Rated voltage range | 220VAC | AC |
| Input voltage range | 110/240V | AC |
| Input frequency range | 50 to 60 Hz | Except DC input |
| Input undervoltage protection | 115 to 150% intermittent mode | |
| Input undervoltage recovery | Automatic recovery | |
| Input overvoltage protection | 115 to 150% intermittent mode | |
| Input overvoltage recovery | Automatic recovery | |
| Electric shock | ≤1% | Maximum input voltage full load |
| Machine efficiency | ≤0.5% | Rated input full load |
| Output voltage range | 12V ± 0.5% | Three channel output |
| Output current | 20A | Three channel output |
| Ripple and noise | ≤150 mVp-p | |
| Rise Time | ≤50 ms | |
| Output delay | ≤5 S | |
| Voltage regulation | ≤0.5% | |
| Load Regulation | ≤1% | |
| Output overcurrent protection | Current drooping | |
| Output short circuit protection | IGBT | |
| Output overvoltage protection | Soft start protection | |
| Input to output | >30MΩ | |
| Input to the earth | >30MΩ | |
| Output to the earth | >30MΩ | |
| Insulation resistance | >50MΩ | |
| MTBF | 100,000H |
Feature:
1 x Power supply
