AC110V-240V WIFI RF APP Timing Wireless Remote Control Smart Light Switch Kit for Universal Ceiling Fan Lamp
- Stock: In Stock
- Model: EB0040385
- SKU: EB0040385

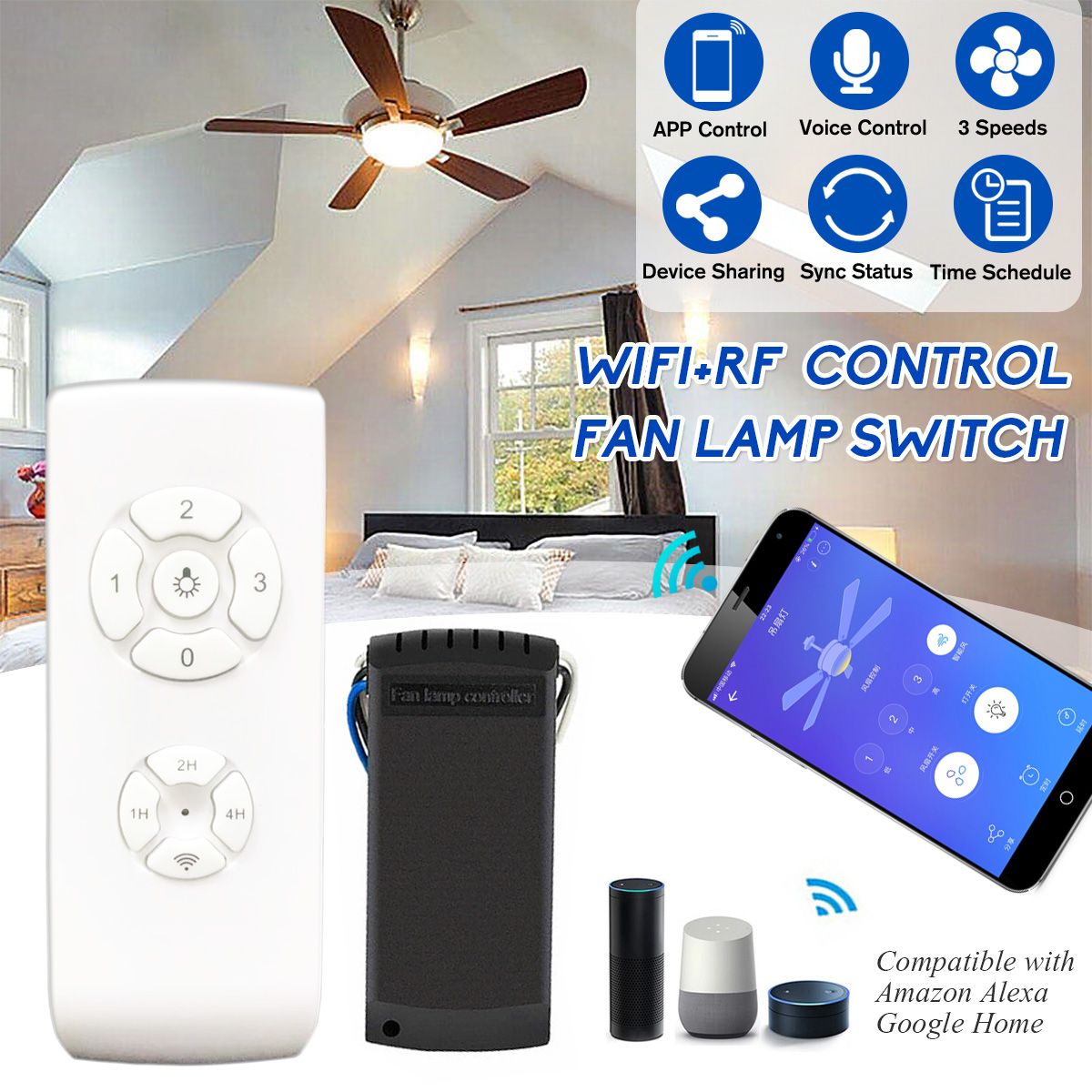

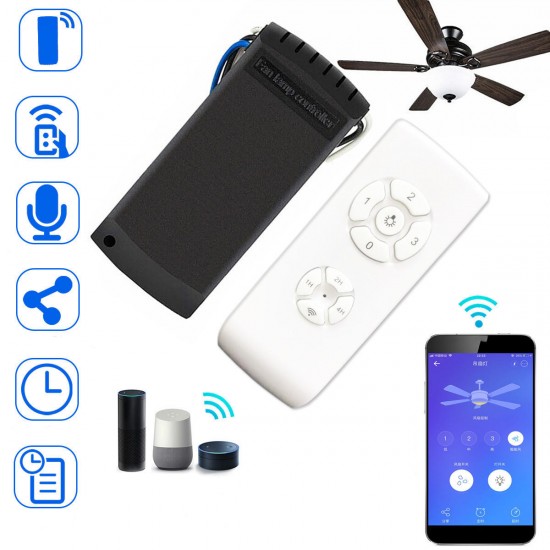

This is a switch compatible with Mobile App & RF remote control. The RF remote control can act as a fail safe in case there are no internet connections. There are 3 wires which makes it able to control light and fan at the same time. It is also supported with 3 speed control. It is truly a multifunctional modern smart home product.

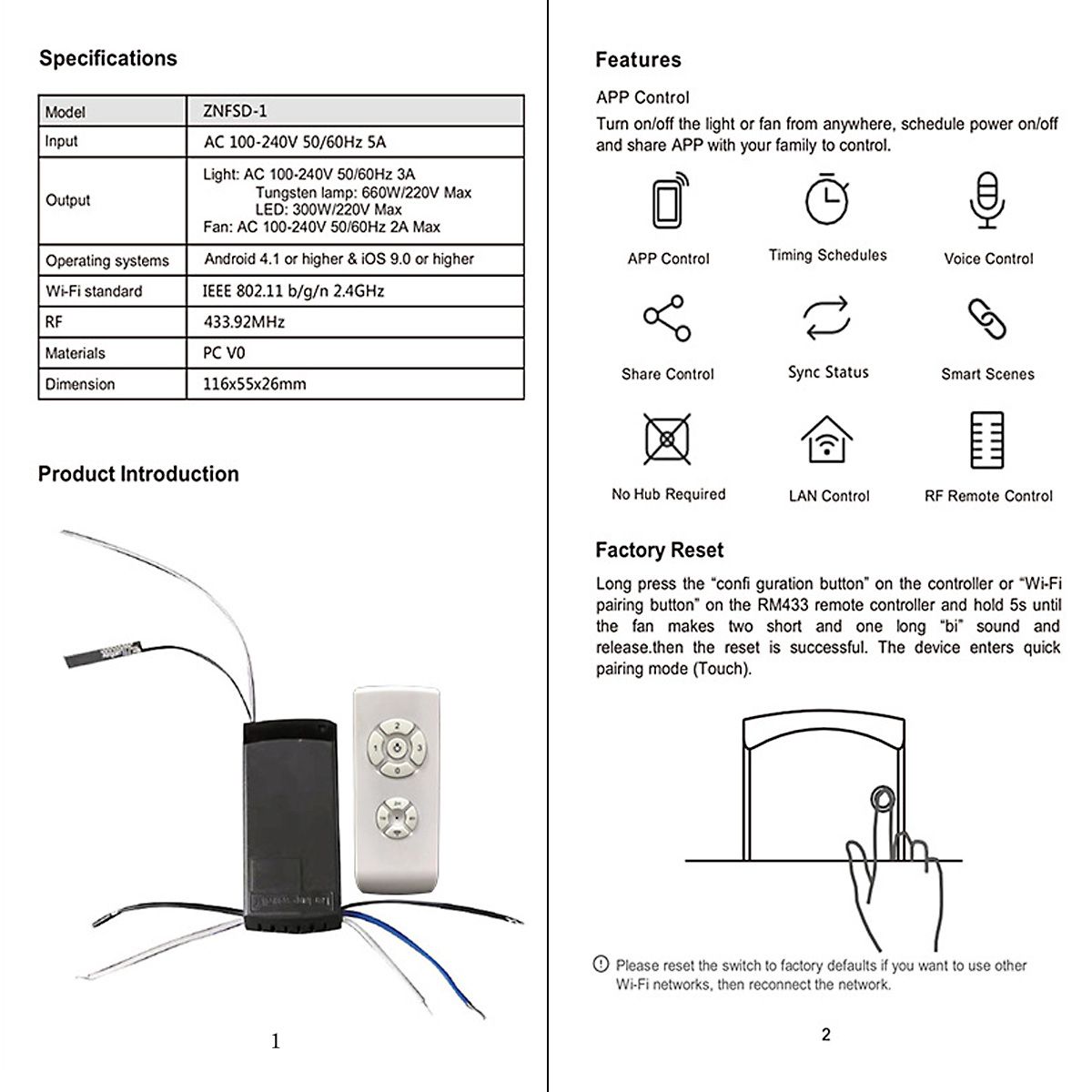

Specification:
Model: ZNFSD-1
Applications: Light/Fan
Timing Control: 1H/2H/4H
App Name: eWelink
Input voltage: AC110V-240V 50/60Hz 5A
Output voltage:
Light: AC100-240V 50/60HZ 3A
Tungsten lamp: 660W/220V Max
LED: 300W/220V Max
Fan: AC 100-240V 50/60Hz 2A Max
Operating systems: For Android 4.1 or higher &ios 9.0 or higher
Wi-fi standard: IEEE 802.11 b/g/n 2.4GHZ
RF: 433.92MHz
Materials: PC V0
Dimension: 116x55x26mm
Max load power:
Fan: <500W
LED light: <1250W
Control method: RF 433Mhz Remote & Mobile App Control
Wiring method: load & neutral wire
Working temperature: -30℃~80℃
Batteries included: No
Function:

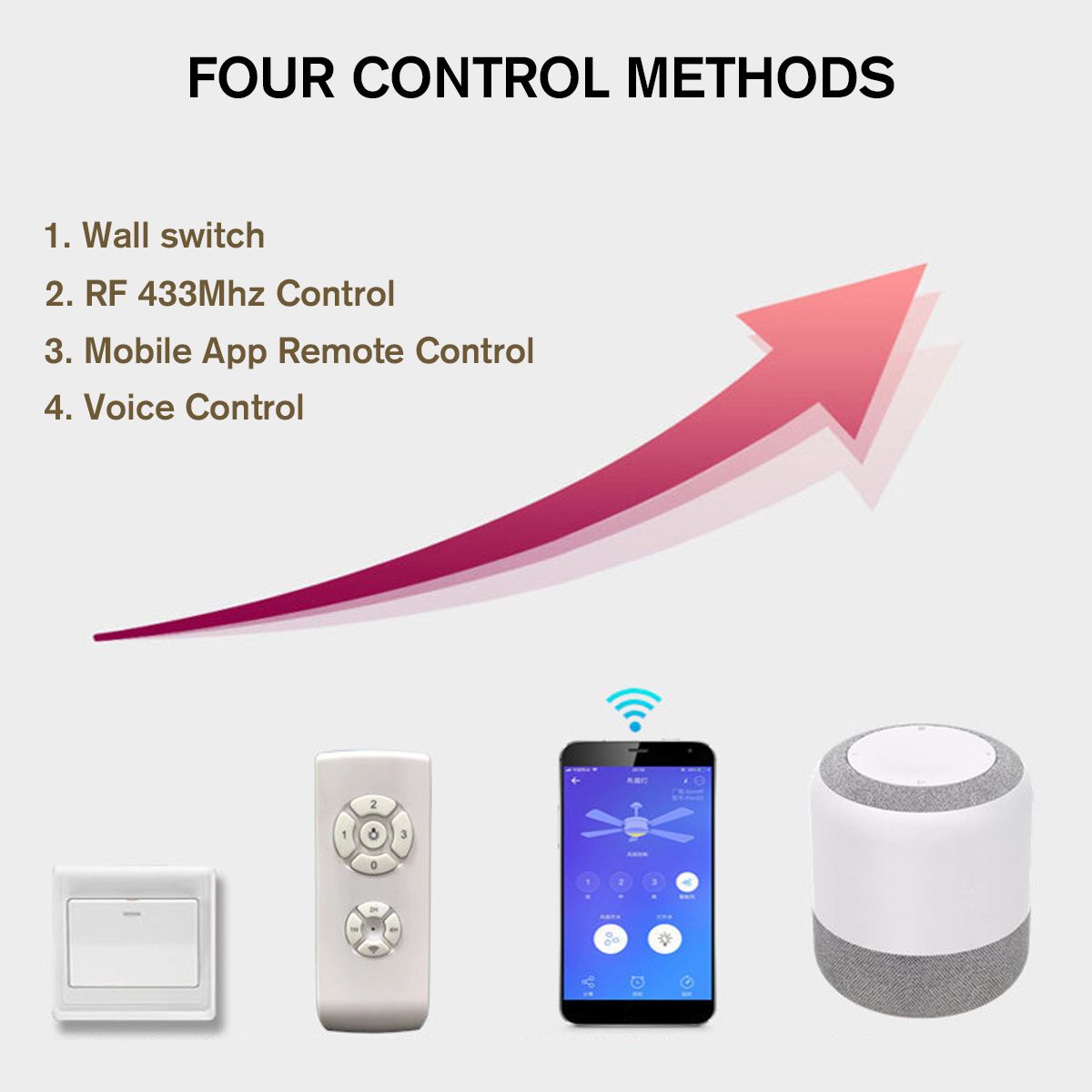

a) Support conventional RF remote control & Mobile App at the same time.
b) Enables Offline RF functions & Online Cloud Functions.
c) With Timer functions.
d) Support Voice control with Google Home Amazon Alexa Skills enabled.
1. LED CEILING FAN: Simply replace the original driver of your non-smart LED ceiling fan with ZNFSD-1 driver, you'll get a smart LED ceiling fan. It designed for ceiling fans and lights for three-speed motors and can be Used with ceiling fans for almost all well-known brands.

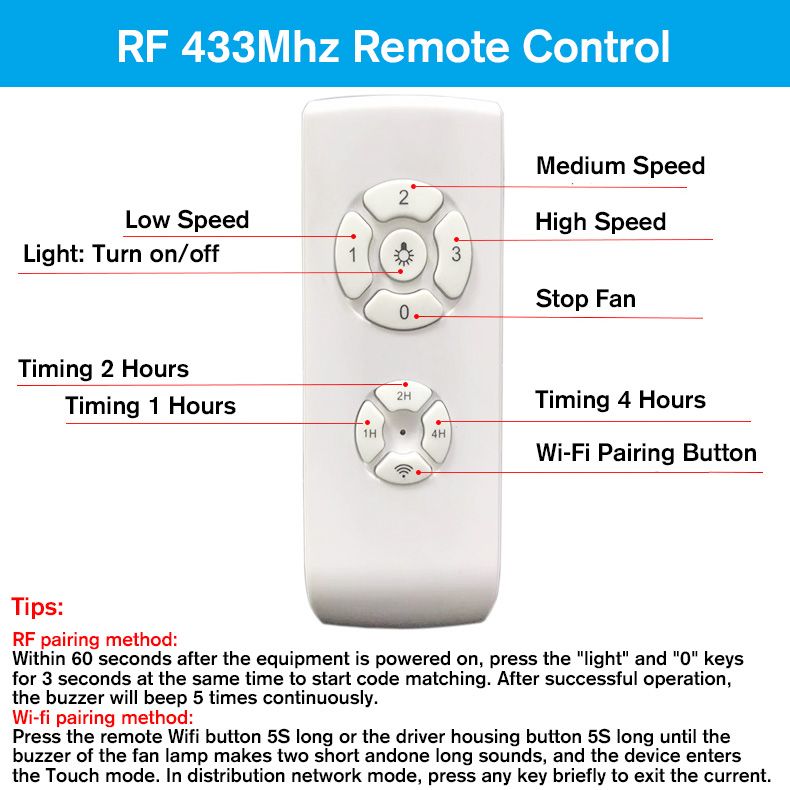

2. REMOTE ON/OFF: Ceiling Fan Remote Control Kit Equipped with a 2.4G RF remote control, Turns the fan and lights on/off from anywhere. Control fan speed - Change fan speed level: 1/2/3 / Smart RESERVATION & COUNTDOWN LIGHT: Compatible with Alexa and Google Home, Set the reservation/countdown to turn it on/off at the specified time.
3. SHARING CONTROL: Control your smart home with your family. Smart Scene - Trigger fan or light on/off depending on the environmental conditions of the sensor. Adjust Light Intensity, Dimmable light support: white, warm white, warm color. Suitable for Google Assistant Alexa, for Google Nest.
4. APP SUPPORT: Universal Ceiling Fan Remote Control and Receiver Complete Kit For iOS and Android mobile apps. Sync Status - Real-time device status provided to the app.
Packing included:
1 x remote control(battery not included)
1 x receiver
1 x remote control stand
1 x instruction manual
