AI Development Board k210 RISC-V AI+lOT ESP32 Compatible For
- Stock: In Stock
- Model: EB0042048
- SKU: EB0042048

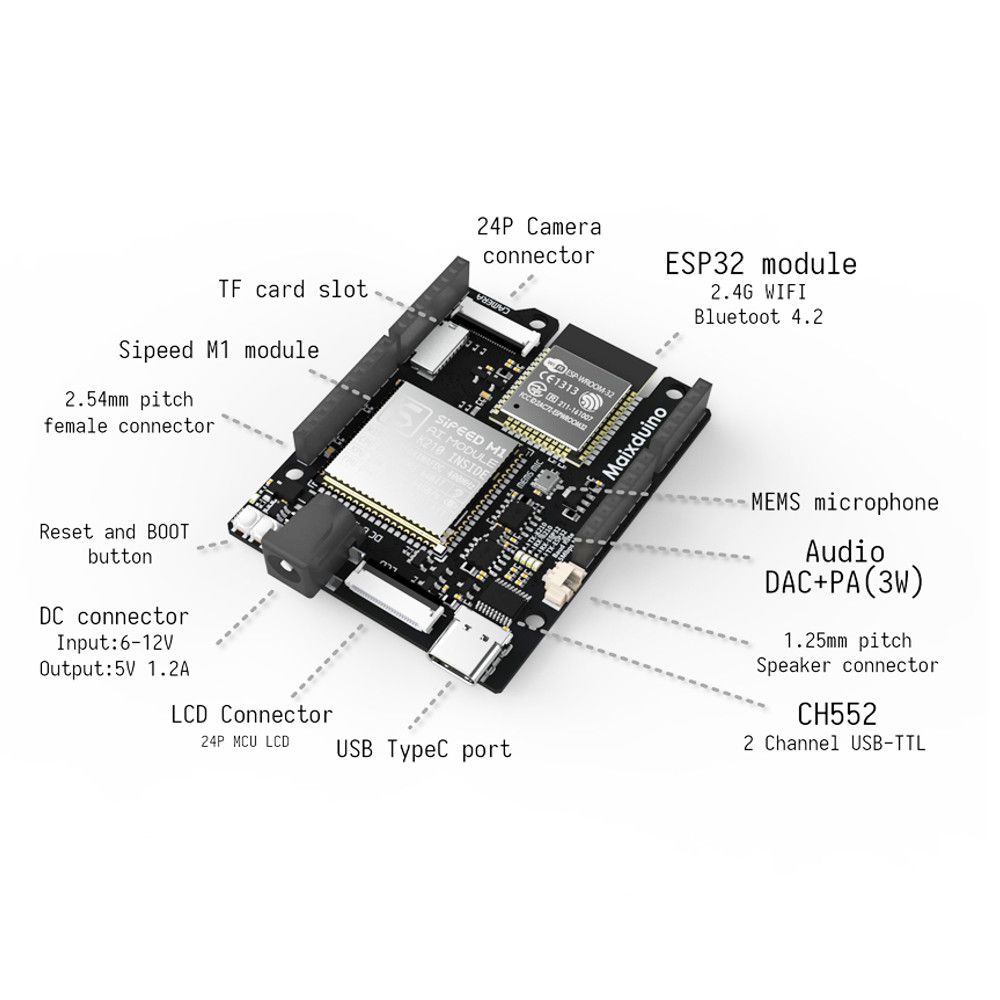

| Master module | Sipeed M1 AIOT module (For details, please refer to the following specification: Sipeed Maix-1 Specifications_EN V1-0.pdf) |
| Power input | 1.USB Type-C 2.DC-DC step-down circuit: support 6-12V input;Provide 5V 1.2A output |
| Micro SD card (TF card) slot | Support Self-elastic card holder |
| Onboard MEMS microphone | MSM261S4030H0 is an omnidirectional, Bottom-ported, I2S digital output MEMS Microphone. It has high performance and Reliability. |
| DVP Camera interface | 24P 0.5mm FPC connector |
| LCD interface | Maix-LCD board (with Resistive touch screen) is directly connected to the pin header |
| Audio output | DAC+PA: 1.TM8211:16 bit dynamic range; Low harmonic distortion 2.NS4150:3W output power; Up to 90% efficiency; |
| ESP32 module | 1.Support 2.4G 802.11.b/g/n 2.802.11 n (2.4 GHz) speeds up to 150 Mbps 3.Bluetooth v4.2 full standard, including traditional Bluetooth (BR/EDR) and Bluetooth Low Energy (BLE) |

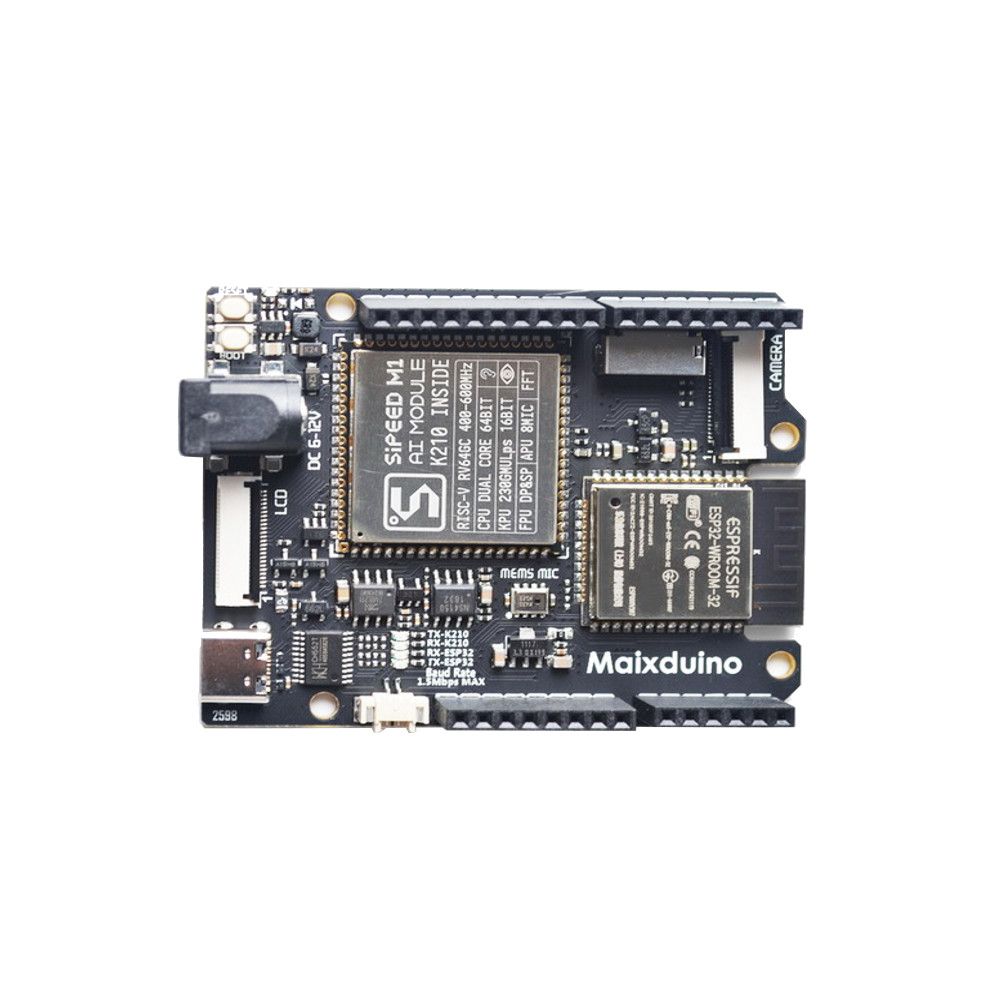

1 x Sipeed Maixduino AI Development Board
