M20 True RMS 6000 Counts Dispaly Automatic Range Digital Multimeter AC/DC Current and Voltage Frequency Capacitance Diode Resistance Continuity Temperature Test

Based on 0 reviews. - Write a review

$19.27

Ex Tax: $19.27

Stock: In Stock
Model: EB004415
SKU: EB004415

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

ANENG M20 The 6000 counts is a pocket-sized 3 9/10-bit automatic digital Multimeter .It is a stable performance, high precision, high reliability clear readings, and overload protection . With AAA 1.5V battery-driven,the instrument uses a large-screen LCD display, boost power supply, even in the 2.3V low battery edge, it can guarantee the backlight high brightness, the table is easy to carry, is a vast number of users extremely like the instrument, the backlight can be bright can be automatically turned off after 15 seconds. This series of instruments can be used to measure the DC voltage and AC voltage DC current and AC current,resistance,capacitance diode,continuity test, frequency measurement and true RMS measurement and other parameters. Is an ideal tool for the laboratory, factory, radio enthusiasts and families.

Features:

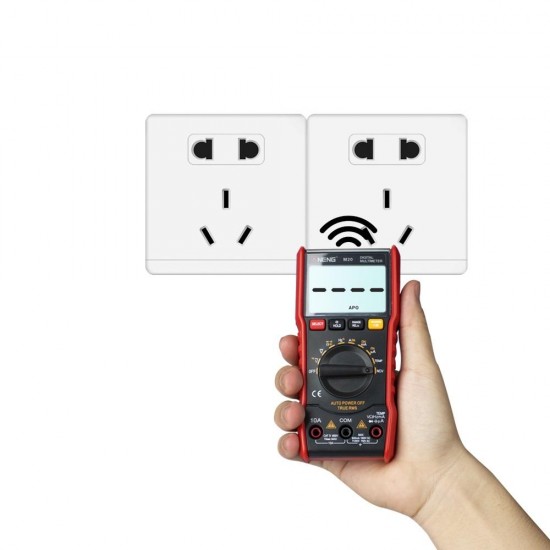

NCV Test

Zero line / Fire wire Test

Full Unit Symbol

Backlight

True RMS

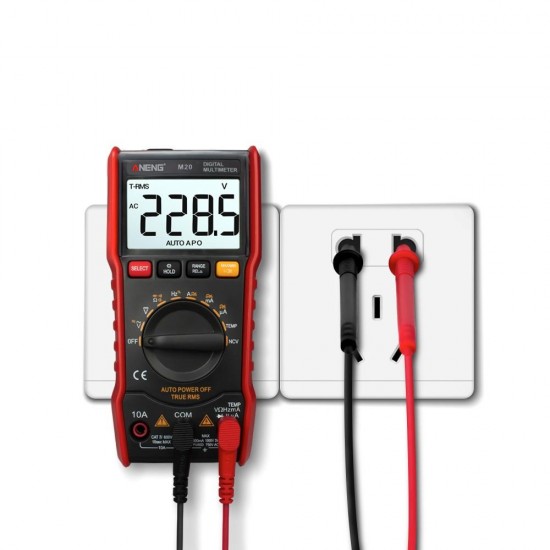

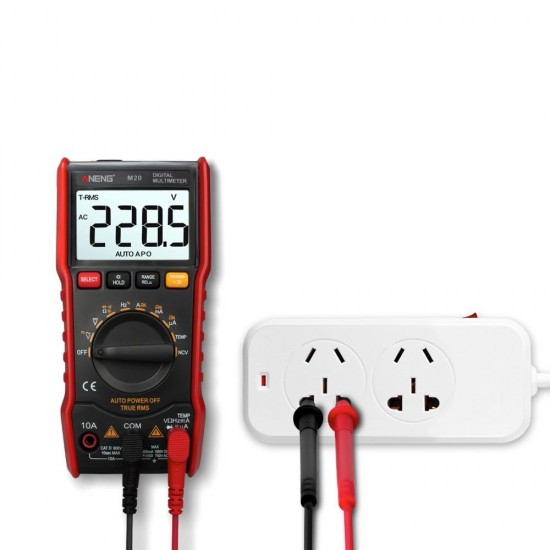

DC voltage AC voltage Measurement

DC current AC current Measurement

ResistanceDiode Measurement

Temp℃/℉ Measurement

Frequency Measurement

Capacitance Measurement

Specifications:

Display, liquid crystal display (LCD)

Maximum display:6000 (3 9/10) bits automatic polarity display

Measurement: double integral A / D conversion

Sampling rate: about 3 times per second

Overrange display: the most significant bit was "0L"

Low voltage display symbol

Working environment: (0~40)℃,relative humidity<80%

Power supply: AAA 1.5V battery(not included)

Volume (size):142×70×32mm(L×W×H)

Weight:about 205g(including 1.5V battery)

Attachment: a manual,a box, a pair of pen, a K-type thermocouple TP01

DC voltage(DCV)

Accuracy Range	6000counts	Resolution
100mV	±(0.5%+3)	0.01mV
1V		0.1mV
10V		0.001V
100V		0.01V
1000V	±(0.8%+10)	0.1V

AC current(ACV)

Accuracy Range	6000counts	Resolution
100mV	±(0.8%+3)	0.01mV
1V		0.1mV
10V		0.001V
100V		0.01V
750V	±(1.2%+10)	0.1V

DC Current (DC m A)

Accuracy Range	6000counts	Resolution
100mA	±(1.2%+10)	10uA
1000mA	±(1.2%+10)	100uA

AC Current(AC m A)

Accuracy Range	6000counts	Resolution
60mA	±(1.2%+10)	10uA
600mA	±(1.2%+10)	100uA

DC/AC 10A Current (DC/ACA)

Accuracy Range	6000counts	Resolution
10A	±(2.0%+30)	0.01A

Resistance(Ω)

Accuracy Range	6000counts	Resolution
1000Ω	±(0.8%+5)	0.1Ω
10kΩ	±(0.8%+3)	1Ω
100kΩ		10Ω
1000kΩ		100Ω
10MΩ		1kΩ
100MΩ	±(2.5%+3)>60MΩfor reference only	10kΩ

Diodes and on-off test

Range	Display value	Test Conditions
	Diode forward voltage drop	Positive DC current of about 1mA, open circuit voltage of about 3V,
	The buzzer buzzes for a long time, and the test resistance is less than(50±20)Ω	Open circuit voltage is about 3V Press "SELECT" to switch between two functions

Capacitance(C)

Accuracy Range	6000counts	Resolution
100nF	±(3.5%+20)	10pF
1000nF		100pF
10uF		1nF
100uF		10nF
1000uF		100nF
10mF	±(5%+3)	11uF
100mF	±(5%+3)	10uF

Frequency measurement:

Accuracy Range	6000counts	Resolution
10Hz	±(0.1%+3)	0.01Hz
100Hz		0.1Hz
1kHz		1Hz
10kHZ		10Hz
100kHz		100Hz
1MHz		1kHz
10MHz		10kHz

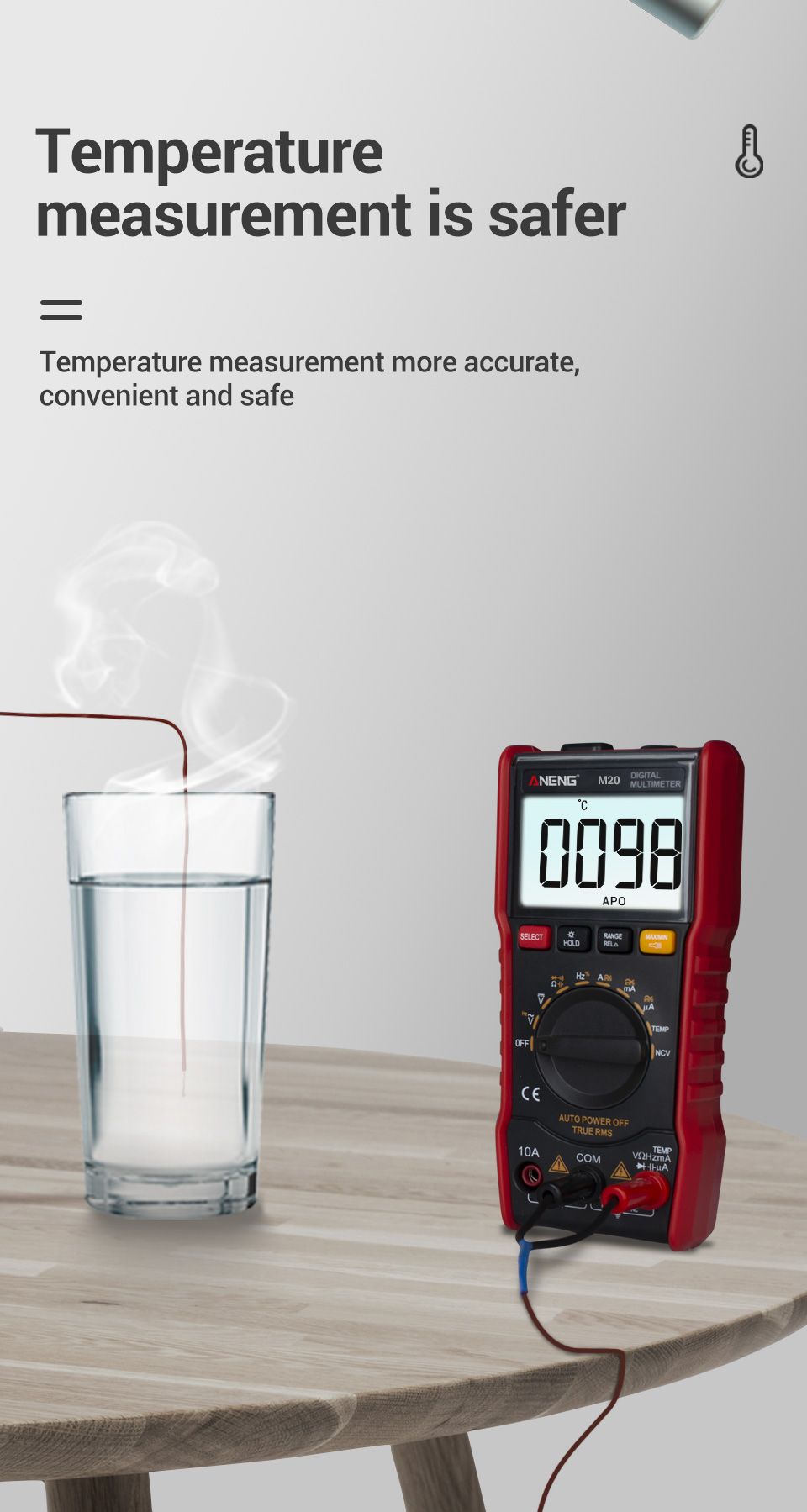

Temperature measurement (°C/°F)

Accuracy Range	6000counts	Resolution
(-20-1000 )℃	±(1.0%+5)<400℃ ±(1.5%+15)≥400℃	1℃
(0-1832 )℉	±(0.75%+5)<750℉ ±(1.5%+15)≥750℉	1℉

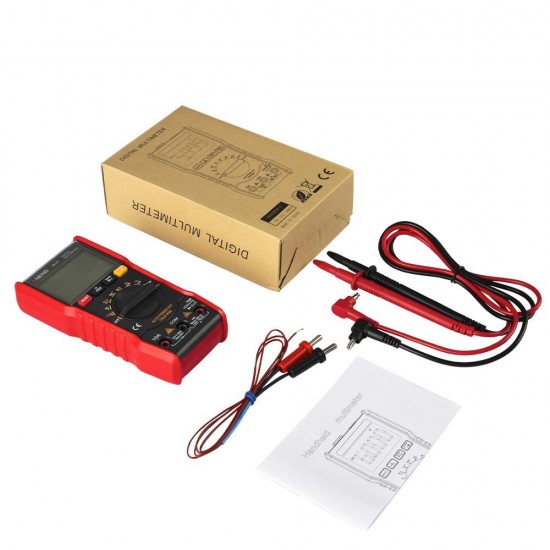

Package Includes:

1 x Multimeter
1 x English User Manual
1 x Pair of Test Pens
1 x K-type Thermocouple

Detail Pictures:

ANENG-M20-True-RMS-6000-Counts-Dispaly-Automatic-Range-Digital-Multimeter-ACDC-Current-and-Voltage-F-1472784
