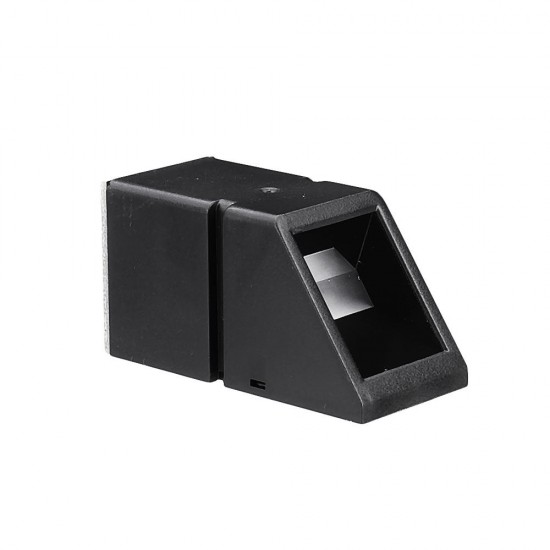

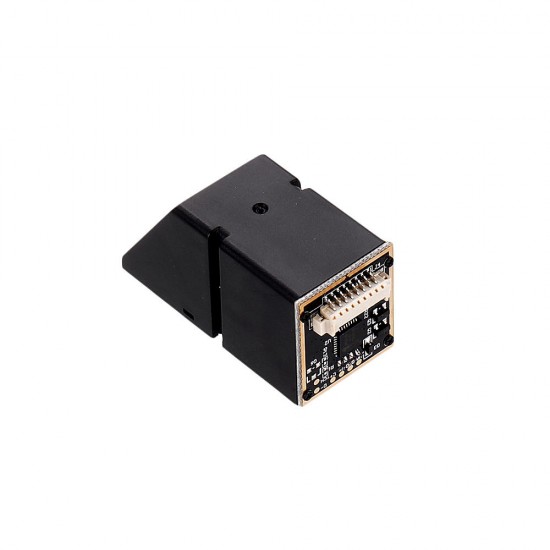

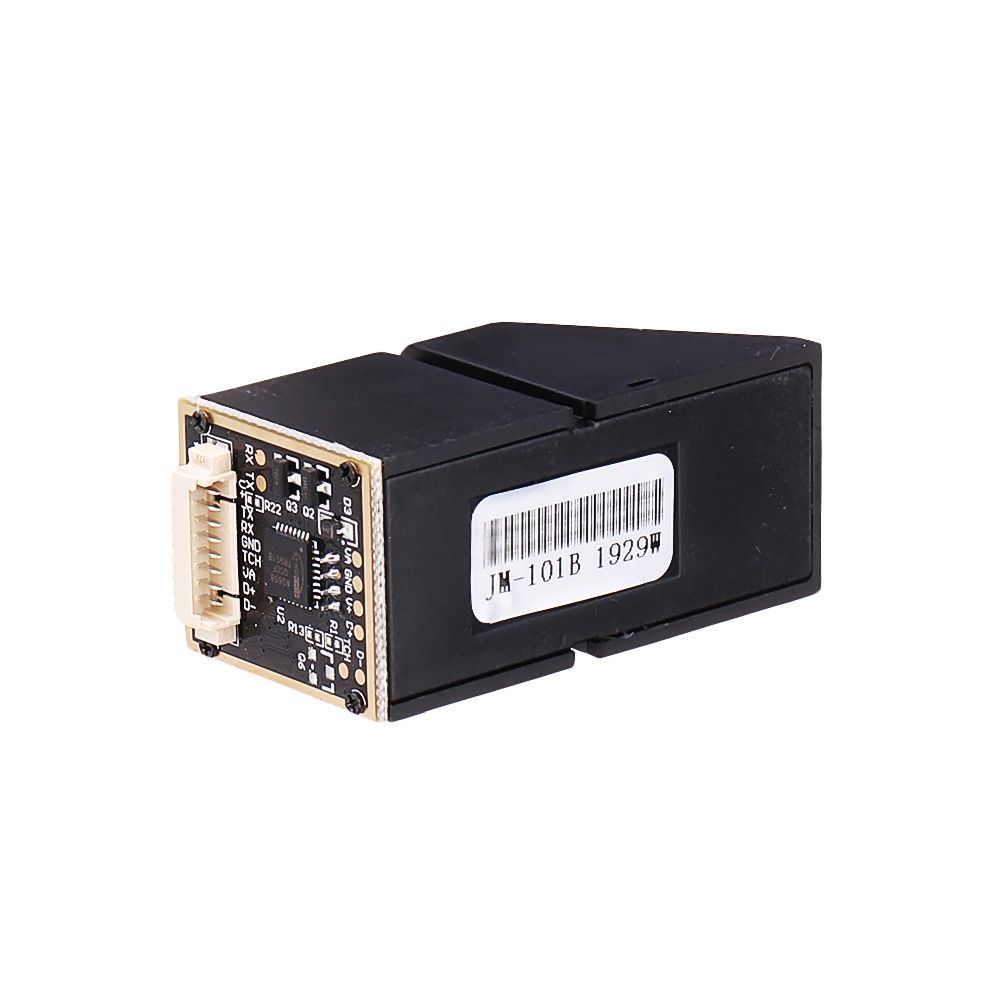

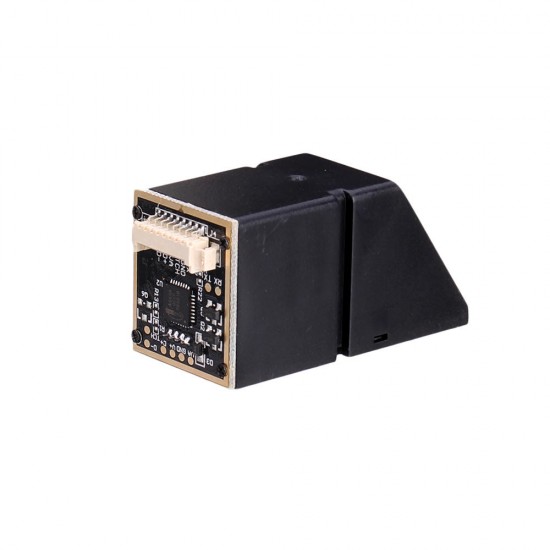

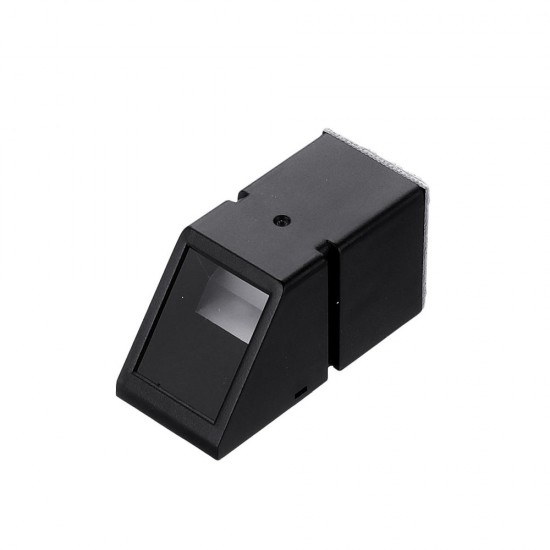

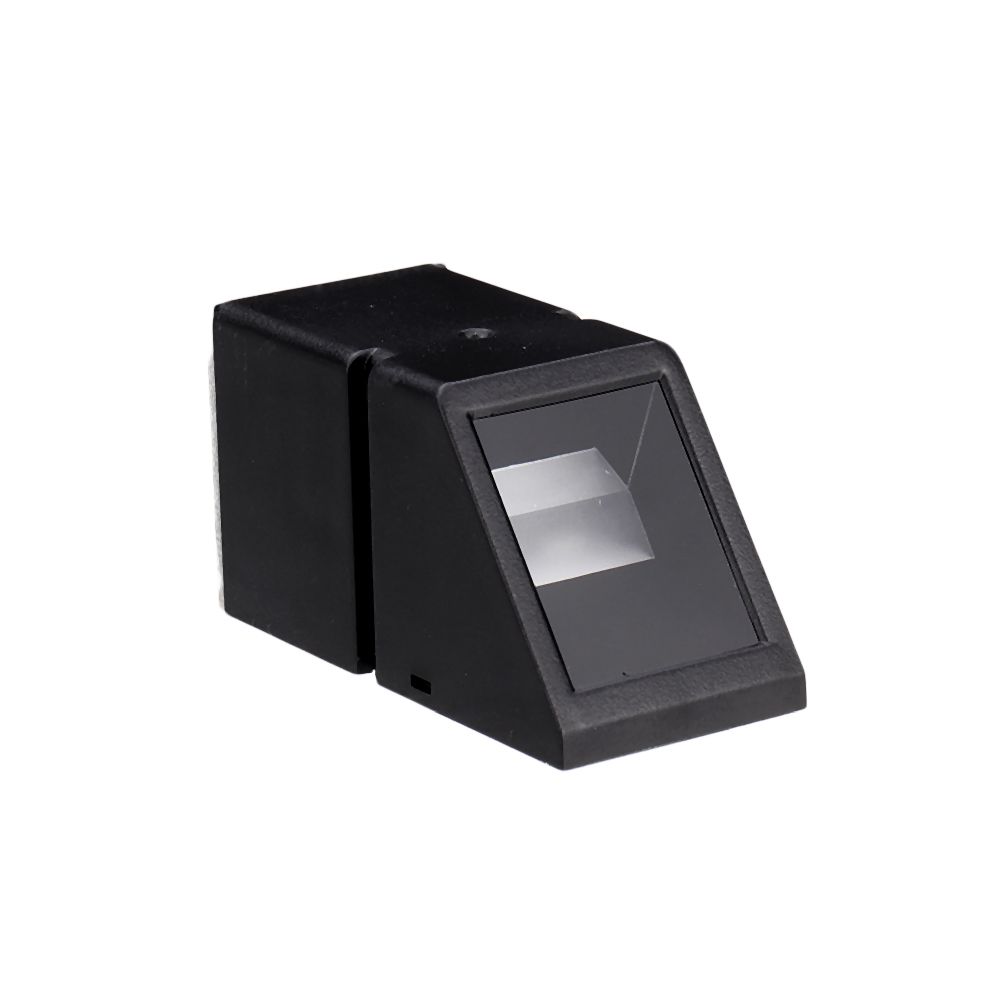

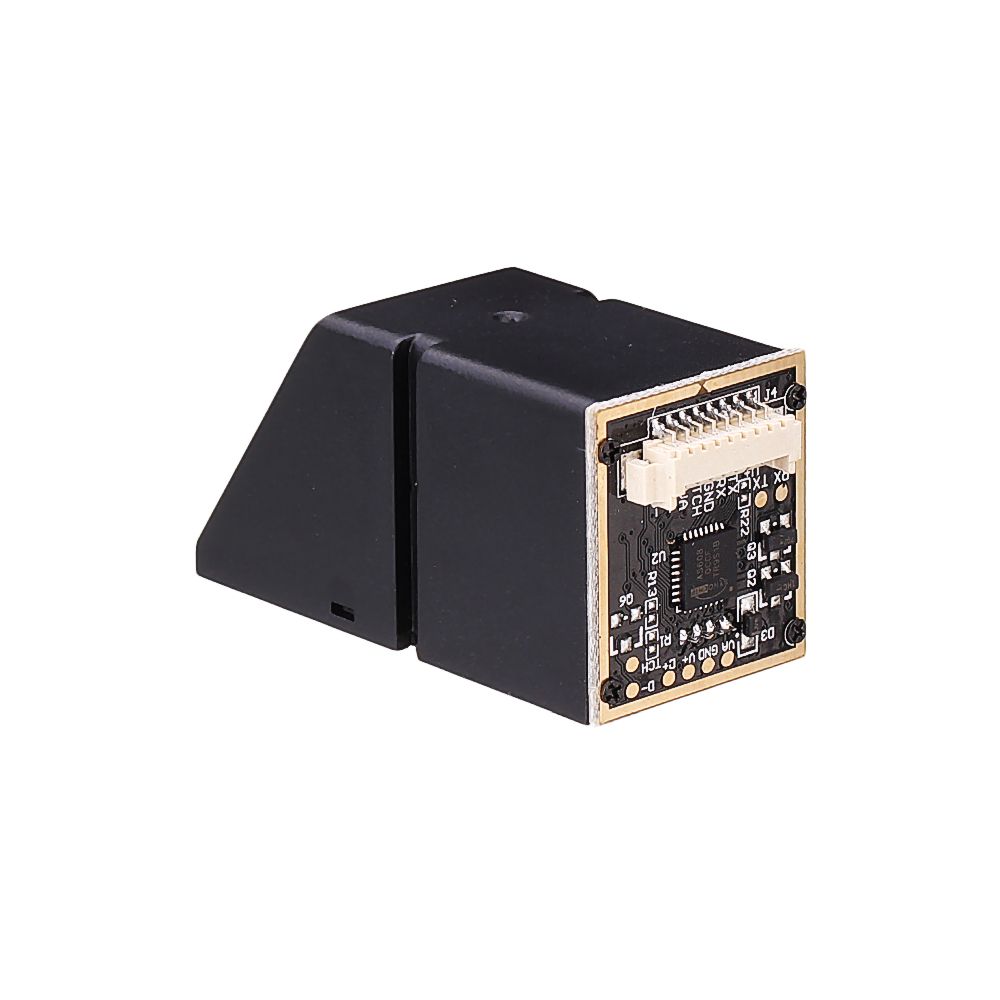

AS608 Fingerprint Reader Sensor Module Optical Fingerprint Module Locks Serial Communication Interface

Based on 0 reviews. - Write a review

$17.99

Ex Tax: $17.99

Stock: In Stock
Model: EB0043013
SKU: EB0043013

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Voltage: DC3.3V

Precise details>>

>>>Manual: Click here to open<<<

Specifications:

Resolution: 500dpi

Supply current: <60mA

Supply voltage: 3.3V

Fingerprint image entry time: <1.0 seconds

Peak current: <60mA

Window area: 15.3x18.2MM

Communication Interface: USB/UART

How the Module Works:

1. Fingerprint features

The fingerprint algorithm extracts features from the acquired fingerprint image and represents the fingerprint information. The storage, comparison and search of fingerprints are all done by operating fingerprint features.

2. Fingerprint processing includes two processes: fingerprint registration process and fingerprint matching process (in which fingerprint matching is divided into fingerprint comparison (1:1) and fingerprint search (1:N) two ways).

3. When the fingerprint is registered, two fingerprints are entered for each fingerprint, and the input image is processed twice. The synthesis module is stored in the module.

4. When the fingerprint is matched, the fingerprint sensor is used to input the fingerprint image to be verified and processed, and then it is compared with the fingerprint module in the module (if it is matched with a module specified in the module, it is called fingerprint comparison mode, ie, 1:1 mode. If matching with multiple modules is called fingerprint search, ie 1:N mode, the module gives the matching result (pass or fail).

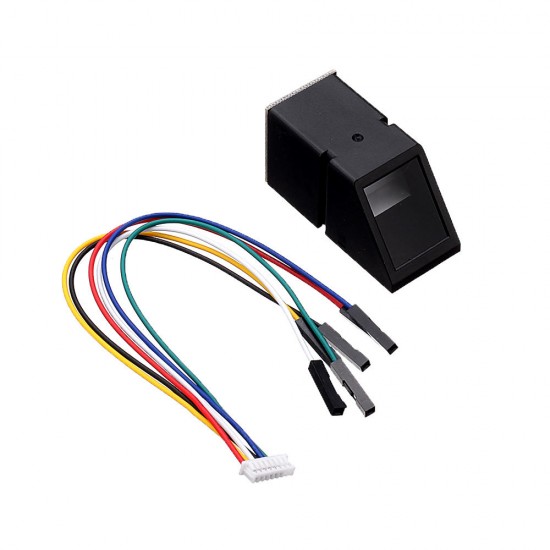

Package Included:

1 x AS608 Fingerprint Reader Sensor Module

AS608-Fingerprint-Reader-Sensor-Module-Optical-Fingerprint-Module-Locks-Serial-Communication-Interfa-1565798
