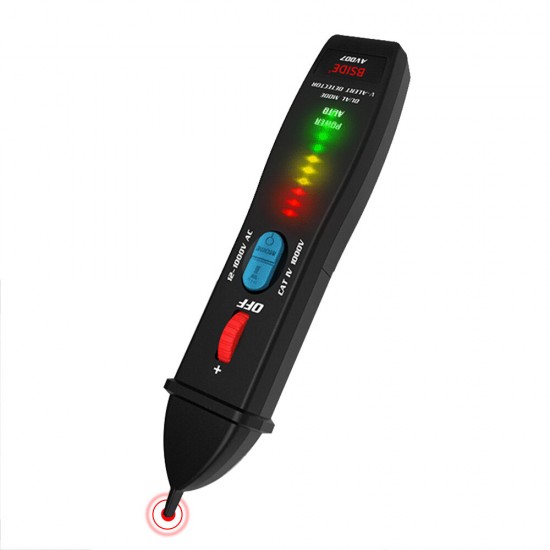

AVD07 Dual Mode Test Pen Live Voltage Detector Test Pencil 12~1000V AC Voltage Detection Non-contact AC Voltage Tester Pen

Based on 0 reviews. - Write a review

$12.99

Ex Tax: $12.99

Stock: In Stock
Model: EB002936
Dimensions: 170.00mm x 34.00mm x 30.00mm
SKU: EB002936

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

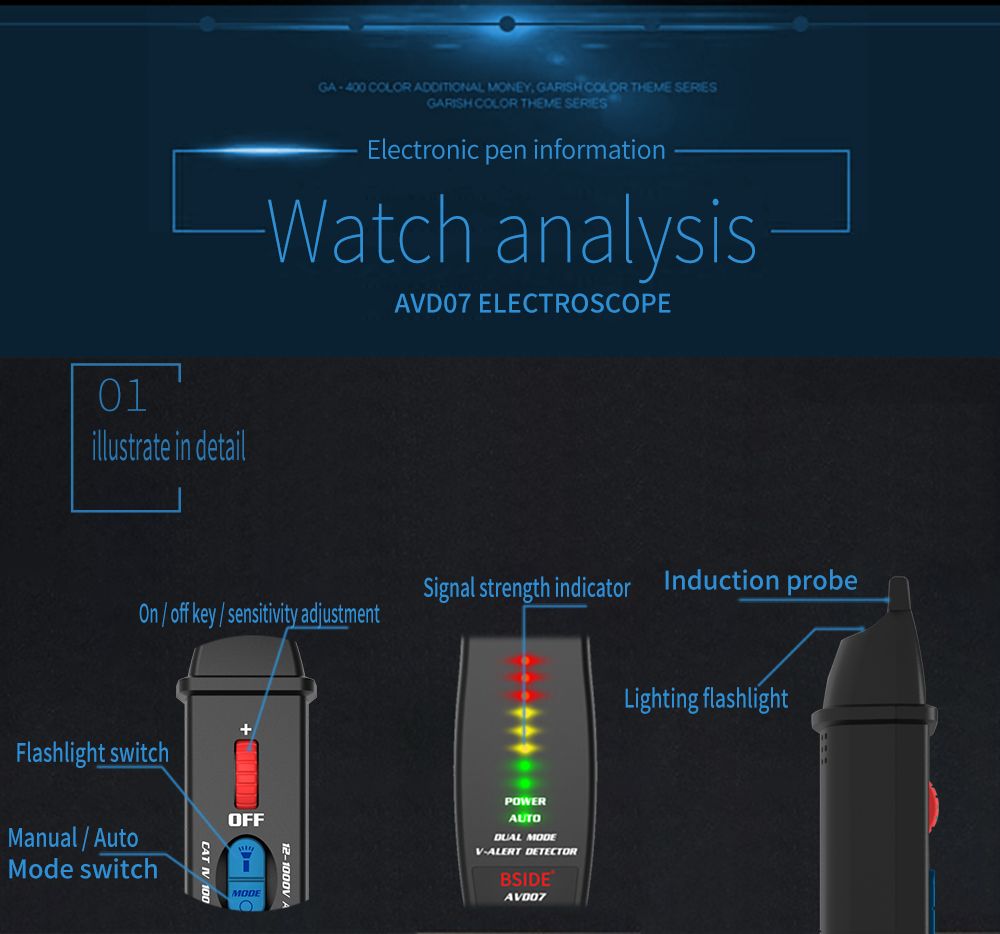

Features:

1. Automatic/Manual Mode Selection: the voltage range of the default automatic mode is 48~1000V, it is easy to switch to the manual mode, by which the sensitivity can be adjusted to the highest and the voltage range is 12~1000V.

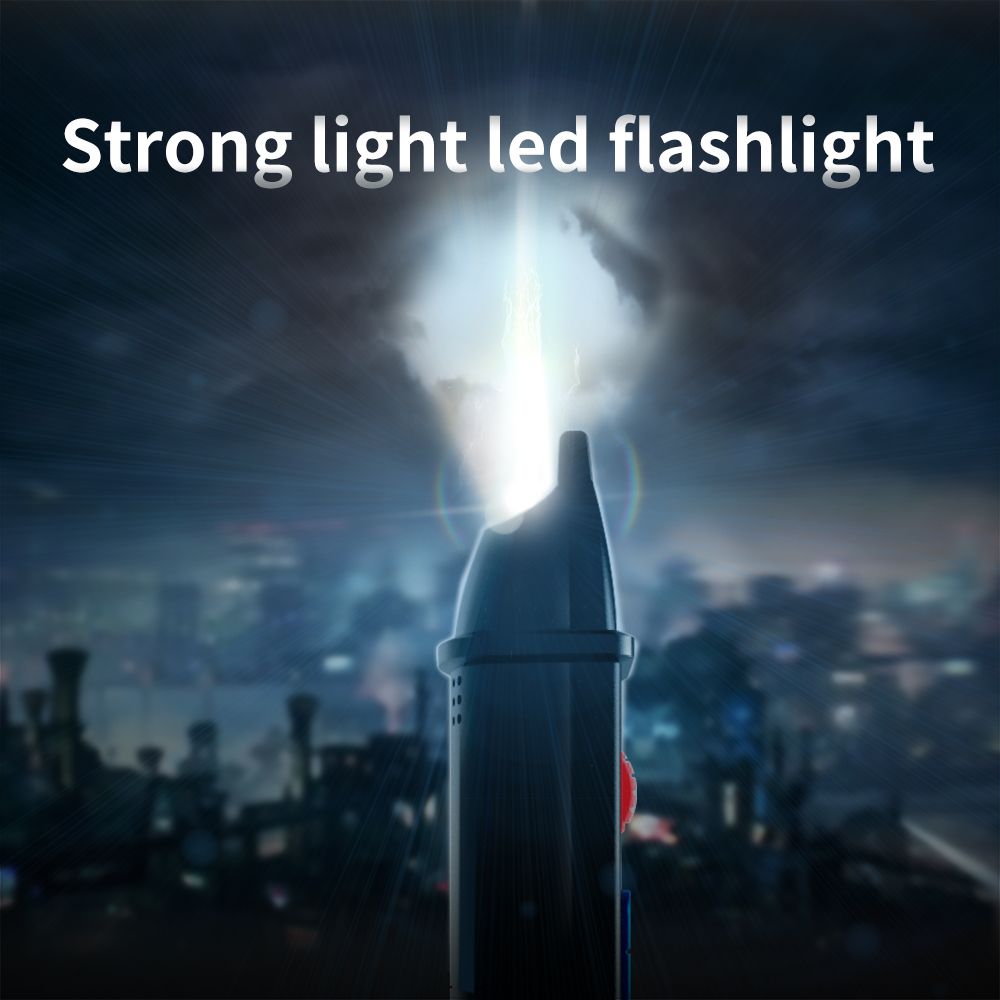

2. Spotlight Function: convenient to use at night or dark corner, auto-off in about 3 minutes.

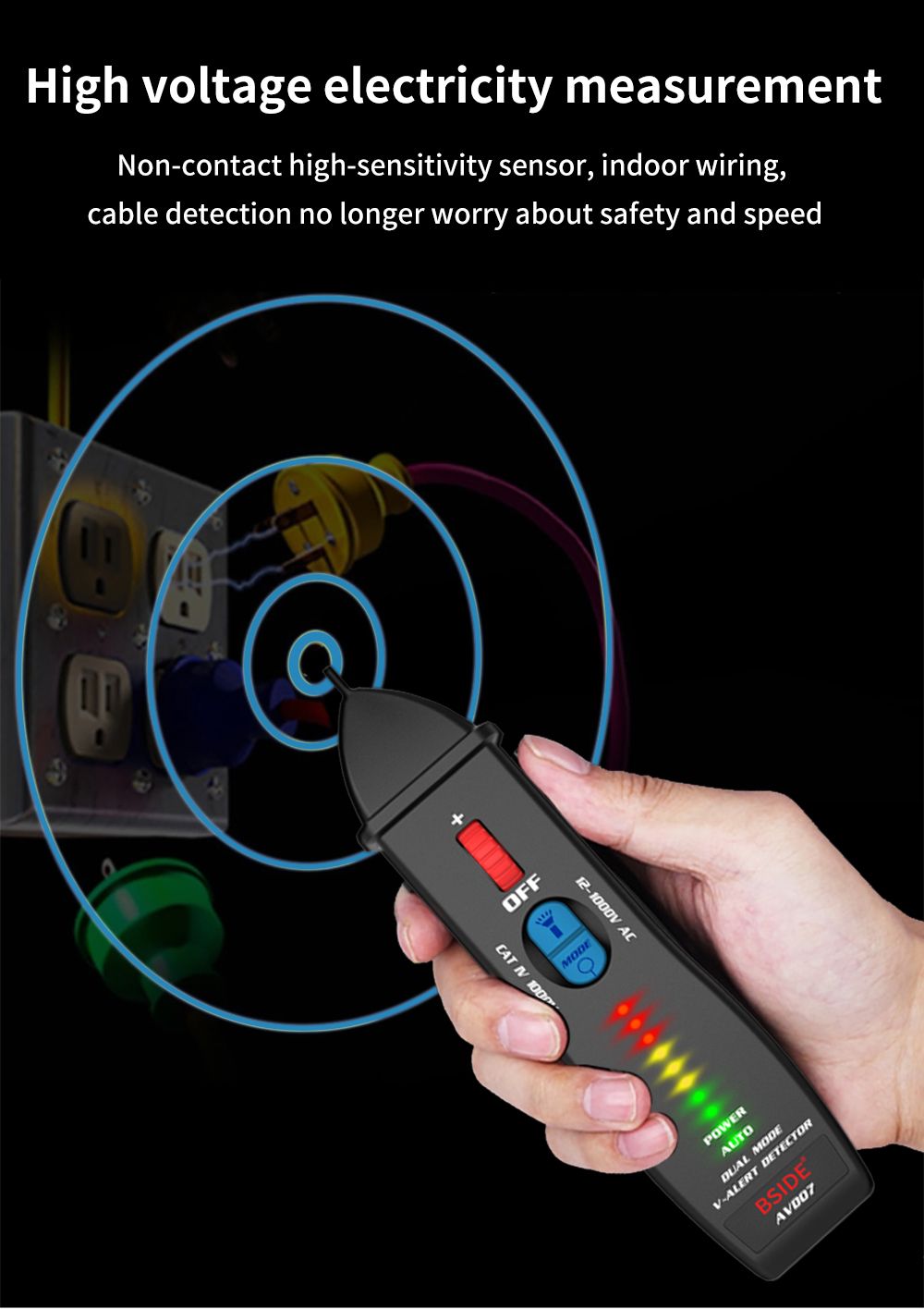

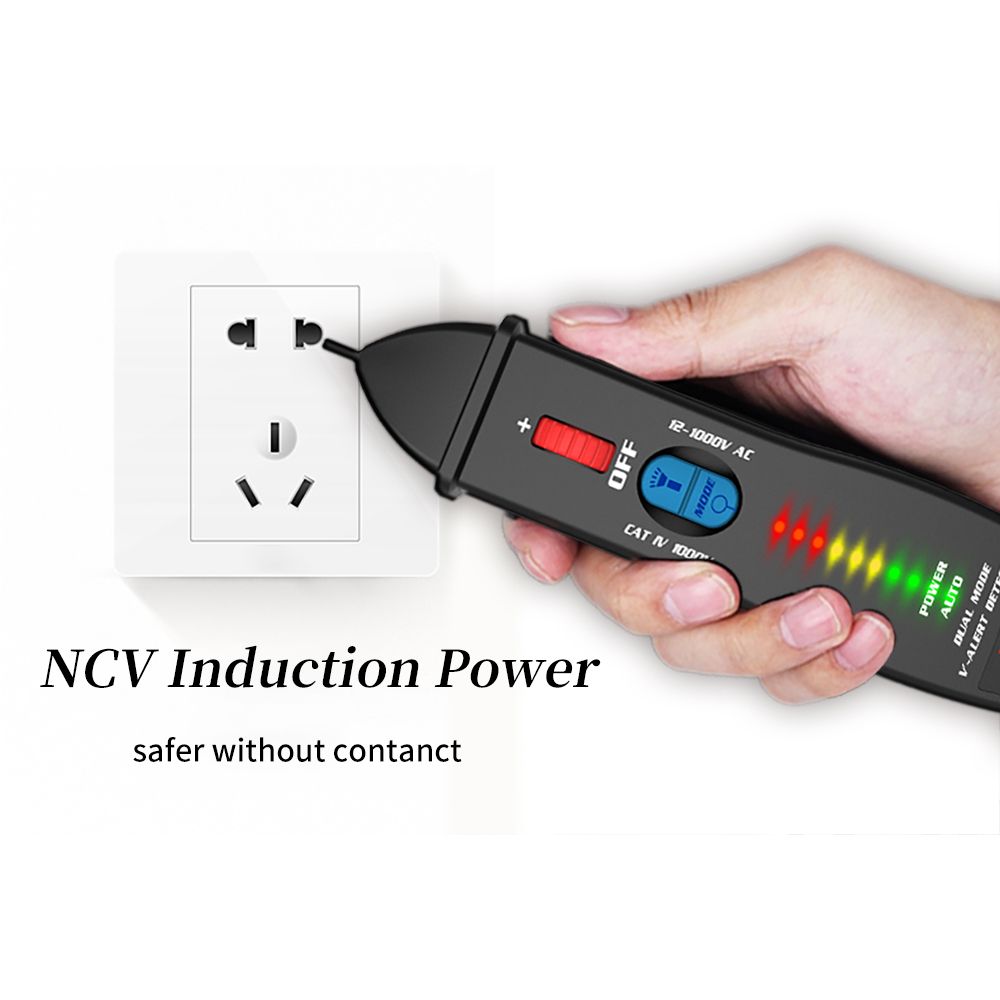

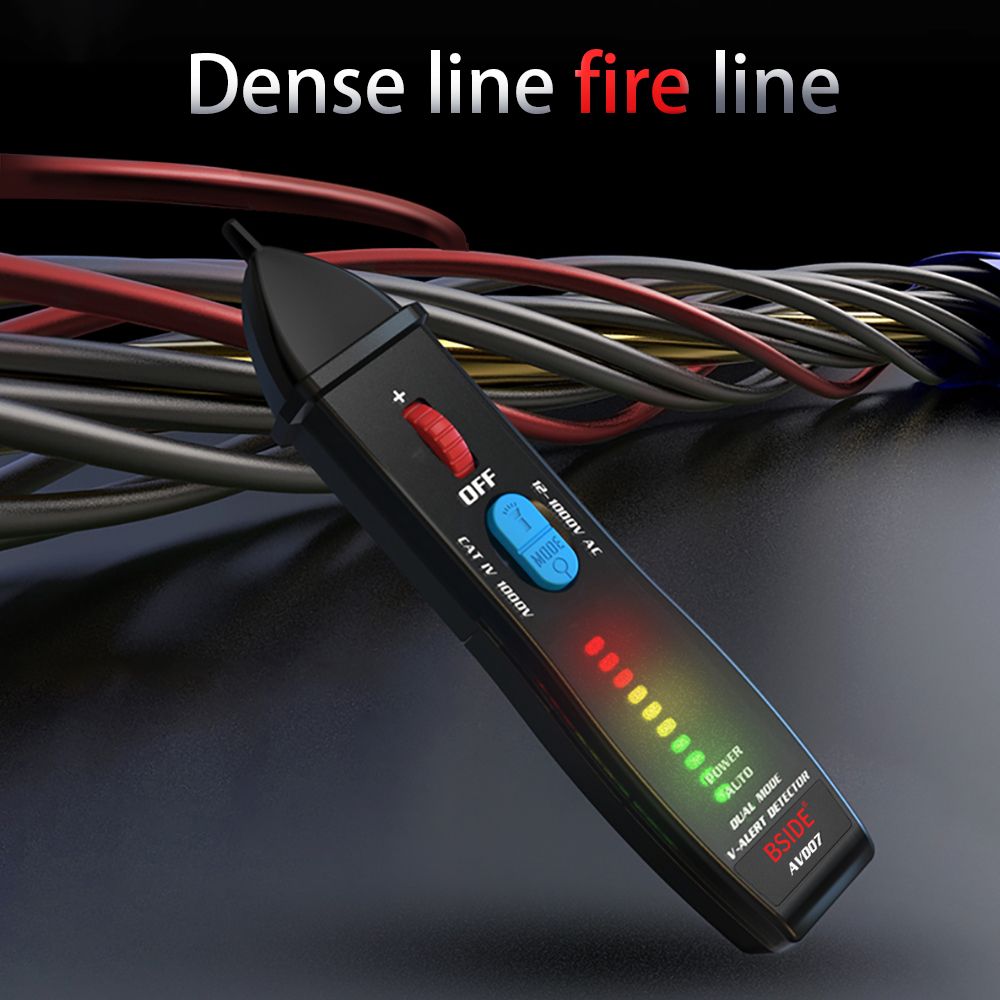

3. AC Voltage Detection: detect AC voltage by contacting the power socket or getting near the live wire with non-contact tip.

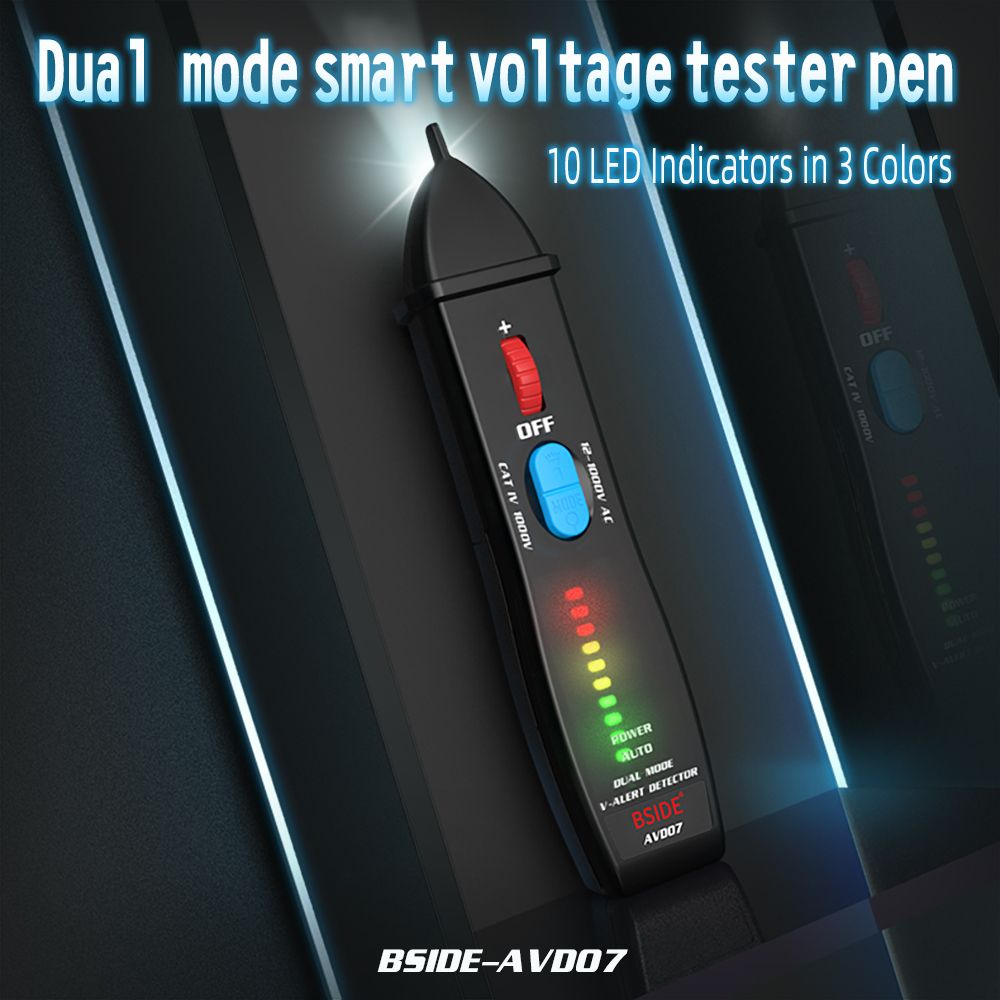

4. Sound and Light Alarm: based on the intensity of the signal detected, it will light up the corresponding signal indicator lights-5. High(red), medium(yellow), low(green), meanwhile the buzzer emits alarm sounds with different frequency.

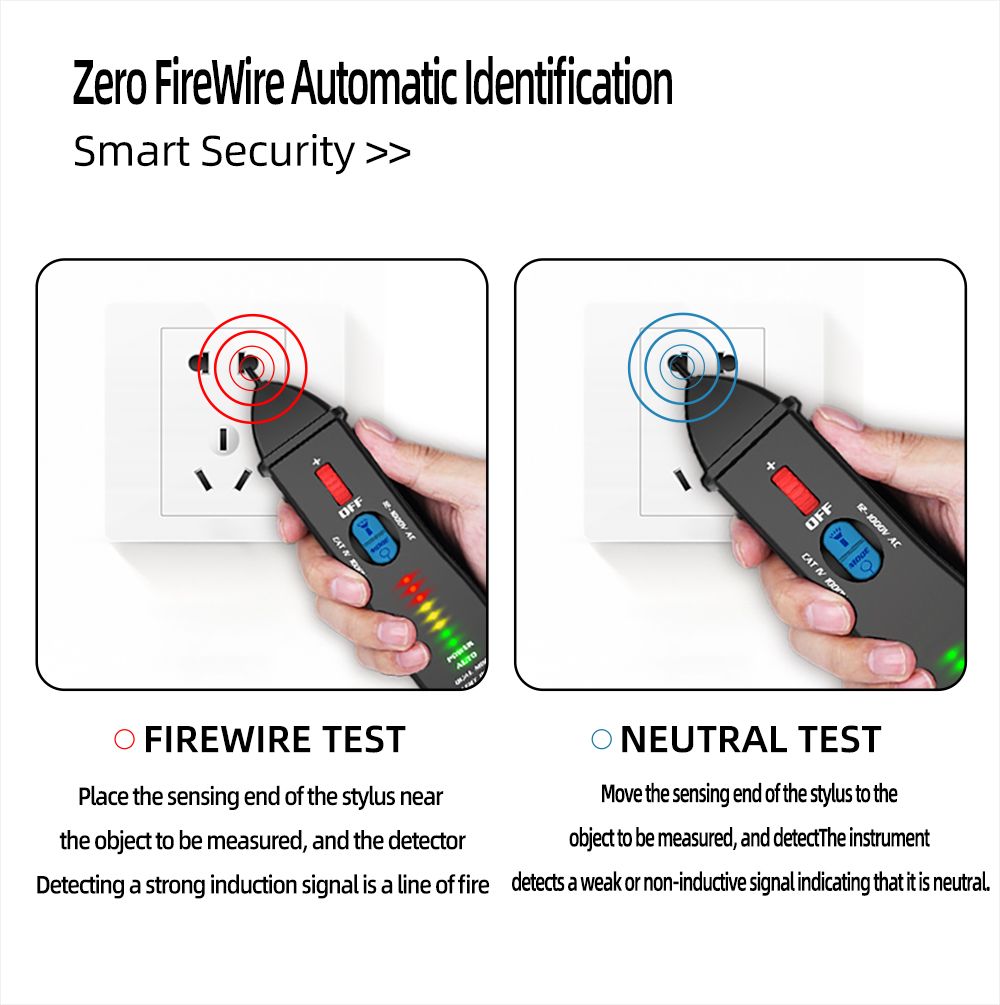

6. Neutral Wire/Live Wire Check: intelligently identifies zero-fire lines with the inductive head, the strong induced signal is live wire, the weak or non-sensing signal is neutral wire.

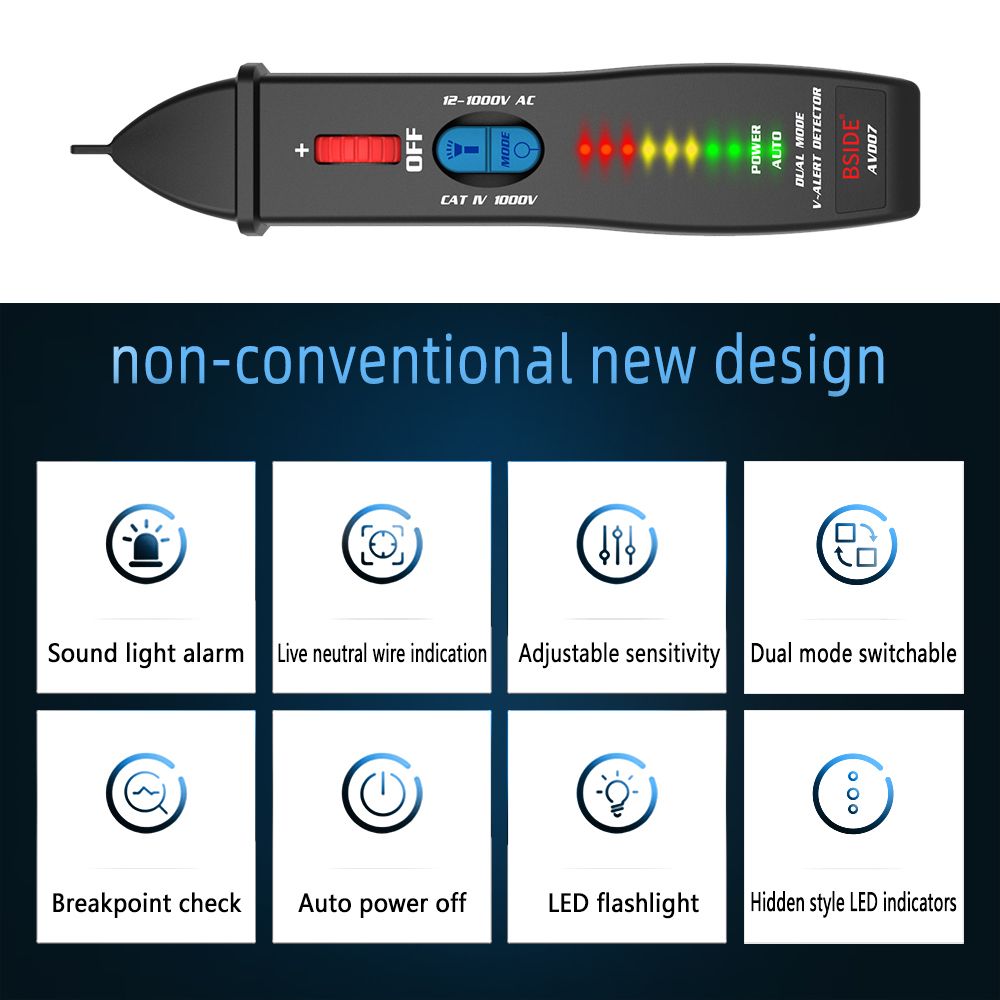

7. Other Functions: breakpoint check, hidden style LED indicators, low voltage indication, and auto power off if there is no operation for 5 minutes.

Specifications:

Material: ABS

Security Level: CAT IV 1000V

AC Voltage Range: Approx. 12~1000V(sensitive manual mode); approx. 48~1000V(automatic mode of sensitivity)

Frequency: 50Hz/60Hz

Alarm Mode: Sound and light alarm

Spotlight: White LED light

Auto Power-off: Yes

Battery Undervoltage Indication: Yes

Neutral Wire/Live Wire Check: According to the signal strength

V-Alert Sensitivity: Automatic selection of 3 sensitivity(high, medium and low)

V-Alert Signal Strength Indicator Mode: High(red), medium(yellow), low(green) with different frequency of alarm and different colors of LED

Operating Temperature: 0~40℃

Storage Temperature: -10~50℃

Altitude: <2000m

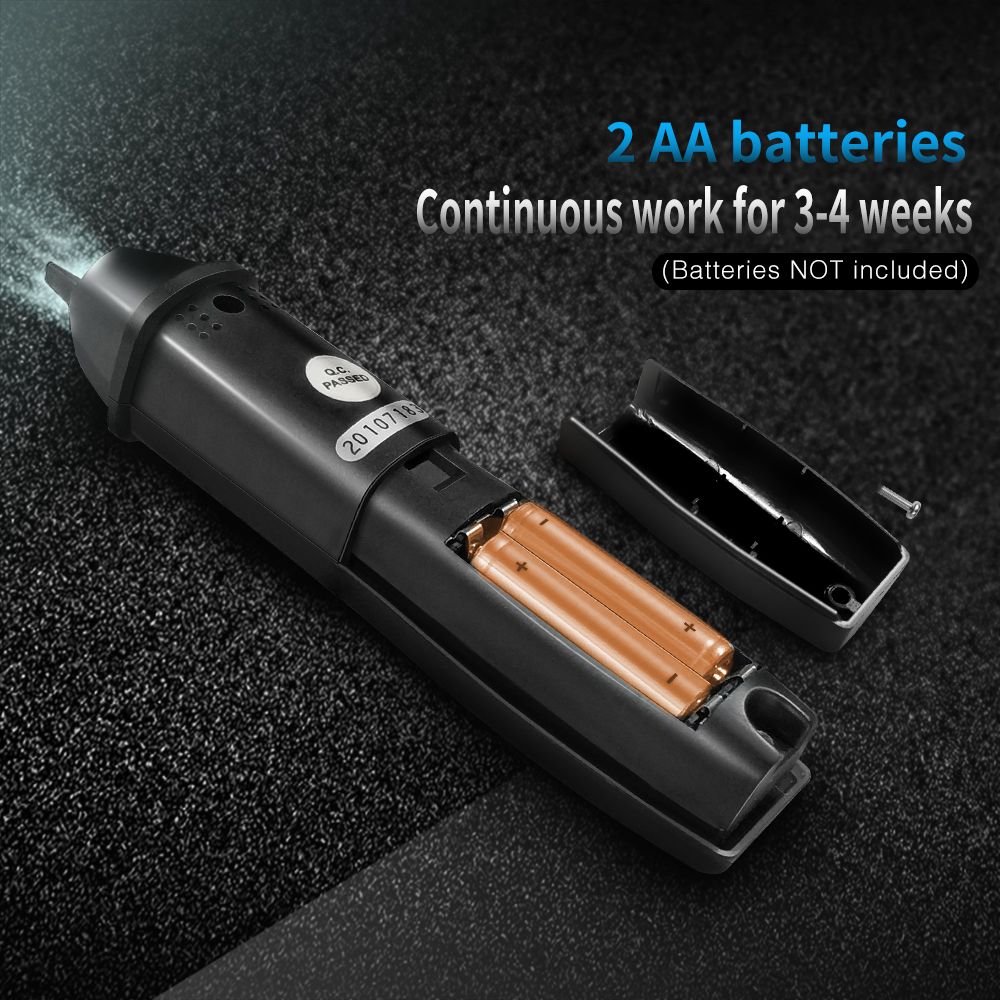

Power Supply: 2 * 1.5V AAA battery (NOT included)

Item Size: 170 * 34 * 30mm / 6.69 * 1.34 * 1.18in

Item Weight: 64g / 2.26oz

Package Weight: 104g / 3.67oz

Package Size: 20 * 5.5 * 4cm / 7.87 * 2.16 * 1.57in

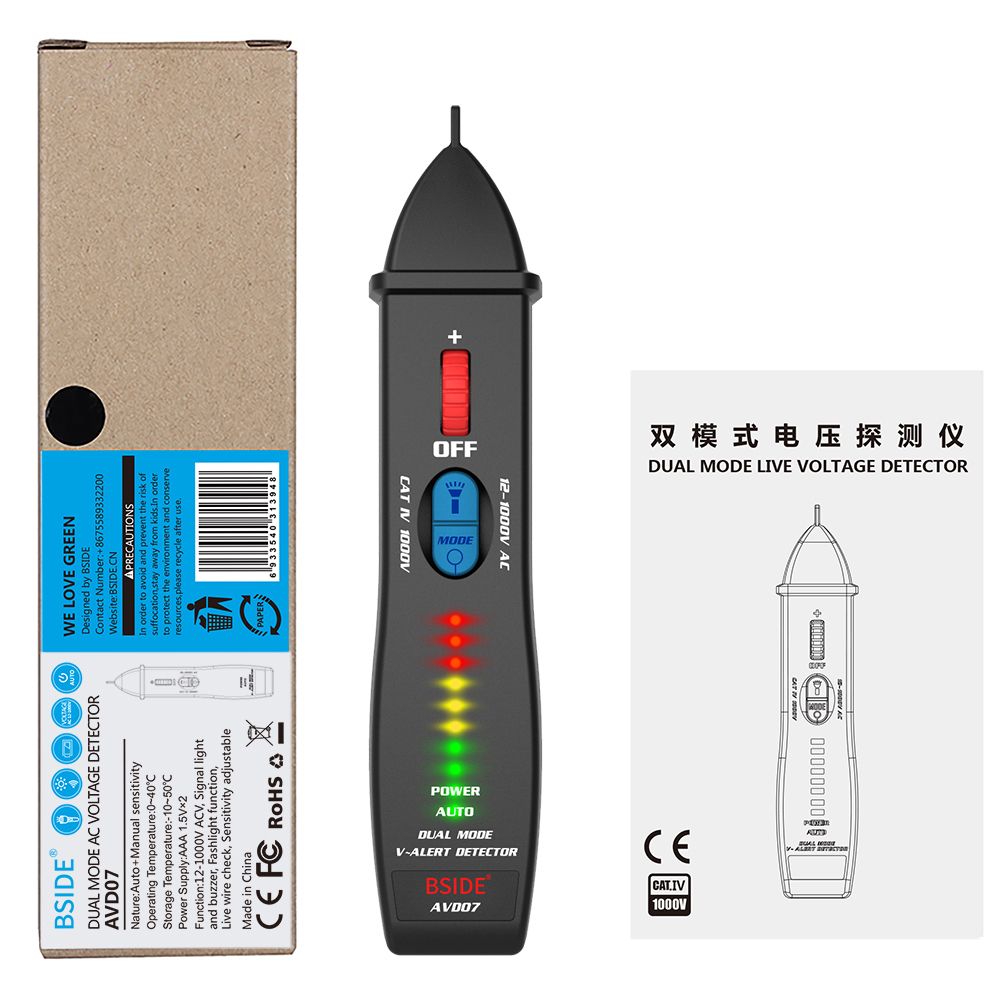

Package included:

1 x Test Pen

1 x English Manual

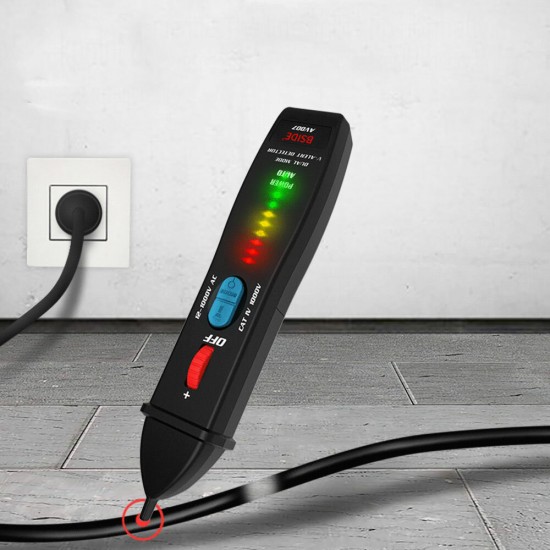

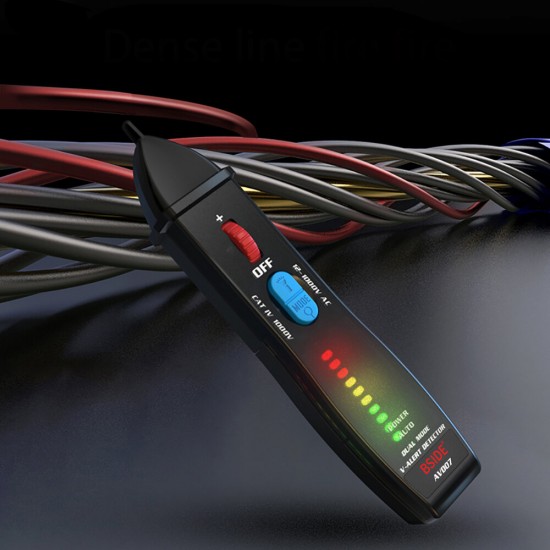

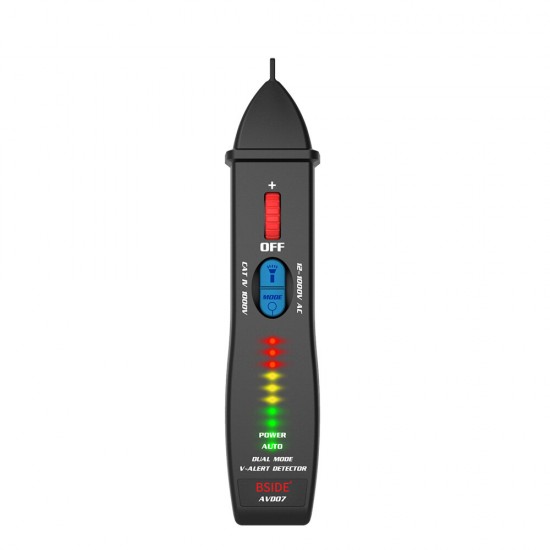

Details Pictures:
