Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane

Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane
Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane
Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane
Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane
Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane
Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane
Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane
Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane
Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane
Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane
Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane
Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane
Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane
Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane
Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3 RC Drone Airplane
$12.84
Ex Tax: $12.84
  • Stock: In Stock
  • Model: EB000407
  • SKU: EB000407
Smallest Mini Dual GLONASS+GPS BN-180 Micro Double GPS Antenna Module UART TTL For CC3D F3

Description

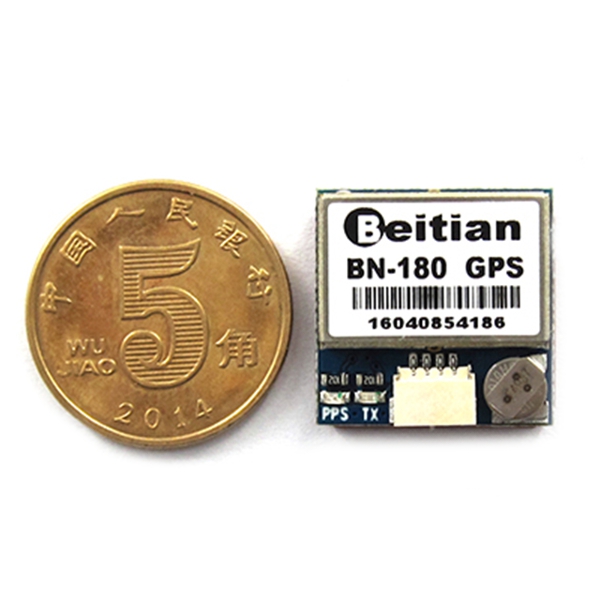

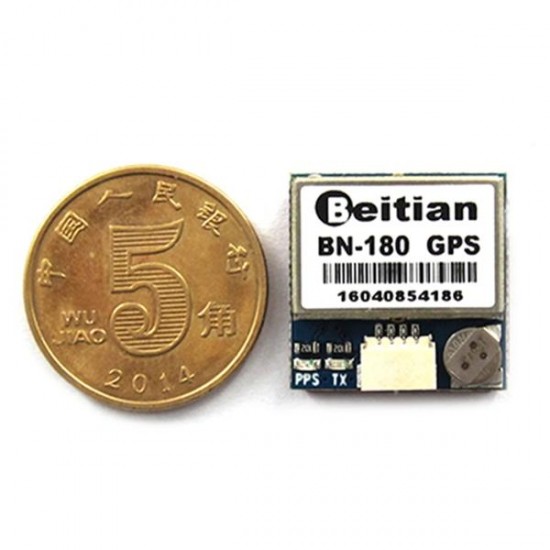

Dimension : 18mm*18mm*6mm
Weight : 4.9g
Connector : 1.00mm spacing between the 4pins patch seat


Specification
Electrical Characteristics
Chipset :  M8030-KT
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel

Sensitivity
Tracking : -167dBm
Reacquisition : -160dBm
Cold start : -148dBm
Hot start : -156dBm

Accuracy
Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Speed : 0.1m/sec 95% (SA off)
Timing : 1us synchronized to GPS time

Acquisition Time
Cold Start : 26s
Warm start : 25s
Hot start : 1s

Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 9600bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : NMEA-0183 or UBX, Default NMEA-0183
Single GNSS : 1Hz-18Hz
Concurrent GNSS : 1Hz-10Hz,Default 1Hz

Operational Limits
Altitude : 50,000m Max
Speed: 515m/s Max
Acceleration : Less than 4g

Power consumption
VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V
Current : Capture 50mA/5.0V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C

Indicator :

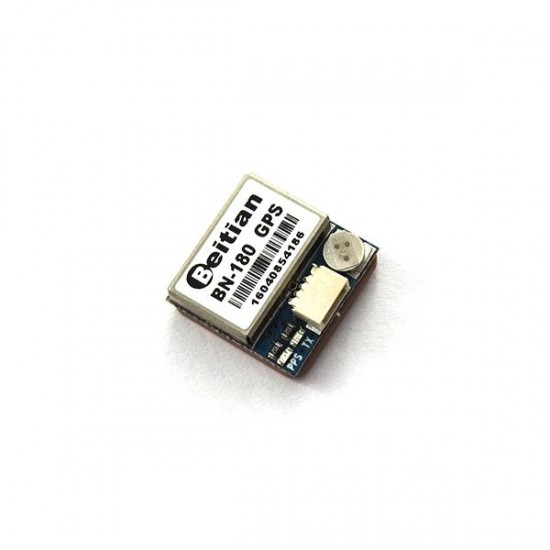

TX LED:blue.The data output, TX LED flashing
PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed

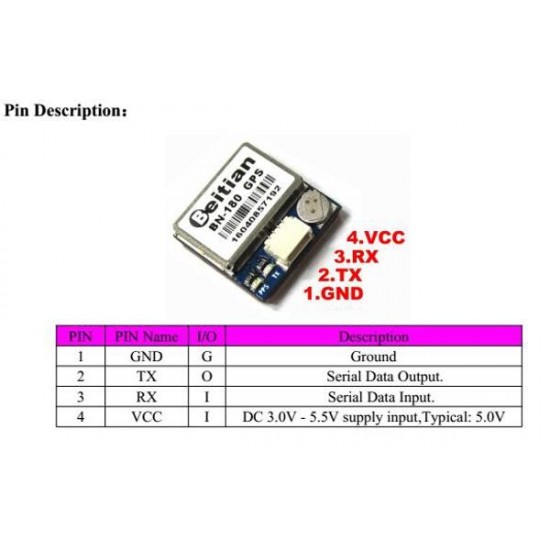

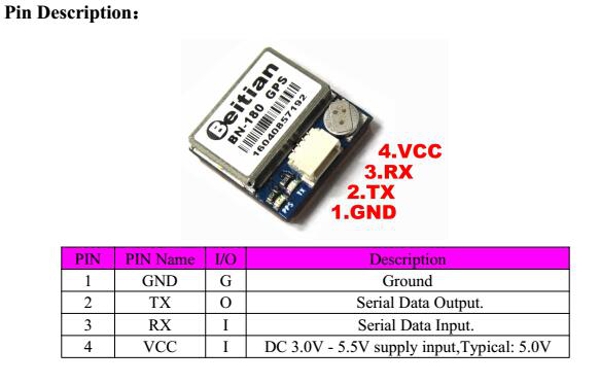

Wiring:
GND,TX output,RX input,VCC(3.0v-5.5v)

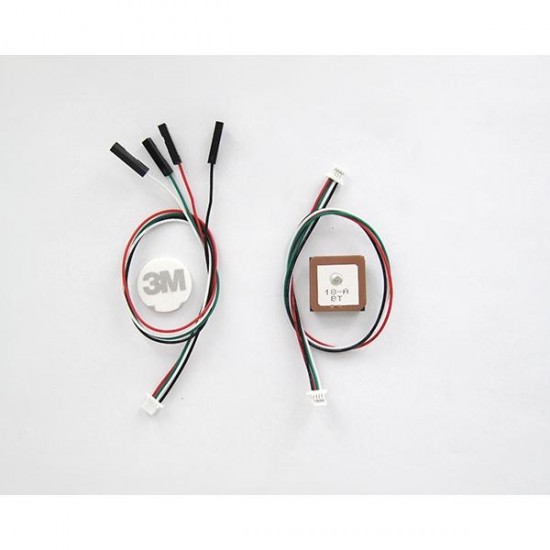

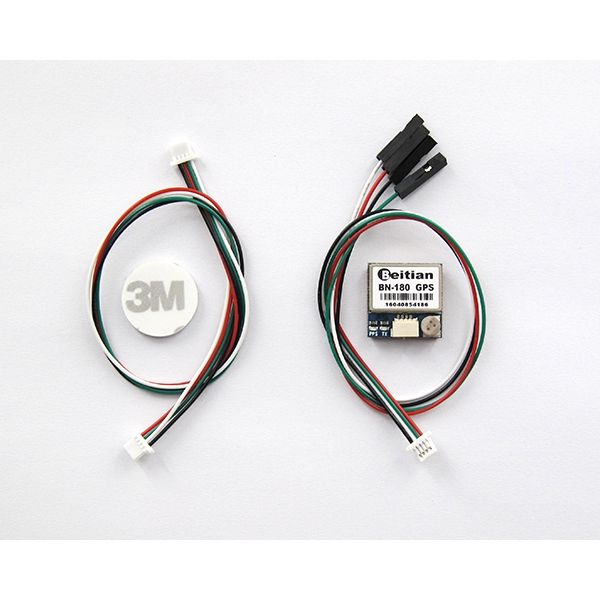

Package Included
1 x BN-180 GPS Module
2 x 15cm Cable
