C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera

C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
C7824WIP 720P Wireless IP Camera IR-Cut Onvif Video Surveillance Security CCTV Network Camera
$54.56
Ex Tax: $54.56
  • Stock: In Stock
  • Model: EB0024102
  • Dimensions: 145.00mm x 110.00mm x 125.00mm
  • SKU: EB0024102

Available Options


Note : The app of this camera is not compatible with Samsung Galaxy Note 4 !

Description :

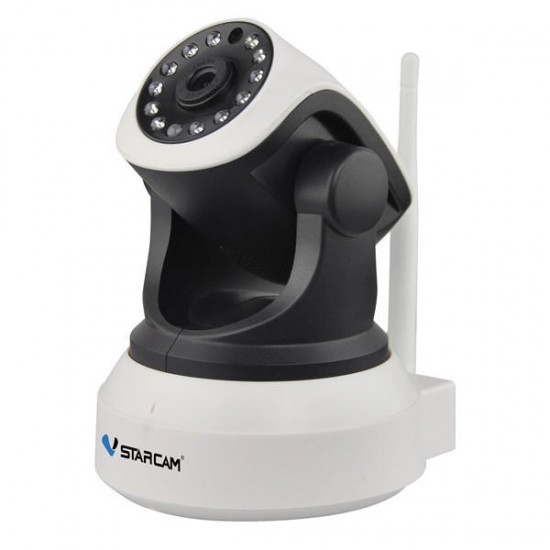

VStarcam C7824WIP 720P HD Wireless IP IR Night Vision Camera Onvif Video Surveillance Security CCTV Network Camera

Features :

12pcs LED, IR distance 10M.
Lens 3.6 mm wireless security camera support memory card.
Support ONVIF 2.0, RTSP protocol.
WPS one key setup WiFi, acoustic wave wifi setting.
720P, VGA, QVGA triple stream.

Two-way audio, remote Pan/Tilt rotate.
Wi-Fi/802.11/b/g/n, support dynamic IP.
Motion detection: Send email alert, FTP upload, record video into sd card when alarm triggered.It won't send pictures to your email when alarm triggered.
Iphone, 3G phone, IOS and android Smartphone supported (don't support windows APP)
Multi-language, Firefox, Safari, Google browser.
Pan: 270 degree, Tilt: 80degree, auto cruise.
Renhotec 64GB TF Card.








Specification :

System OS Embedded Linux OS
System security Three level user authority management
Online users Support 4 online visitors simultaneously
DDNS Free DDNS
Control protocol ONVIF 2.4 protocol, high interoperability
Processor Hisilicon processor.
Built-in ARM926 @Max. 440MHz and a high-speed video co-processor.
Reset Long press for 15 seconds to restore back to factory settings
Collection Image sensor 1/4inch 720p Progressive scan CMOS sensor
CMOS Support AWB, AGC, BLC
Imaging area 4.40mm x 2.52mm
SNR ≥41dB
Minimum illumination 0.8Lux/F1.4 (colourful model ),0.3Lux/F1. (B&W mode)
Lens/viewing angle 3.6mm@F1.4/56.14?
Night vision Dual IR-CUT filter auto switch, 12pcs 850nmΦ5mm LED,10m IR distance
IR control  IR turned on: night vision view enabled, infrared Ray, ICR auto detect.
IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.
Video Compression Format H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
Video coding process Multi-stream: 720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG snapshot
Resolution  720p / VGA / QVGA
Bit Rate CBR / VBR, output bit rate range: 128-4096kbps
Max.Frame rate 25fps
Picture Adjustment Contrast, brightness, saturation, chroma are adjustable.
Audio Input Built in -48dB Microphone
Output Built in speaker(8Ω1W)
Sampling frequency / width 8KHz/16bit
Compression format ADPCM/32kbps
Network Interface 10Base-T / 100Base-TX, RJ45 connector
Network Protocol TCP/IP, HTTP, TCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPnP, RTSP, P2P, ONVIF, etc.
WIFI WiFi802.11b/g/n
Antenna 3dBi antenna, stronger signal, more stable
Wireless network security One key setup WiFi ,don't need network cable .
Storage Storage mode Local storage / client storage
Interface Micro SD/TF, support 64G TF record.
Pan-Tilt P/T Pan: 270°, Tilt: 80°
Preset Postion  Support up to 15 preset postions
Limit method Software limit position, more accurate preset positions,lower Pan Tilt failure rate.
Alarm Motion detection Support motion detection
Alarm action Video upload via email/FTP server, Mobile App alarm
Physical index Rated Voltage DC5 / 2A±0.3V
Power comsumption Rated power: 3.0W (IR ON)
Working environment Working Temperature: -20-70℃, Working Humidity 90%
Weight Gross Weight: 330g  (Note: in kind prevail)
Housing material ABS plastics
Camera size 145 x 110 x 125 mm (L x W x H)
Installation Wall mounting, ceiling mounting

Package includeds :

1 x VStarcam C7824WIP IP Camera        >>View more other Vstarcam<<
1 x Power Adapter (EU / US / AU / UK Plug for Optional~)
1 x Camera Holder
1 x English User Manual
4 x Screw

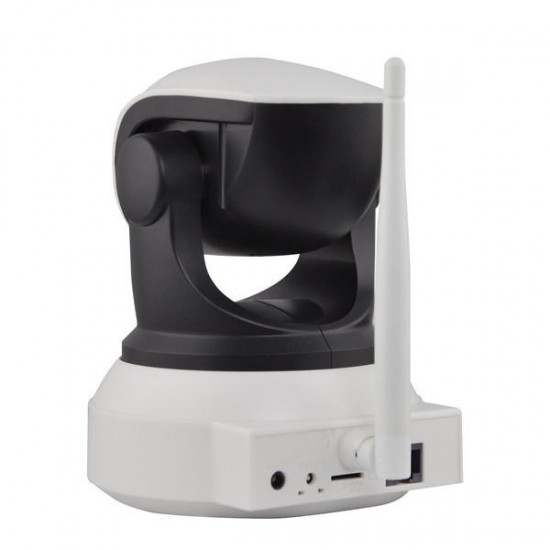

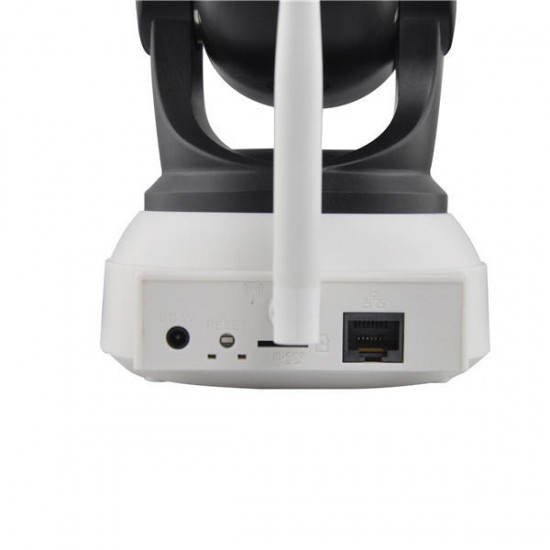

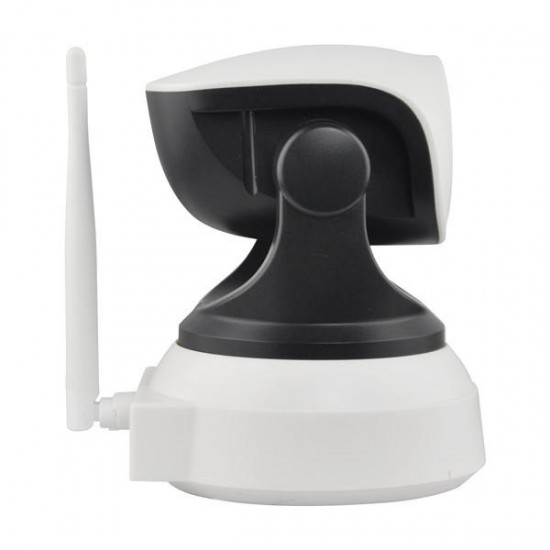

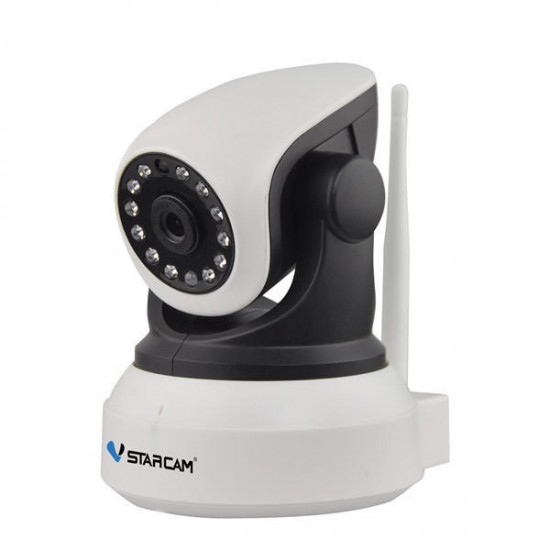

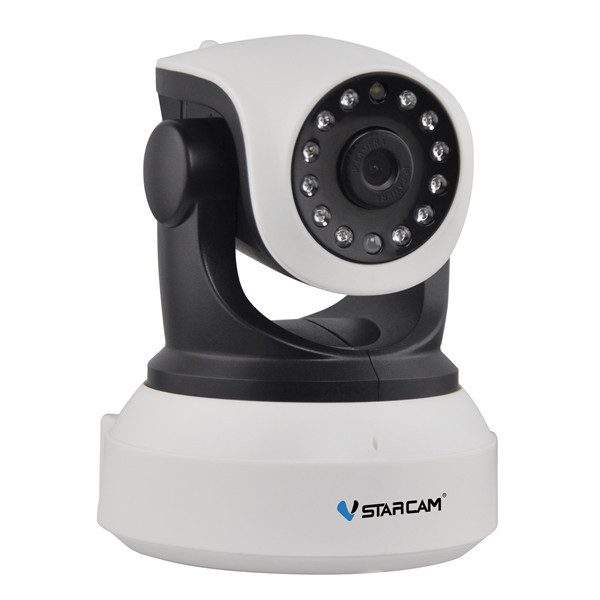

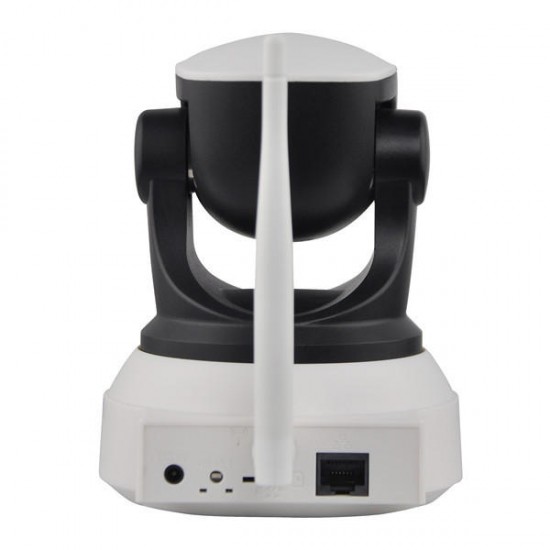

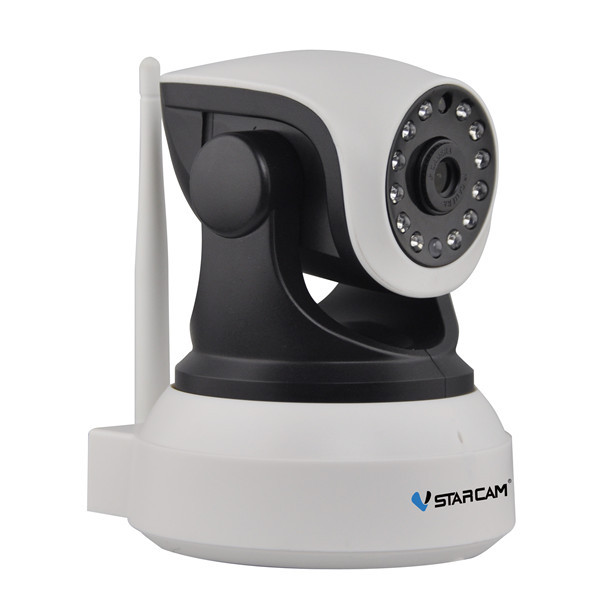

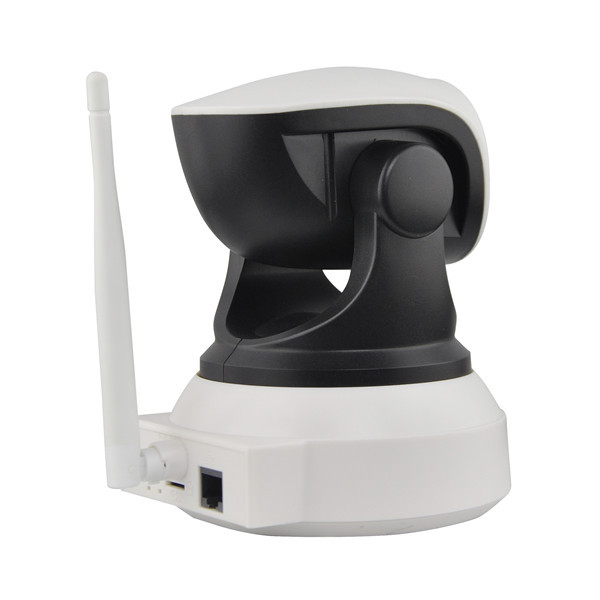

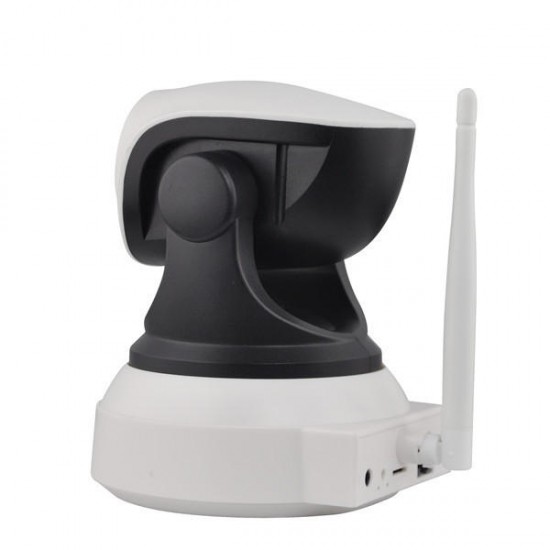

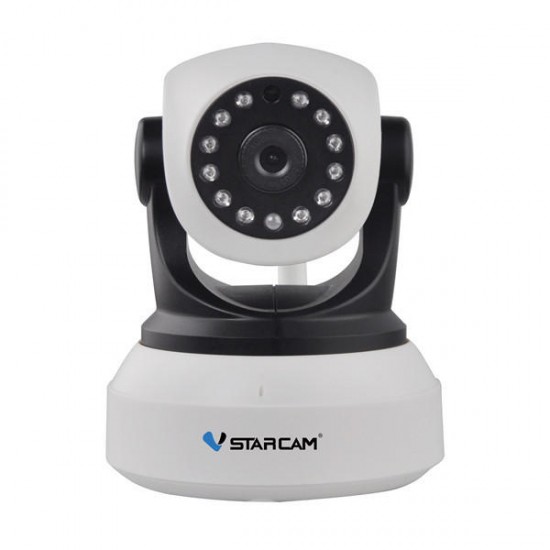

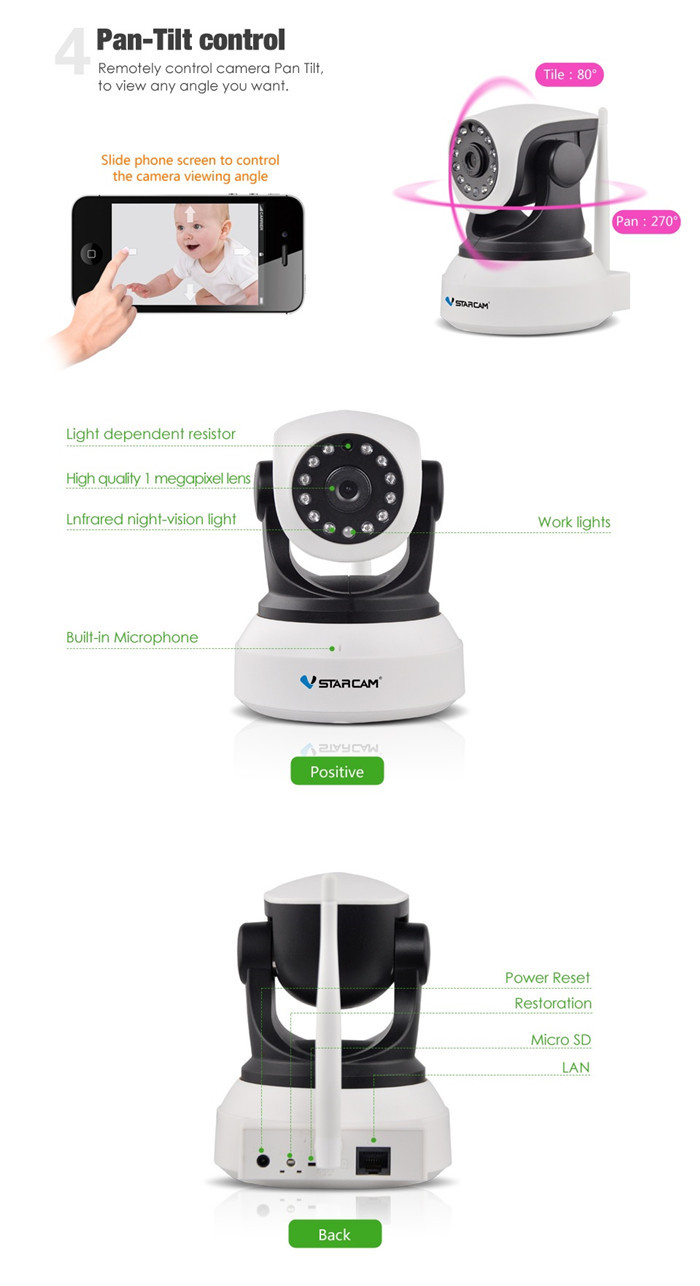

Details pictures :





VStarcam-C7824WIP-720P-Wireless-IP-Camera-IR-Cut-Onvif-Video-Surveillance-Security-CCTV-Network-Came-1056281,VStarcam-C7824WIP-720P-Wireless-IP-Camera-IR-Cut-Onvif-Video-Surveillance-Security-CCTV-Network-Came-1056281,VStarcam-C7824WIP-720P-Wireless-IP-Camera-IR-Cut-Onvif-Video-Surveillance-Security-CCTV-Network-Came-1056281,VStarcam-C7824WIP-720P-Wireless-IP-Camera-IR-Cut-Onvif-Video-Surveillance-Security-CCTV-Network-Came-1056281,VStarcam-C7824WIP-720P-Wireless-IP-Camera-IR-Cut-Onvif-Video-Surveillance-Security-CCTV-Network-Came-1056281,VStarcam-C7824WIP-720P-Wireless-IP-Camera-IR-Cut-Onvif-Video-Surveillance-Security-CCTV-Network-Came-1056281,VStarcam-C7824WIP-720P-Wireless-IP-Camera-IR-Cut-Onvif-Video-Surveillance-Security-CCTV-Network-Came-1056281,VStarcam-C7824WIP-720P-Wireless-IP-Camera-IR-Cut-Onvif-Video-Surveillance-Security-CCTV-Network-Came-1056281,VStarcam-C7824WIP-720P-Wireless-IP-Camera-IR-Cut-Onvif-Video-Surveillance-Security-CCTV-Network-Came-1056281,VStarcam-C7824WIP-720P-Wireless-IP-Camera-IR-Cut-Onvif-Video-Surveillance-Security-CCTV-Network-Came-1056281
