Beitian BN-185T GPS + GLONASS Dual Module With Cable for APM Pixhawk Naze32 F3 F4 Flight Controller RC Drone

Specification:

Model:BN-185T
Chip: M8030-KT
Power Supply:DC Voltage 3.6V~5.5V,Typical: 5.0V
Consumption:Capture 50mA@5V
Receiving Format:GPS L1,GLONASS L1,Galileo E1, BDS B1, SBAS L1, QZSS L1
Receiving Channel:72 Searching Channel
Receiving Sensitivity:Trace -167dBm
                                       Capture-160dBm
Positioning Time:Cold Start: 26s
                               Warm Start: 25s
                               Hot Start: 1s
Level Positioning Precison:2m CEP 2D RMS SBAS (At Open Wind)
Output Frequency: 1Hz-10Hz,Default 1Hz
Speed Precison:0.1 m/s 95% (SA off)
Acceleration Precison:0.1 m/s (Without Aid)
Dynamic Characteristics:Max Height: <50,000m
                                             Max Speed: <515m/s
                                             Max Acceleration: <4G
UART Interface:UART Port:TXDA and RXDA
                            Support Rate:4800bps to 921600bps,Default 9600dps
Flash: 4M flash
The Module’s Pins: RX TX GND VCC
Working Temperature:-40℃-+85℃
Storage Temperature:-40℃-+105℃

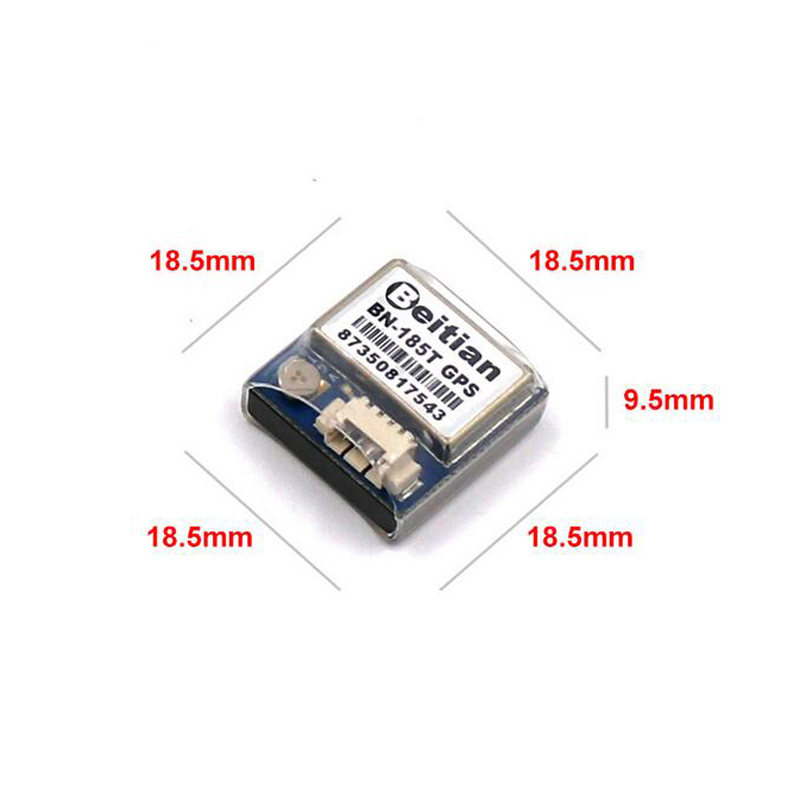

Size:18.5mm x 18.5mm x 9.5mm
Weight: 8.1g

Package Included:

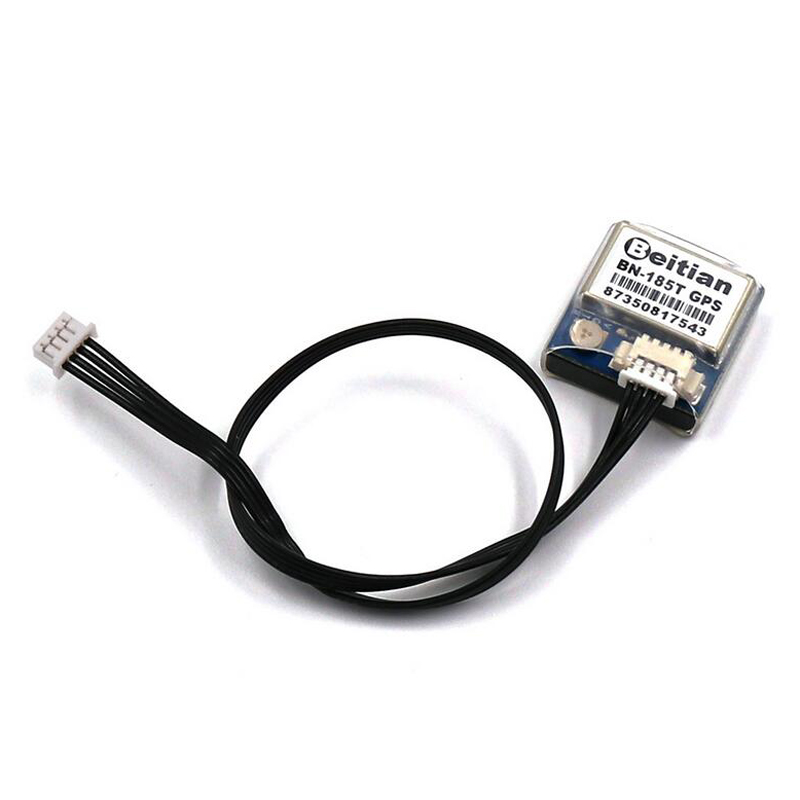

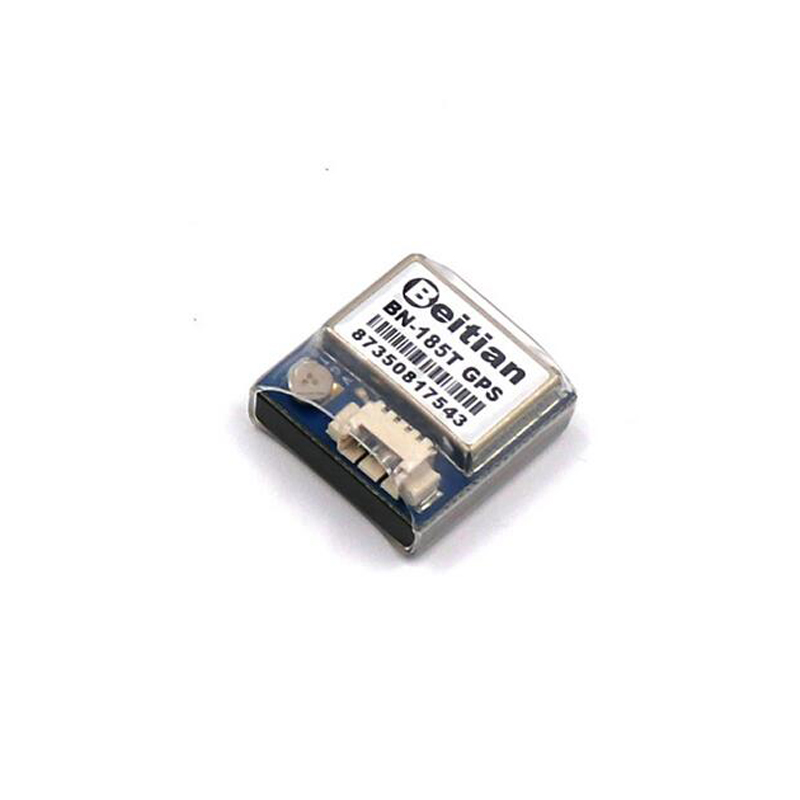

1 x BN-185T GPS Module

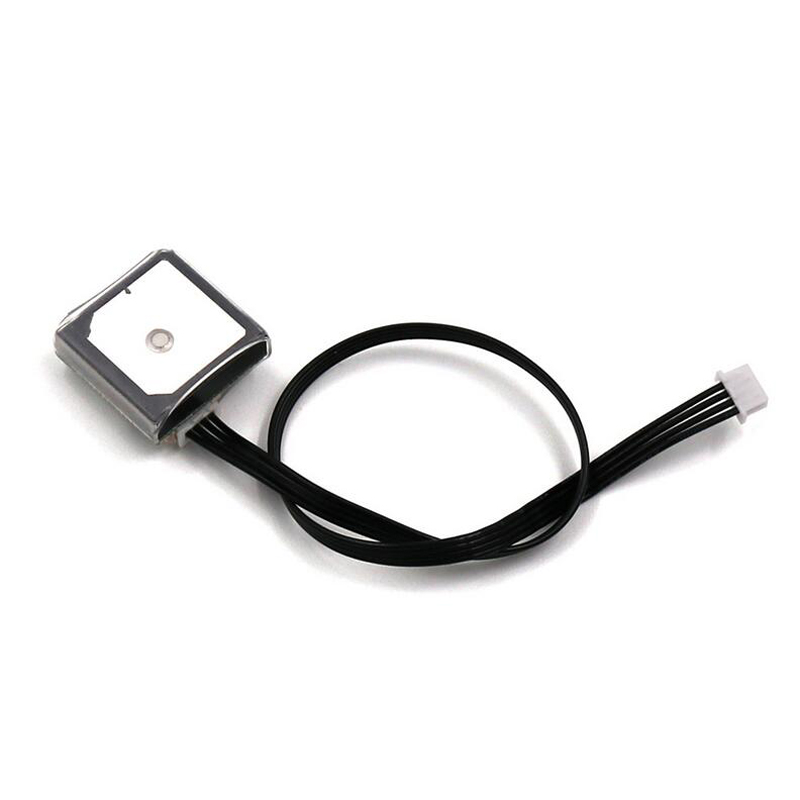

1 x ST-SH 1.25 4Pins 20cm Cable Wire
