$28.44
Ex Tax: $28.44
  • Stock: Out Of Stock
  • Model: EB000471
  • SKU: EB000471
S-OSD iOSD Remzibi OSD Module for DJI NAZA Lite/V2 GPS vs N-OSD

S-OSD-iOSD-Remzibi-OSD-Module-for-DJI-NAZA-LiteV2-GPS-vs-N-OSD-RC-Drone-958349
S-OSD-iOSD-Remzibi-OSD-Module-for-DJI-NAZA-LiteV2-GPS-vs-N-OSD-RC-Drone-958349

S-OSD-iOSD-Remzibi-OSD-Module-for-DJI-NAZA-LiteV2-GPS-vs-N-OSD-RC-Drone-958349

S-OSD-iOSD-Remzibi-OSD-Module-for-DJI-NAZA-LiteV2-GPS-vs-N-OSD-RC-Drone-958349

Description:

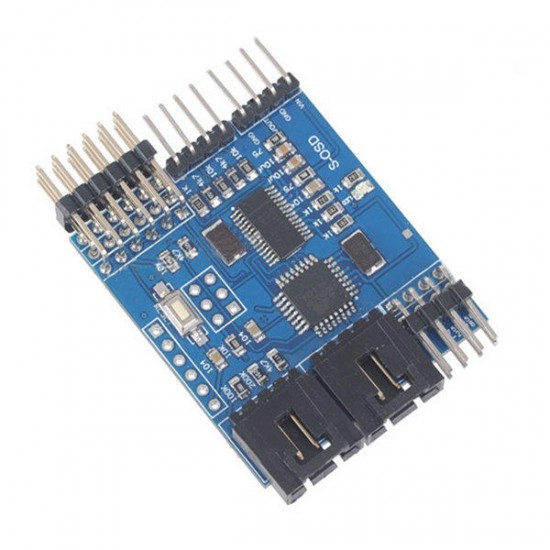

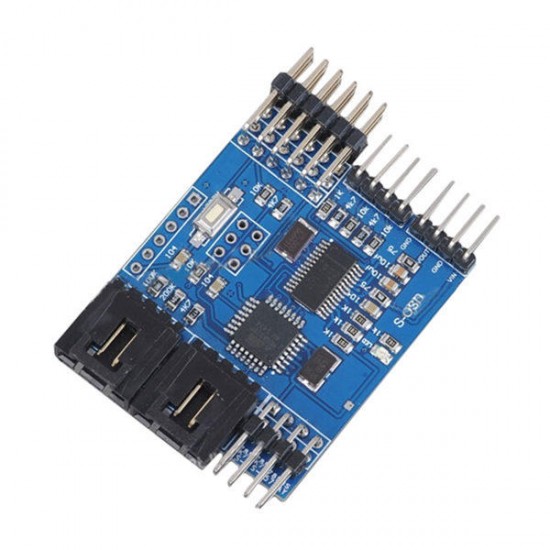

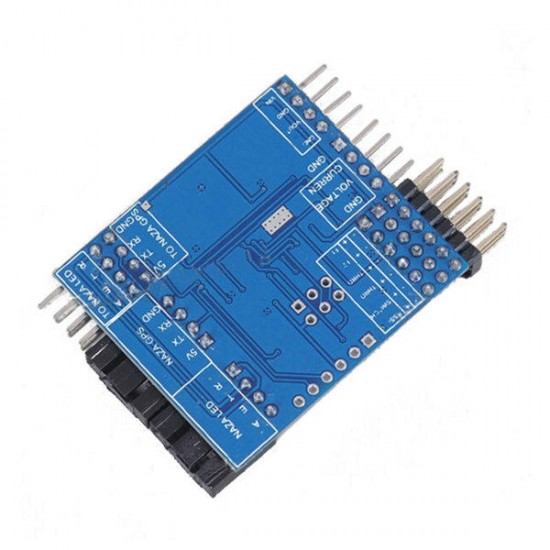

Item name: S-OSD Module
Size: 4.3cm x 3.8cm
Dynamic voltage detection: 3S-6S

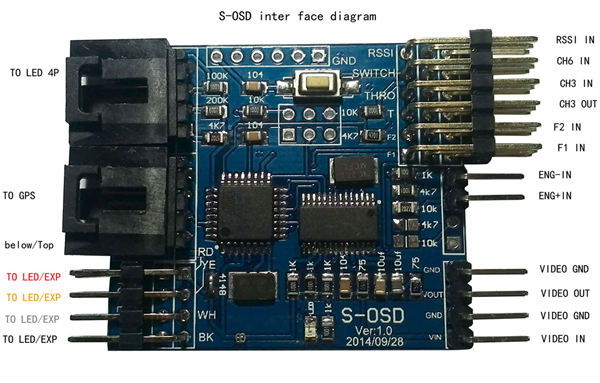

GPS Module and LED module connection:
1. GPS and LED: Use 4P-4P connect main controller GPS port and LED port, supply power to flight controller. If S-OSD power light lits, then it is right.
2. Then plug GPS module and LED module at S-OSD port.
3. Switch port: The function of switch port is screen switch. There are plenty of contents S-OSD will display, so need two screens display. One time one screen content. The screen switched by transmitter 3-step switch through switch port.
4. Throttle channel: S-OSD could display throttle channel signal data from 0%-100%. Two THRO port on S-OSD, one connects receiver throttle, the other connects flight controller.
5. Attitude cable: connects with flight controller f1/f2
6. RSSI: S-OSD could display receivers signal strength, this port is used to connect receivers RSSI port
7. Voltage detection function: wiring as picture shows
8. Video port: wiring as picture shows

Features:
Compatible with ordinary OSD display function
Added function: Flight mode, Flight attitude, throttle channel signal data(0%-100%), receiver signal strength(if receiver with RSSI function), screen switch function(dual screen display)

Note:
Suit to senior player.
Players can share GPS data that from flight controller to this S-OSD, but this may disturb the flight controller, we won't be responsible for any risks.

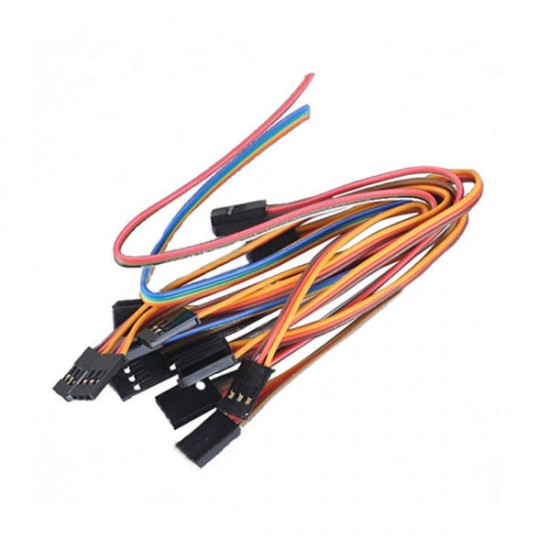

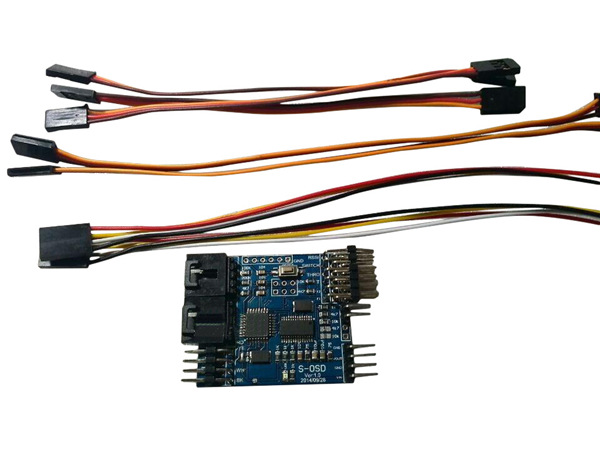

Package included:
1 x S-OSD
1 x 3P(10cm) switch thro T connect signal line
1 x 3P(15cm) F1 F2 connect signal line
1 x 4P(20cm) LED GPS connect signal line
