10pcs NA333 Human Micro Signal Multifunctional Three Op Amp Precision Instrumentation Amplifier Module

Based on 0 reviews. - Write a review

$47.00

Ex Tax: $47.00

Stock: In Stock
Model: EB0051161
SKU: EB0051161

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Content-Length: 2639 >

>>>Manual: Click here to open<<<

Feature:

The INA333 is a low power precision instrumentation amplifier with excellent accuracy. The gain can be set from 1 to 1000 with a single external resistor.

The INA333 is designed to use industry-standard gain equations: G = 1+ (100kΩ/RG)

Specifications:

Low offset voltage: 25μV (max), G ≥ 100

Low drift: 0.1μV/°C, G ≥ 100

Low noise: 50nV/√Hz, G ≥ 100

High common mode rejection ratio (CMRR): 100dB (minimum), G ≥ 10

Low input bias current: 200pA (max)

Low quiescent current: 50μA

Input voltage: (V–) + 0.1V to (V+) – 0.1V

Output voltage: (V–) + 0.05V to (V+) – 0.05V

Operating temperature range: -40°C to +125°C

Filtered radio frequency interference (RFI) input

Power supply range: 1.8V to 5.5V (single power supply), ±0.9V to ±2.75V (dual power supply)

Application:

Bridge amplifiers, electrocardiogram (ECG) amplifiers, pressure sensors, medical instruments, portable instruments, thermocouple amplifiers, resistive temperature detectors (RTD) sensor amplifiers, data acquisition, etc.

Instructions For Use:

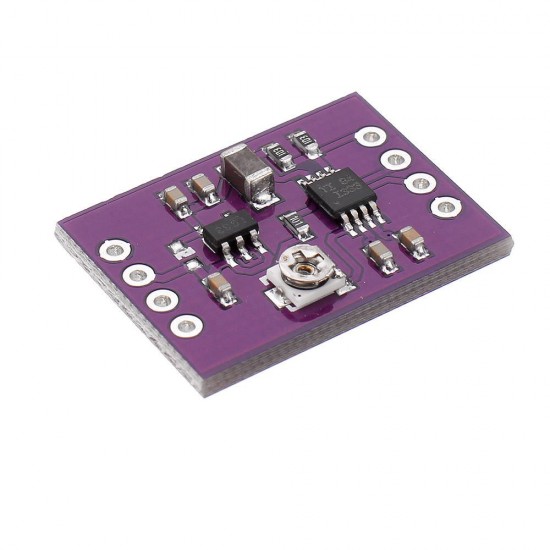

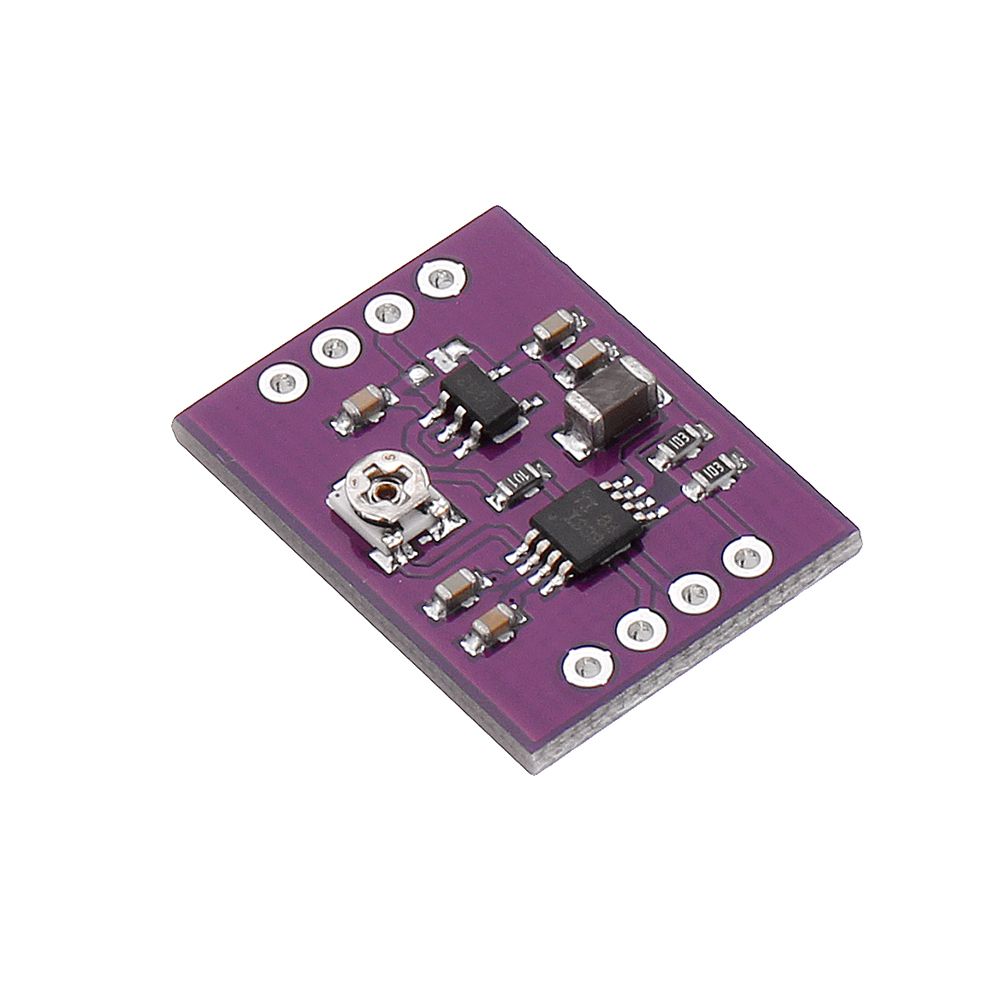

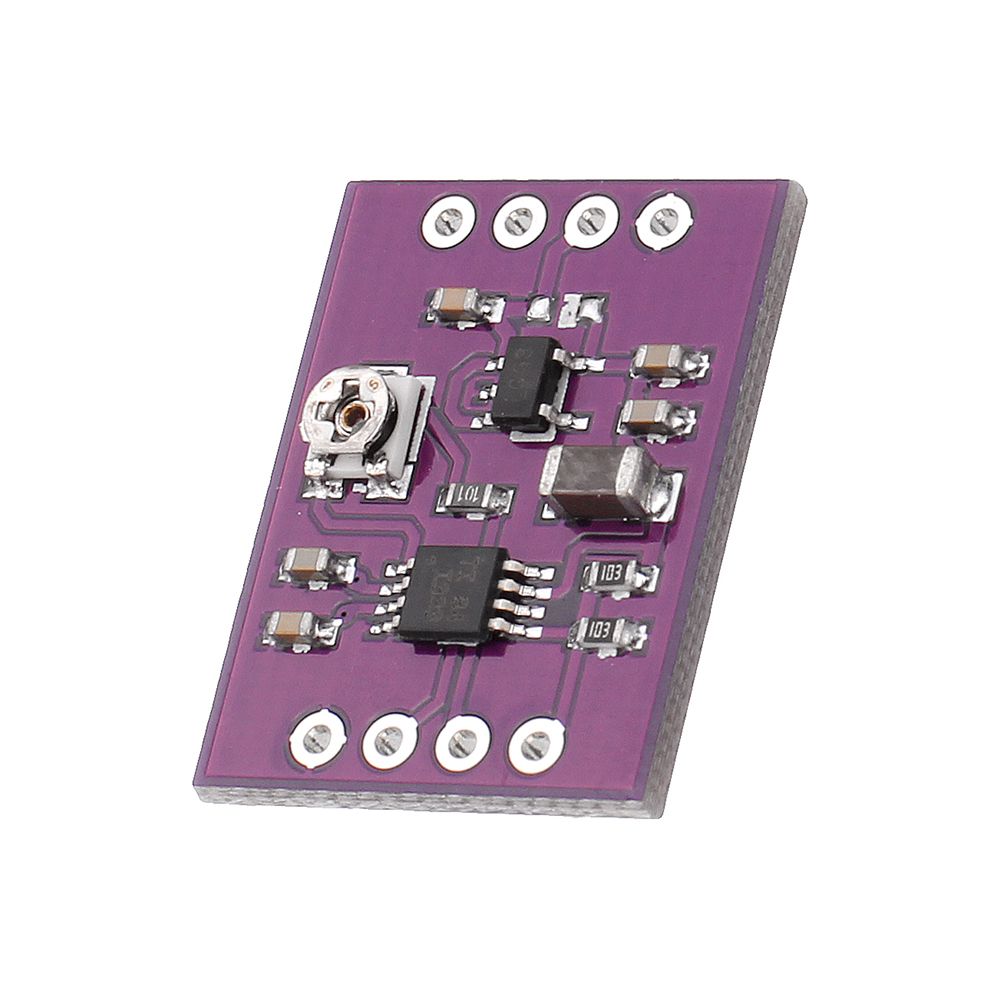

The on-board 3.3V low-dropout LDO regulator chip directly supplies power to the INA333 amplifier. The amplifier uses a single-ended power supply mode, V- is connected to GND, and V+ is connected to the 3.3V output of the LDO. The amplifier uses a 3.3V single-ended power supply.

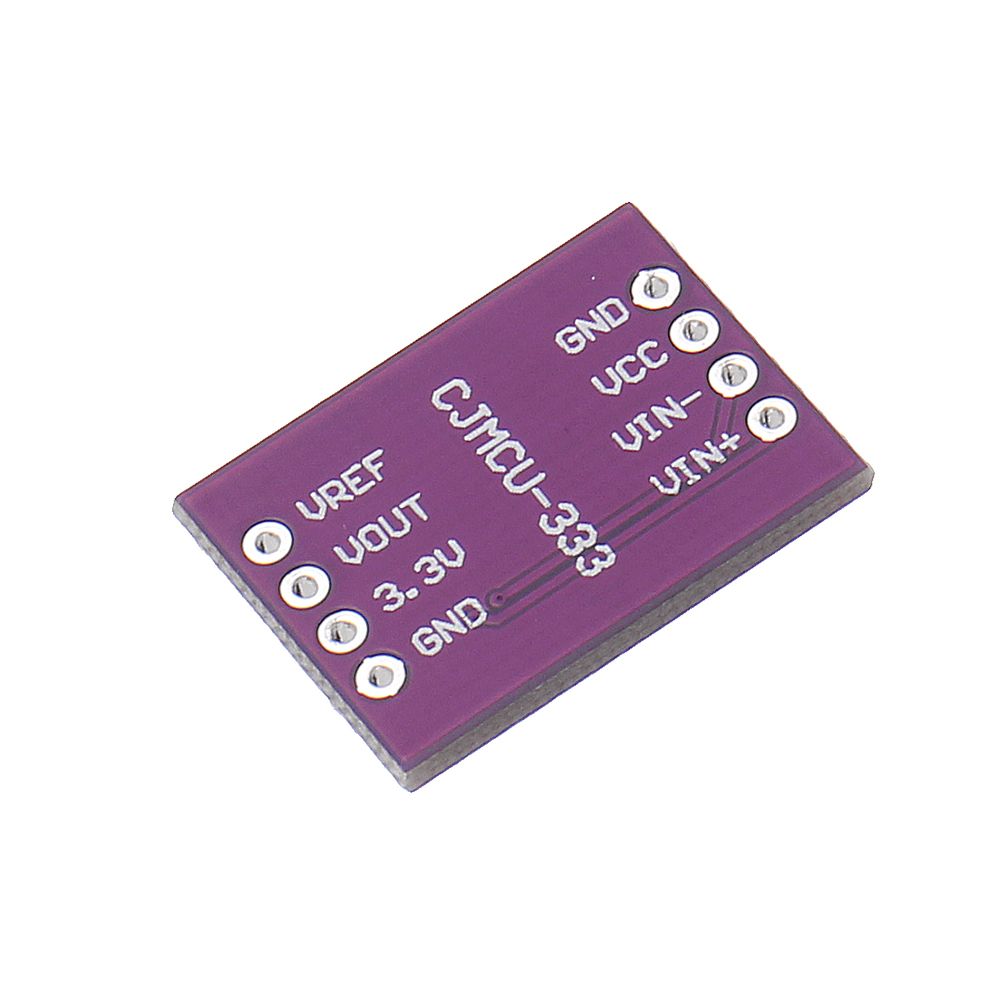

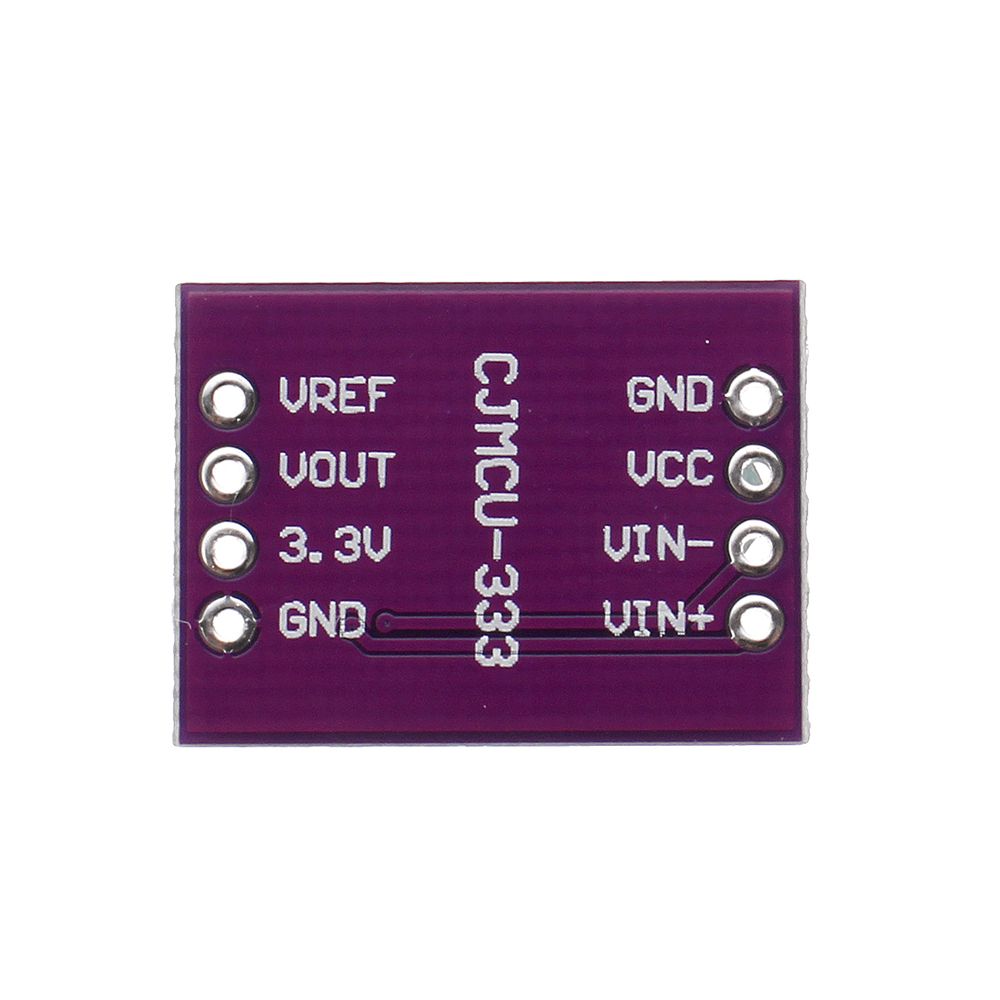

VIN+ non-inverting input, VIN-non-inverting input. R3 on the board is not soldered. VCC regulator LDO input 5V.

Package Included:

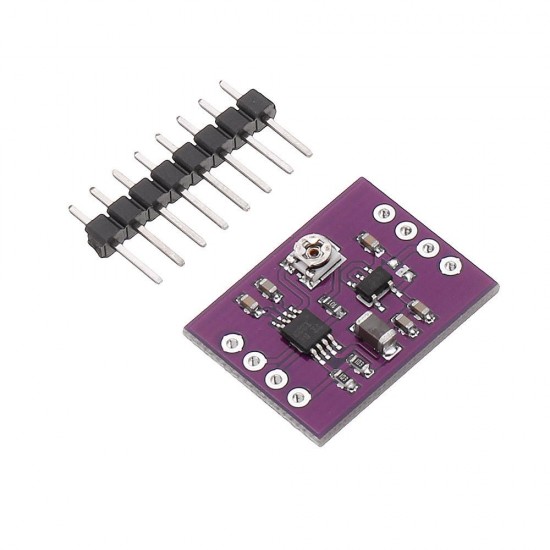

10 x NA333 Human Micro Signal Amplifier Module
