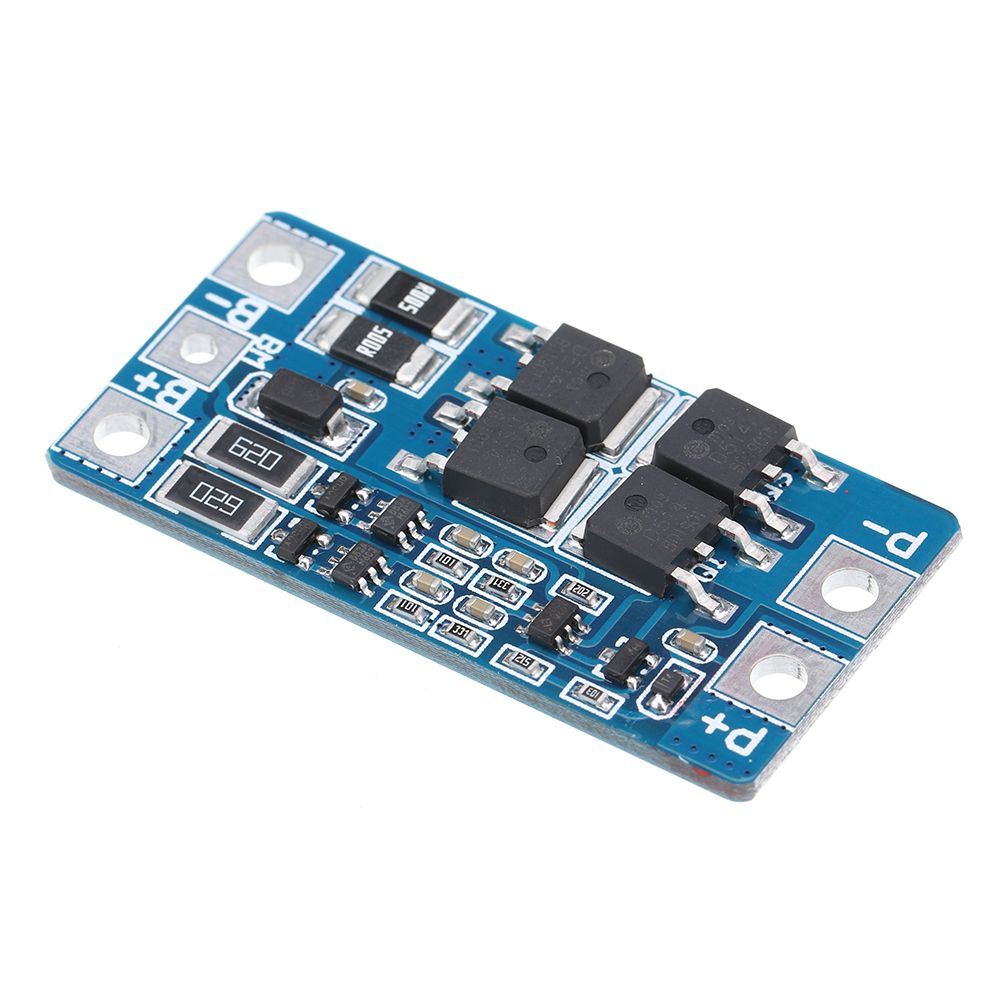

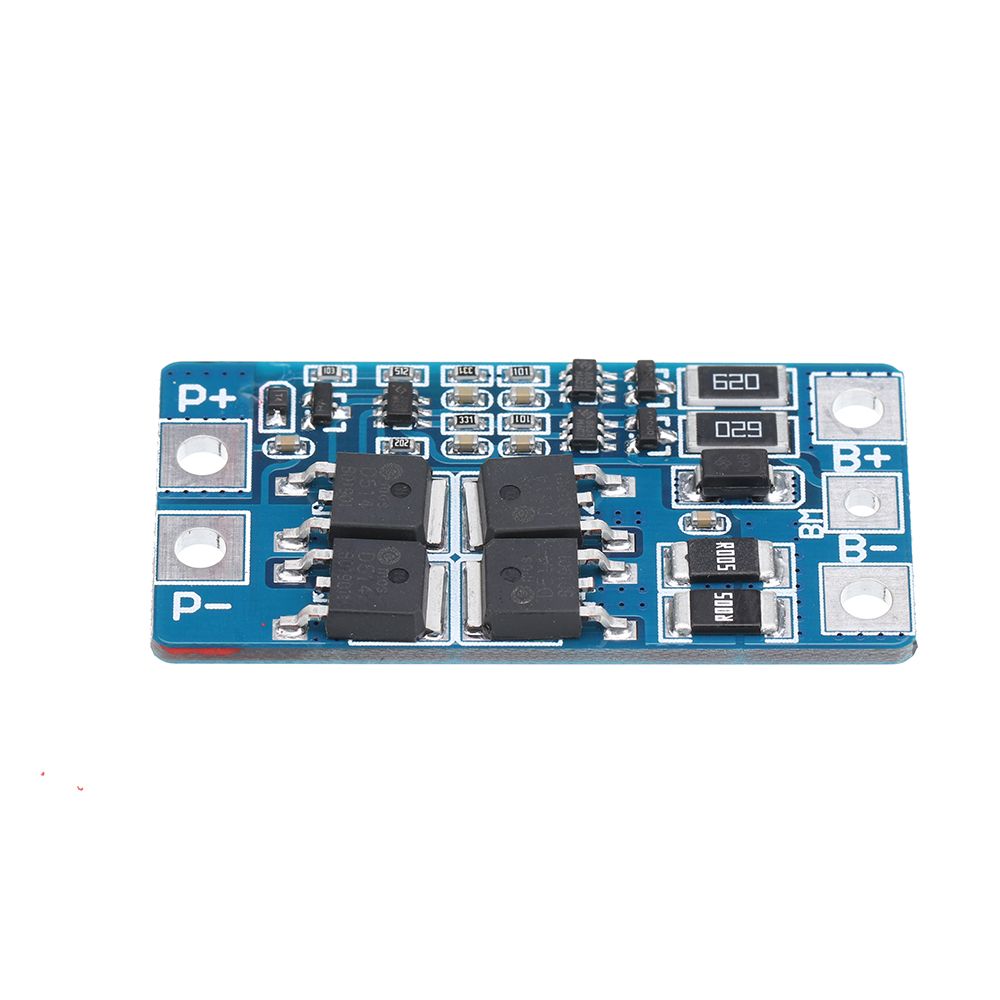

2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection

2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
2S 10A 7.4V 18650 Lithium Battery Protection Board 8.4V Balanced Function Overcharged Protection
$4.99
Ex Tax: $4.99
  • Stock: In Stock
  • Model: EB0046393
  • SKU: EB0046393
  • Number of Strings: 2S
    Precise details>>
    Specifications:

    Model: HX-2S-JH20
    Overcharge voltage range: 4.25±0.05v
    Size: 46.7*23*3.15mm
    Over-discharge voltage range: 2.9v±0.05v
    Upper limit working current: 10A
    Working temperature: -40---+50°C
    Upper limit instantaneous current: 20A
    Storage condition: -40-- +80°C
    Quiescent current: less than 10uA
    Internal resistance: less than 300mΩ
    Short circuit protection: protection, charge recovery
    Charging voltage: 8.4V-9V

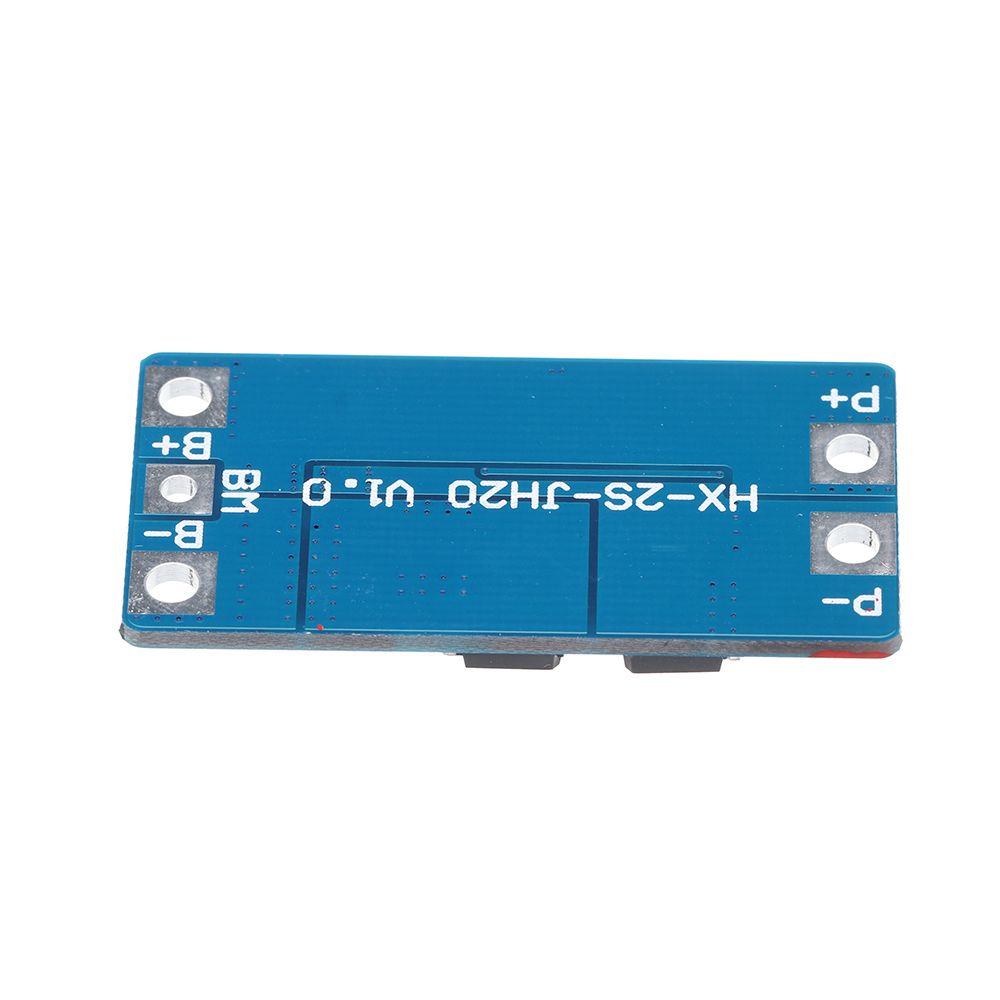

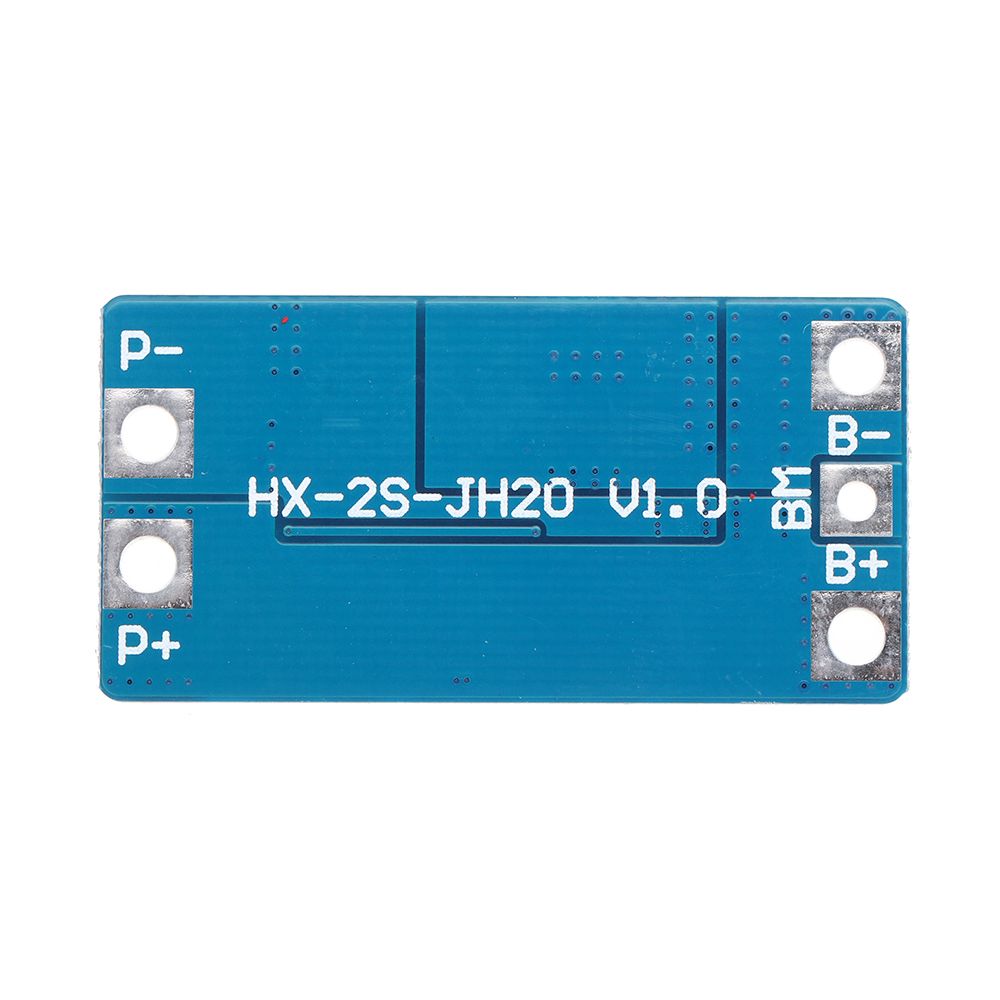

    Welding Point Description:

    · B+ is connected to the battery positive pole;
    · B- is connected to the negative pole of the battery;
    · MB is connected to the connection point between battery 1 and battery 2;
    · P+ is connected to the positive terminal of the charge/discharge terminal (the charge terminal/discharge terminal is shared);
    · P- Connect the charge/discharge terminal negative (common to the charge/discharge terminal).

    Warm reminder: When the battery pack is combined, the battery voltage, capacity and internal resistance should be matched well. After the battery pack is assembled, there is no output. Use 8.4V voltage to charge.

    Note:

    1. Lithium battery protection board can not be used for lithium iron phosphate battery xenon lamp, hand resistance battery pack, electric fish battery pack, electric bicycle battery pack, children's car battery, 550 or more power type motor, 1W fisheye LED lamp.
    2. Lithium battery protection board is suitable for massager battery pack, LED light backup power supply, 12V electronic products, solar street light battery pack, monitoring standby power supply and other products.
    3. Lithium iron phosphate protection board can not be used for xenon lamp, hand drill battery pack, electric tool battery pack, electric fish battery pack, vacuum cleaner, sweeper battery pack, electric bicycle battery pack, baby car battery, 550 or more power type Motor, 1W fisheye LED light.

    Package Included:

    1 x 2S 10A 7.4V 18650 Lithium Battery Protection Board


    2S-10A-74V-18650-Lithium-Battery-Protection-Board-84V-Balanced-Function-Overcharged-Protection-1538503

    2S-10A-74V-18650-Lithium-Battery-Protection-Board-84V-Balanced-Function-Overcharged-Protection-1538503

    2S-10A-74V-18650-Lithium-Battery-Protection-Board-84V-Balanced-Function-Overcharged-Protection-1538503

    2S-10A-74V-18650-Lithium-Battery-Protection-Board-84V-Balanced-Function-Overcharged-Protection-1538503
