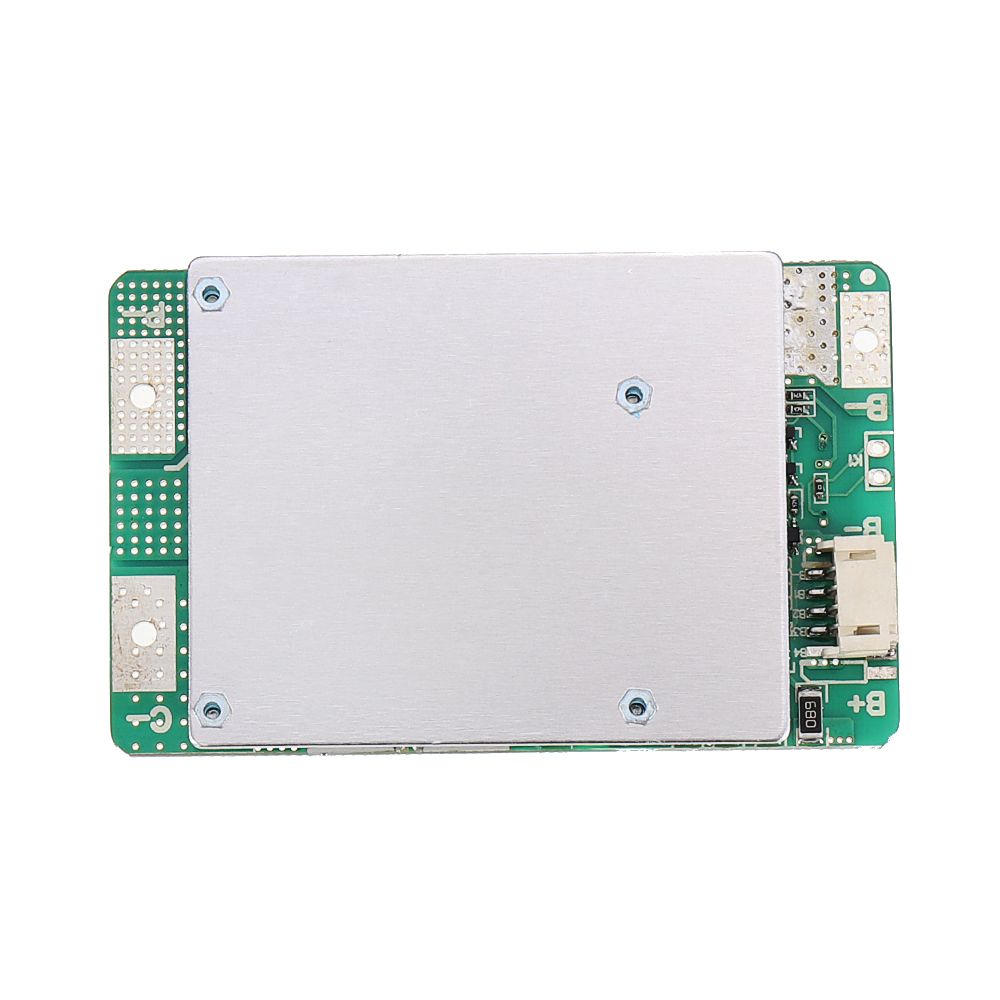

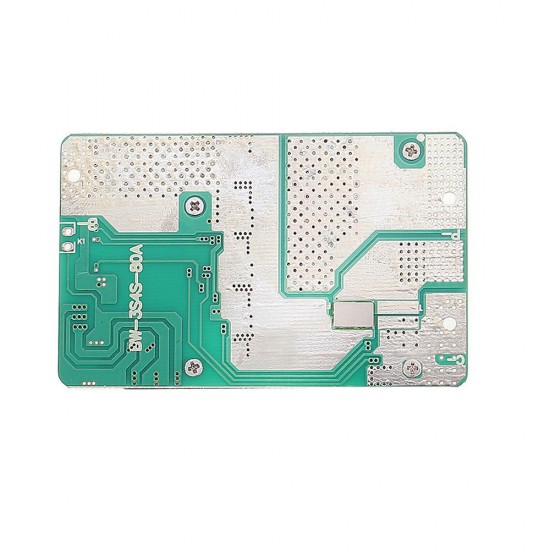

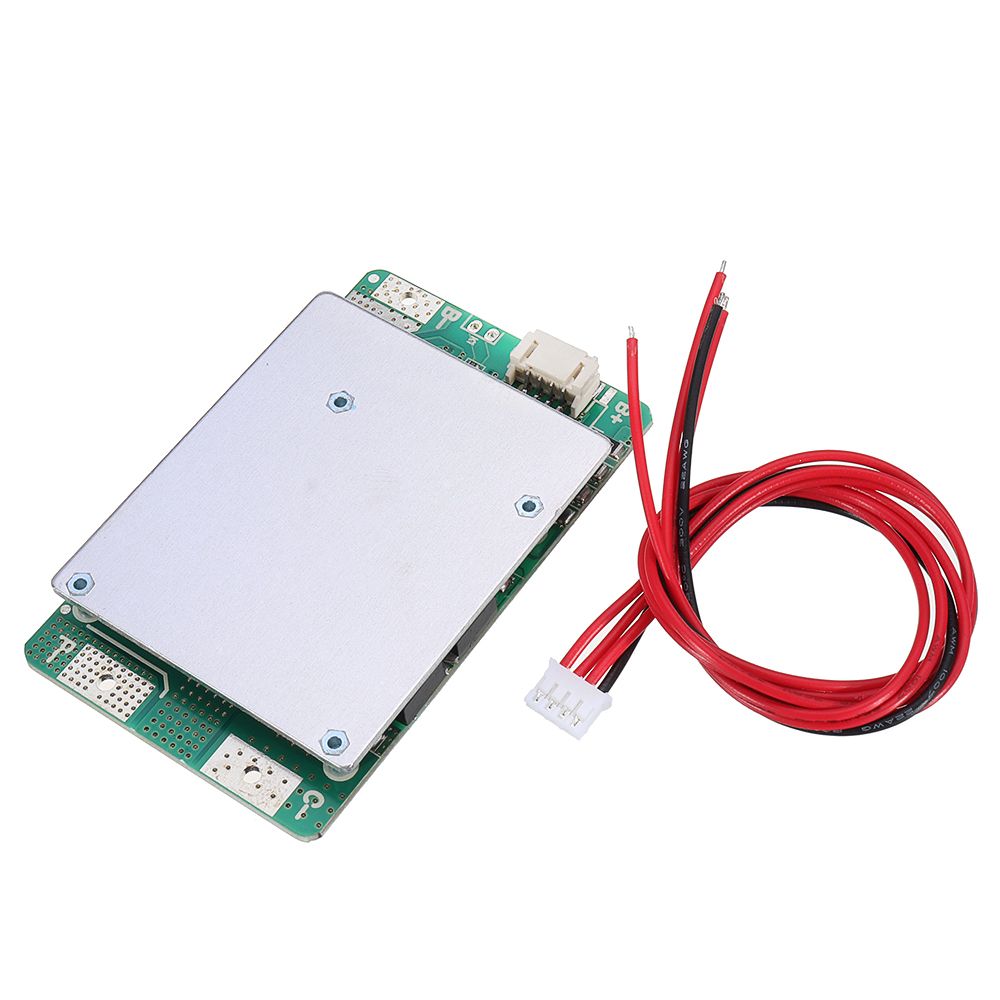

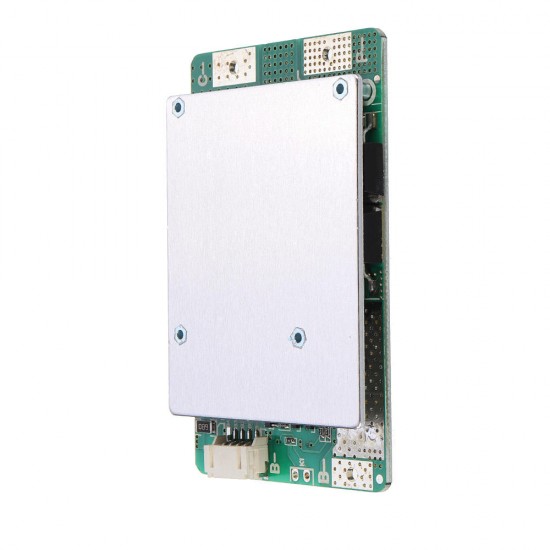

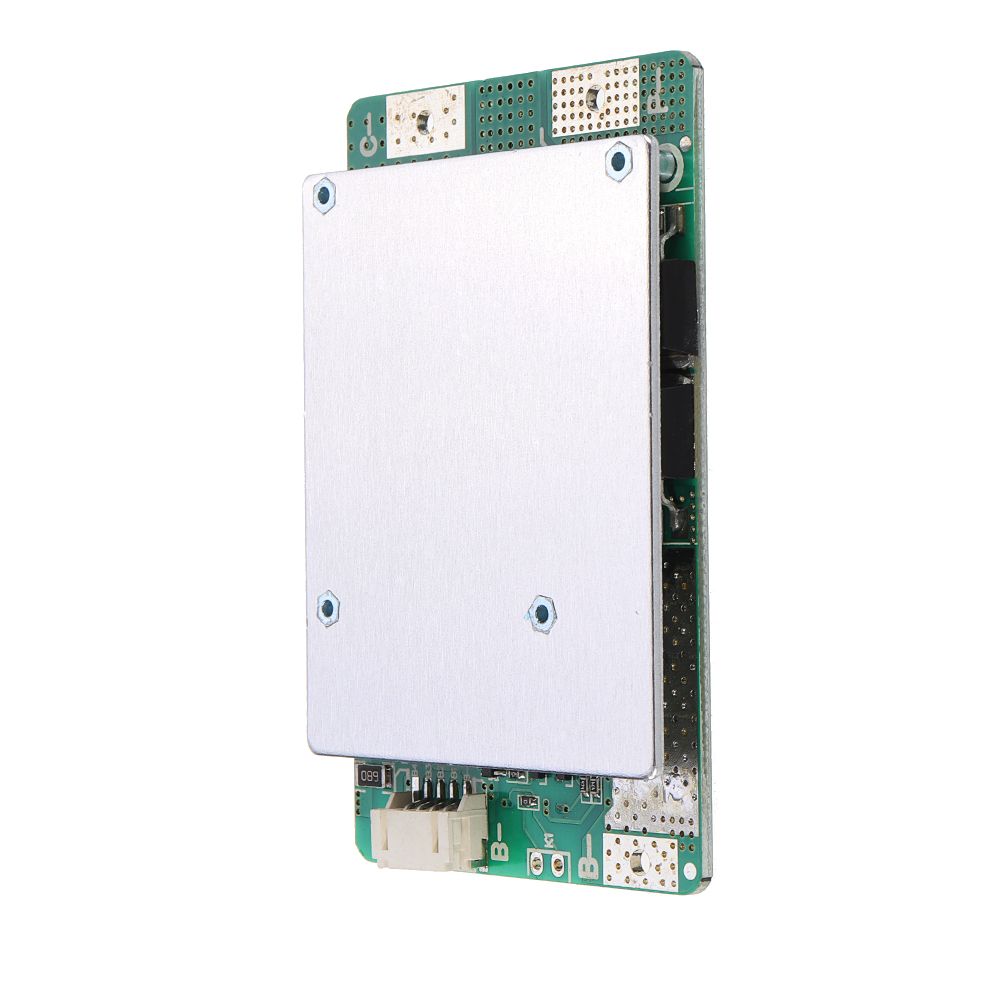

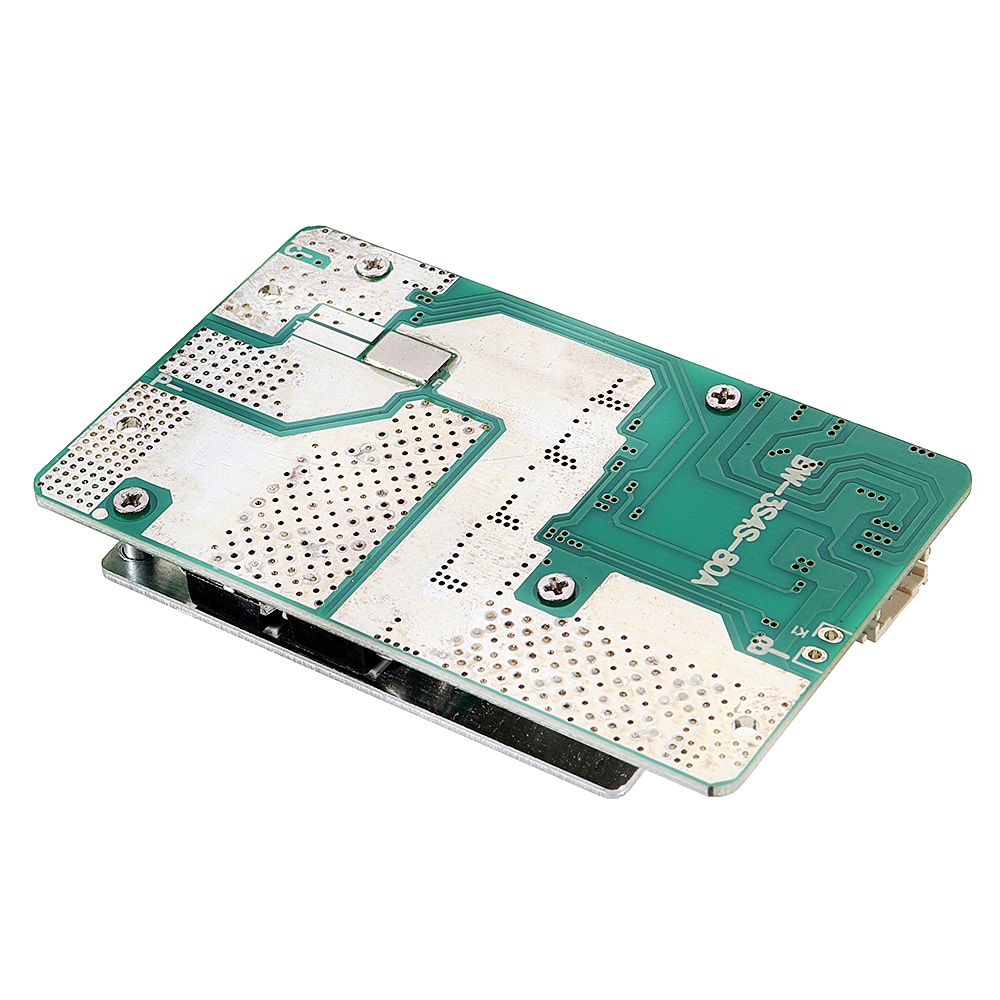

3pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board

3pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board
3pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board
3pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board
3pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board
3pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board
3pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board
3pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board
3pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board
3pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board
3pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board
3pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board
3pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board
3pcs 3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board
$20.99
Ex Tax: $20.99
  • Stock: In Stock
  • Model: EB0046146
  • SKU: EB0046146
Function:

Common Problem: Click here to open

Overcharge protection
Over discharge protection
Overcurrent protection
Short circuit protection
Equalization function

Feature:

Test items   Standard
Voltage Charging voltage DC: 12.6V -15V CC/CV
Single-section equalization voltage  4.2V
Current Single-phase equalization current  44 MA
Working current 80A-100A
Large continuous discharge current 150A
Overcharge protection Overcharge detection voltage 4.275 V±0.025V
Overcharge detection delay time 150-500 ms
Overcharge recovery voltage 4.075V±0.025V
Overdischarge protection Overdischarge detection voltage 2.9V±0.1V
Overdischarge detection delay time 50-150ms
Overdischarge recovery voltage 2.9V±0.10V
Overcurrent protection Overcurrent detection voltage 150±30mv
Overcurrent detection current 150A±0.5A
Overcurrent detection delay time 5ms-15ms
Recovery status Automatic recovery
Short circuit protection Detection status External short circuit
Detection delay time ≤50us
Recovery status Automatic recovery
Internal resistance Protection line (MOSPET) ≤40mΩ
Temperature Range of working temperature -40 ~ +75℃
Storage temperature range -40 ~ +90℃

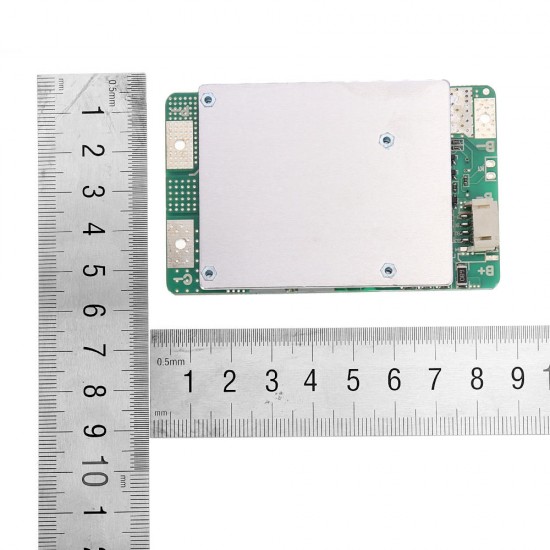

Size (L*W*H) 82*51.4*8 MM

Package includes:

3 x Battery Protection Board
