3pcs 4S Series Protection Board 30A 12.8V Discharge with Balance 3.2V Lithium Iron Phosphate Battery Protection Board 10MOS

3pcs 4S Series Protection Board 30A 12.8V Discharge with Balance 3.2V Lithium Iron Phosphate Battery Protection Board 10MOS
3pcs 4S Series Protection Board 30A 12.8V Discharge with Balance 3.2V Lithium Iron Phosphate Battery Protection Board 10MOS
3pcs 4S Series Protection Board 30A 12.8V Discharge with Balance 3.2V Lithium Iron Phosphate Battery Protection Board 10MOS
3pcs 4S Series Protection Board 30A 12.8V Discharge with Balance 3.2V Lithium Iron Phosphate Battery Protection Board 10MOS
3pcs 4S Series Protection Board 30A 12.8V Discharge with Balance 3.2V Lithium Iron Phosphate Battery Protection Board 10MOS
3pcs 4S Series Protection Board 30A 12.8V Discharge with Balance 3.2V Lithium Iron Phosphate Battery Protection Board 10MOS
3pcs 4S Series Protection Board 30A 12.8V Discharge with Balance 3.2V Lithium Iron Phosphate Battery Protection Board 10MOS
3pcs 4S Series Protection Board 30A 12.8V Discharge with Balance 3.2V Lithium Iron Phosphate Battery Protection Board 10MOS
3pcs 4S Series Protection Board 30A 12.8V Discharge with Balance 3.2V Lithium Iron Phosphate Battery Protection Board 10MOS
3pcs 4S Series Protection Board 30A 12.8V Discharge with Balance 3.2V Lithium Iron Phosphate Battery Protection Board 10MOS
3pcs 4S Series Protection Board 30A 12.8V Discharge with Balance 3.2V Lithium Iron Phosphate Battery Protection Board 10MOS
3pcs 4S Series Protection Board 30A 12.8V Discharge with Balance 3.2V Lithium Iron Phosphate Battery Protection Board 10MOS
3pcs 4S Series Protection Board 30A 12.8V Discharge with Balance 3.2V Lithium Iron Phosphate Battery Protection Board 10MOS
$20.00
Ex Tax: $20.00
  • Stock: In Stock
  • Model: EB0047096
  • SKU: EB0047096
>
Note:

Common Problem: Click here to open

For discharge products above 3A, the battery discharge rate should be more than 3C.
Magnification calculation formula: 1C rate battery, 2000 capacity is equal to 2AH*1=2A working current.
3C rate battery, 2000 capacity is equal to 2AH*3=6A working current.
In the use of the battery is hot, that means the battery rate is not applicable, this situation can not be used for a long time, the battery will be damaged quickly.


Details Item Specification Unit Remark
Discharge Continuous discharge current 100 A Attention temperature
Instantaneous discharge current 120 A
Charging Charging voltage Iron lithium charger 12.8V V Switching power supply 15-16V
Charging current 10(MAX) A
Overcharge protection Overcharge detection voltage 3.75±0.05 V Single core
Overcharge protection delay 1300 MS
Overcharge release voltage 3.6±0.05 V Single core
Electricity balance Battery balance detection voltage 3.60±0.05 V
Battery balance release voltage 3.59±0.05 V
Battery balance current 58 mA
Overdischarge protection Overdischarge detection voltage 2.1±0.08 V
Overdischarge detection delay 145 S
Overdischarge release voltage 2.3±0.1 V
Overcurrent protection Overcurrent detection voltage 200 mV
Overcurrent detection delay 20 mS
Overcurrent protection current 120±10 A
Overcurrent protection release condition Disconnect load
Short circuit protection Short circuit protection condition External load short circuit
Short circuit detection delay 300 uS
Short circuit protection release condition Disconnect negative
Temperature protection Temperature protection / Can add external temperature switch
Internal resistance Main circuit conduction internal resistance ≤20
Self-consumption Working current ≤30 uA
Sleep current (when the battery is over-discharged) ≤20 uA
Operating temperature Temperature range  -20 to +80
Dimension   70*60*8.5 mm

Package includes:

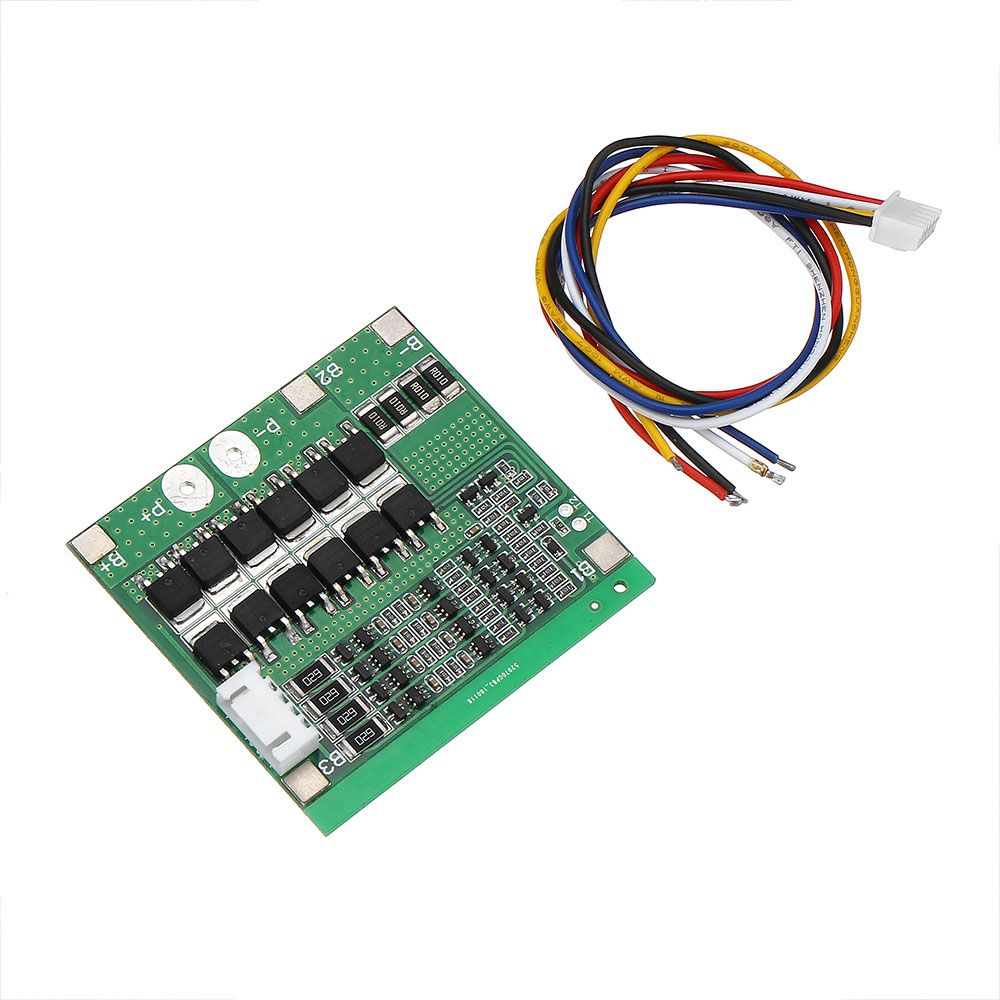

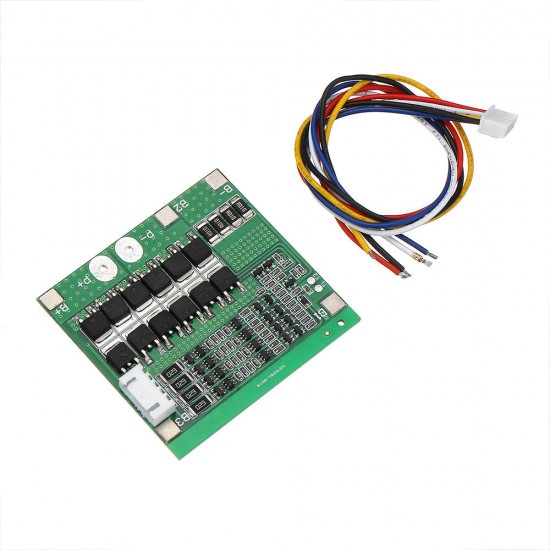

3 x Battery Protection Board



3pcs-4S-Series-Protection-Board-30A-128V-Discharge-with-Balance-32V-Lithium-Iron-Phosphate-Battery-P-1616731

3pcs-4S-Series-Protection-Board-30A-128V-Discharge-with-Balance-32V-Lithium-Iron-Phosphate-Battery-P-1616731

3pcs-4S-Series-Protection-Board-30A-128V-Discharge-with-Balance-32V-Lithium-Iron-Phosphate-Battery-P-1616731

3pcs-4S-Series-Protection-Board-30A-128V-Discharge-with-Balance-32V-Lithium-Iron-Phosphate-Battery-P-1616731

3pcs-4S-Series-Protection-Board-30A-128V-Discharge-with-Balance-32V-Lithium-Iron-Phosphate-Battery-P-1616731

3pcs-4S-Series-Protection-Board-30A-128V-Discharge-with-Balance-32V-Lithium-Iron-Phosphate-Battery-P-1616731
