$5.99
Ex Tax: $5.99
  • Stock: In Stock
  • Model: EB0041392
  • SKU: EB0041392
  • Voltage: DC5V
    Precise details>>
    Description:

    This is a commonly used LED White Light Module . At the same time, it comes with an anti-reverse insertion white terminal with a pitch of 2.54mm. For wiring, we also sent a 3pin cable, one end of the line is white anti-reverse plug interface (and the white anti-reverse plug on the module terminal matching), the other end is a 3pin DuPont female connector. After GND VCC is powered, when the signal terminal S is high, the LED on the module lights up.

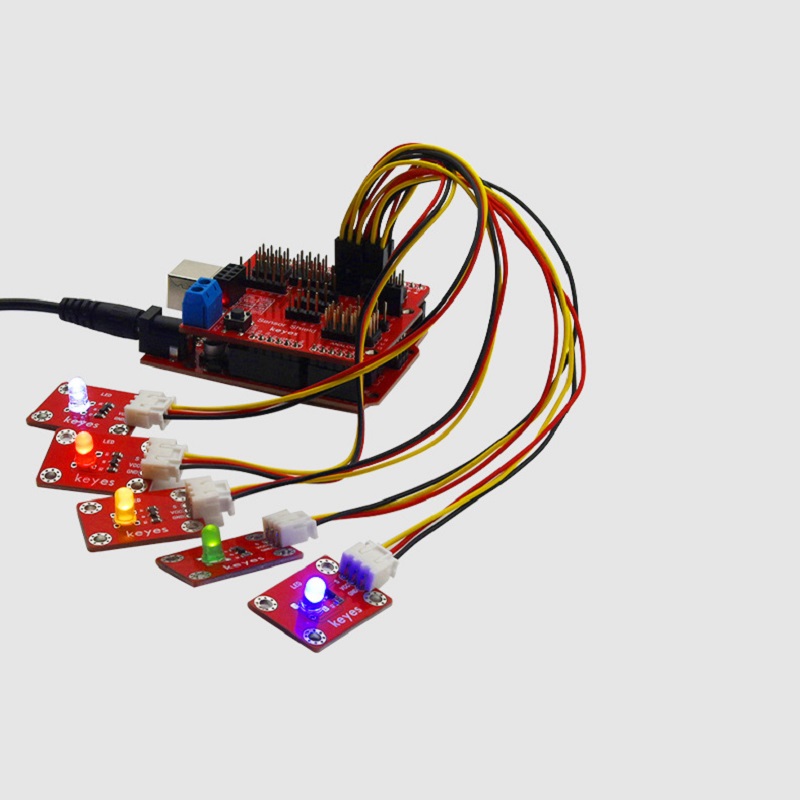

    The module is compatible with various MCU control boards, such as  MCU. When using, a sensor expansion board can be stacked on the microcontroller. Connect the module with its own wire ,it is simple and convenient to connect to the sensor expansion board.
    At the same time, the module comes with 4 positioning holes with a diameter of 3mm, which is convenient for you to fix the module on other equipment.

    Specification:

    Working voltage: DC 3.3V-5V
    Interface: 3PIN Anti-reverse interface
    Hole size: 3mm in diameter
    Wire length: 200mm
    Control signal: digital signal
    Size: 34*22*12mm
    Weight: 2.6g

    Package included:

    1 x LED White Light Module
    1 x  3PIN Dupont line
    (the other items are not includes)
