RS-485 M5Atomic TTL & RS485 Converter SP3485EE RS485 Multipoint Communication Industrial Control Node

Based on 0 reviews. - Write a review

$18.99

Ex Tax: $18.99

Stock: In Stock
Model: EB0050900
SKU: EB0050900

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Voltage: DC5V

Precise details>>

Description:

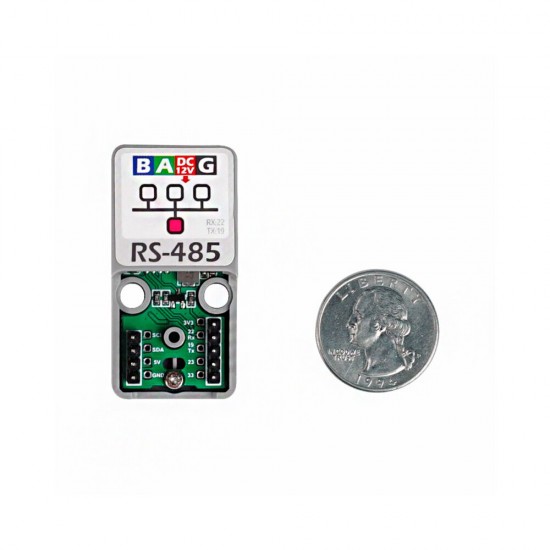

ATOM RS-485 is a TTL-RS485 converter designed for use with M5Atomic. It's function is for TTL level and RS485 level-conversion. RS485 is a communication protocol standard, which is used to define the electrical characteristics of drivers and receivers of a serial communication system. It supports amulti-point system and is widely used in industry. When the applications equipment needs to communicate and be controlled through RS485, ATOM RS-485 is an excellent choice. A DC/DC voltage regulator chip is integrated in the ATOM RS-485, which can directly convert the 12V voltage of RS485 to 5V to supply power for M5ATOM, avoiding the trouble of using a separate power supply.

Features:

- Compatible ATOM Matrix/ATOM Lite

- SP3485EE

- Built-in DC/DC

- Multipoint communication

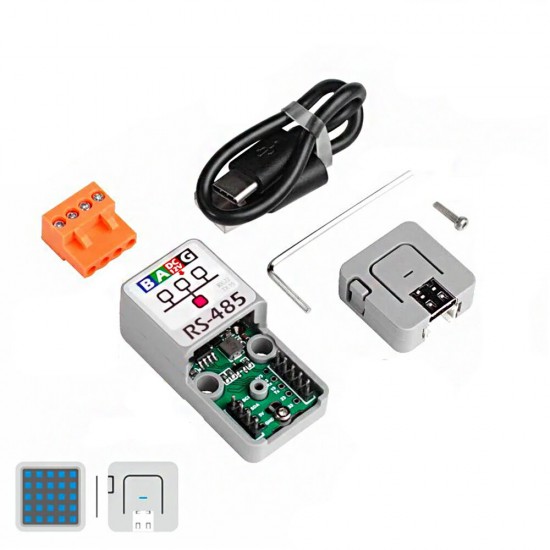

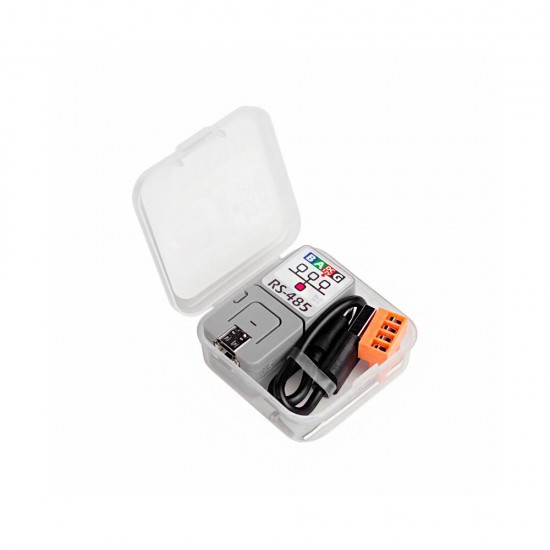

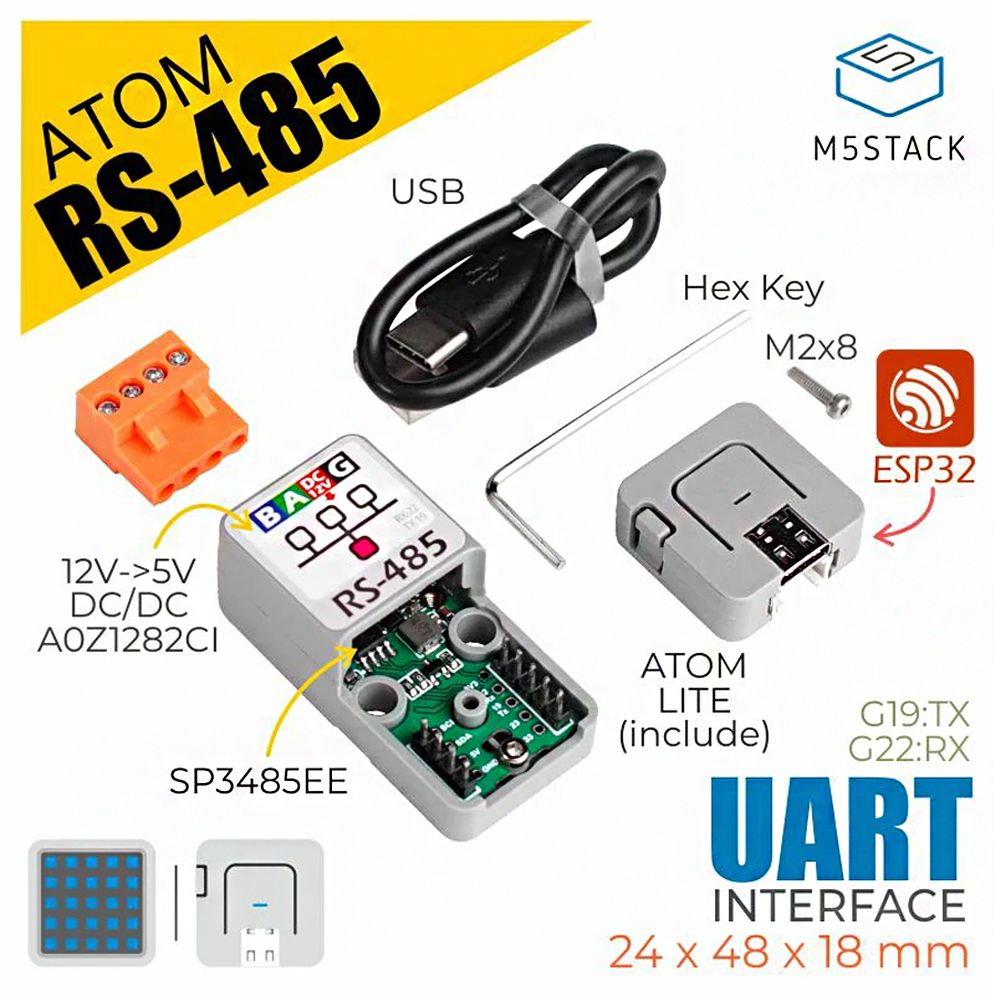

Package Included:

- 1x ATOM RS-485

- 1x ATOM Lite

- 1x Key

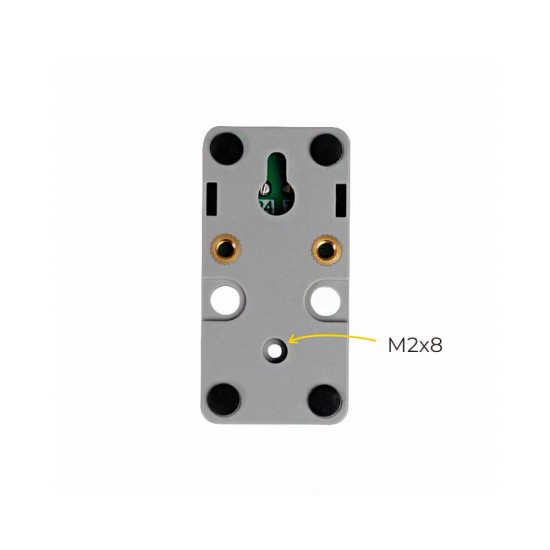

- 1x M2*8mm Heagon socket cup head machine screw

- 1x 18cm TYPE-C Cable

Applications:

- RS485 Multipoint communication

- Industrial control node

- RS485 to WiFi

Specification:

Specification	Parameter

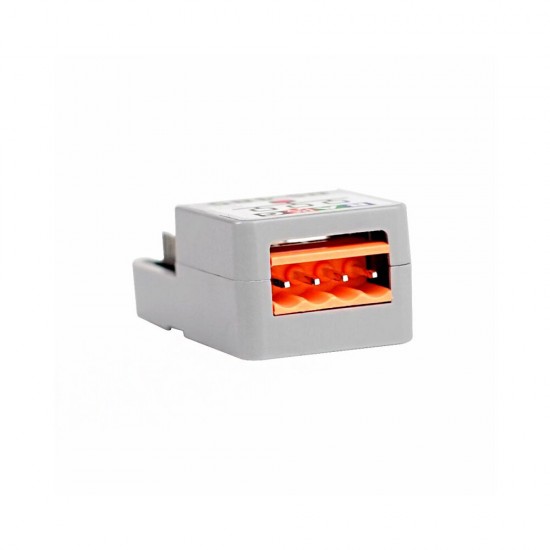

External port	VH-3.96 4P
Conversion level	5V<->12V
level-conversion IC	SP3485EE
DC-DC	A0Z1282CI
net weight	28g
Gross weight	38g
Product Size	244818mm
Package Size	545420mm
Case material	Plastic ( PC )

EasyLoader: Click to download: https://www.renhotecic.com/image/download/rar/20200819012120EasyLoader.rar

EasyLoader is a concise and fast program writer, which has a built-in program related to the product. It can be burned to the main control by simple steps to perform a series of function verification. Please install the corresponding driver according to the device type. M5Core host Please click here to view the CP210X driver installation tutorial: https://docs.m5stack.com/#/en/arduino/arduino_development, M5StickC/V/T/ATOM series can be used without driver)

Related Link:

SP485EEN: https://www.renhotecic.com/image/download/pdf/SP485EEN_en.pdf

AOZ1282CI: https://www.renhotecic.com/image/download/pdf/AOZ1282CI-datasheet.pdf

Pin Map:

ATOM	GPIO22	GPIO19	5V	GND
ATOM RS-485	RX	TX	5V	GND

Schematic: Click : http://myosuploads3.banggood.com/products/20200819/2020081902475341190.jpgHere: http://myosuploads3.banggood.com/products/20200819/2020081902475341190.jpg

Example:

1. Arduin IDE

Click here to download Arduin example: https://github.com/m5stack/M5-ProductExampleCodes/tree/master/AtomBase/AtomicRS485/Arduino/AtomicRS485

2. UIFlow

Click here to download UIFlow example: https://github.com/m5stack/M5-ProductExampleCodes/tree/master/AtomBase/AtomicRS485/UIFlow
