$15.99
Ex Tax: $15.99
  • Stock: In Stock
  • Model: EB0050339
  • SKU: EB0050339
  • Voltage: DC3.3V
    Precise details>>
    >
    Documents:

    Code: Click here to open: https://www.waveshare.com/wiki/File:1.8inch-LCD_Module-Code.7z

    Overview:

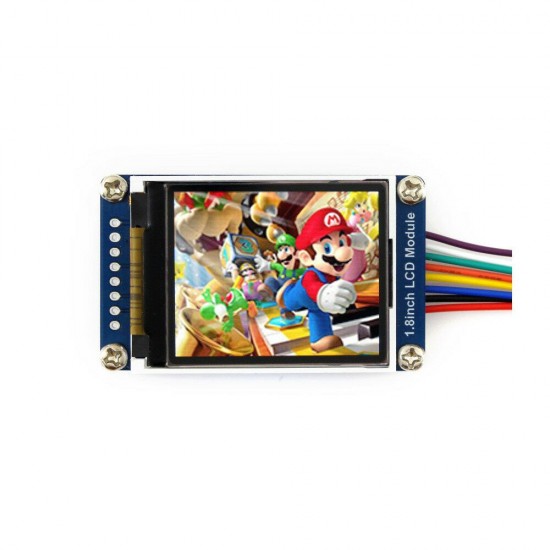

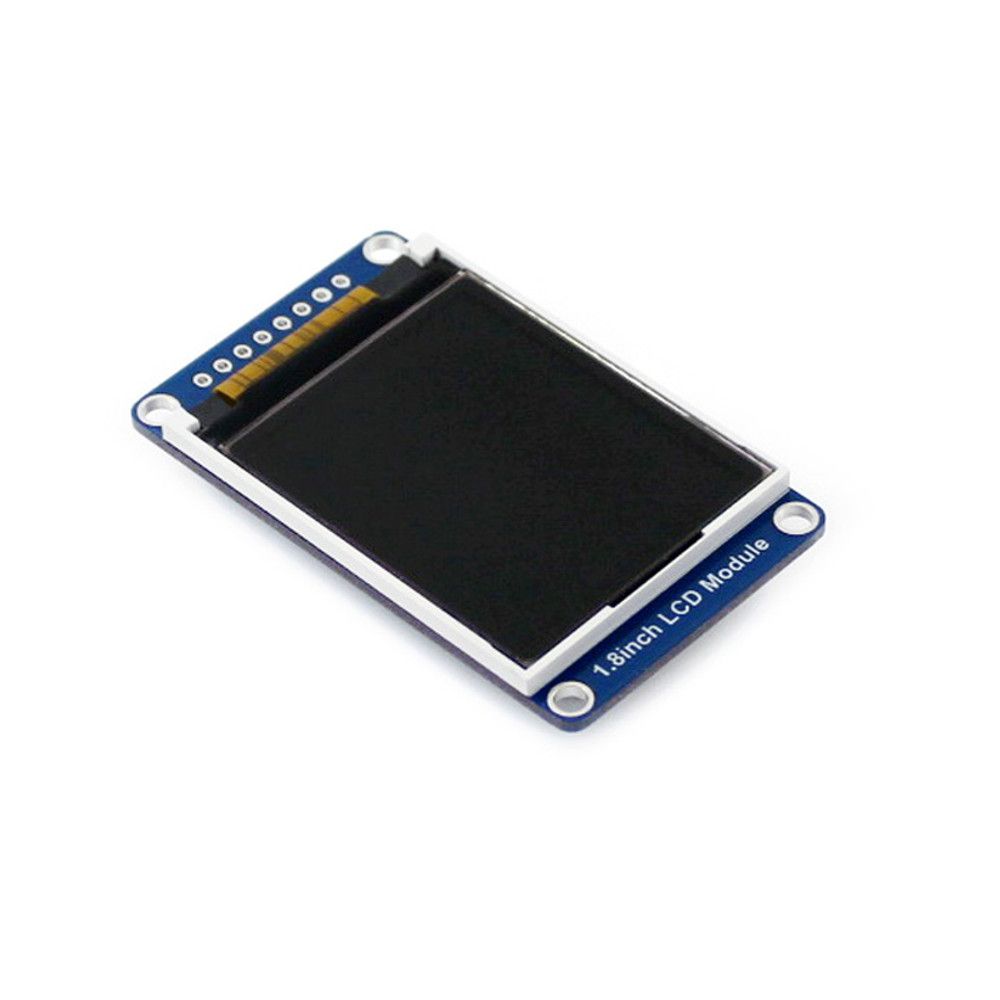

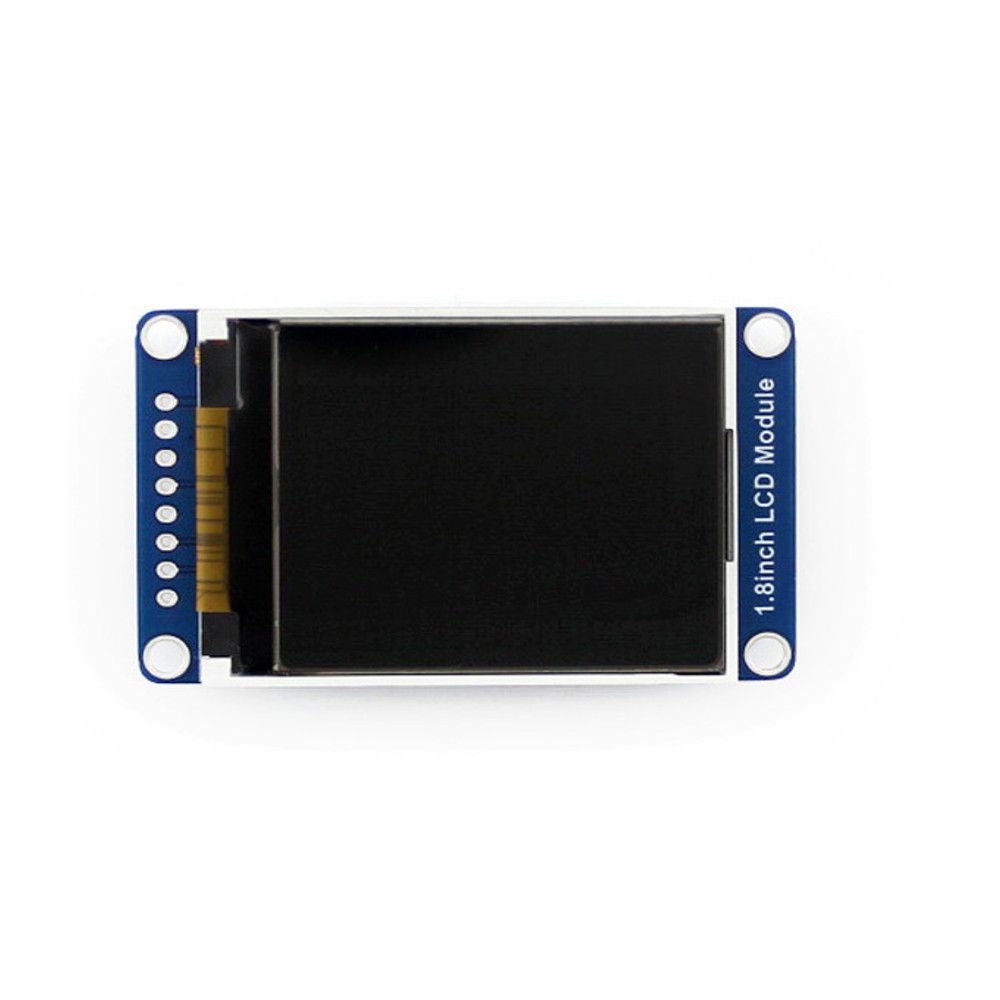

    This is a general LCD display Module, 1.8inch diagonal, 128x160 pixels, with embedded controller, communicating via SPI interface.

    Features:

    SPI interface, requires minimum GPIO for controlling

    Specifications:

    Driver: ST7735S
    Interface: SPI
    Display color: RGB, 65K color
    Resolution: 128x160
    Backlight: LED
    Operating voltage: 3.3V

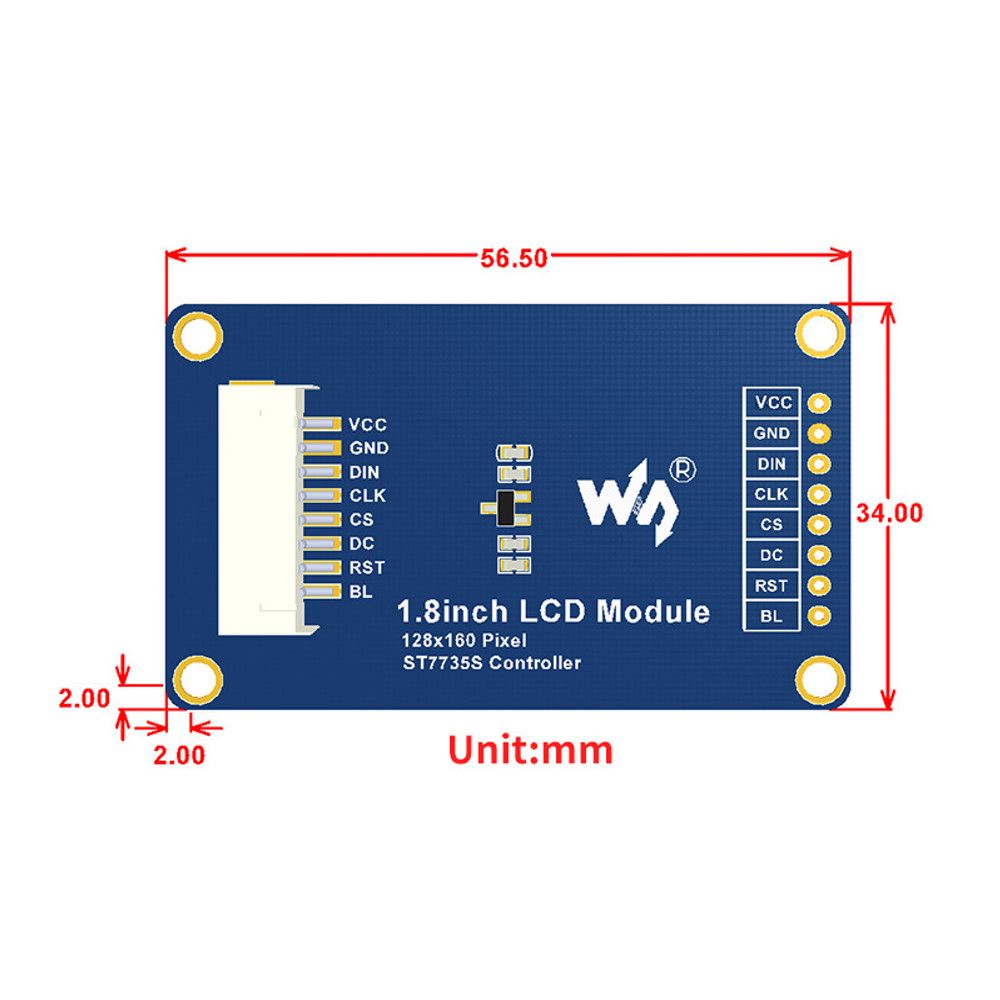

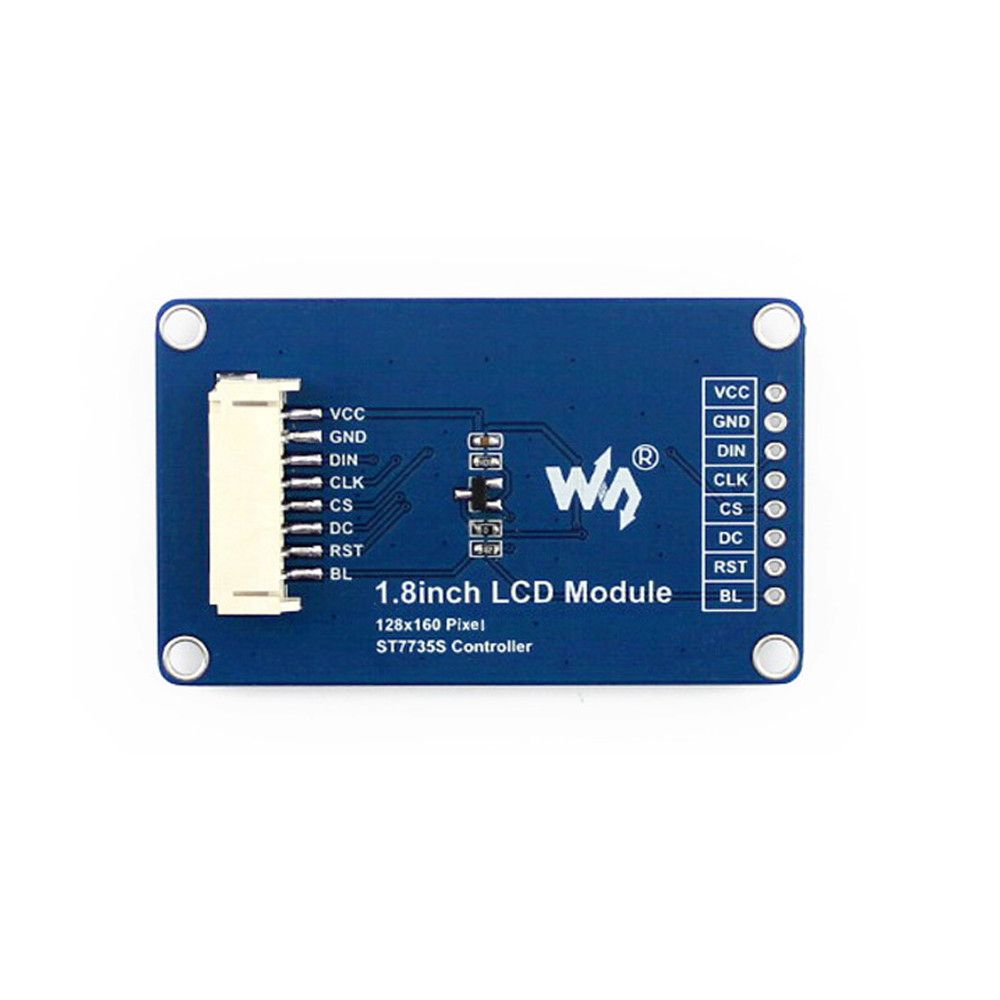

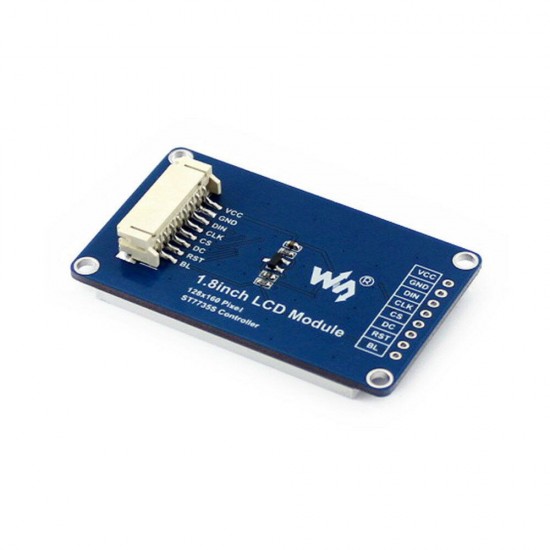

    Interface:

    SYMBOL DESCRIPTION
    VCC Power (3.3V input)
    GND Ground
    DIN SPI data input
    CLK SPI clock input
    CS Chip selection, low active
    DC Data/Command selection (high for data, low for command)
    RST Reset, low active
    BL Backlight

    Package includes:

    1 x 1.8inch LCD Module
    1 x PH2.0 20cm 8Pin
