10pcs Cortex-M3 STM32F103C8T6 STM32 Development Board On-board SWD Interface Support Programmed with ST-LINK V2

10pcs Cortex-M3 STM32F103C8T6 STM32 Development Board On-board SWD Interface Support Programmed with ST-LINK V2
10pcs Cortex-M3 STM32F103C8T6 STM32 Development Board On-board SWD Interface Support Programmed with ST-LINK V2
10pcs Cortex-M3 STM32F103C8T6 STM32 Development Board On-board SWD Interface Support Programmed with ST-LINK V2
10pcs Cortex-M3 STM32F103C8T6 STM32 Development Board On-board SWD Interface Support Programmed with ST-LINK V2
10pcs Cortex-M3 STM32F103C8T6 STM32 Development Board On-board SWD Interface Support Programmed with ST-LINK V2
10pcs Cortex-M3 STM32F103C8T6 STM32 Development Board On-board SWD Interface Support Programmed with ST-LINK V2
10pcs Cortex-M3 STM32F103C8T6 STM32 Development Board On-board SWD Interface Support Programmed with ST-LINK V2
10pcs Cortex-M3 STM32F103C8T6 STM32 Development Board On-board SWD Interface Support Programmed with ST-LINK V2
10pcs Cortex-M3 STM32F103C8T6 STM32 Development Board On-board SWD Interface Support Programmed with ST-LINK V2
$66.02
Ex Tax: $66.02
  • Stock: In Stock
  • Model: EB0041979
  • SKU: EB0041979
  • Voltage: 5V(USB)
    Precise details>>
    Description:

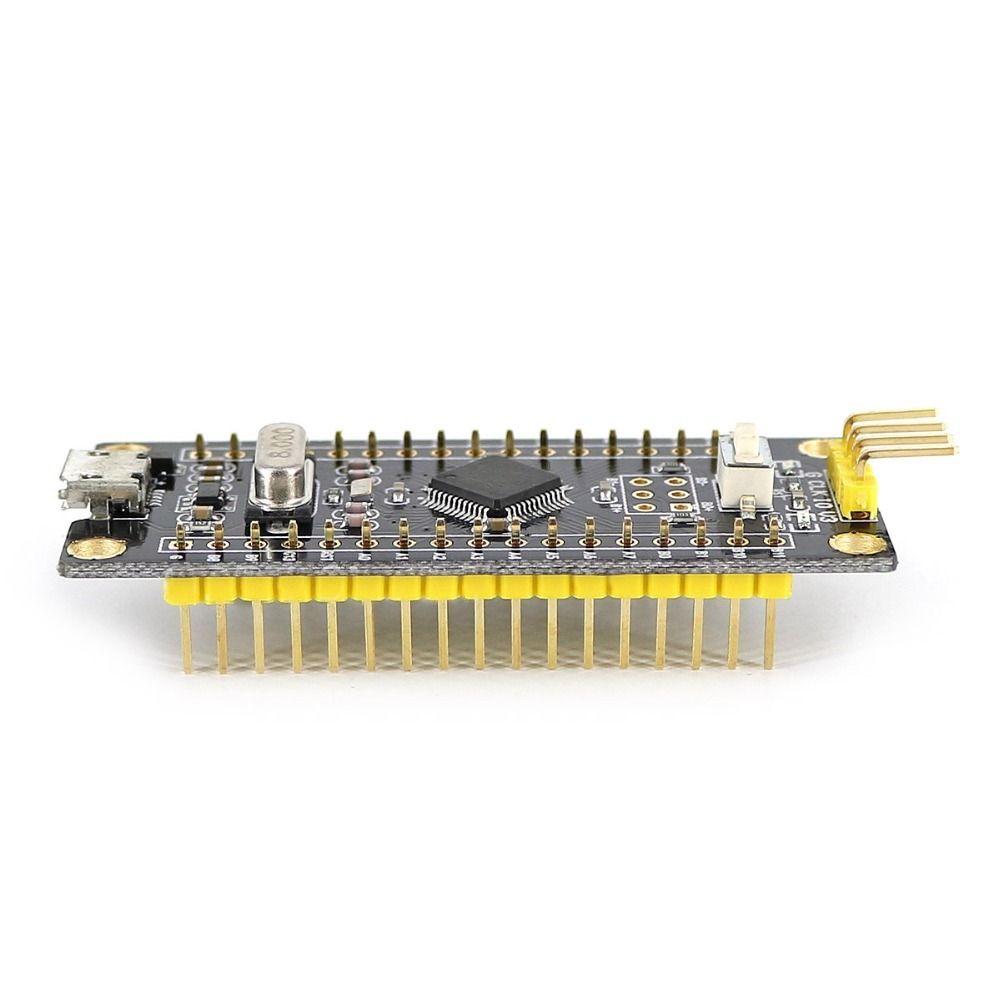

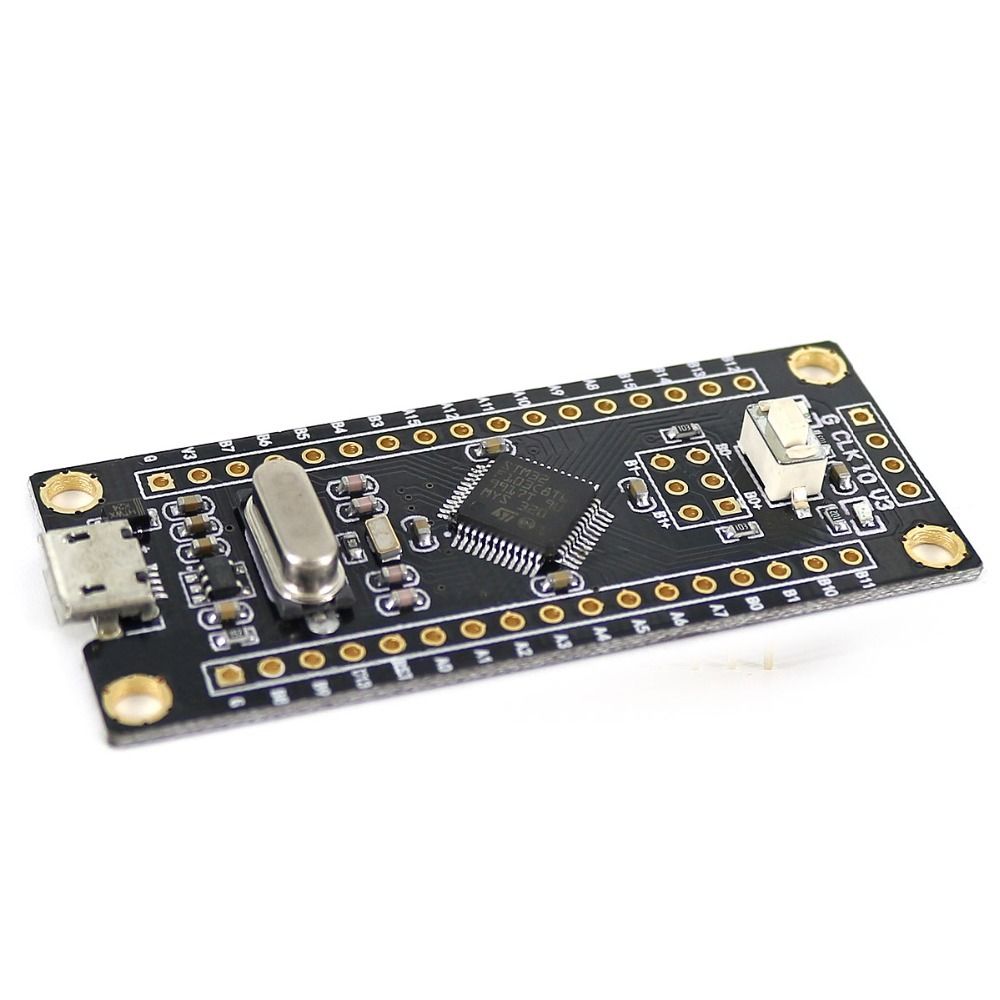

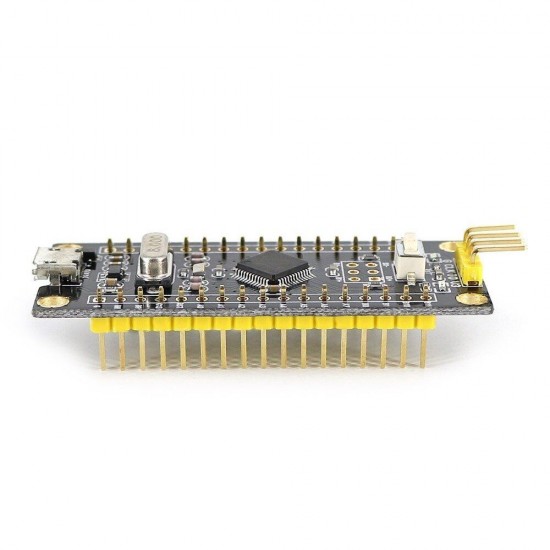

    About STM32 development board:

    - This board is very suitable for learners that want to learn STM32 microcontroller with ARM Coretex-M3 32-bit core.
    - On-board SWD interface, and it can be  programmed with ST-LINK V2.
    - Immersion gold process, long service life;
    - On-board reset button and power indicator LED.
    - Power supply connector: USB socket
    - On-board test indicator LED, and the beginners can program to control it.
    - On-board 100ma 3.3V Regulator.

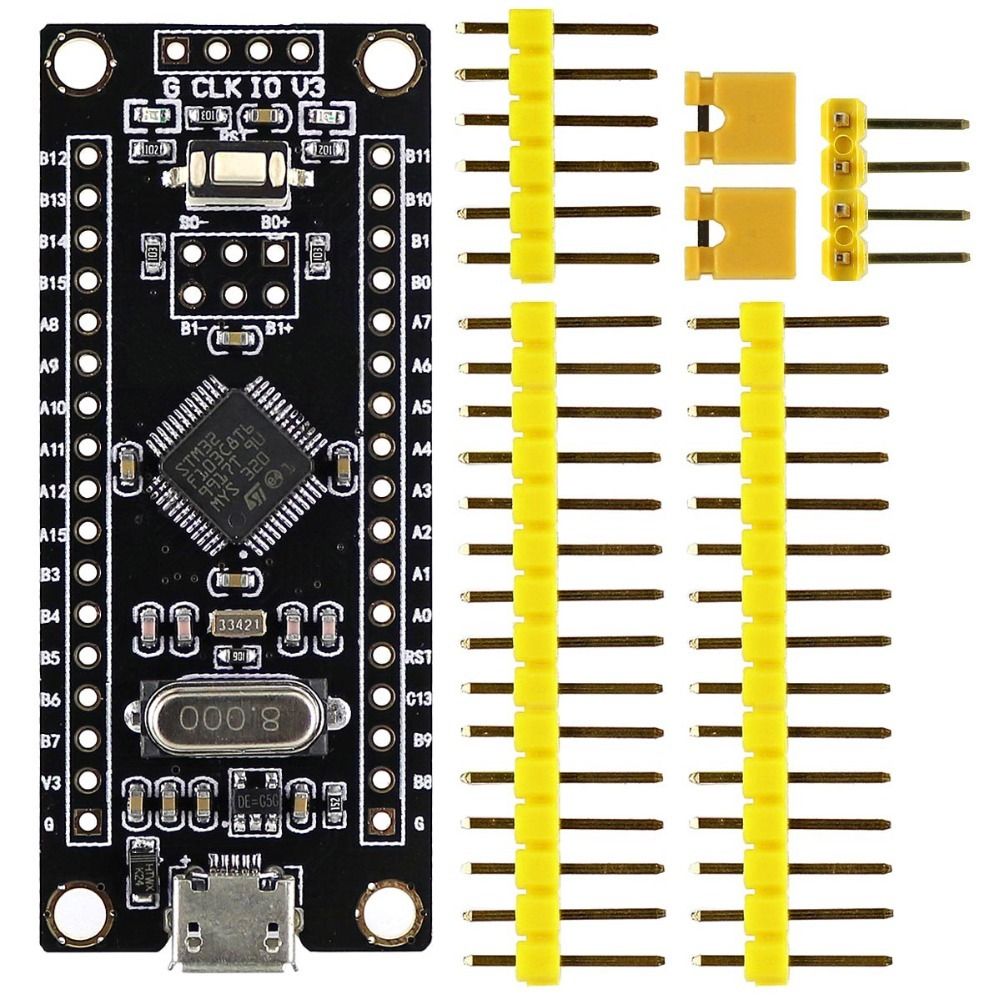

    - All GPIO are led out and the names of the pins are marked.
    - Microcontroller: STM32F103C8T6.
    - Burning times: 10k cycles
    - Operating voltage: 3.3 V.
    - IO logicvoltage: 3.3V
    - Digital I/O Pins: 37
    - Analog Input Pins: 10 (12bits).
    - Flash Memory: 64KB.
    - RAM: 20KB.
    - Programmable Clock Speed: 72 MHz (MAX).

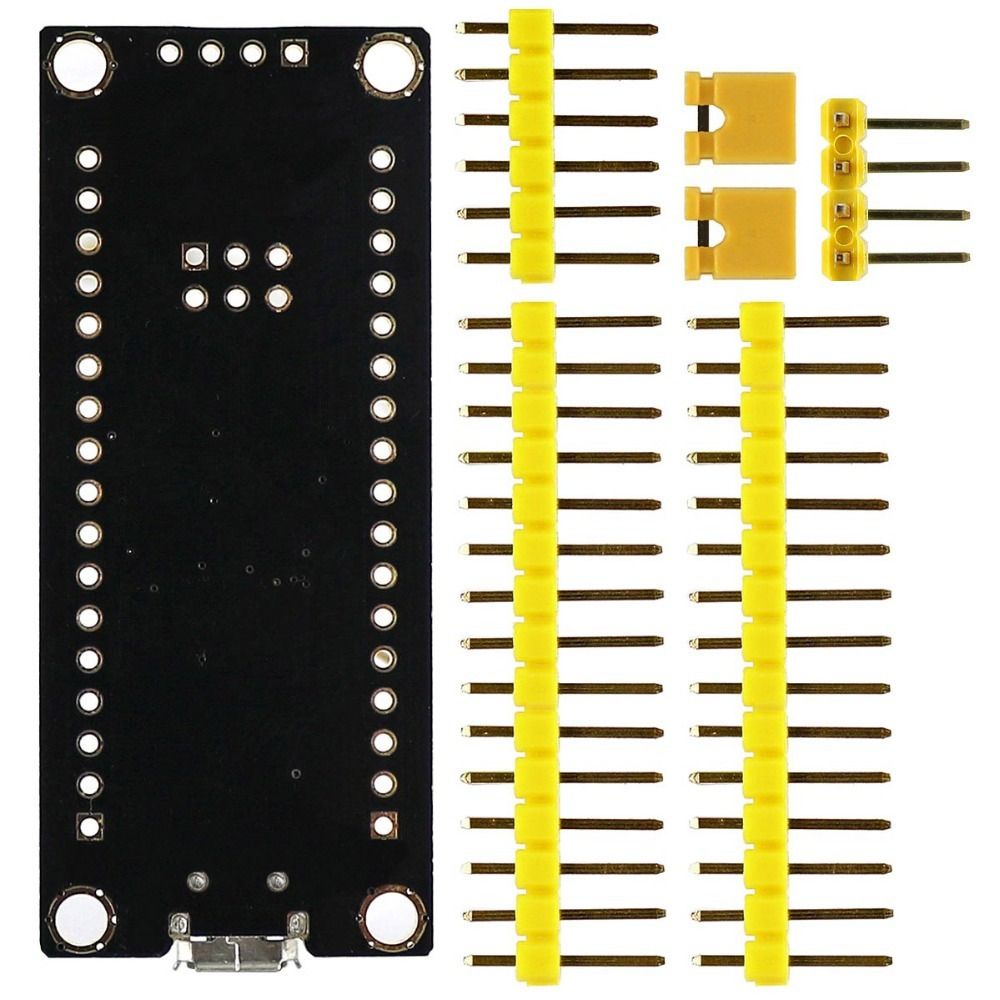

    Package includes:


    10 x STM32 board
    20 x Jumper
    10 x 6P pin header
    20 x 17P pin header
    10 x 4P pin header
