10pcs N76E003AT20 Core Controller Board Development Board System Board

10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
10pcs N76E003AT20 Core Controller Board Development Board System Board
$22.99
Ex Tax: $22.99
  • Stock: In Stock
  • Model: EB0041769
  • SKU: EB0041769
Description:

N76E003 is high-speed 1T 8050 series products. Provide 18KB Flash ROM, configurable Data Flash and high capacity 1KB SRAM,Support 2.4 V to 5.5 V wide working voltage and working temperature from 40 ℃ to 105 ℃.It has strong ability of anti-interference 7KV ESD/4KV EFT . N76E003 has 18pcs I/O feet packing by 20PIN .The interface includes double serial port, SPI, 12C and 6 channel PWM output.Build a high accuracy less than 2% error and high resolution of 16MHz RC crystal oscillator and high resolution 8-channel 12 bit ,which is superior to similar products.It has the function of self-awakening and underpressure detection. Provide TSSOP20(4mm*6.5mm) and QFN20(3mm*3mm) small package.It has high performance and design flexibility.

Feature:

1, 1T/8051: 1T MCU, 8051 classic core
2, 18KB Flash ROM: better than 8KB Flash.And all can be used as data storage space
3, 1024B SRAM
4, 17+1 input interface: better than 16 GPIO
5, 2*UART, SPI, 12C: better than SPI/12C/UART(one more UART)
6, 8ch of 12bit ADC, Superior to 5 channel 10bit ADC
7, 6ch of individual duty PWM: superior to 3 channel PWM output
8, 10KHz LIRC for WDT reset/WKT
9, 16MHz HIRC ±1% Room temp. ±2% full condition
10, -40~105℃ wide temperature area
11, 2.4V-5.5V wide working voltage range
12, TSSOP20/QFN20
13, ESD&EFT: HBM/8KV MM/400V, Over 4KV, Good ESD and EFT, anti interference and ESD protection

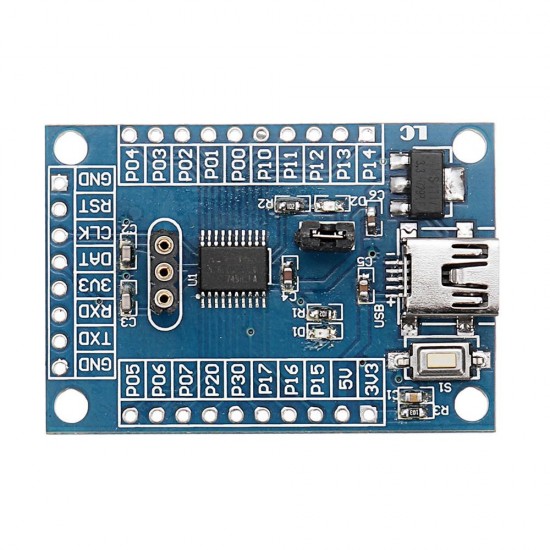

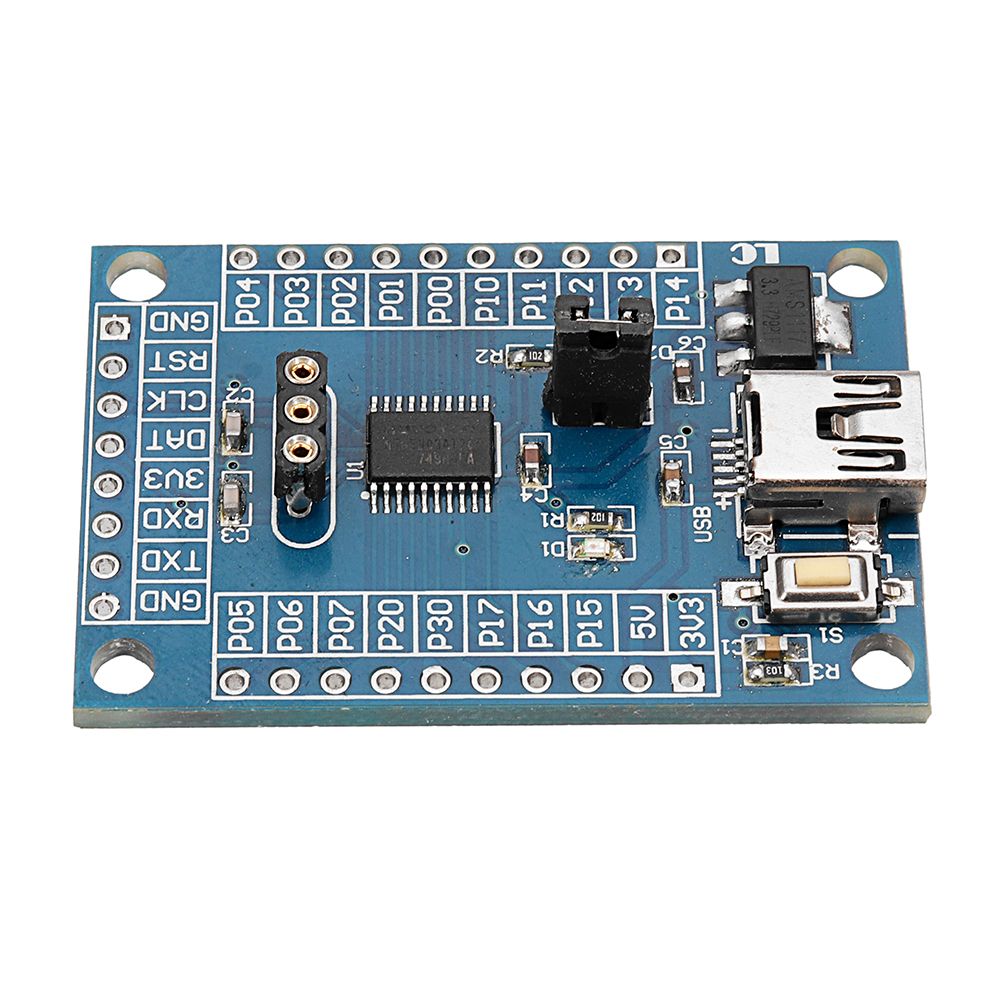

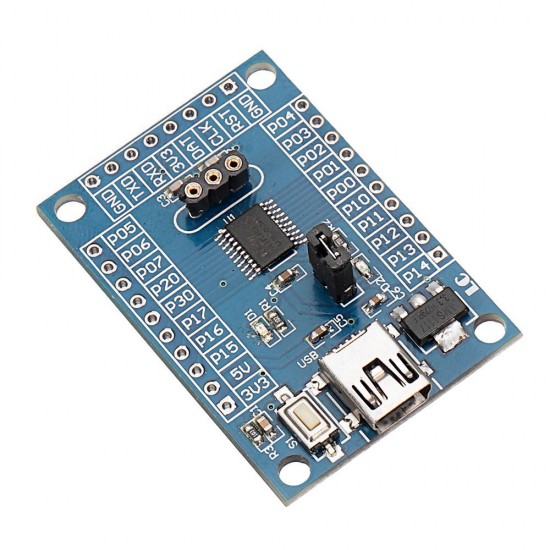

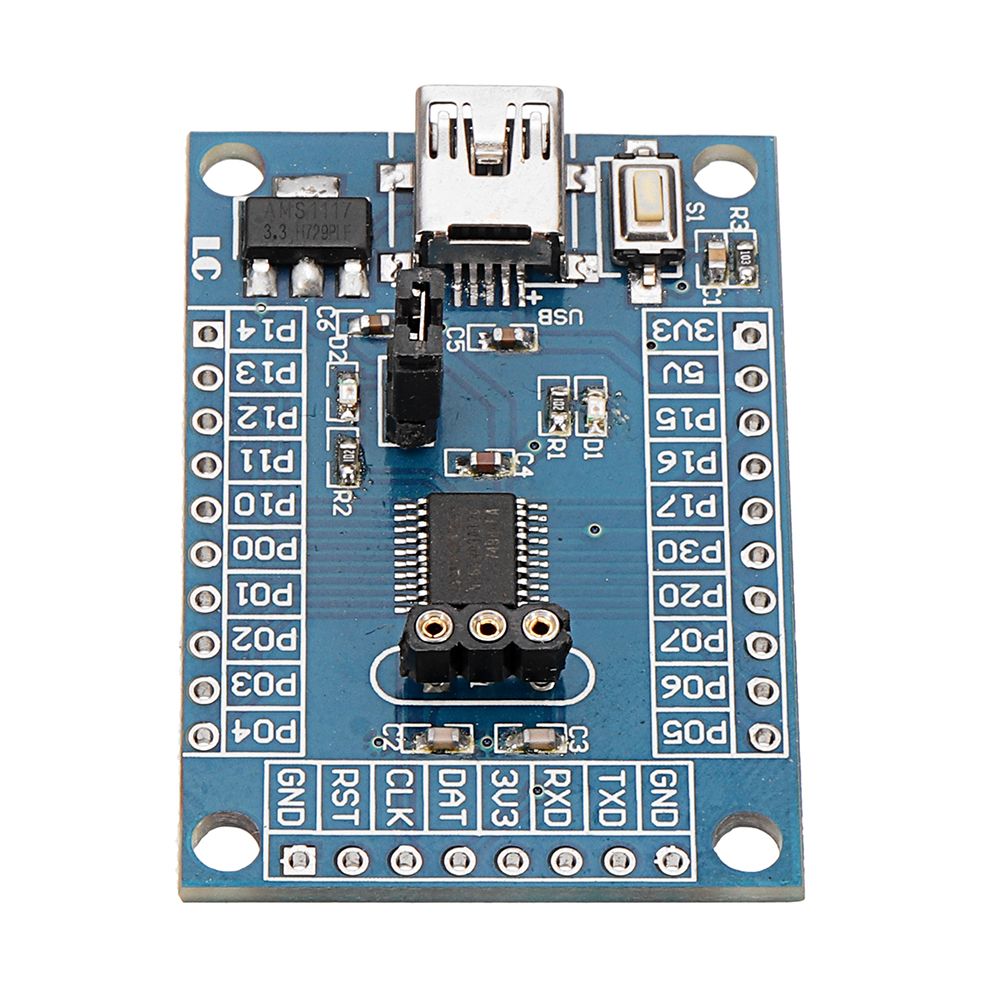

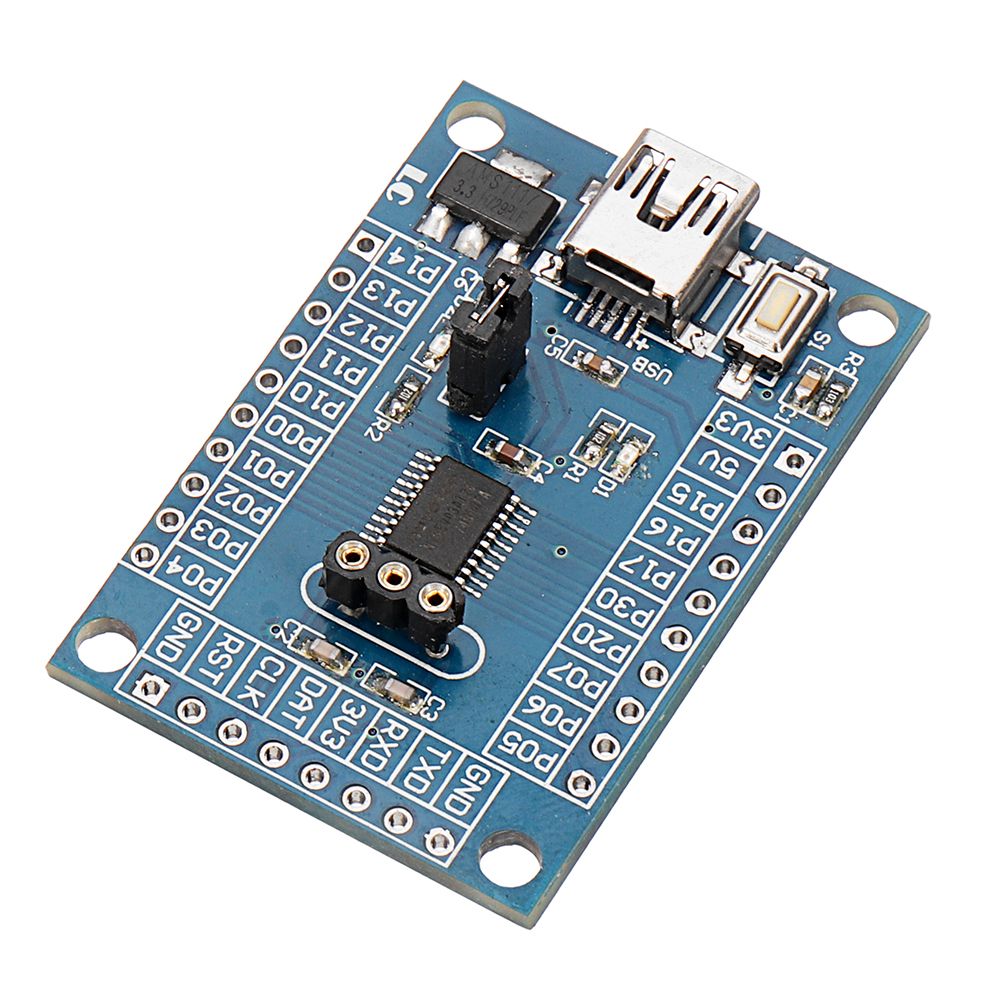

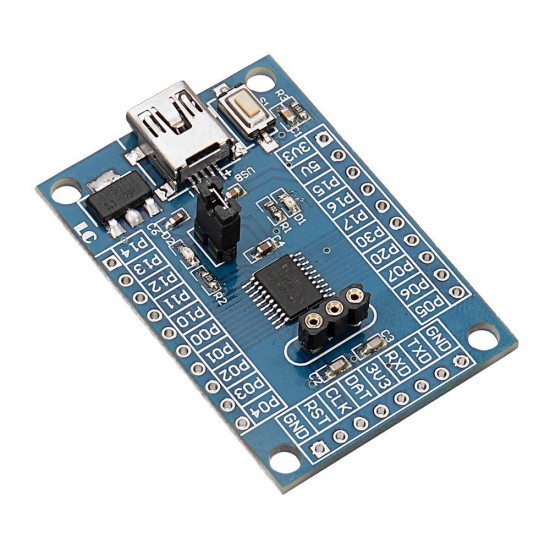

14, On board MINI USB power supply interface, reset button and AMS1117-3.3V stable voltage chip
15, On board external crystal oscillator interface and programmable LED (P12 foot) jumper cap (I/O control LED when jumper is connected)
16, All I/O ports are extracted with a 2.54mm pin

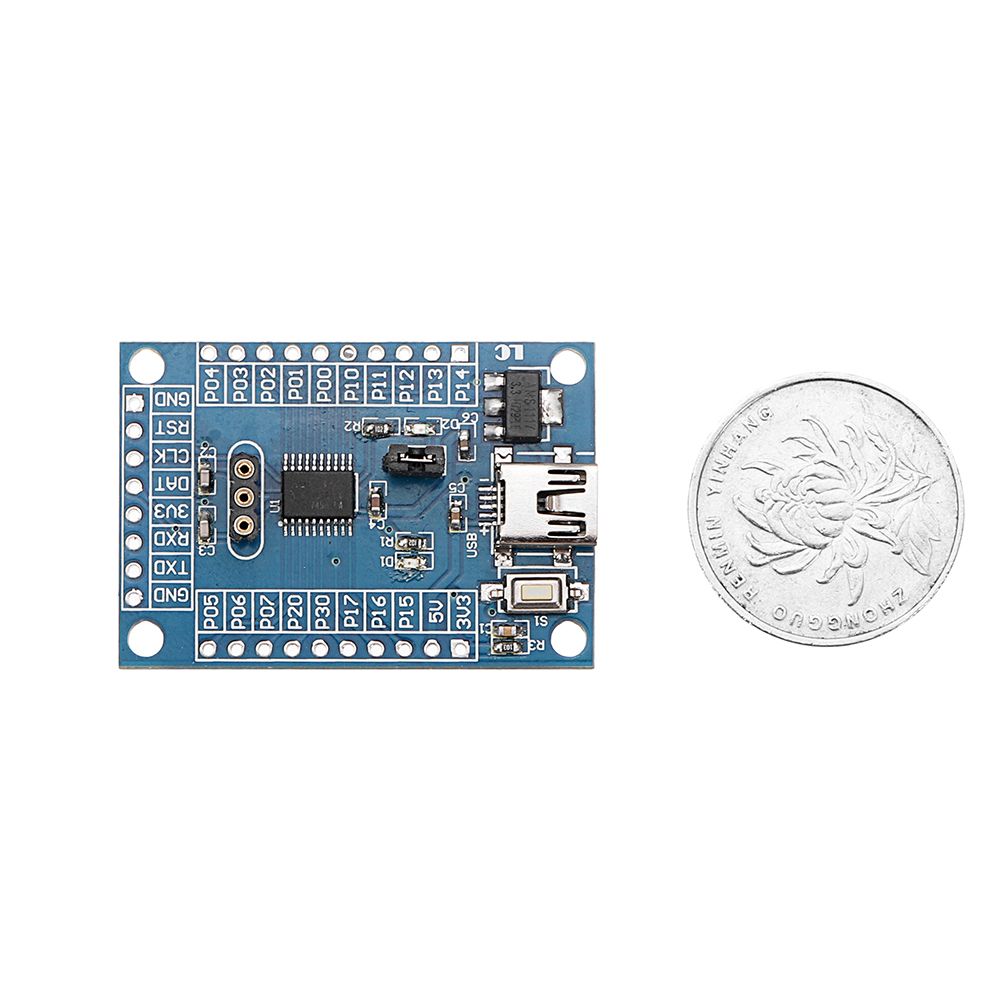

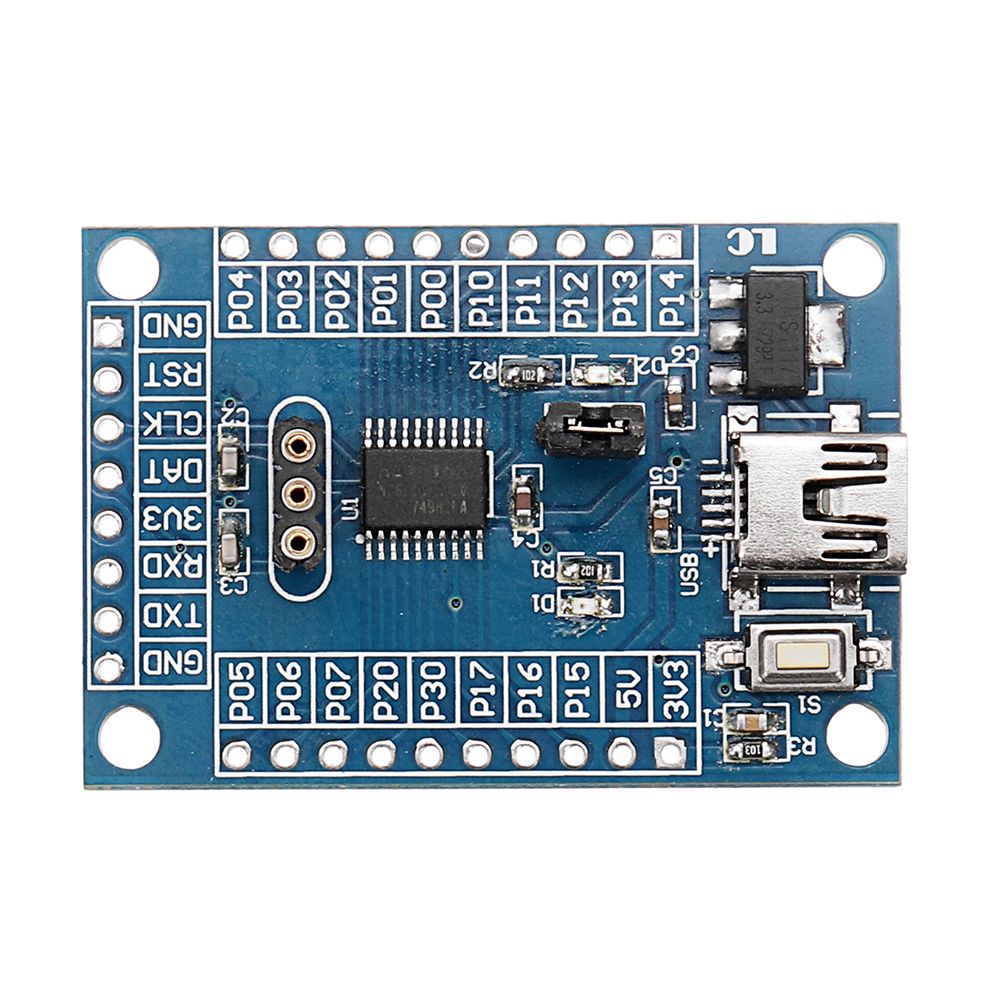

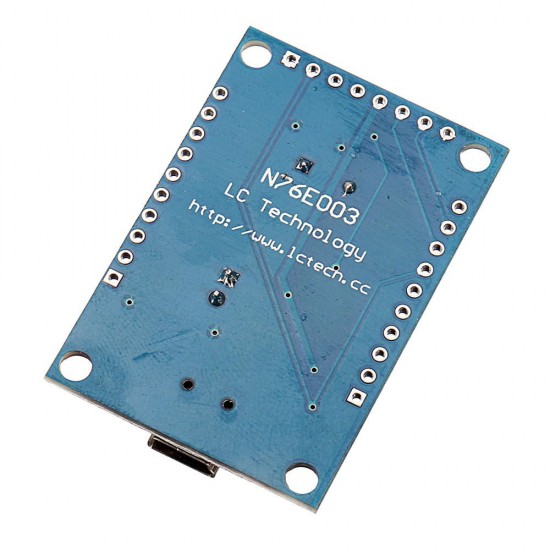

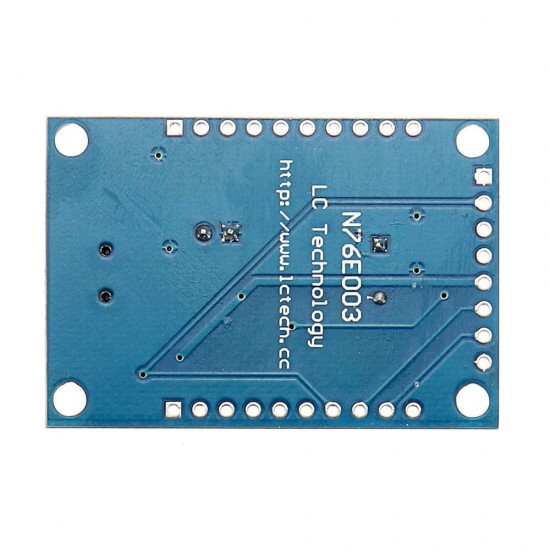

17, Board size: 43.4mm*29.8mm

Interface instruction:

5V/3.3V: positive of working pressure
GND: negative of working voltage
TX: sender PIN of module serial port, could connect RXD of MCU
RX: receiver PIN of module serial port, could connect TXD of MCU
DAT, CLK, RST: Nu-Link program download port

Package included:

10 x N76E003AT20 Core Controller Board Development Board
