3pcs 3.3V 8MHz for Arduino - products that work with official for Arduino boards

3pcs 3.3V 8MHz for Arduino - products that work with official for Arduino boards
3pcs 3.3V 8MHz for Arduino - products that work with official for Arduino boards
3pcs 3.3V 8MHz for Arduino - products that work with official for Arduino boards
3pcs 3.3V 8MHz for Arduino - products that work with official for Arduino boards
3pcs 3.3V 8MHz for Arduino - products that work with official for Arduino boards
3pcs 3.3V 8MHz for Arduino - products that work with official for Arduino boards
3pcs 3.3V 8MHz for Arduino - products that work with official for Arduino boards
3pcs 3.3V 8MHz for Arduino - products that work with official for Arduino boards
3pcs 3.3V 8MHz for Arduino - products that work with official for Arduino boards
3pcs 3.3V 8MHz for Arduino - products that work with official for Arduino boards
3pcs 3.3V 8MHz for Arduino - products that work with official for Arduino boards
$16.99
Ex Tax: $16.99
  • Stock: In Stock
  • Model: EB0041834
  • SKU: EB0041834

Feature:

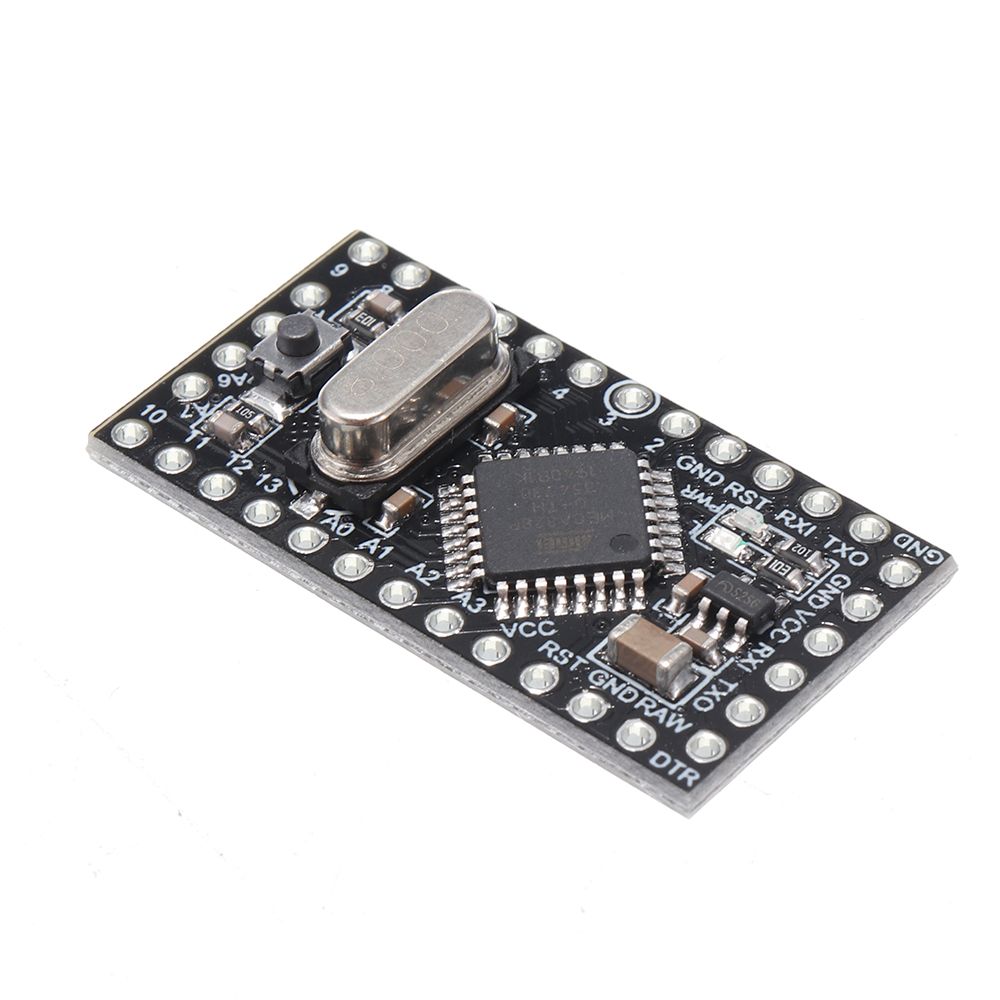

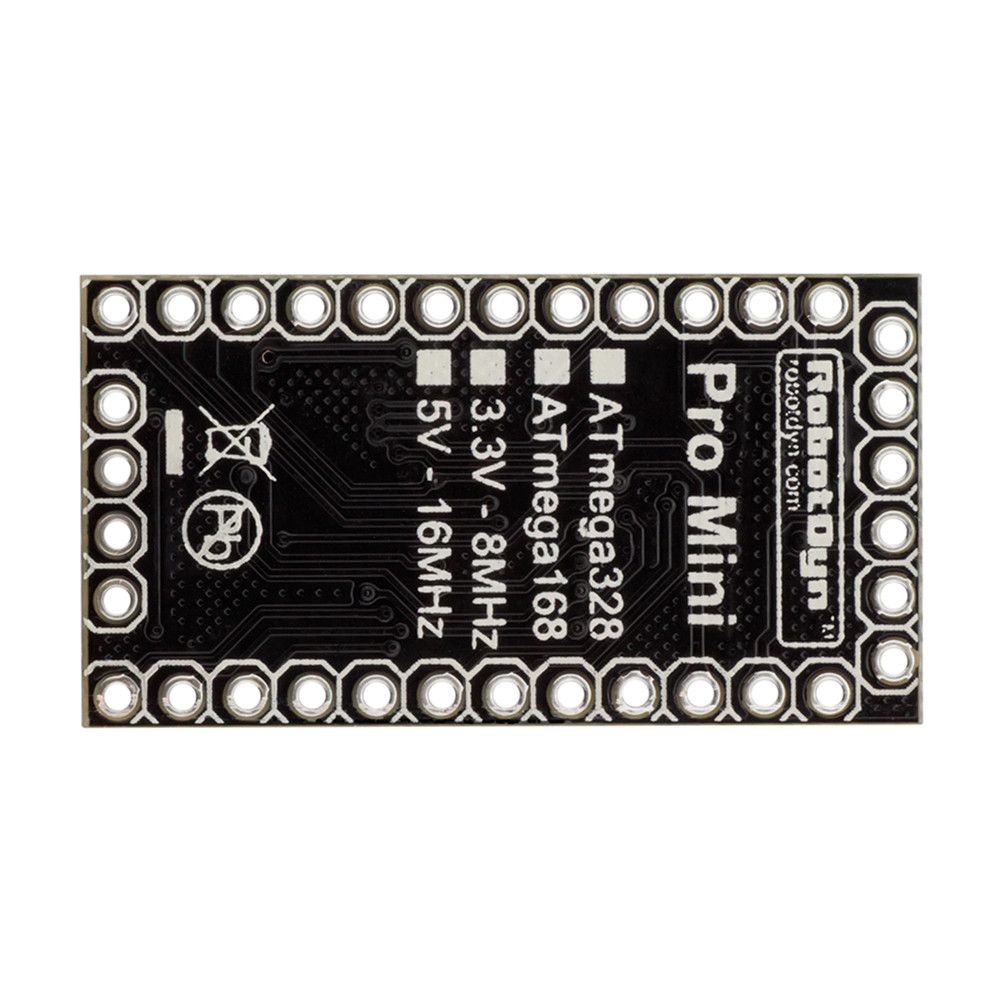

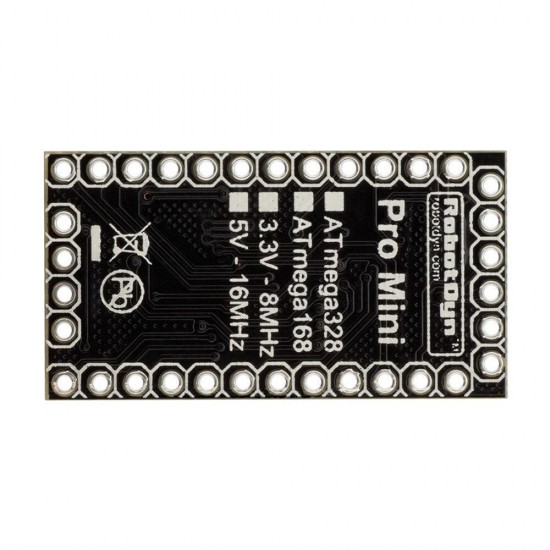

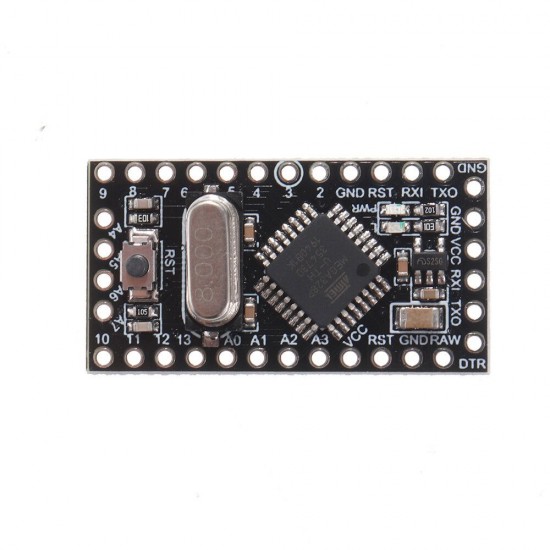

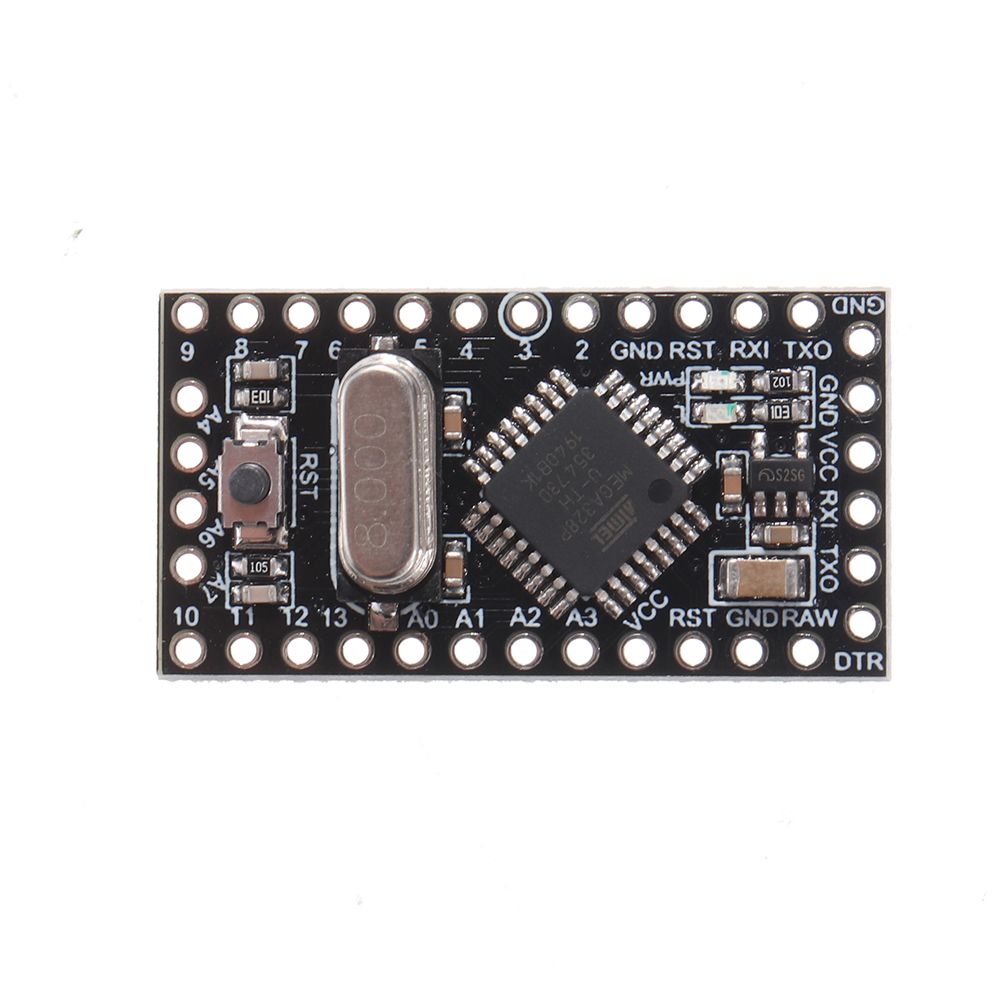

Pro Mini is based on the ATmega328 (AVR) microcontroller.

Has 14 digital Inputs / Outputs (6 from which can be used as PWM outputs), 8 analog Inputs. Reset button.

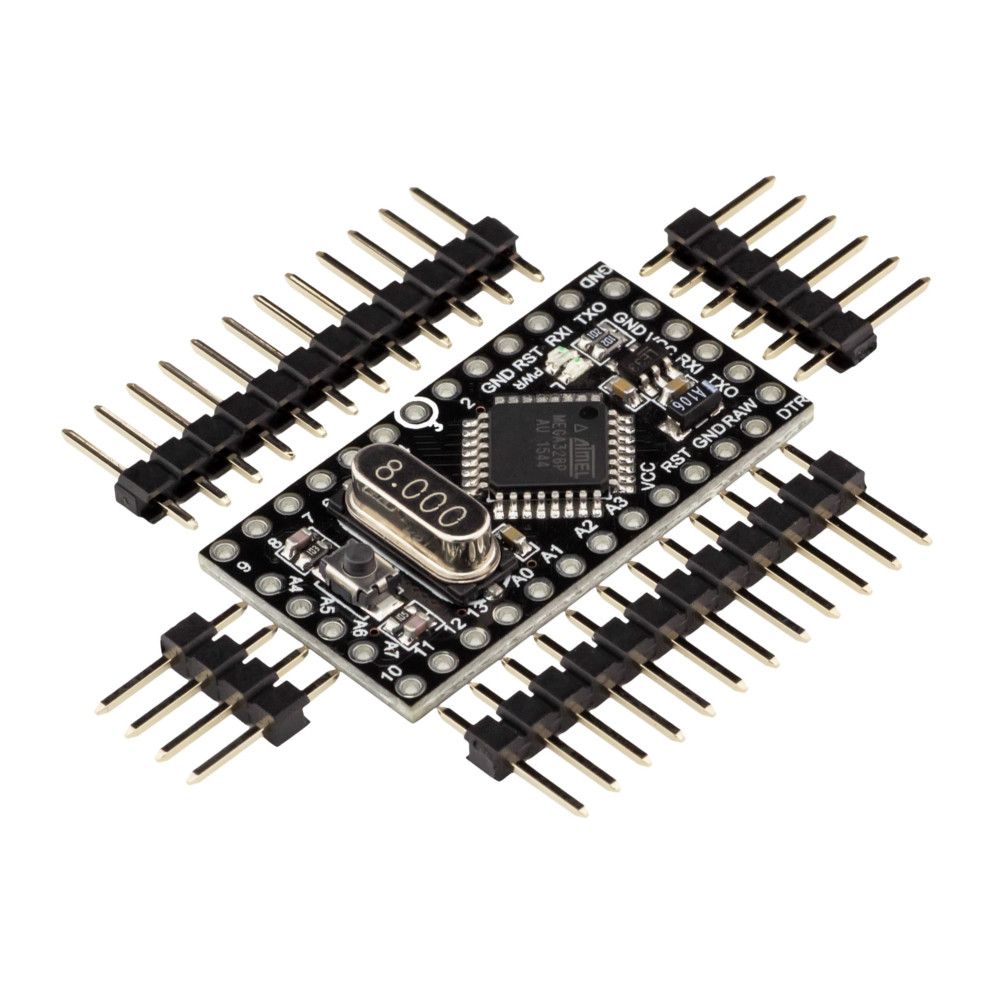

Mounting receptacles are included in the package but aren't soldered.

For connection Pro Mini to the computer, it is necessary to use the USB-UART adapter, which you can find on our site. Or for updating of firmware via the ISP interface (the programmer is required).

Unregulated power is applied to RAW, with 4-9V (for 3.3V) and 6-9V (for 5V), and the  is 12V.

The power supply regulator will reduce it to a logic level. (Please note that the higher the input voltage the higher after current stabilizer.

Operating current up to 350mA.

Specifications:

Microcontroller

ATMega328

Power Out

3.3V/5V-400mA

Power Consumption

3.3V/5V 400mA

Logic Level

3.3V/5V

Clock Frequency

8MHz

Operating Supply Voltage

3.3V (this item) /5V (Contact Us)

Digital I/O

14(6-PWM)

Analog I/O

8

Memory Size

16Kb/32Kb

Data RAM Type/Size

2Kb

Data ROM Type/Size

1Kb

Interface Type

ISP

Operating temperature

−40С°/+85С°

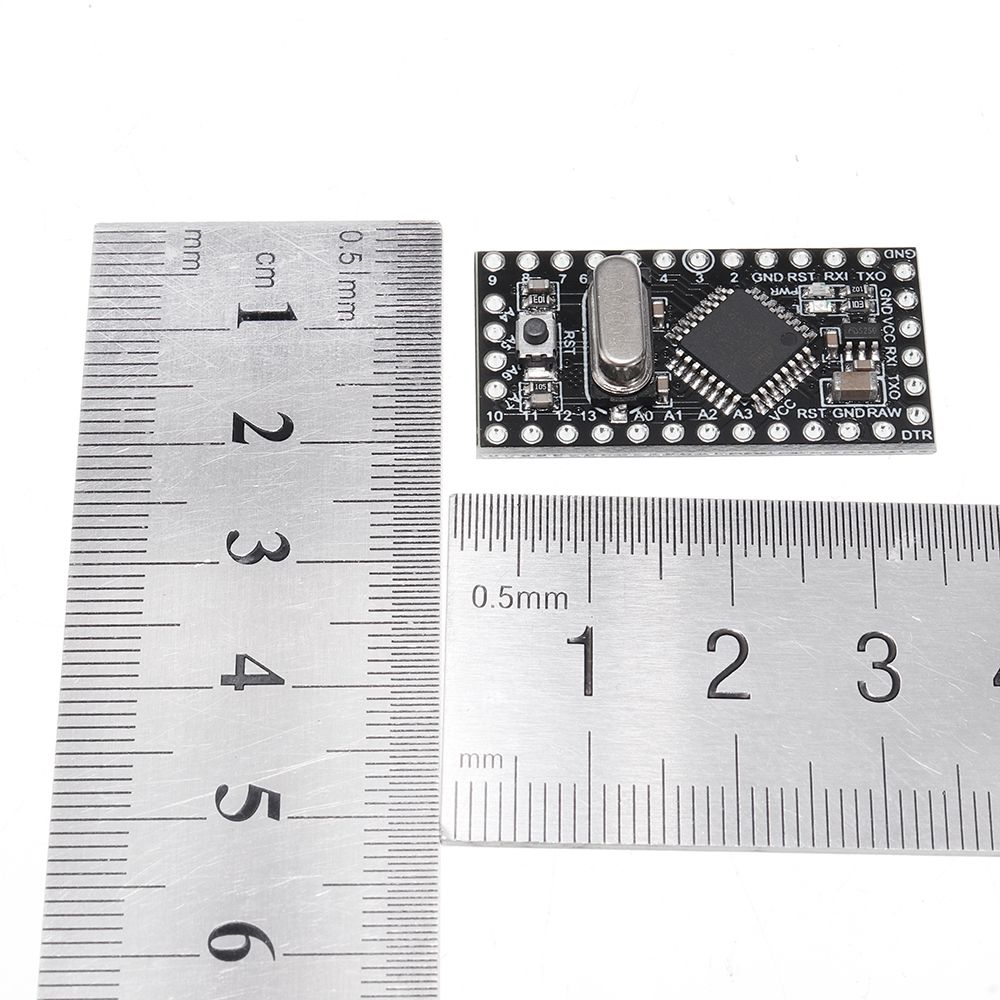

Length×Width

33.02×17.78mm


Package includes:

3 x ProMini ATmega328P Board

Dimensional drawing: Click here to open

Pinout: Click here to open

Schematic: Click here to open
