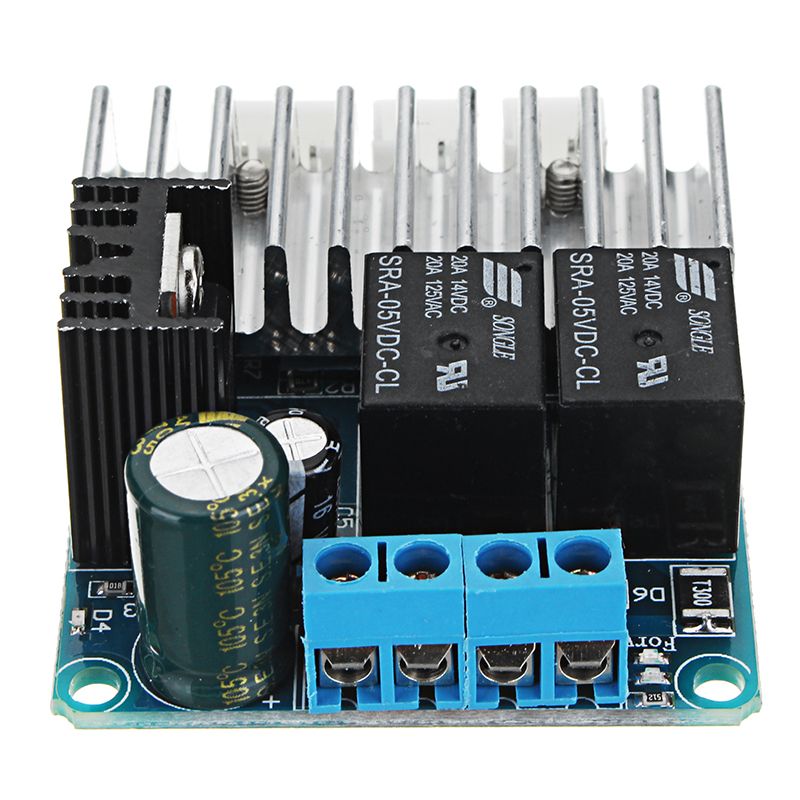

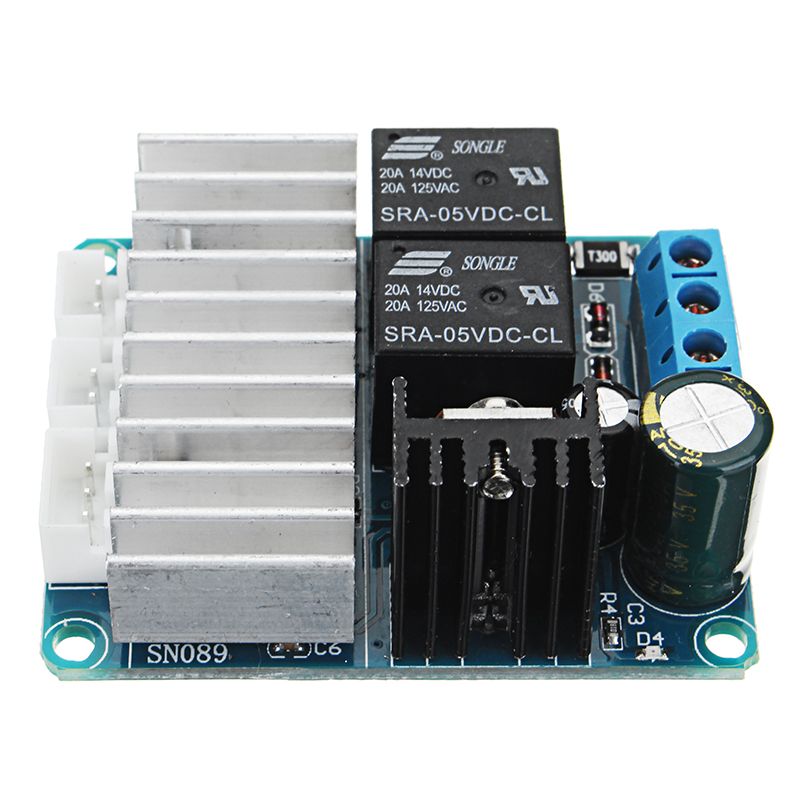

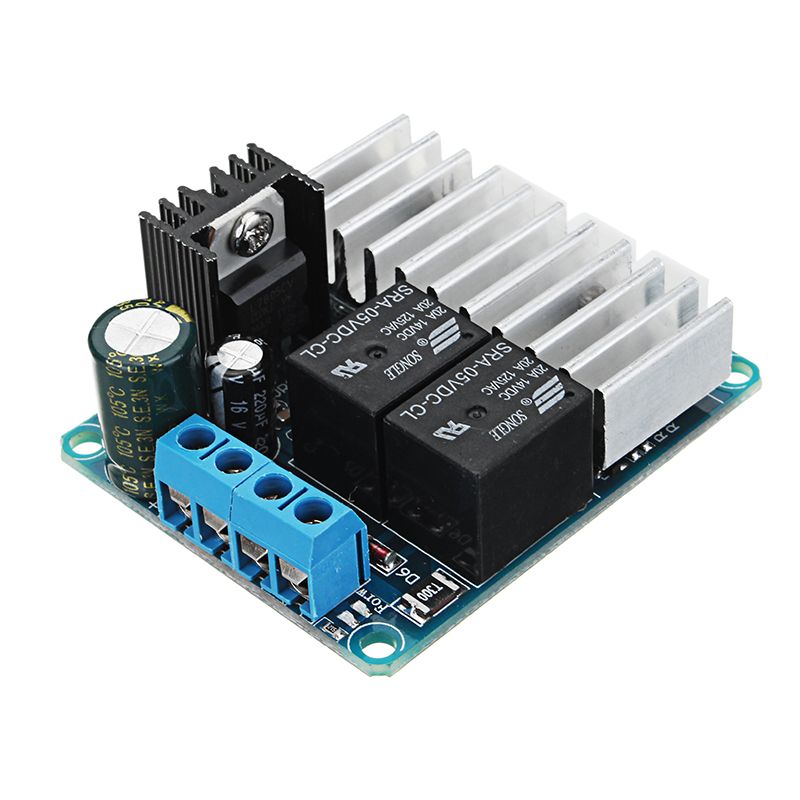

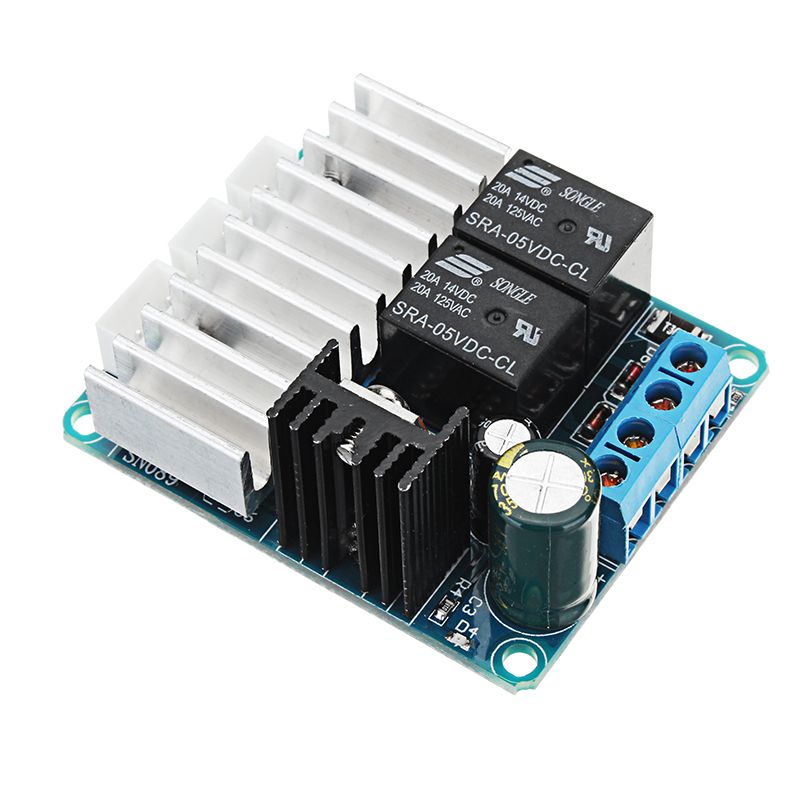

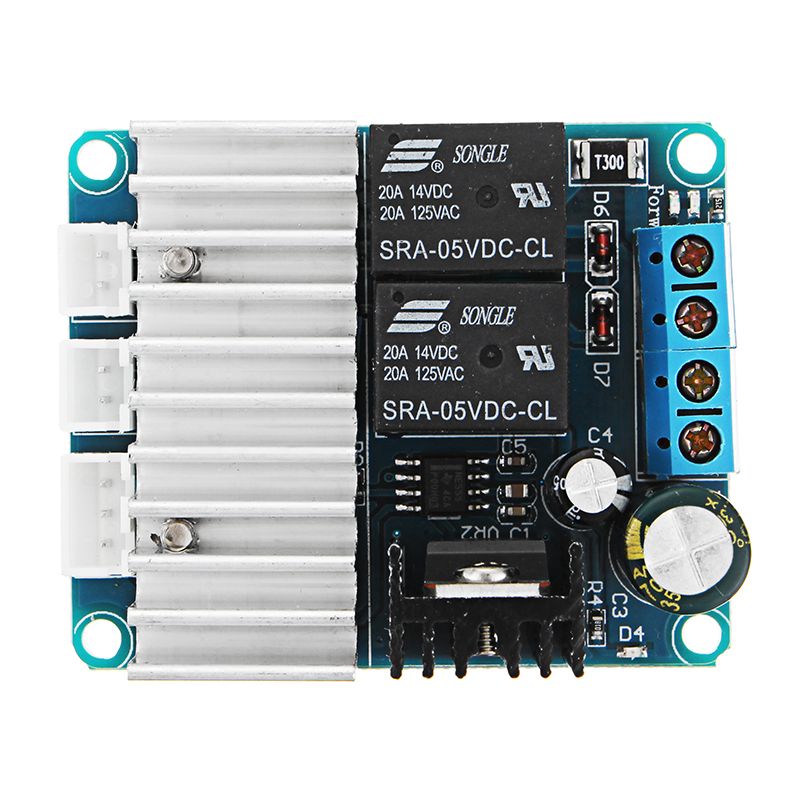

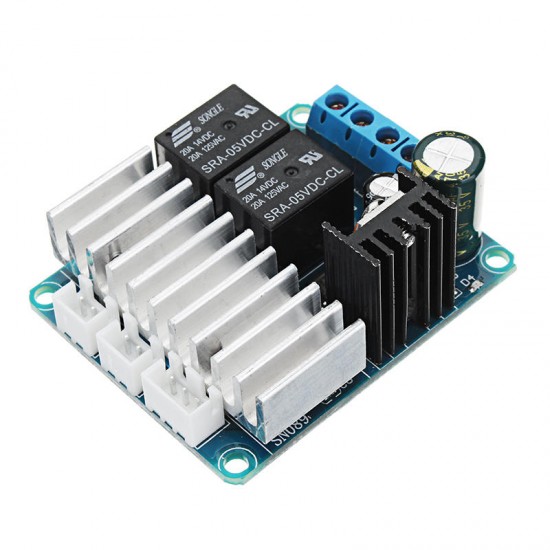

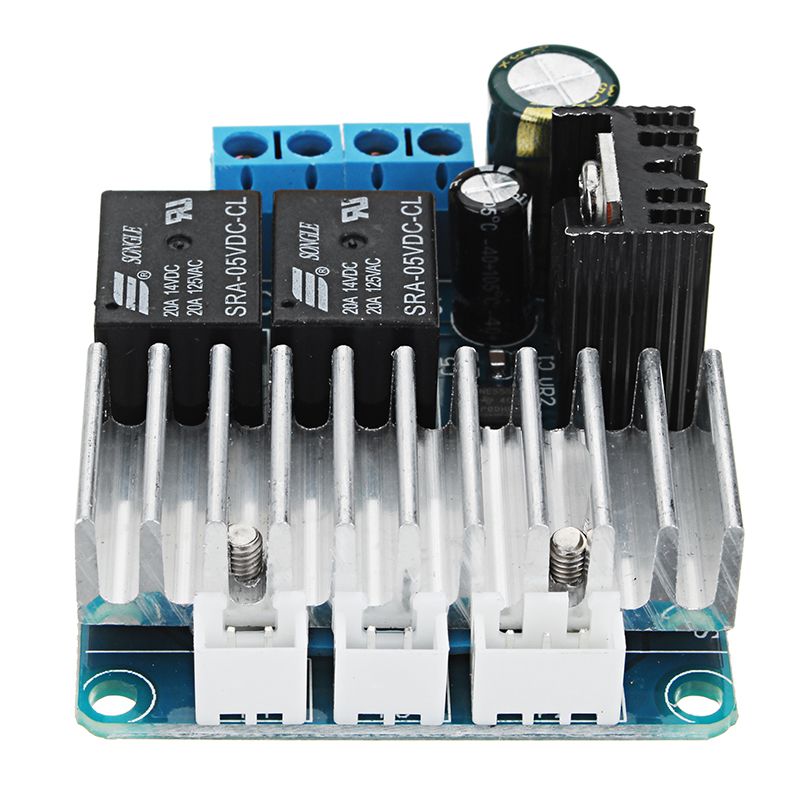

DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller

DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
DC7-30V 10A PWM 300W Stepless Speed Regulator Motor Driver Controller
$12.99
Ex Tax: $12.99
  • Stock: In Stock
  • Model: EB0051598
  • SKU: EB0051598
Content-Length: 2381 >
Feature:

Note: This PMW reversible stepless speed controller is a lock-free button switch, loose button motor does not rotate.

Input voltage: DC7-30V
Output voltage: Linear under load
Output current: 0-10A
Maximum power: 300W
Speed type: adjust flow
Speed control method: Potentiometer (0-5V)
Speed range: 0 - 100%
Control frequency: 25KHZ
Wiring type: Terminals
Knob line length: 20CM
Module size: 56mm*46mm*25mm (length * width * height )

Instructions:

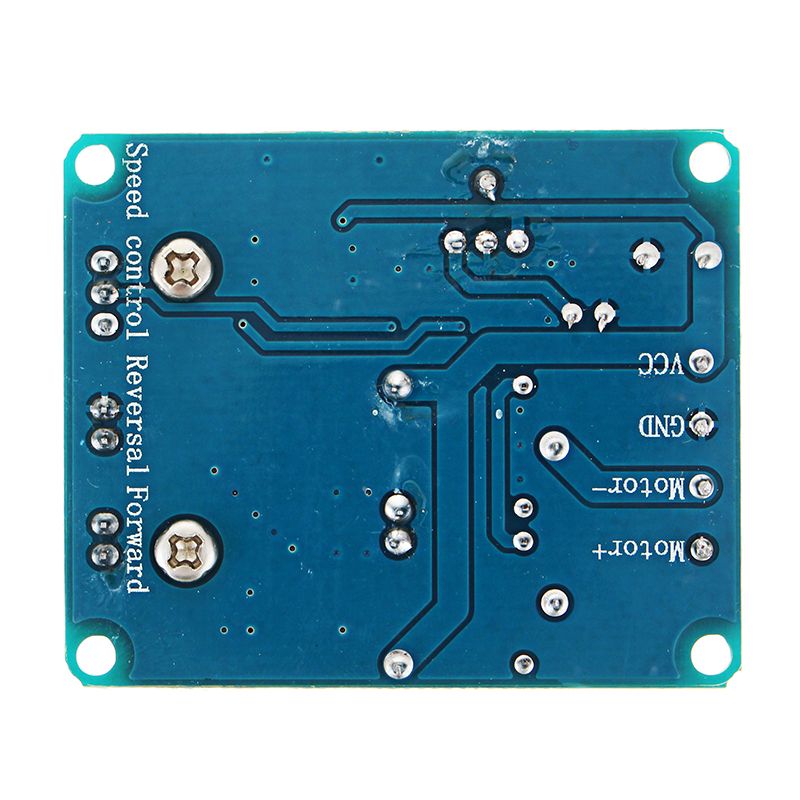

1. Connect the DC power supply to the positive and negative poles. The power indicator light is on. Ensure that the DC power supply voltage is greater than 7V and less than 30V to ensure that the power output meets the motor work requirements.
2. Connect the motor, the motor line has no direction.
3. Hold the lock-free key switch, the corresponding indicator light, the motor forward or reverse, adjust the potentiometer knob, control the motor speed.
4. Release the switch, the motor stops rotating.

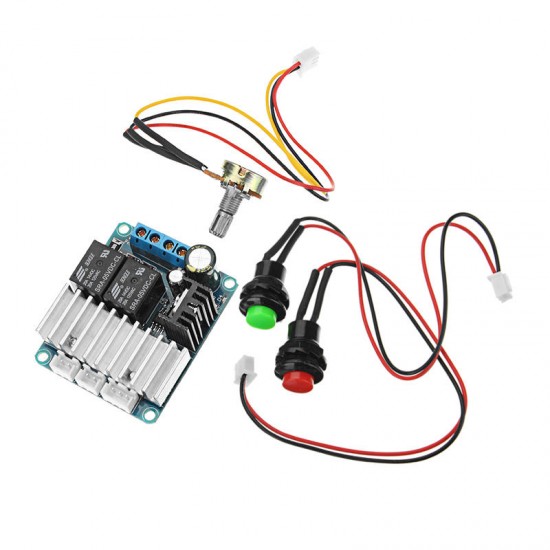

Package includes:

1 x Motor Controller

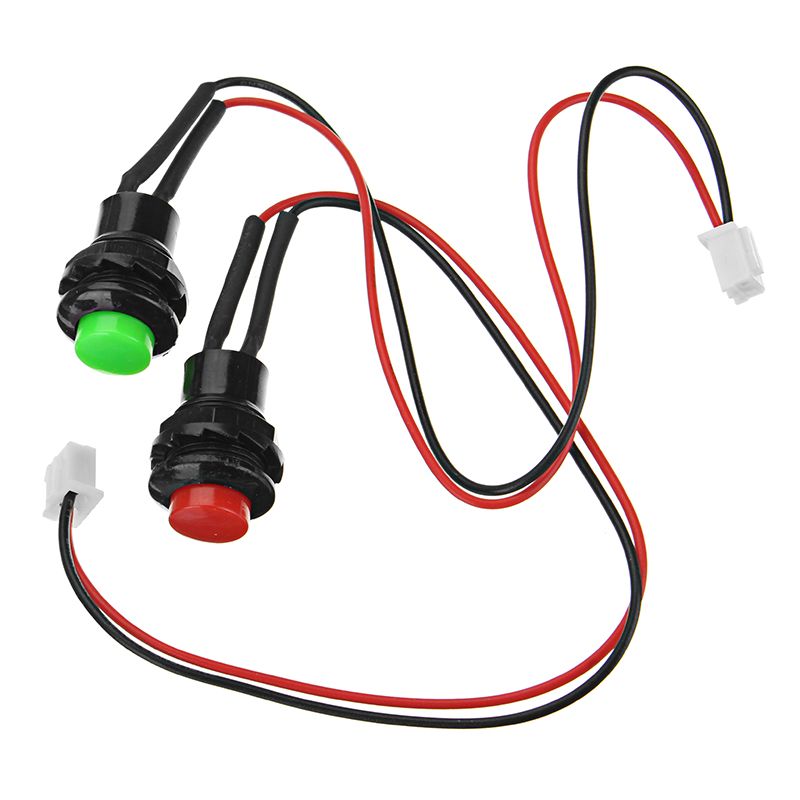

2 x Button with cable

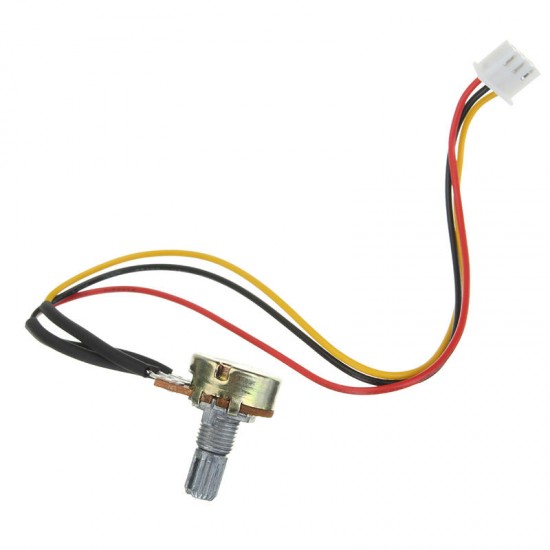

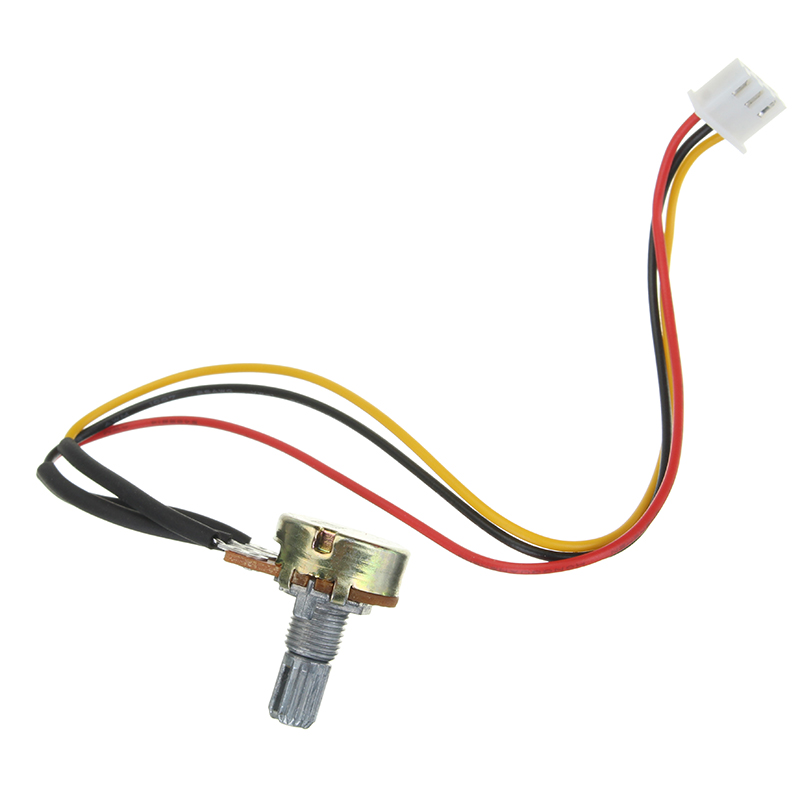

1 x Potentiometer with cable
